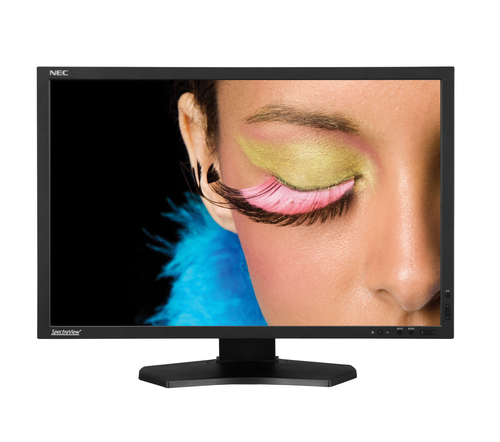

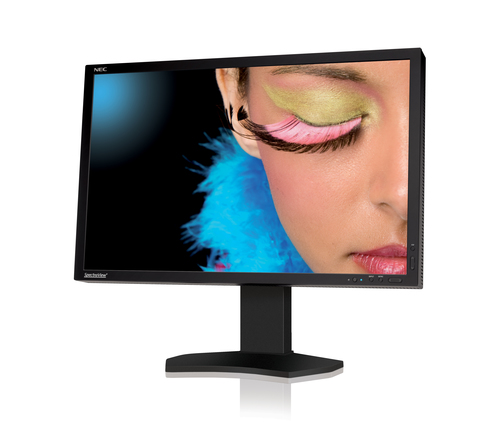

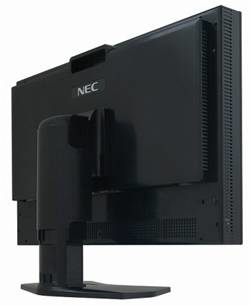

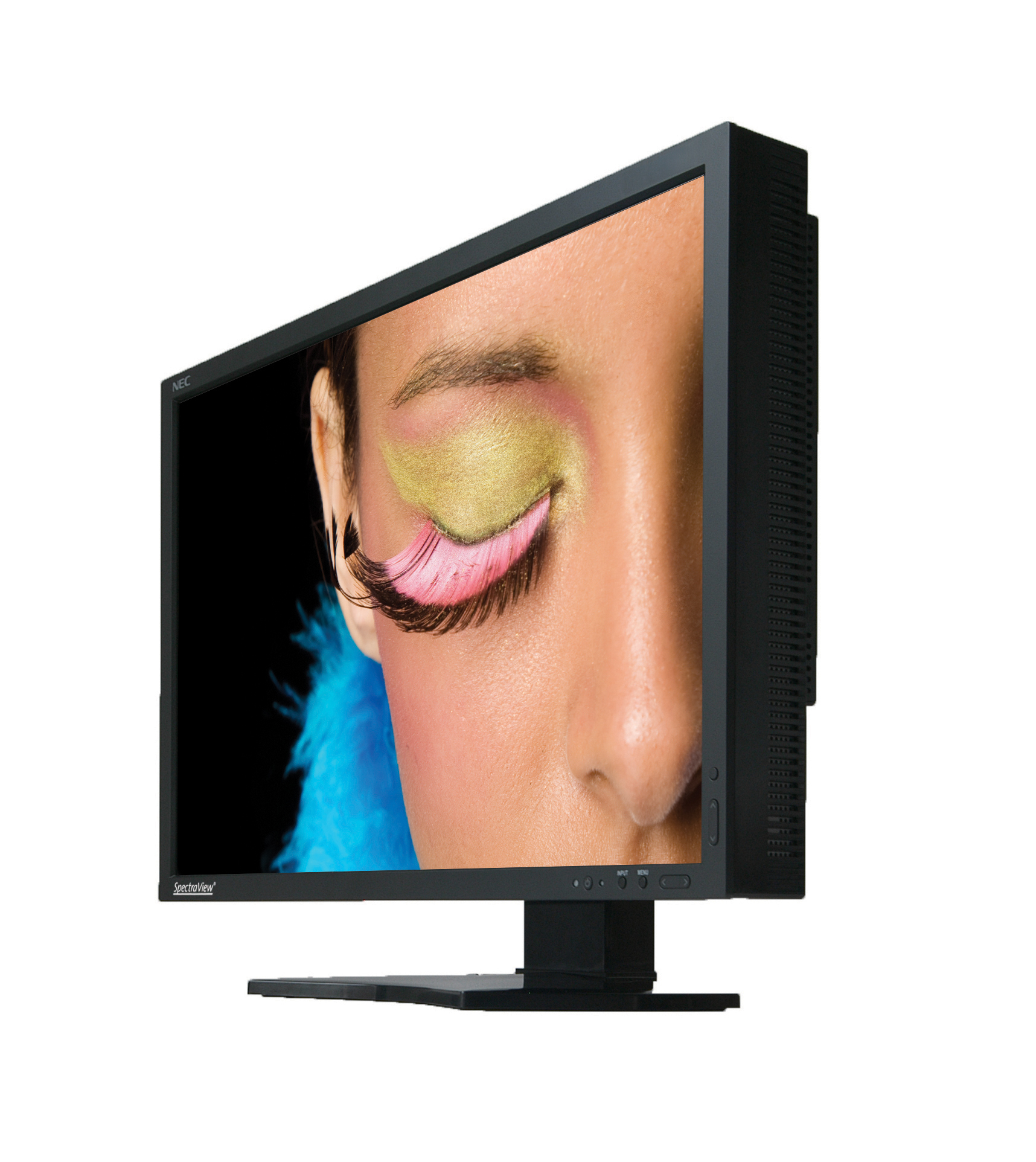

SpectraView 242 computer monitor
61 cm (24") 1920 x 1200 pixels LED Black
Model 242Part no. 60003544EAN 4053162606784
76 specifications Checked today
- Display61 cm (24")
- Resolution1920 x 1200 pixels
- Energy classC
- ColourBlack
- Built-in speaker(s)No
- Market positioningBusiness
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1200 pixels
- Energy class
- C
- Colour
- Black
- Built-in speaker(s)
- No
- Market positioning
- Business
- Brand
- NEC
- Category
- Monitor
- Model
- 242
- Part number
- 60003544
- EAN / UPC
- 4053162606784, 5028695110359, 5054533617612
- Also known as
- NEC SpectraView 242 computer monitor 61 cm (24") 1920 x 1200 pixels LED Black
Specifications
76 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| Panel type | AH-IPS |
| Backlight type | RGB LED |
| Display brightness (typical) | 340 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 720 x 400, 720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1200 x 1920, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080p, 480p, 576p, 720p |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Horizontal scan range | 31.5 - 93.8 kHz |
| Vertical scan range | 50 - 85 Hz |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 30° |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 37 W |
| Power consumption (max) | 56 W |
| Power consumption (PowerSave) | 2 W |
| AC input voltage | 100 - 240 V |
| Annual energy consumption | 54 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 556.8 mm |
| Depth (with stand) | 227.6 mm |
| Height (with stand) | 528 mm |
| Weight (with stand) | 10.6 kg |
| Width (without stand) | 556.8 mm |
Packaging data
| Specification | Value |
|---|---|
| User Guide on CD-ROM | Yes |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| ECO mode | Yes |
| Energy efficiency class (legacy scale) | C |
| Power consumption (economy mode) | 28 W |
| Certification | C-tick; CCC; CE; EAC; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PSB; RoHS; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
