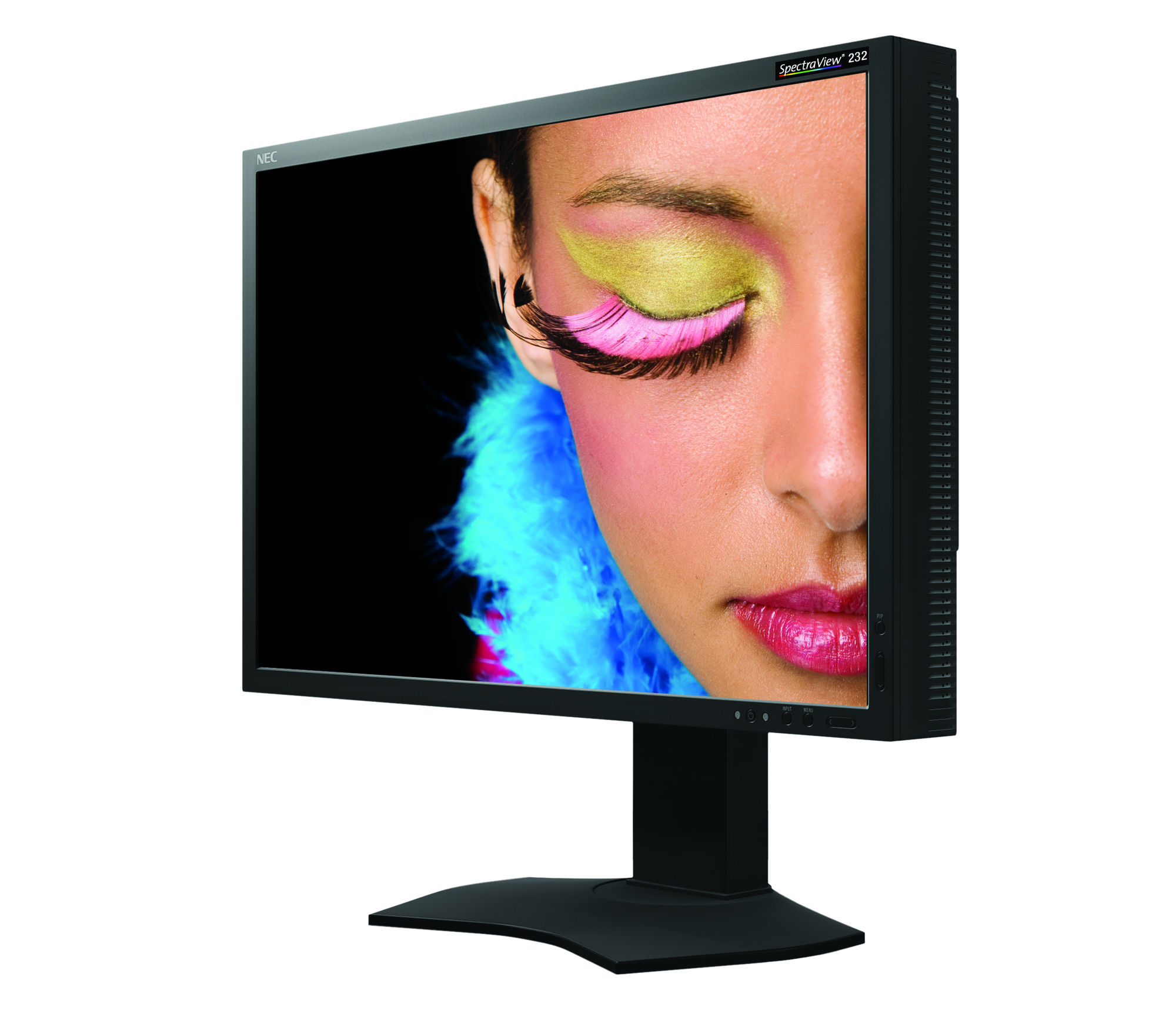

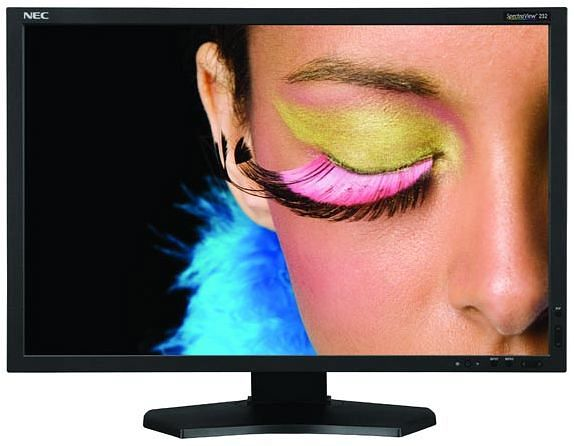

SpectraView 232 computer monitor
58.4 cm (23") 1920 x 1080 pixels Full HD LED Black
Model 232Part no. 60003161EAN 4053162585225
87 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- Energy classA
- ColourBlack
- Windows operating systems supportedYes
- Built-in speaker(s)No
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Energy class
- A
- Colour
- Black
- Windows operating systems supported
- Yes
- Built-in speaker(s)
- No
- Brand
- NEC
- Category
- Monitor
- Model
- 232
- Part number
- 60003161
- EAN / UPC
- 4053162585225, 5028695109629
- Also known as
- NEC SpectraView 232 computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LED Black
Specifications
87 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 270 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.265 x 0.265 mm |
| Horizontal scan range | 31.5 - 83 kHz |
| Vertical scan range | 50 - 85 Hz |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| Colour gamut | 75% |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| Number of upstream ports | 2 |
| USB Type-A downstream ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 30° |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23 W |
| Power consumption (standby) | 1 W |
| Power consumption (max) | 29 W |
| Power consumption (PowerSave) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Annual energy consumption | 34 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 30 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 543.6 mm |
| Depth (with stand) | 227.6 mm |
| Height (with stand) | 338 mm |
| Weight (with stand) | 10.2 kg |
| Width (without stand) | 543.6 mm |
| Bezel width (side) | 1.62 cm |
| Bezel width (top) | 1.62 cm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Energy efficiency class (legacy scale) | A |
| Safety | RoHS |
| Ethernet LAN (RJ-45) ports | 0 |
| Compliance industry standards | TCO 5.0 |
| Certification | C-tick; CCC; CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PCT/Gost; PSB; RoHS; TCO 5.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA, CE, FCC |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
