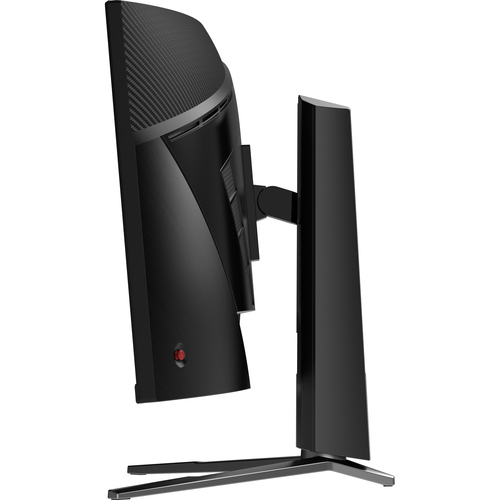

MPG 346CQRF X24

Model MPG 346CQRF X24EAN 4711377342193

78 specifications Checked today

Display86.4 cm (34")
Resolution3440 x 1440 pixels
Energy classF
ColourBlack
NVIDIA G-SYNCNo
Market positioningGaming

See all specifications

Overview

Display: 86.4 cm (34")
Resolution: 3440 x 1440 pixels
Energy class: F
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Gaming

Brand: MSI
Category: Monitor
Model: MPG 346CQRF X24
Part number: MPG 346CQRF X24
EAN / UPC: 4711377342193, 4711377342216, 5715328233584
Also known as: MSI MPG 346CQRF X24 computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD Black

Specifications

78 specifications in 11 groups

Display

Specification	Value
Display diagonal	86.4 cm (34")
Display resolution	3440 x 1440 pixels
Native aspect ratio	21:9
Touchscreen	No
HD type	UltraWide Quad HD
Panel type	VA
Display brightness (peak)	400 cd/m²
Display brightness (typical)	400 cd/m²
Response time	0.5 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Curved
Screen curvature rating	1500R
Contrast ratio (typical)	4000:1
Contrast ratio (dynamic)	100000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.23175 x 0.23175 mm
Digital horizontal frequency	71.52 - 357.6 kHz
Digital vertical frequency	48 - 240 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400
Colour depth	10 bit

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Frameless design	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB upstream port type	USB Type-A, USB Type-B
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	98 W
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Headphone out	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	11 cm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 15°

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	31 kWh
Energy consumption (HDR) per 1000 hours	54 kWh
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	808 mm
Depth (with stand)	278.3 mm
Height (with stand)	537.9 mm
Weight (with stand)	7.9 kg
Width (without stand)	808 mm
Depth (without stand)	111.9 mm
Height (without stand)	363.9 mm

Packaging data

Specification	Value
Package width	995 mm
Package depth	170 mm
Package height	492 mm
Package weight	12 kg

Packaging content

Specification	Value
Cables included	DisplayPort, HDMI, Power, USB Type-C
Screws included	Yes
Quick start guide	Yes

Technical details

Specification	Value
Native refresh rate	60 Hz
