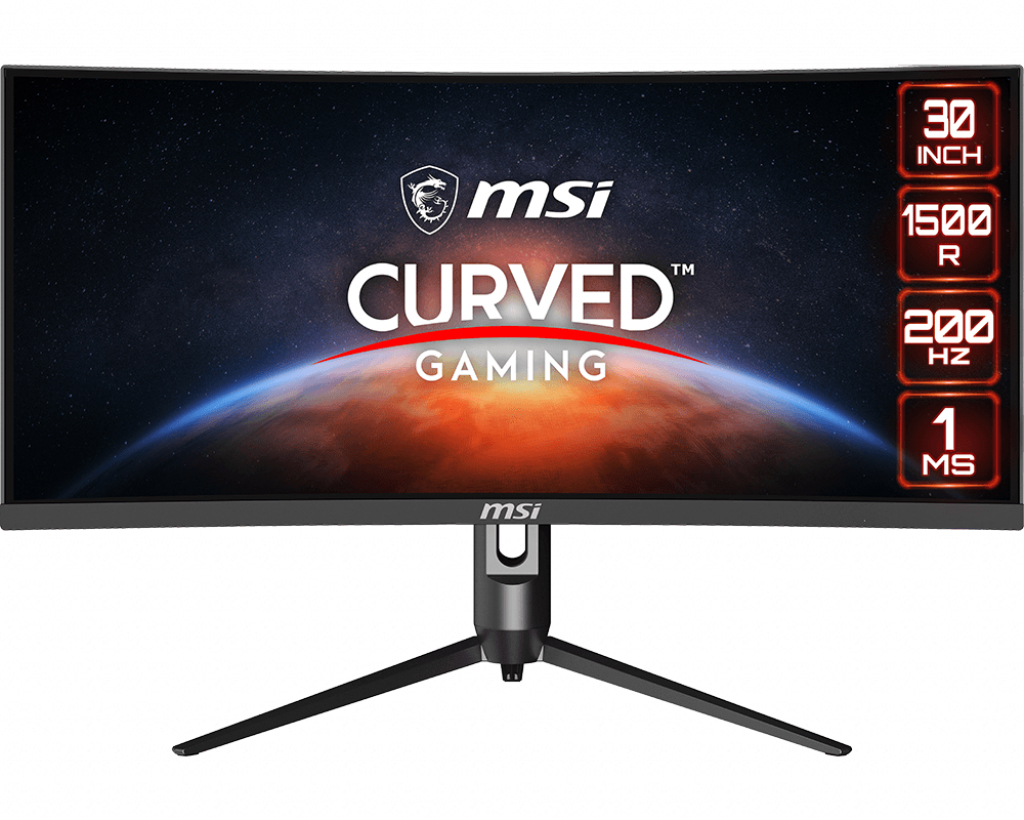

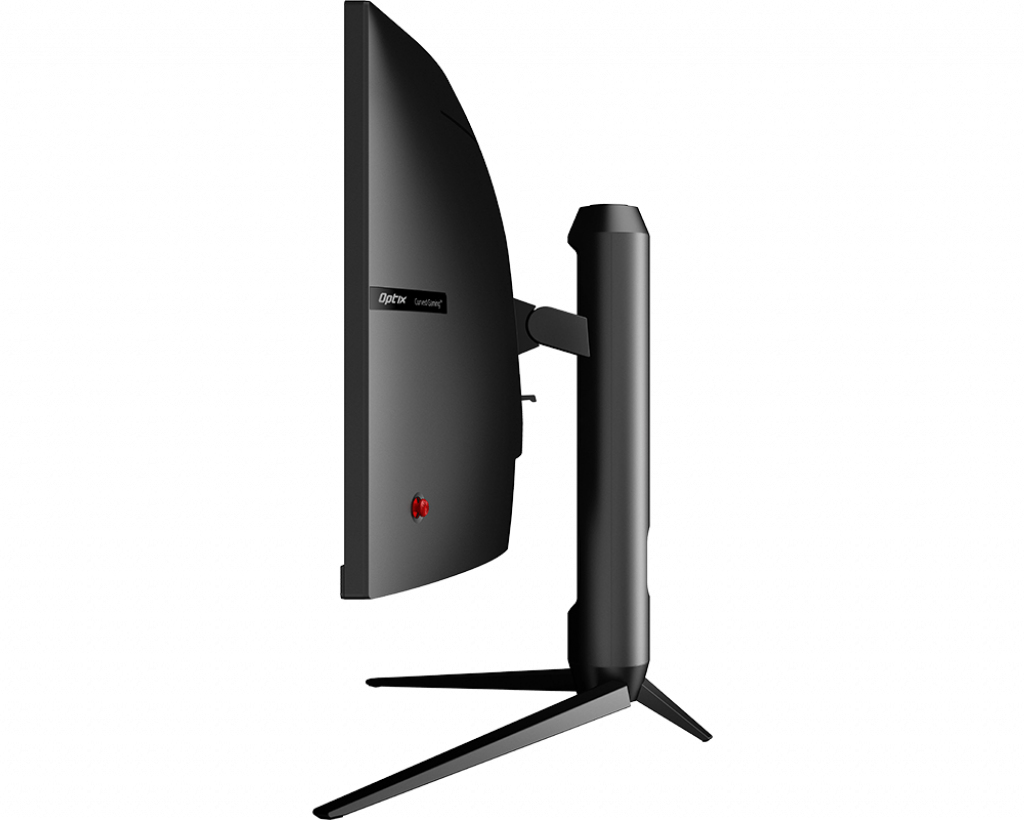

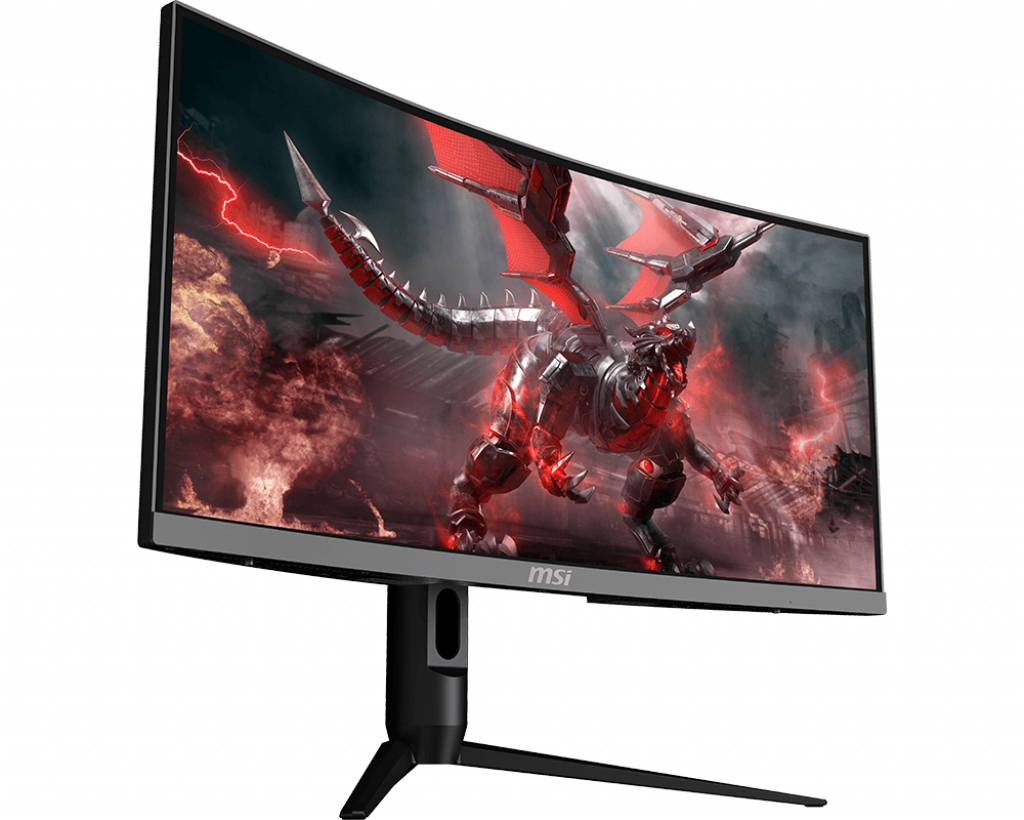

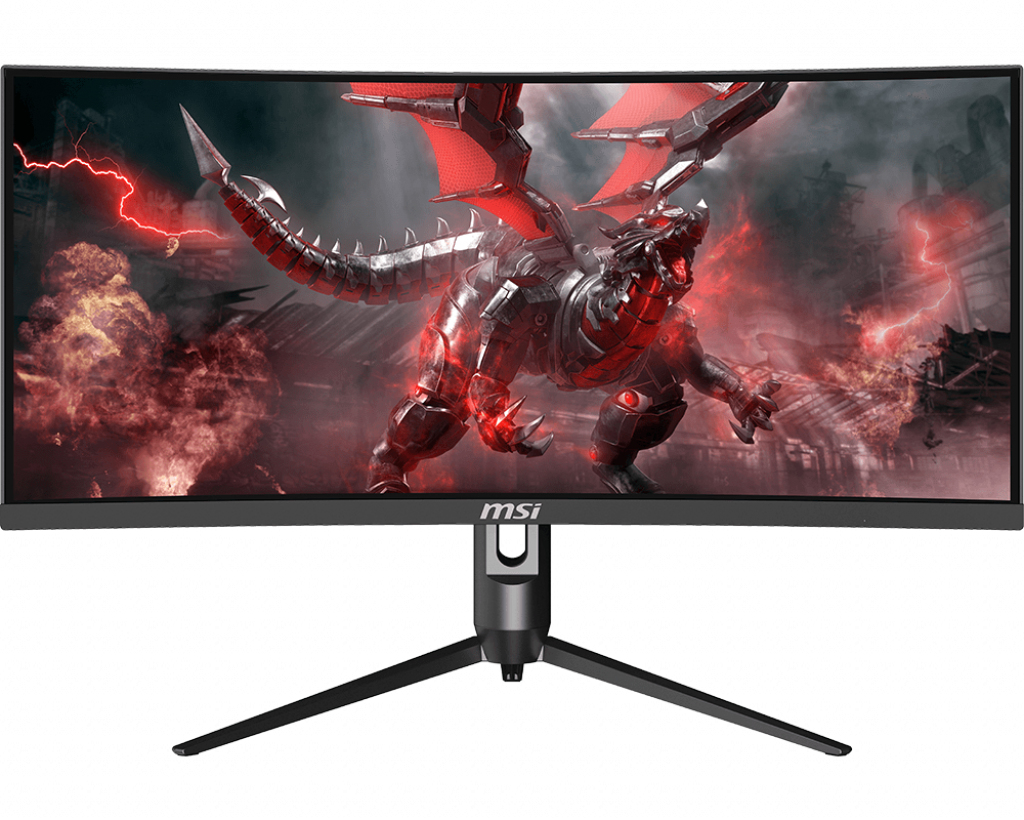

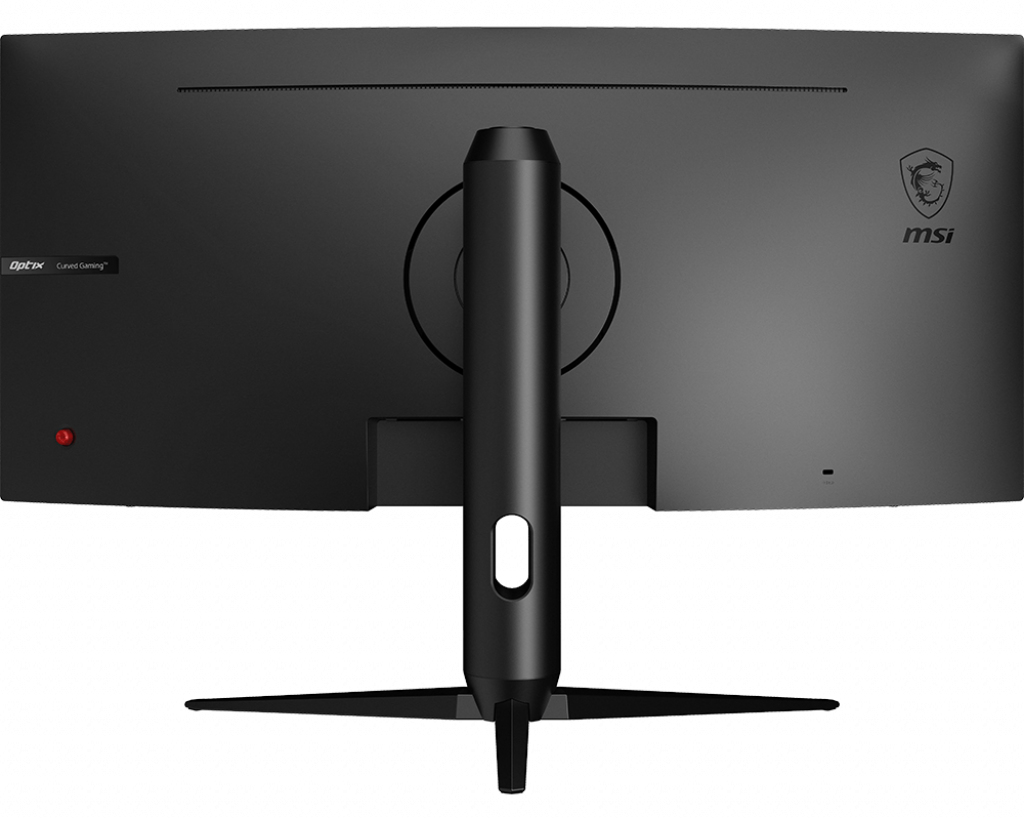

Optix MAG301CR computer monitor
76.2 cm (30") 2560 x 1080 pixels WFHD LCD Black
Model MAG301CRPart no. 9S6-3CB45H-002EAN 4719072688806
71 specifications Checked today
- Display76.2 cm (30")
- Resolution2560 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningGaming
- Built-in USB hubYes
Overview
- Display
- 76.2 cm (30")
- Resolution
- 2560 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Gaming
- Built-in USB hub
- Yes
- Brand
- MSI
- Category
- Monitor
- Model
- MAG301CR
- Part numbers
- 9S6-3CB45H-002, OPTIX MAG301CR
- EAN / UPC
- 4719072688806, 824142202784
- Also known as
- MSI Optix MAG301CR computer monitor 76.2 cm (30") 2560 x 1080 pixels WFHD LCD Black
Specifications
71 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 76.2 cm (30") |
| Display resolution | 2560 x 1080 pixels |
| Native aspect ratio | 21:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WFHD |
| Panel type | VA |
| Display brightness (typical) | 300 cd/m² |
| Response time | 1 ms |
| Screen shape | Curved |
| Supported graphics resolutions | 2560 x 1080 |
| Aspect ratio | 21:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 100000000:1 |
| Maximum refresh rate | 200 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.2697 x 0.2697 mm |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Digital horizontal frequency | 66 - 245 kHz |
| Digital vertical frequency | 60 - 200 Hz |
| sRGB coverage (typical) | 127.39% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | No |
| Headphone out | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 10 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.42 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 703 mm |
| Depth (with stand) | 287 mm |
| Height (with stand) | 512 mm |
| Weight (with stand) | 5.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.21 kg |
