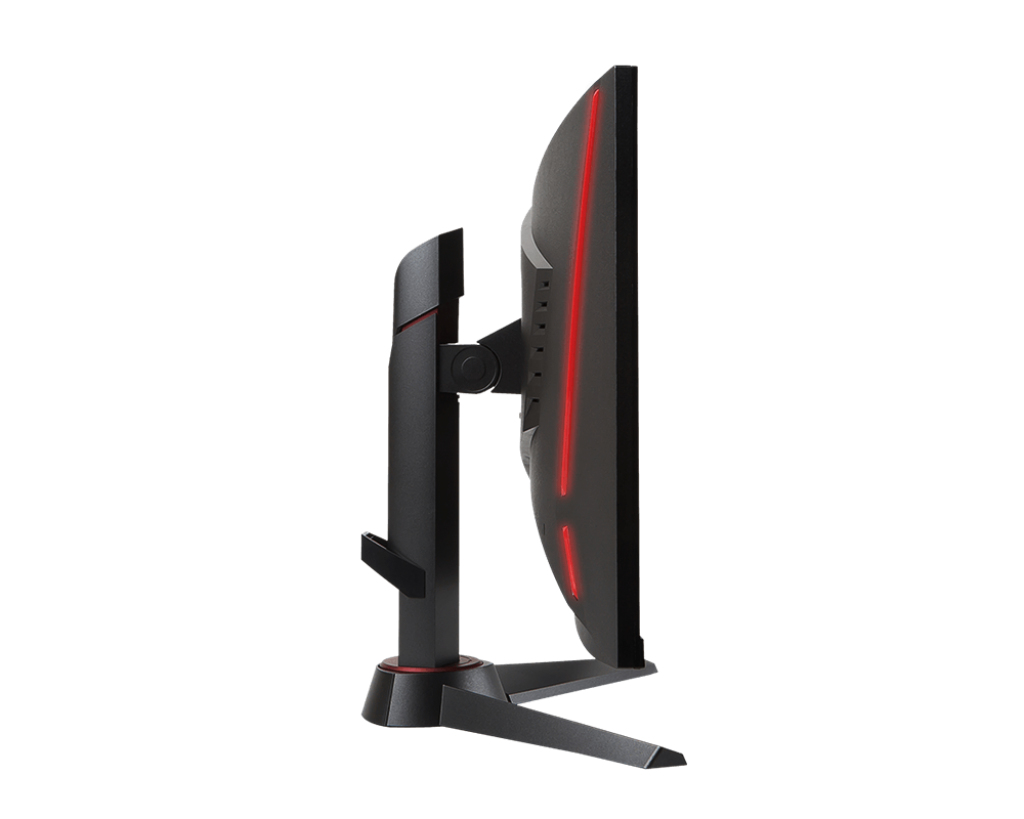

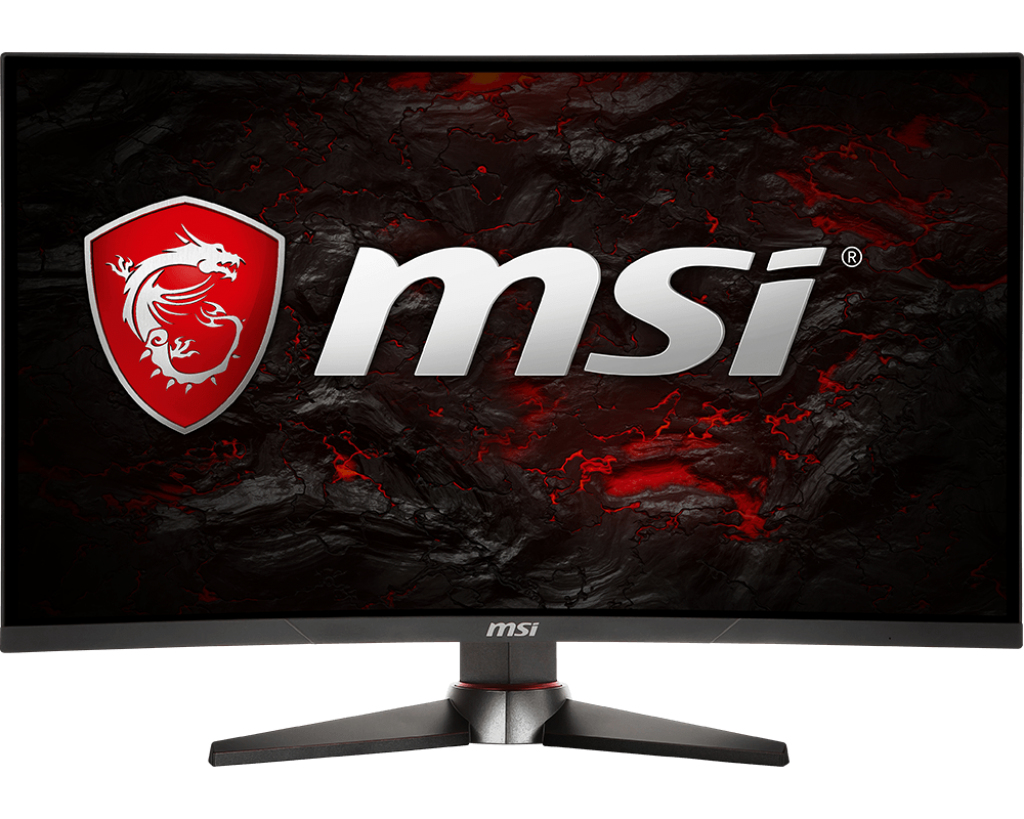

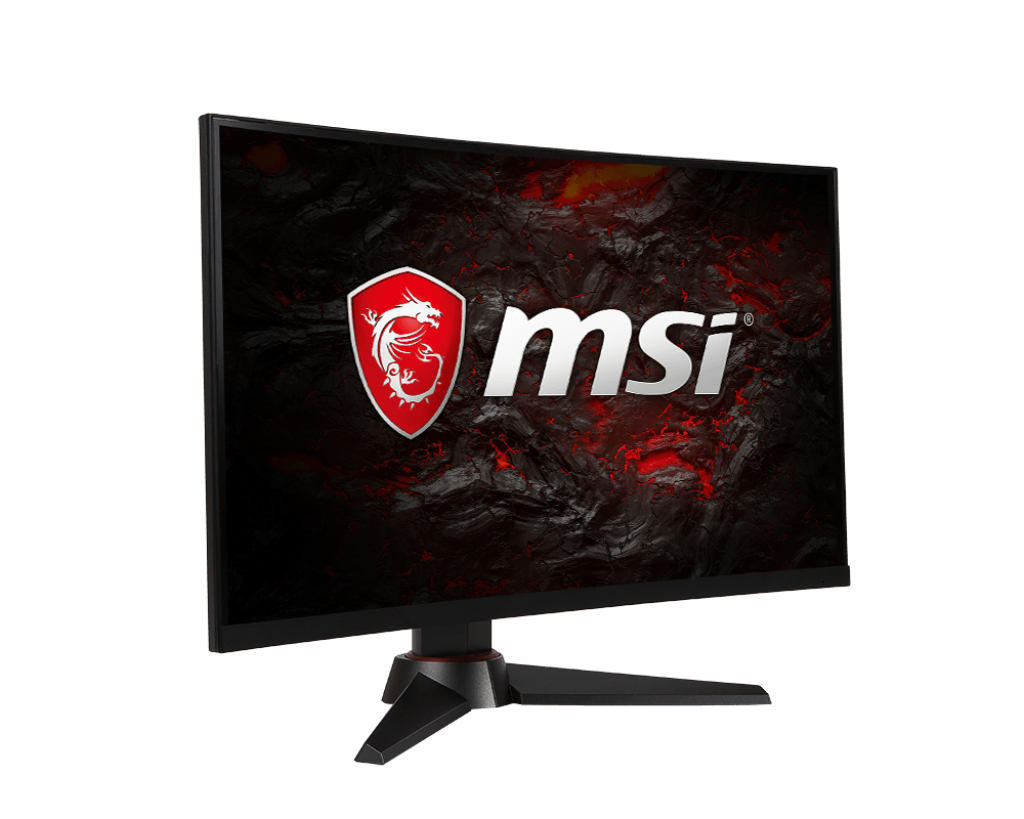

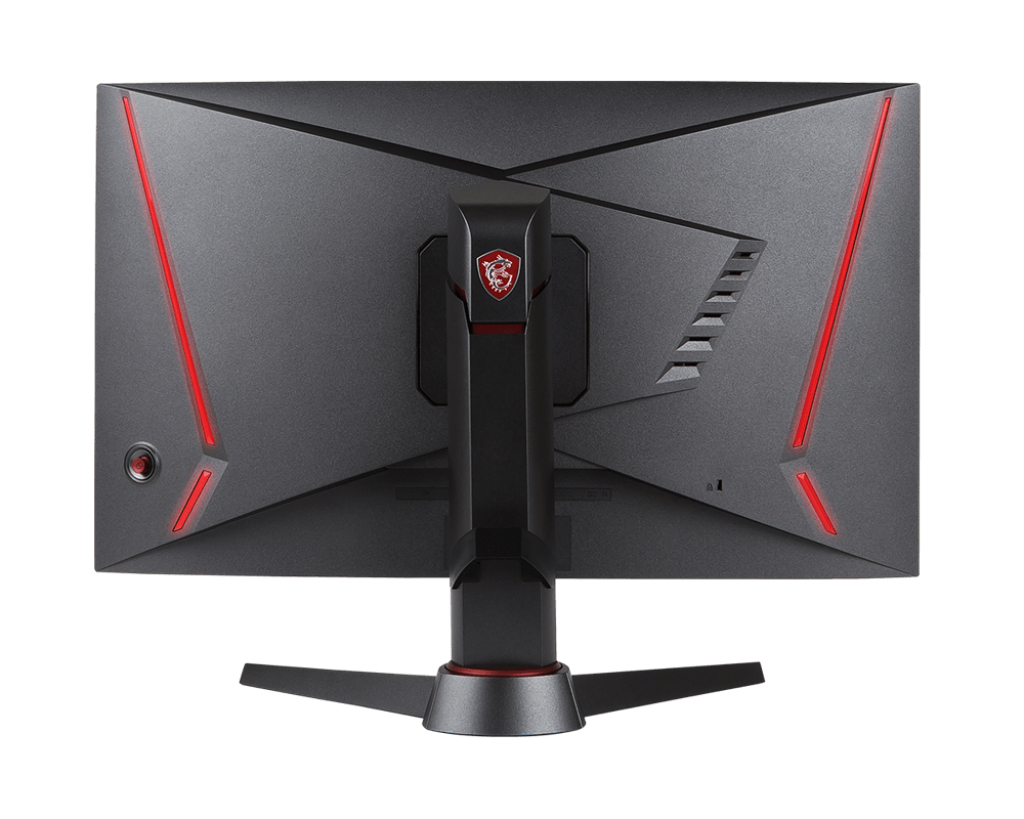

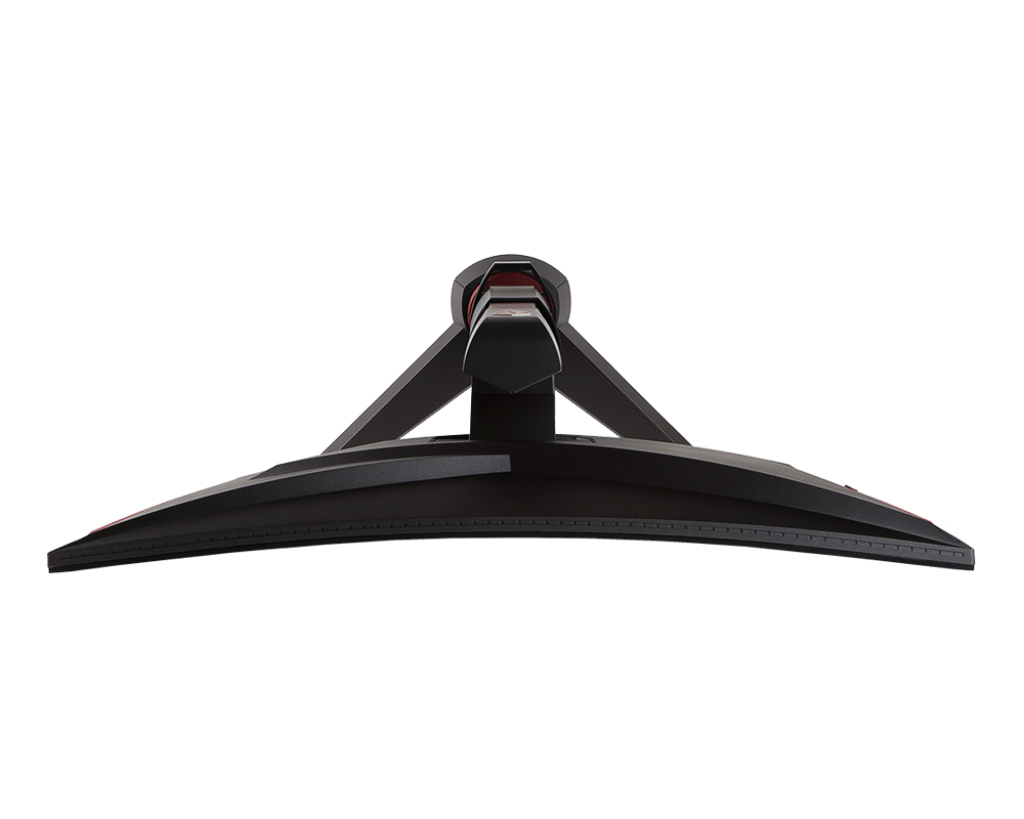

Optix MAG27CQ computer monitor
68.6 cm (27") 2560 x 1440 pixels Quad HD LCD Black, Red
Model MAG27CQPart no. OPTIX MAG27CQEAN 824142152607
64 specifications Checked today
- Display68.6 cm (27")
- Resolution2560 x 1440 pixels
- ColourBlack, Red
- AMD FreeSyncYes
- Built-in speaker(s)No
- Market positioningGaming
Overview
- Display
- 68.6 cm (27")
- Resolution
- 2560 x 1440 pixels
- Colour
- Black, Red
- AMD FreeSync
- Yes
- Built-in speaker(s)
- No
- Market positioning
- Gaming
- Brand
- MSI
- Category
- Monitor
- Model
- MAG27CQ
- Part number
- OPTIX MAG27CQ
- EAN / UPC
- 824142152607, 4719072540715, 4719072556204
- Also known as
- MSI Optix MAG27CQ computer monitor 68.6 cm (27") 2560 x 1440 pixels Quad HD LCD Black, Red
Specifications
64 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 68.6 cm (27") |
| Display resolution | 2560 x 1440 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | Quad HD |
| Panel type | VA |
| Backlight type | LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 1 ms |
| Display surface | Matt |
| Screen shape | Curved |
| Screen curvature rating | 1800R |
| Supported graphics resolutions | 2560 x 1440 |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 100000000:1 |
| Maximum refresh rate | 144 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2331 x 0.2331 mm |
| Horizontal scan range | 56 - 214.56 kHz |
| Vertical scan range | 48 - 144 Hz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| sRGB coverage (typical) | 110% |
| NTSC coverage (typical) | 85% |
| Screen curvature | 180 cm |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black, Red |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | No |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 612.2 mm |
| Depth (with stand) | 205.4 mm |
| Height (with stand) | 434.1 mm |
| Weight (with stand) | 5.83 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.1 kg |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
