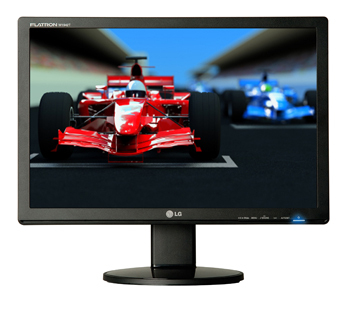

LG W2242PM-SS computer monitor

W2242PM-SS computer monitor

55.9 cm (22") 1680 x 1050 pixels Black

Model W2242PM-SSEAN 8808992419365

48 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
RMS rated power2 W
VGA (D-Sub) ports quantity1
Panel mounting interface75 x 75 mm

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
RMS rated power: 2 W
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 75 x 75 mm

Brand: LG
Category: Monitor
Model: W2242PM-SS
Part number: W2242PM-SS
EAN / UPC: 8808992419365, 8808992425229
Also known as: LG W2242PM-SS computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

48 specifications in 10 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Aspect ratio	16:10
Contrast ratio (typical)	8000:1
Contrast ratio (dynamic)	8000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
Panel mounting interface	75 x 75 mm
Plug and Play	Yes
Ergonomics	ISO 13406-2

Power

Specification	Value
Power consumption (typical)	42 W
Power consumption (off)	1 W
Power consumption (PowerSave)	1 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	515.7 mm
Depth (with stand)	241.6 mm
Height (with stand)	423.2 mm
Weight (with stand)	5.34 kg
Weight (without stand)	4.65 kg

Packaging content

Specification	Value
Cables included	AC

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	473.86 x 296.16 mm
Power requirements	100 - 240 V, 50/60 Hz, 1 A
Compliance industry standards	DDC 2B
Certification	TÜV-GS, CE, EPA Energy Star, UL, CSA, SEMKO, FCC-B, TCO03
Display resolution at frequency	1680x1050(60 Hz) 1280x1024(60/75Hz) 640 x 350 (70 Hz) 720 x 400 (70 Hz) 640 x 480 (60/75 Hz) 800 x 600 (60/75 Hz) 832 x 624 (75 Hz) 1024x768(60/75Hz) 1152 x 870 (75 Hz) 1152x900 (65 Hz)
Supplied AC adapter type	LCD
