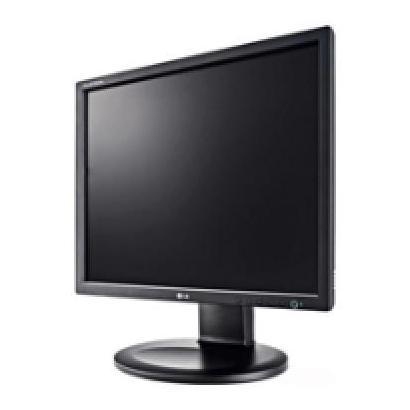

LG W1946P-BF computer monitor

W1946P-BF computer monitor

47 cm (18.5") 1360 x 768 pixels HD Black

Model W1946P-BFEAN 8808992110224

55 specifications Checked today

Display47 cm (18.5")
Resolution1360 x 768 pixels
ColourBlack
Built-in speaker(s)No
USB Type-A downstream ports quantity0
Power consumption (typical)22 W

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1360 x 768 pixels
Colour: Black
Built-in speaker(s): No
USB Type-A downstream ports quantity: 0
Power consumption (typical): 22 W

Brand: LG
Category: Monitor
Model: W1946P-BF
Part number: W1946P-BF
EAN / UPC: 8808992110224
Also known as: LG W1946P-BF computer monitor 47 cm (18.5") 1360 x 768 pixels HD Black

Specifications

55 specifications in 10 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1360 x 768 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	HD
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	720 x 400, 1024 x 768 (XGA), 1360 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:9
Display number of colours	16.78 million colours
Pixel pitch	0.3 x 0.3 mm
Viewable size diagonal	47 cm
Digital horizontal frequency	30 - 61 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
3D	No
Separate H/V sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI	No
HDMI ports quantity	0
HDCP	No
AC (power) in	Yes

Ergonomics

Specification	Value
Cable lock slot	No
Adjustable height (max)	11 cm
Swivel angle range	-178 - 178°
Tilt angle range	-4 - 16°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	22 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	442.6 mm
Depth (with stand)	224.4 mm
Height (with stand)	445.1 mm
Width (without stand)	442.6 mm
Depth (without stand)	60.4 mm
Height (without stand)	266.7 mm
Weight (without stand)	3.7 kg

Other features

Specification	Value
Screen format adjustments	4:3, 16:9
TV tuner integrated	No
Compliance industry standards	DDC 2B, DDC 2AB
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
