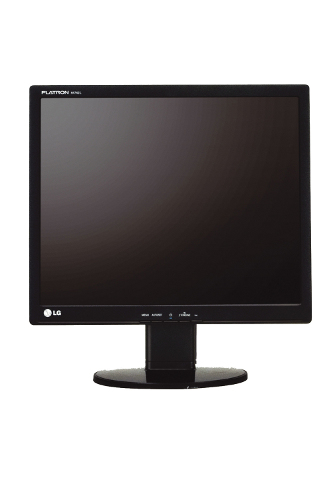

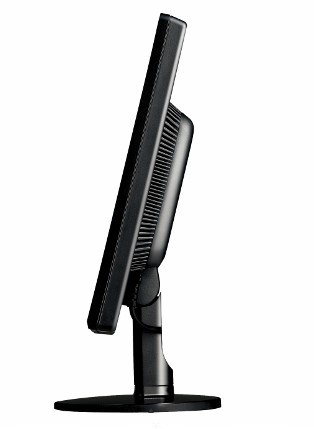

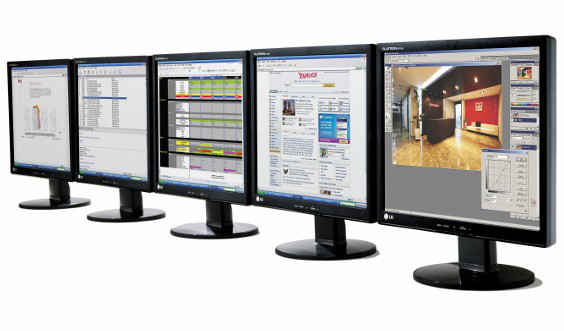

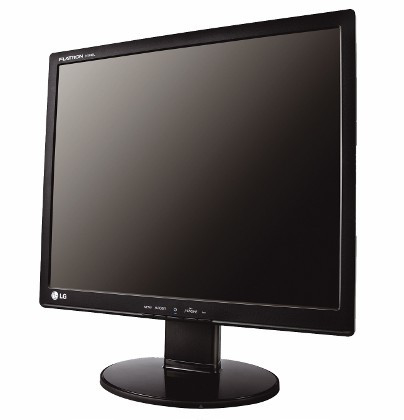

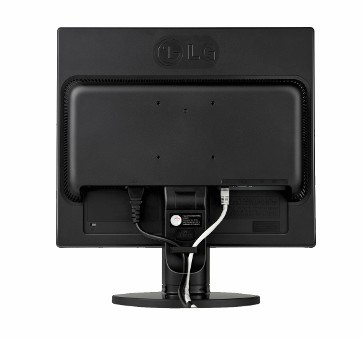

LG N1742L Monitor
Model N1742L MonitorPart no. N1742L
38 specifications Checked 4 days ago
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- RMS rated power0.5 W
- VGA (D-Sub) ports quantity1
- Panel mounting interface75 x 75 mm
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- RMS rated power
- 0.5 W
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 75 x 75 mm
- Brand
- LG
- Category
- Monitor
- Model
- N1742L Monitor
- Part number
- N1742L
- Also known as
- LG N1742L Monitor computer monitor 43.2 cm (17") 1280 x 1024 pixels Black
Specifications
38 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 0.5 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
| LED indicators | Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 370 mm |
| Depth (without stand) | 185 mm |
| Height (without stand) | 391 mm |
| Weight (without stand) | 3.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 421 x 362 x 115 mm |
| Package width | 421 mm |
| Package depth | 362 mm |
| Package height | 115 mm |
| Package weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Power requirements | 100 - 240 |
| Compliance industry standards | DDC 2B |
| Supplied AC adapter type | LCD |
