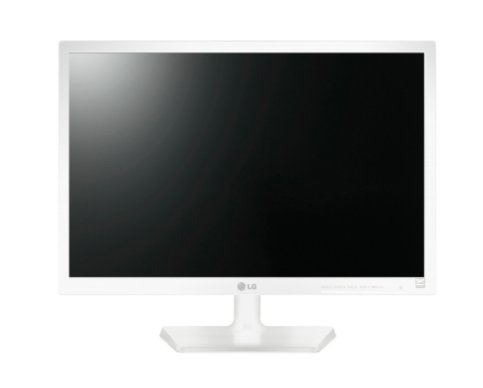

22EB23TM-W computer monitor
55.9 cm (22") 1680 x 1050 pixels LED White
Model 22EB23TM-WEAN 8806084151230
92 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourWhite
- Built-in speaker(s)Yes
- USB Type-A downstream ports quantity0
- Wi-FiNo
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- White
- Built-in speaker(s)
- Yes
- USB Type-A downstream ports quantity
- 0
- Wi-Fi
- No
- Brand
- LG
- Category
- Monitor
- Model
- 22EB23TM-W
- Part number
- 22EB23TM-W
- EAN / UPC
- 8806084151230
- Also known as
- LG 22EB23TM-W computer monitor 55.9 cm (22") 1680 x 1050 pixels LED White
Specifications
92 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| Panel type | TN+Film |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | Yes |
| Pixel frequency | 135 MHz |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| PC Audio in | Yes |
| HDCP | Yes |
| AC (power) in | Yes |
| Composite video in | 0 |
| Composite video out | 0 |
| SCART ports quantity | 0 |
| RF ports quantity | 0 |
| Digital audio optical out | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Firewire (IEEE 1394) ports | 0 |
| RS-232 ports | 0 |
| RS-485 ports | 0 |
| S-Video inputs quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | No |
| Pivot | No |
| Swivelling | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Ukrainian |
| Number of OSD languages | 15 |
| Plug and Play | Yes |
| Cable length | 1.8 m |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 506 mm |
| Depth (with stand) | 181 mm |
| Height (with stand) | 413 mm |
| Weight (with stand) | 4.1 kg |
| Width (without stand) | 506 mm |
| Depth (without stand) | 58 mm |
| Height (without stand) | 339 mm |
| Weight (without stand) | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Built-in subwoofer | No |
| Screen format adjustments | 4:3, 16:10 |
| TV tuner integrated | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Certification | RoHS, UL, CSA, SEMKO, NEMKO, FCC-B, VCCI-2, C-TICK, CE |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
