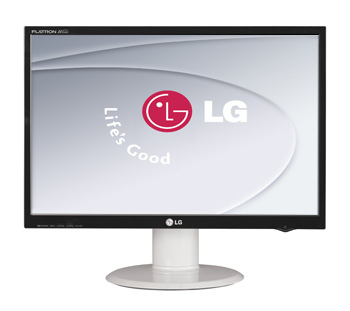

19" LCD L196WTQ
Model 19" LCD L196WTQPart no. L196WTQ-WF
30 specifications Checked today
- Display48.3 cm (19")
- Resolution1440 x 900 pixels
- VGA (D-Sub) ports quantity1
- Panel mounting interface75 x 75 mm
- Power consumption (typical)34 W
- Width (with stand)439.6 mm
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1440 x 900 pixels
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 75 x 75 mm
- Power consumption (typical)
- 34 W
- Width (with stand)
- 439.6 mm
- Brand
- LG
- Category
- Monitor
- Model
- 19" LCD L196WTQ
- Part number
- L196WTQ-WF
- Also known as
- LG 19" LCD L196WTQ computer monitor 48.3 cm (19") 1440 x 900 pixels
Specifications
30 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1440 x 900 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 2 ms |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2835 x 0.2835 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Swivel angle range | Yes |
| Tilt angle range | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 34 W |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 439.6 mm |
| Depth (with stand) | 234 mm |
| Height (with stand) | 384 mm |
| Weight (with stand) | 4.6 kg |
Other features
| Specification | Value |
|---|---|
| Certification | UL, UL-cUL, TUV-GS, SEMCO, FCC-B, CE, EPA |
