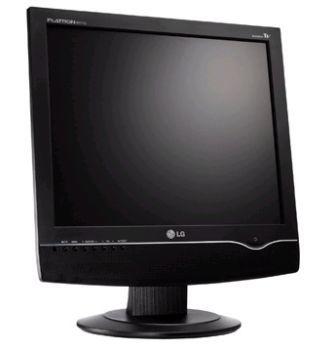

LG 17" MM, AV, TV-tuner, teletext

17" MM, AV, TV-tuner, teletext

Model 17" MM, AV, TV-tuner, teletextPart no. M1917A-BZEAN 8801031043637

43 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
ConnectivityLVDS
ColourBlack
USB Type-A downstream ports quantity0
ErgonomicsISO 13406-2

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Connectivity: LVDS
Colour: Black
USB Type-A downstream ports quantity: 0
Ergonomics: ISO 13406-2

Brand: LG
Category: Monitor
Model: 17" MM, AV, TV-tuner, teletext
Part numbers: M1917A-BZ, M1717A-BZ
EAN / UPC: 8801031043637, 8801031047277, 8801031047260
Also known as: LG 17" MM, AV, TV-tuner, teletext computer monitor 48.3 cm (19") 1280 x 1024 pixels Black

Specifications

43 specifications in 8 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	01.506 mm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 75 Hz
Surface treatment	AG(3H)

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
Audio input	Yes
Audio output	Yes
I/O ports	CVBS/TV

Ergonomics

Specification	Value
Ergonomics	ISO 13406-2

Power

Specification	Value
Power consumption (typical)	55 W
Power consumption (standby)	4 W

Weight & dimensions

Specification	Value
Width (without stand)	458.3 mm
Depth (without stand)	242 mm
Height (without stand)	457.7 mm
Weight (without stand)	7 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	540 x 286 x 582 mm
Package weight	9 kg

Other features

Specification	Value
Audio system	SRS-Wow
Display viewable area (HxV)	376.32 x 301.506 mm
Interface	LVDS
Power requirements	AC 90~264 V (47 ~ 63Hz)
Safety	UL,CSA(Cul),TUV Type Approval,SEMCO
Mean time between failures (MTBF)	50000 h
Power management	EPA Energy Star
Certification	CCC,PSB,BSMI,B-Mark,SASO
Supplied AC adapter type	Blue Bird 1(Dual)
