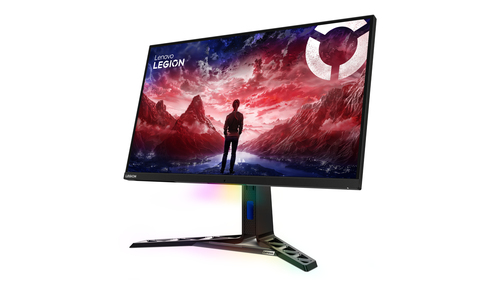

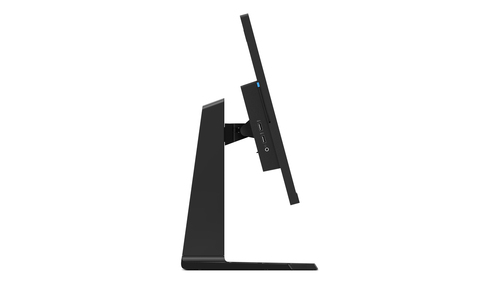

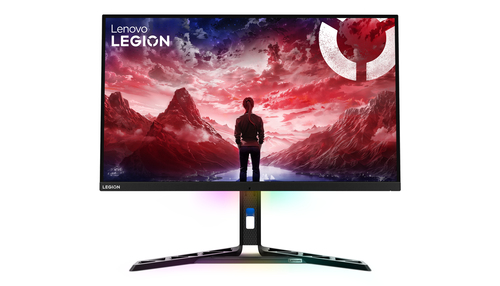

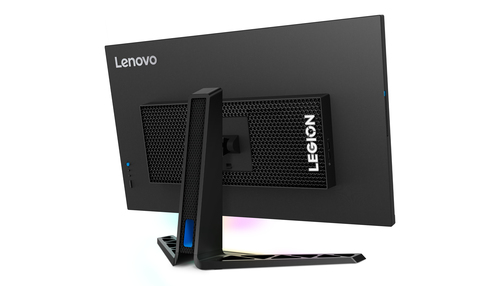

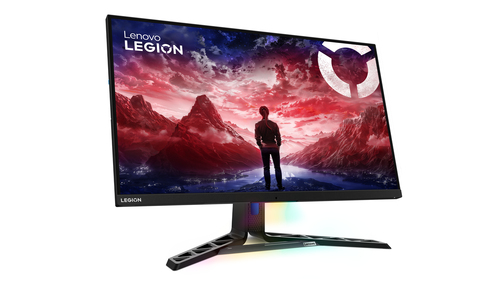

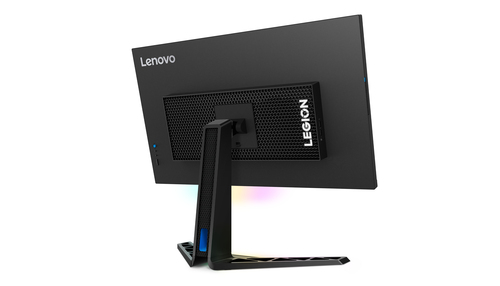

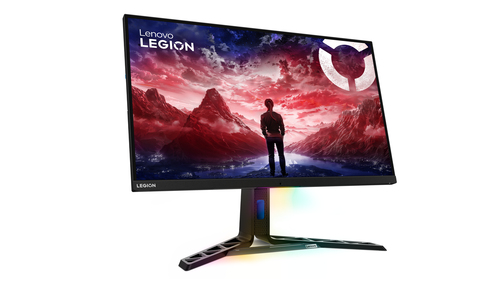

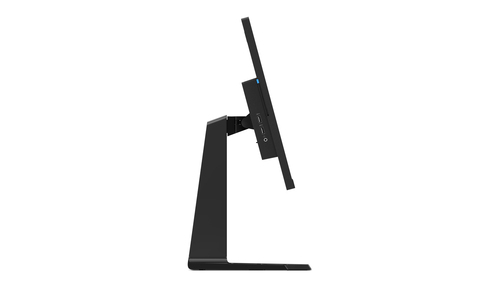

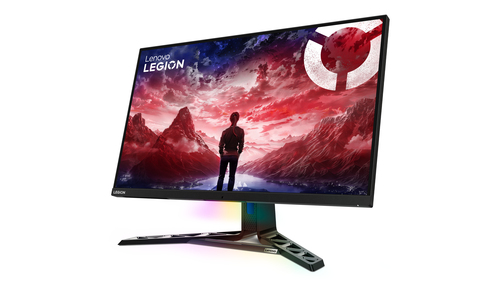

Legion Y32p-30 computer monitor

80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD Black

Model Y32p-30Part no. 66F9UAC6EUEAN 196800876515

106 specifications Checked today

Display80 cm (31.5")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: Lenovo
Category: Monitor
Model: Y32p-30
Part numbers: 66F9UAC6EU, 66F9UAC6UK
EAN / UPC: 196800876515, 196800876607, 196800876522
Also known as: Lenovo Legion Y32p-30 computer monitor 80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD Black

Specifications

106 specifications in 11 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
Backlight type	W-LED
Display brightness (peak)	400 cd/m²
Display brightness (typical)	350 cd/m²
Response time (MPRT)	0.2 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	144 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.1811 x 0.1811 mm
Pixel density	139 ppi
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 400
Colour depth	10 bit
Colour gamut standard	DCI-P3
Colour gamut	90%
sRGB coverage (typical)	99%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	10 W
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Colour name	Raven Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	2
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	15 W
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13.5 cm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 22°

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	55 kWh
Energy consumption (HDR) per 1000 hours	59 kWh
Power consumption (typical)	62 W
Power consumption (standby)	0.3 W
Power consumption (max)	175 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
Power supply type	Internal
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	715.1 mm
Depth (with stand)	298.4 mm
Height (with stand)	598.8 mm
Weight (with stand)	9.6 kg
Width (without stand)	715.1 mm
Depth (without stand)	59.5 mm
Height (without stand)	424.4 mm
Weight (without stand)	7.4 kg
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	2.17 cm

Packaging data

Specification	Value
Package width	906 mm
Package depth	173 mm
Package height	526 mm
Package weight	14.2 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, HDMI, USB Type-A to USB Type-B, USB Type-C
Quick start guide	Yes
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Power cable length	1.8 m

Other features

Specification	Value
Compatible operating systems	Support Windows 10, Windows 11
Local dimming zones	16
Compliance certificates	RoHS
