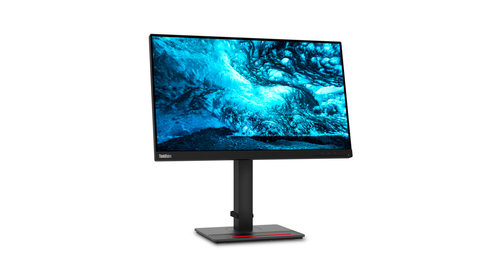

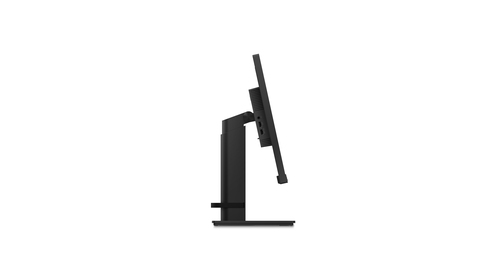

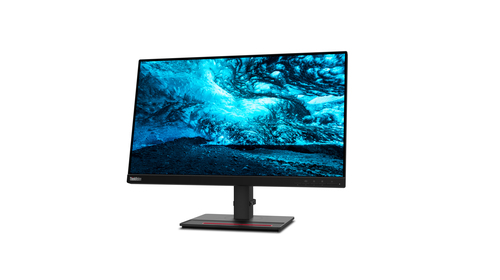

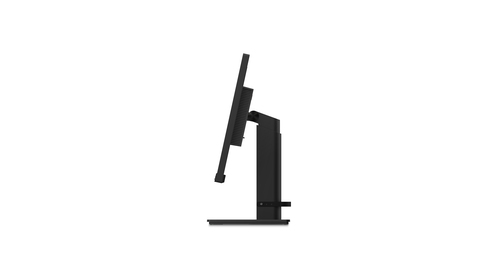

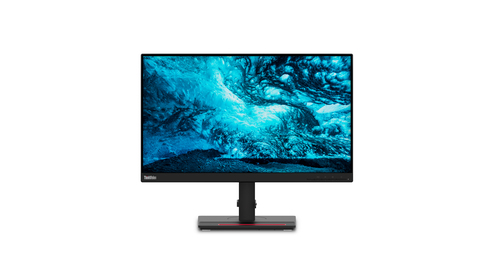

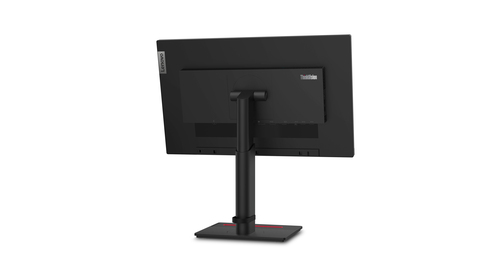

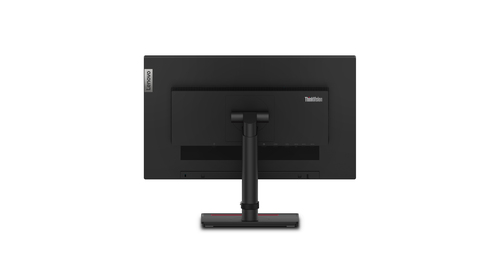

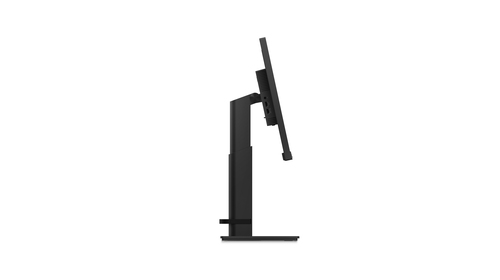

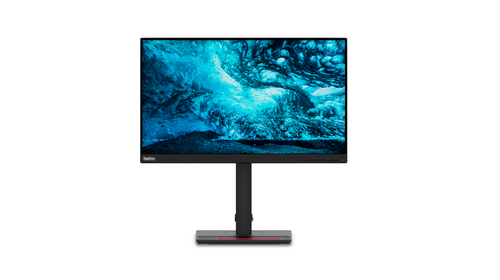

ThinkVision T23i-20
Model ThinkVision T23i-20Part no. 61F6MAT2CHEAN 194632187038
83 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- Energy classC
- ColourBlack
- Built-in speaker(s)No
- Built-in USB hubYes
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Energy class
- C
- Colour
- Black
- Built-in speaker(s)
- No
- Built-in USB hub
- Yes
- Brand
- Lenovo
- Category
- Monitor
- Model
- ThinkVision T23i-20
- Part number
- 61F6MAT2CH
- EAN / UPC
- 194632187038
- Also known as
- Lenovo ThinkVision T23i-20 computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LED Black
Specifications
83 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 6 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Response time (fast) | 4 ms |
| Pixel pitch | 0.2652 x 0.2652 mm |
| Pixel density | 95.78 ppi |
| Viewable size, horizontal | 50.9 cm |
| Viewable size, vertical | 28.6 cm |
| NTSC coverage (typical) | 75% |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Colour name | Raven Black |
| Front bezel colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | No |
| Audio output | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 14.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Energy efficiency scale | A to G |
| Annual energy consumption | 33.73 kWh |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 521.8 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 554.3 mm |
| Weight (with stand) | 5.59 kg |
| Width (without stand) | 521.8 mm |
| Depth (without stand) | 44.8 mm |
| Height (without stand) | 316.3 mm |
| Weight (without stand) | 3.32 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 599 mm |
| Package depth | 175 mm |
| Package height | 387 mm |
| Package weight | 7.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CCC, TCO, TCO Edge, TÜV |
