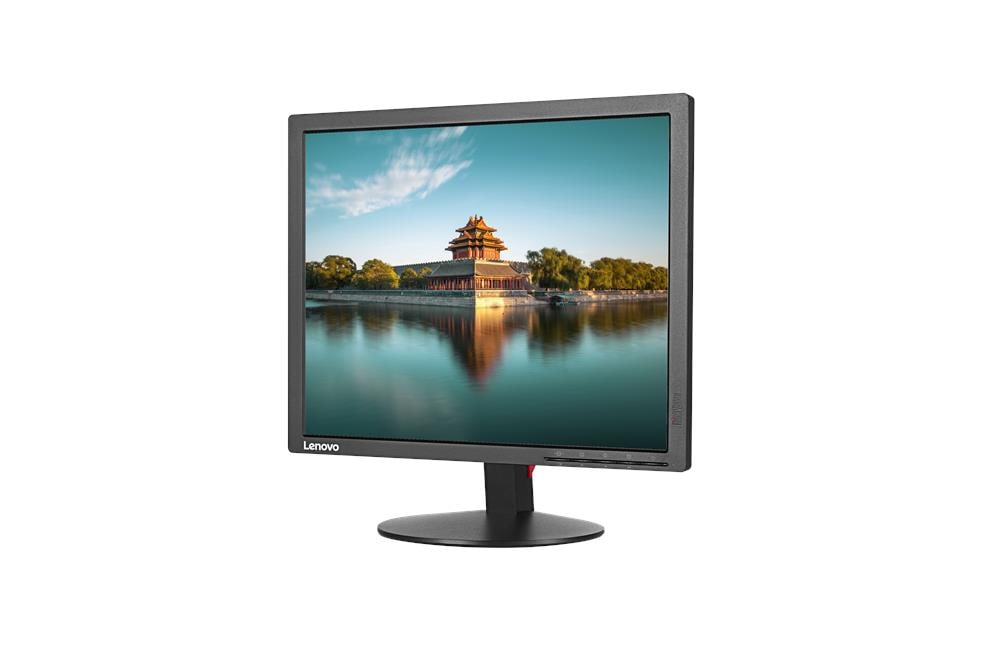

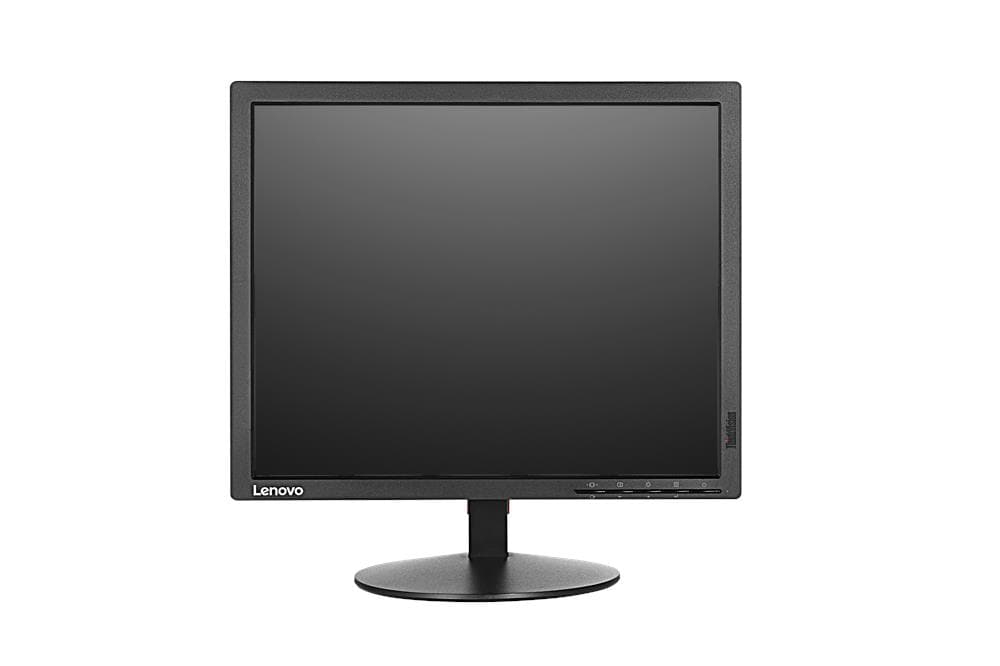

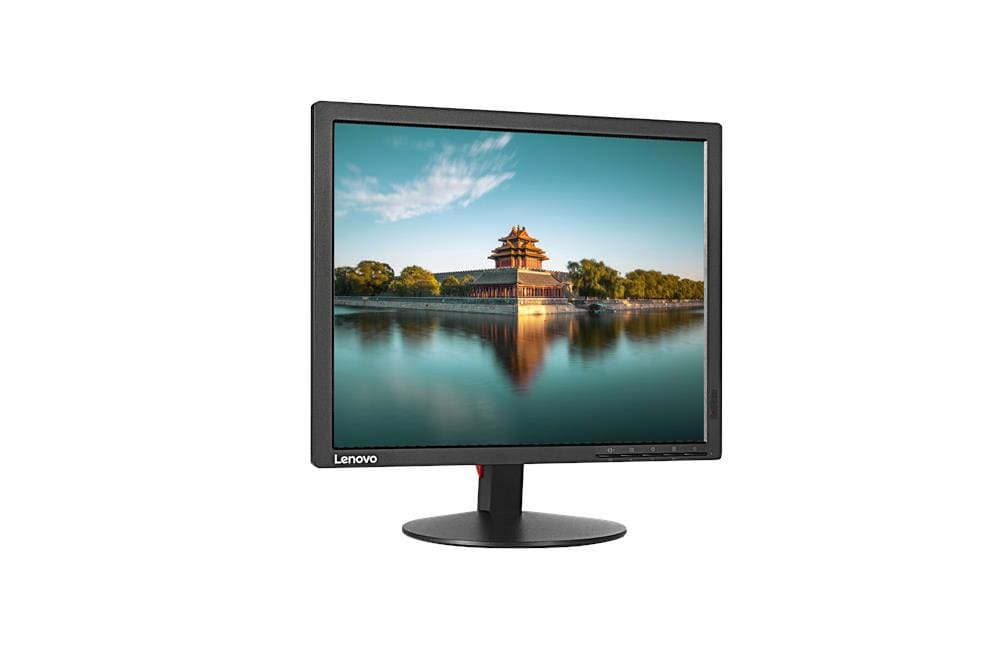

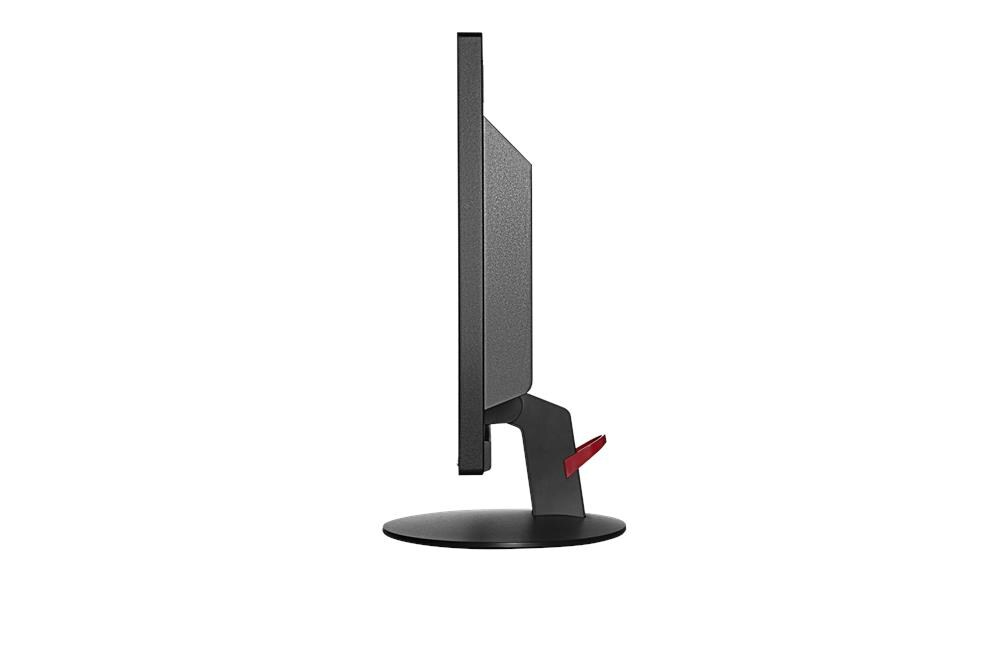

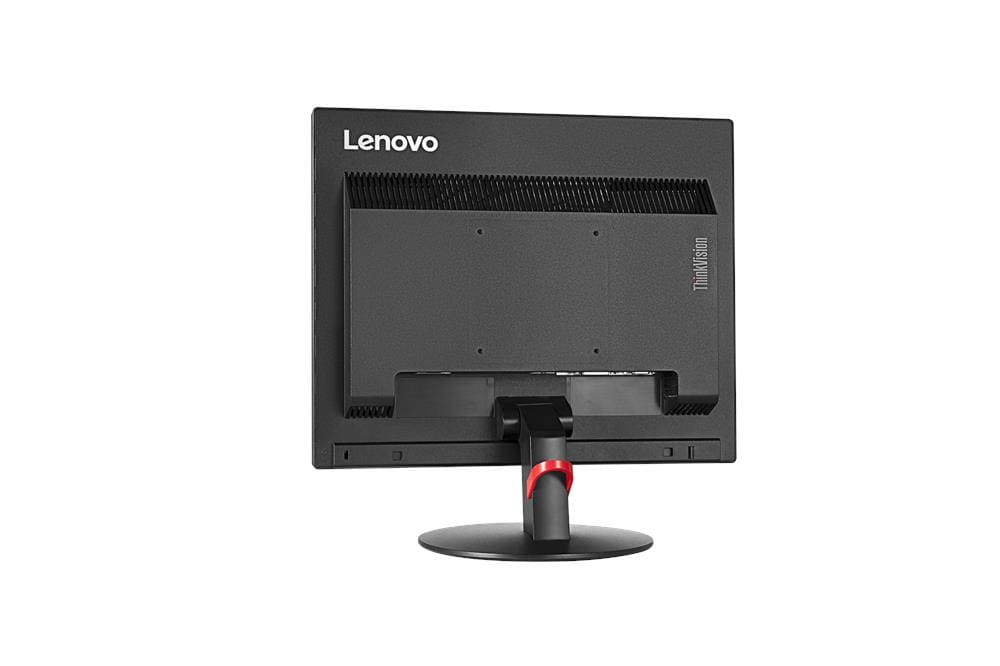

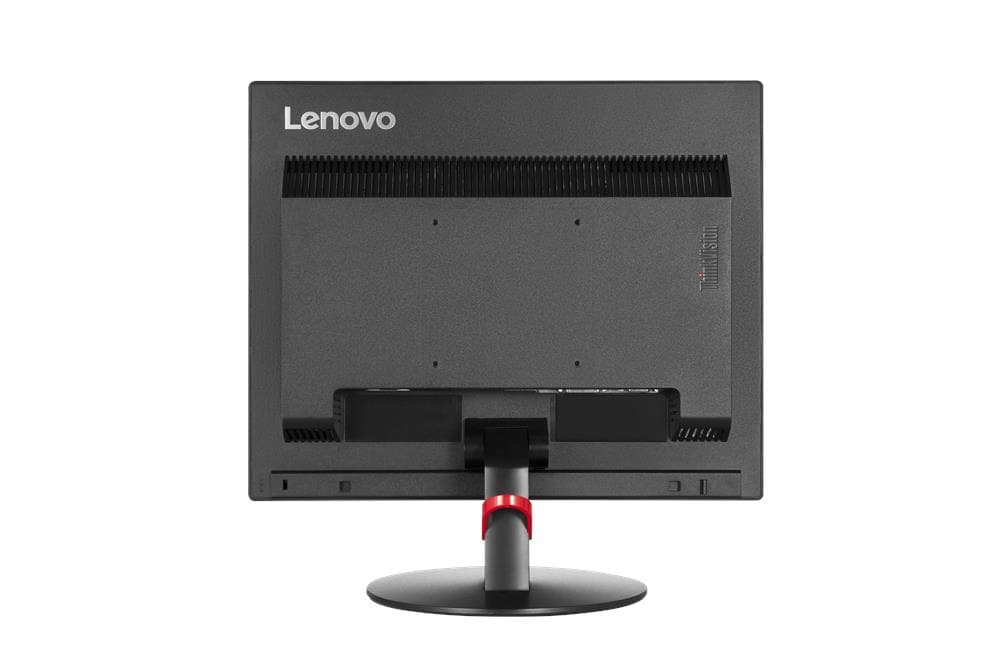

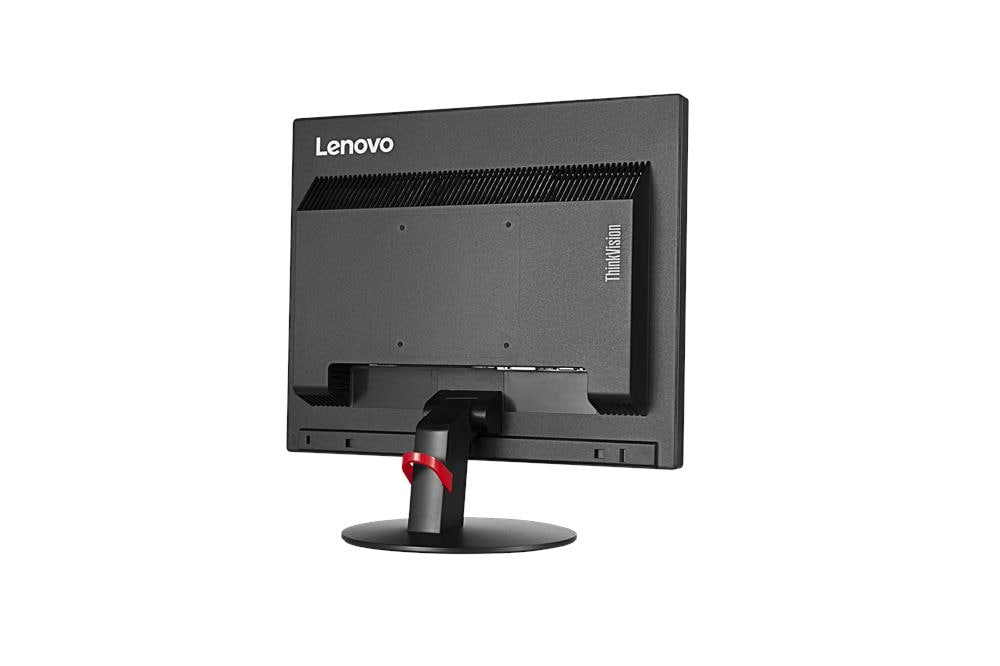

ThinkVision T1714
Model ThinkVision T1714Part no. 60FDHAT1UKEAN 190404957595
80 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningOffice
- VESA mountingYes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Office
- VESA mounting
- Yes
- Brand
- Lenovo
- Category
- Monitor
- Model
- ThinkVision T1714
- Part number
- 60FDHAT1UK
- EAN / UPC
- 190404957595
- Also known as
- Lenovo ThinkVision T1714 computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Black
Specifications
80 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | SXGA |
| Panel type | TN |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.26 x 0.26 mm |
| Pixel density | 96.21 ppi |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Viewable size, horizontal | 27 cm |
| Viewable size, vertical | 33.8 cm |
| Heat dissipation (typical) | 47.74 BTU/h |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Office |
| Product colour | Black |
| Colour name | Raven Black |
| Front bezel colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| HDMI | No |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Swivelling | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 22° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 18 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Power supply type | Internal |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 374.5 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 373.9 mm |
| Weight (with stand) | 2.61 kg |
| Width (without stand) | 374.5 mm |
| Depth (without stand) | 53 mm |
| Height (without stand) | 306.9 mm |
| Weight (without stand) | 2.32 kg |
| Bezel width (side) | 1.75 cm |
| Bezel width (top) | 1.75 cm |
| Bezel width (bottom) | 1.75 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 432 mm |
| Package depth | 428 mm |
| Package height | 140 mm |
| Package weight | 3.9 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver, TCO |
| Doesn't contain | Arsenic, Mercury, PVC |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | TUV |
