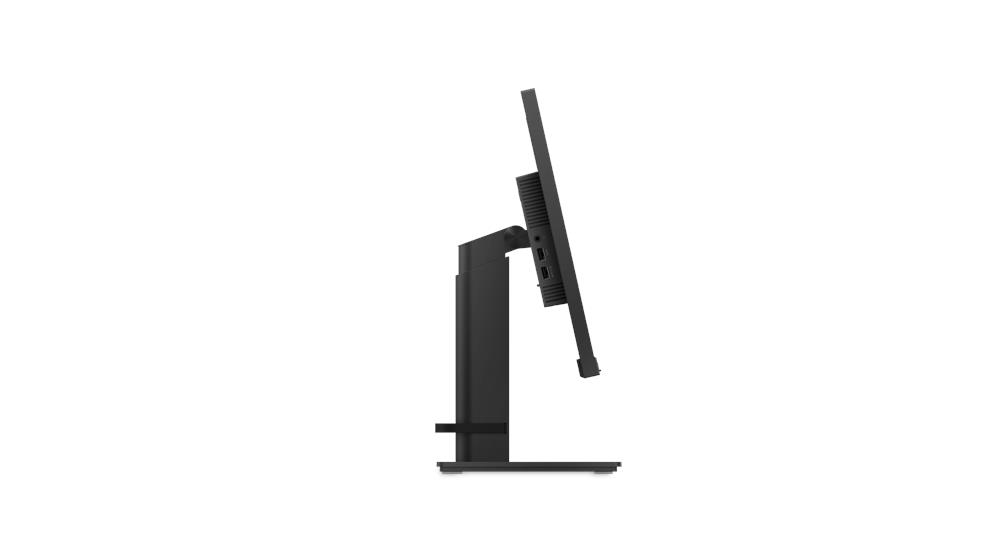

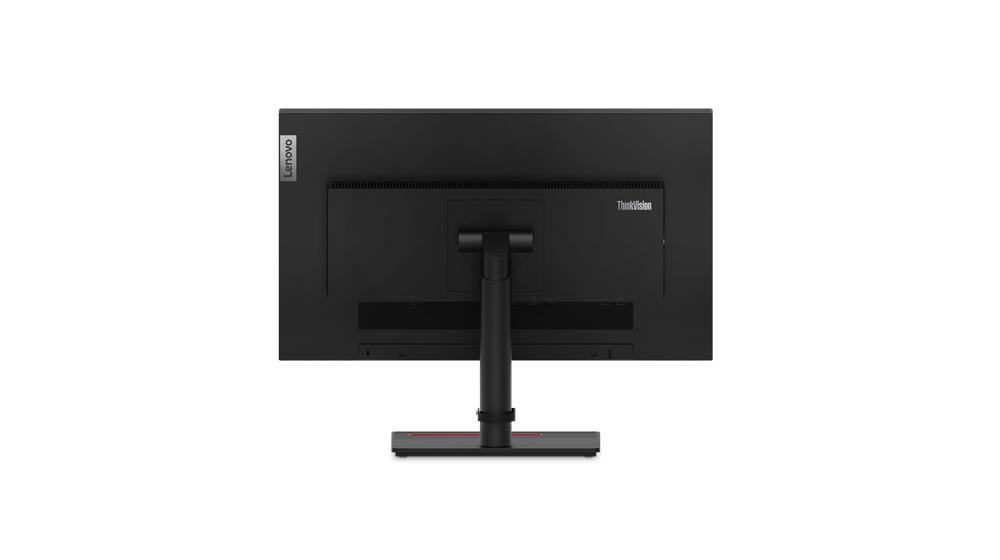

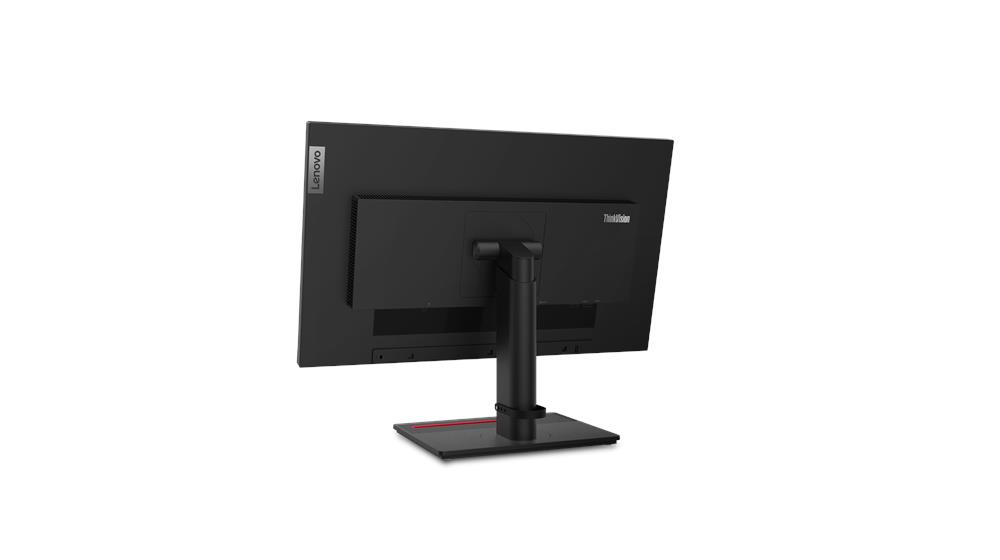

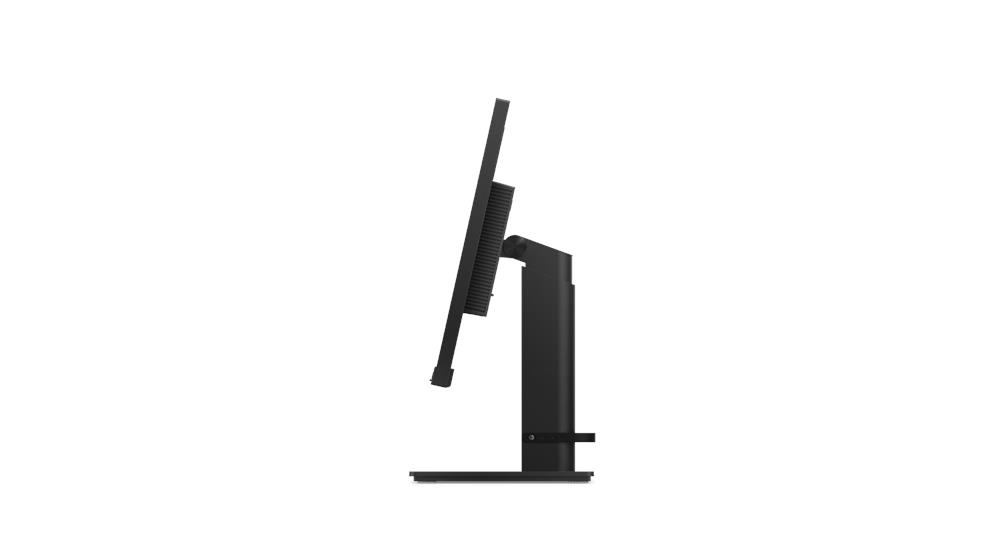

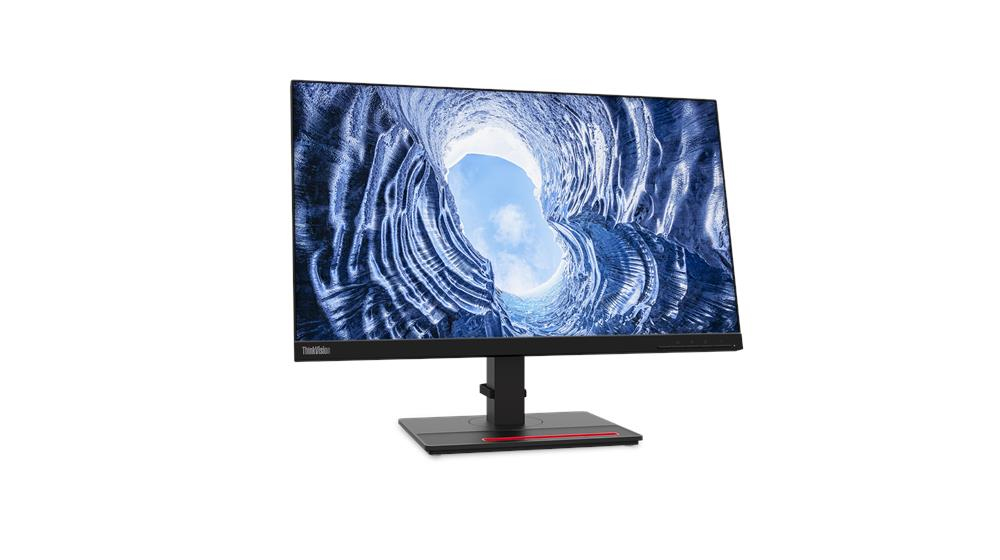

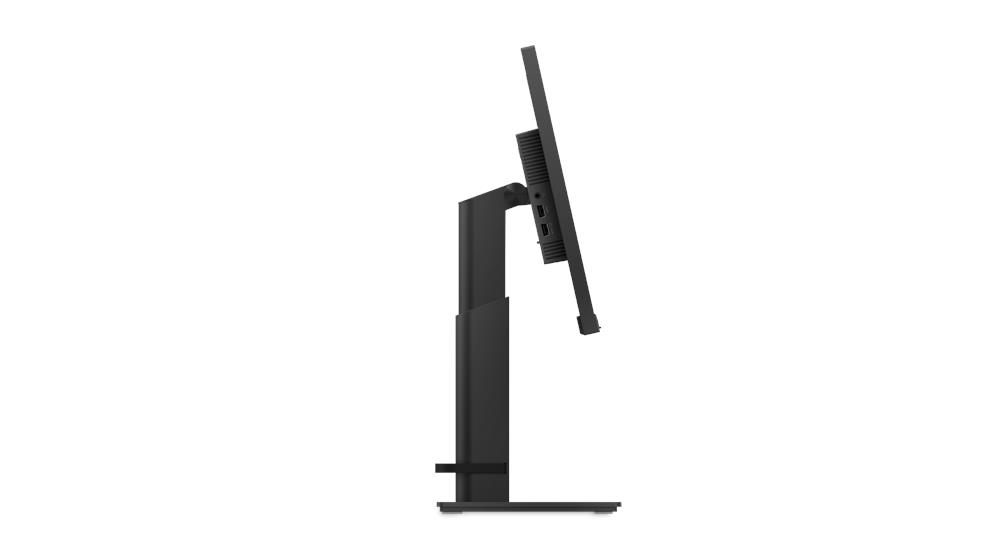

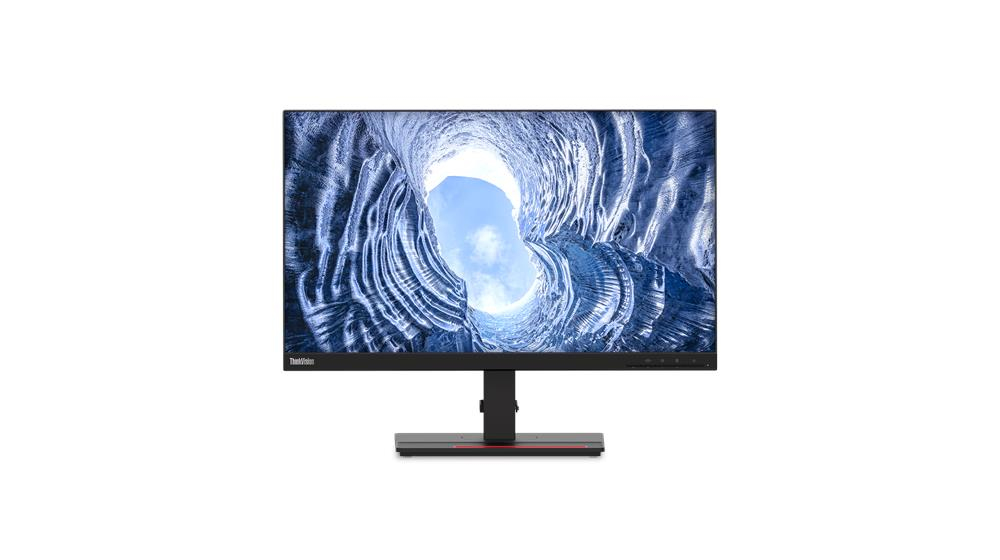

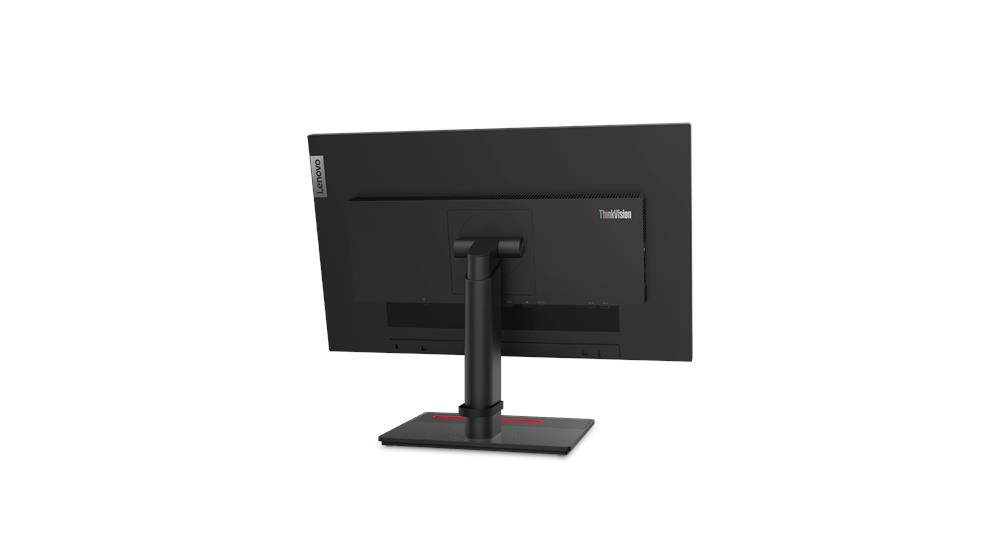

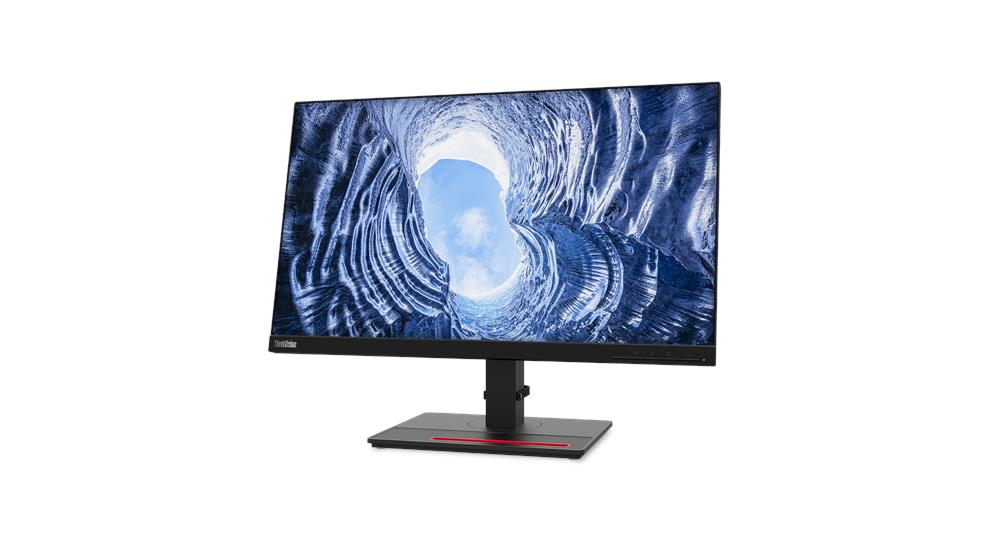

ThinkVision T24h-20 computer monitor
60.5 cm (23.8") 2560 x 1440 pixels Quad HD LCD Black
Model T24h-20Part no. 61F0GAR1UKEAN 194552419059
86 specifications Checked today
- Display60.5 cm (23.8")
- Resolution2560 x 1440 pixels
- Energy classF
- ColourBlack
- Built-in speaker(s)No
- Built-in USB hubYes
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 2560 x 1440 pixels
- Energy class
- F
- Colour
- Black
- Built-in speaker(s)
- No
- Built-in USB hub
- Yes
- Brand
- Lenovo
- Category
- Monitor
- Model
- T24h-20
- Part numbers
- 61F0GAR1UK, DE-61F0GAR1AU, 61F0GAR1EU, 61F0GAT1EU-02, 61F0GAT1UK-02, 61F0GAR1LA +6 more
- EAN / UPC
- 194552419059, 194552418953, 194552419189, 194552419042 +3 more
- Also known as
- Lenovo ThinkVision T24h-20 computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LCD Black
Specifications
86 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 2560 x 1440 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | Quad HD |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 300 cd/m² |
| Response time | 6 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 3000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2058 x 0.2058 mm |
| Pixel density | 123 ppi |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| sRGB coverage (typical) | 99% |
| 3D | No |
| Response time (extreme) | 4 ms |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone out | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 20 kWh |
| Power consumption (typical) | 23 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 120 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Energy efficiency scale | A to G |
| Annual energy consumption | 53.37 kWh |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 205 mm |
| Height (with stand) | 570 mm |
| Weight (with stand) | 6.18 kg |
| Width (without stand) | 539.8 mm |
| Depth (without stand) | 44.6 mm |
| Height (without stand) | 325.7 mm |
| Weight (without stand) | 3.85 kg |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 2.41 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 423 mm |
| Package depth | 149 mm |
| Package height | 620 mm |
| Package weight | 8.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-C, USB Type-C |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
