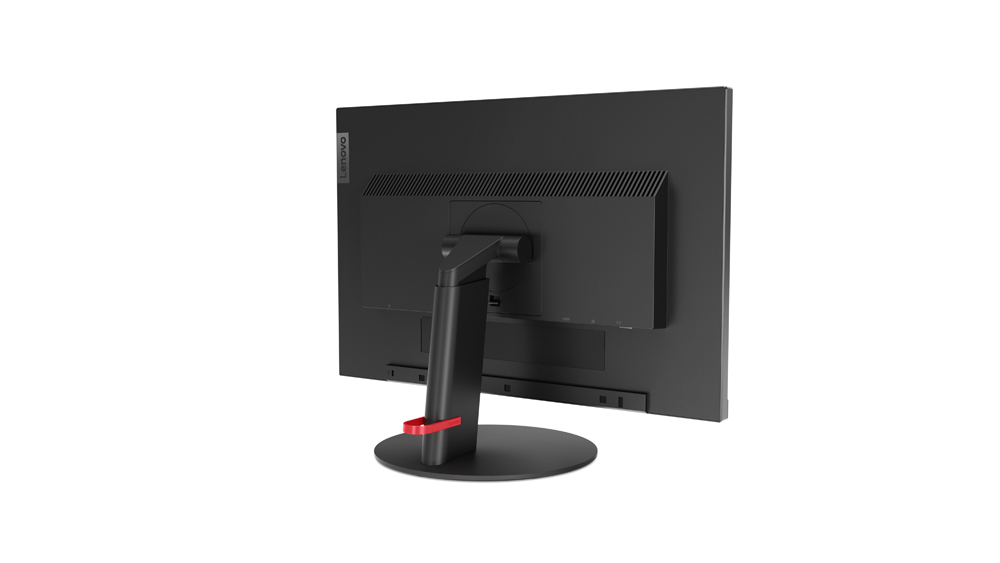

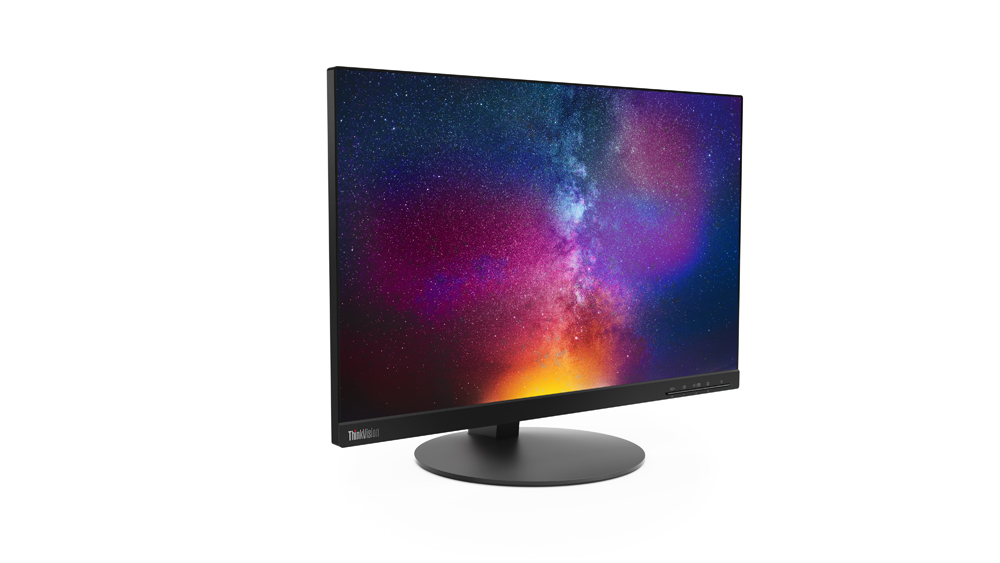

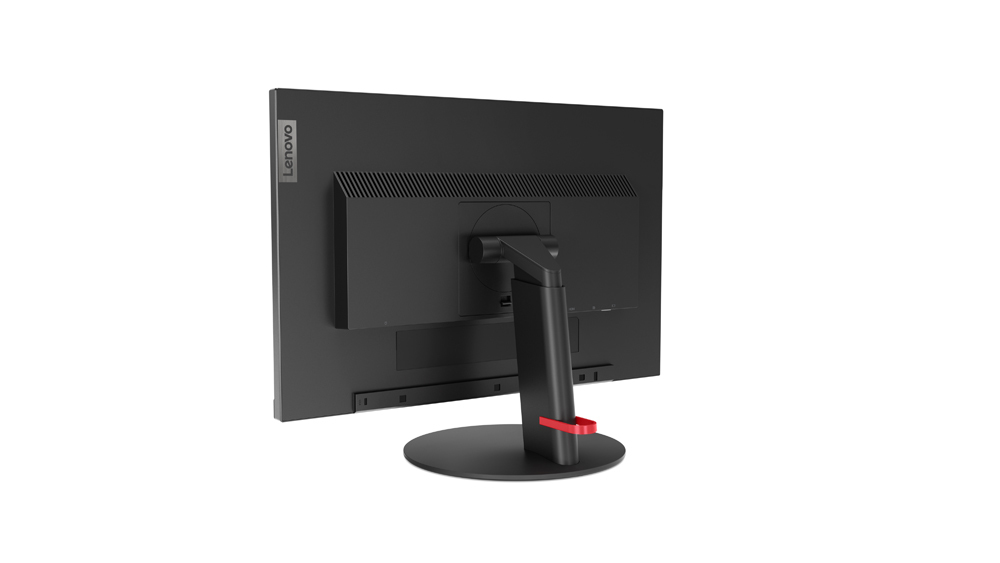

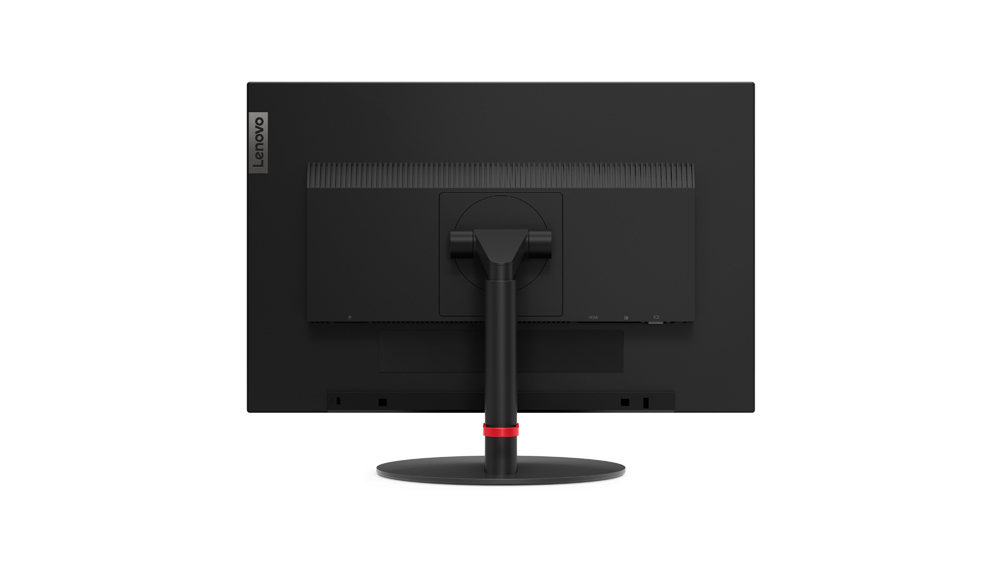

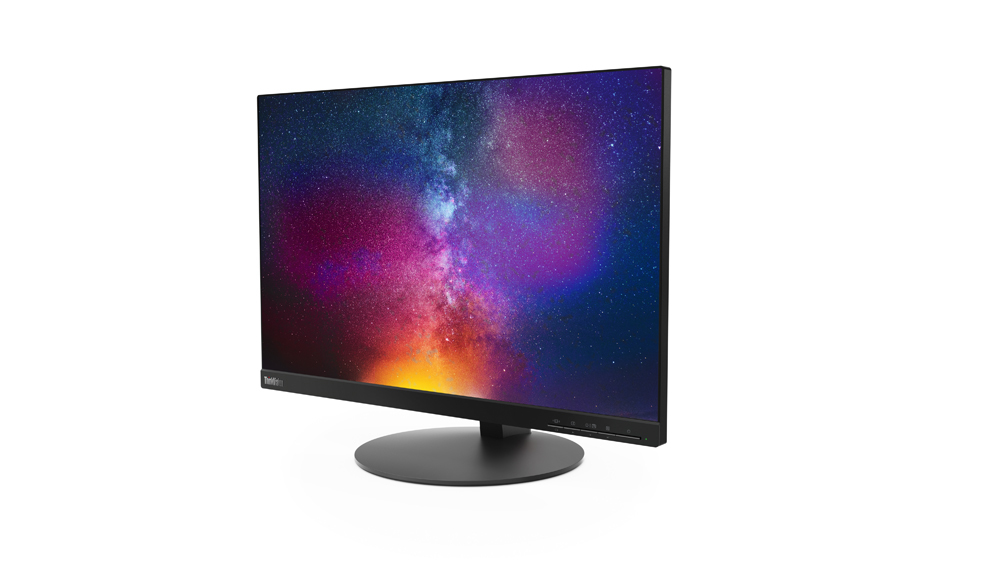

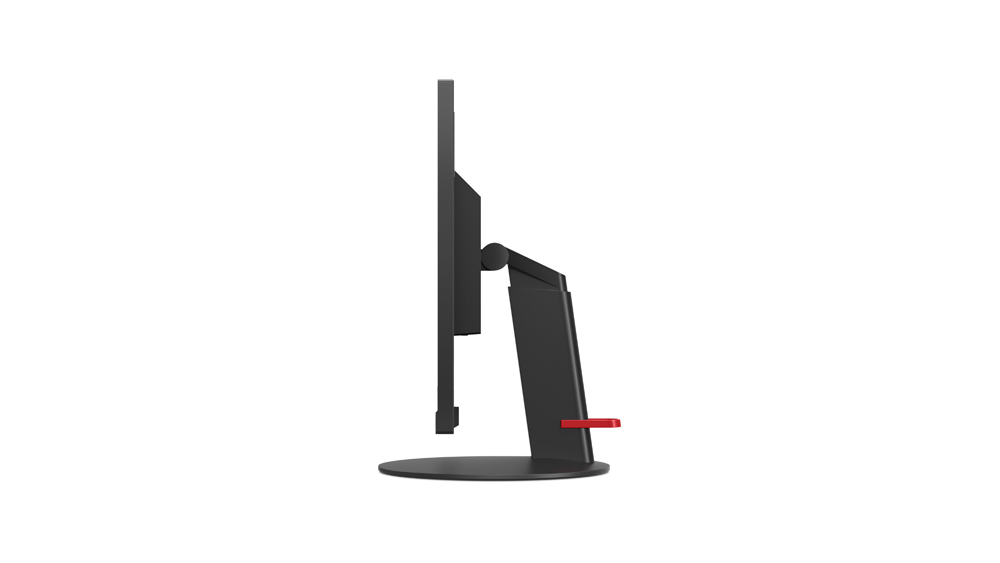

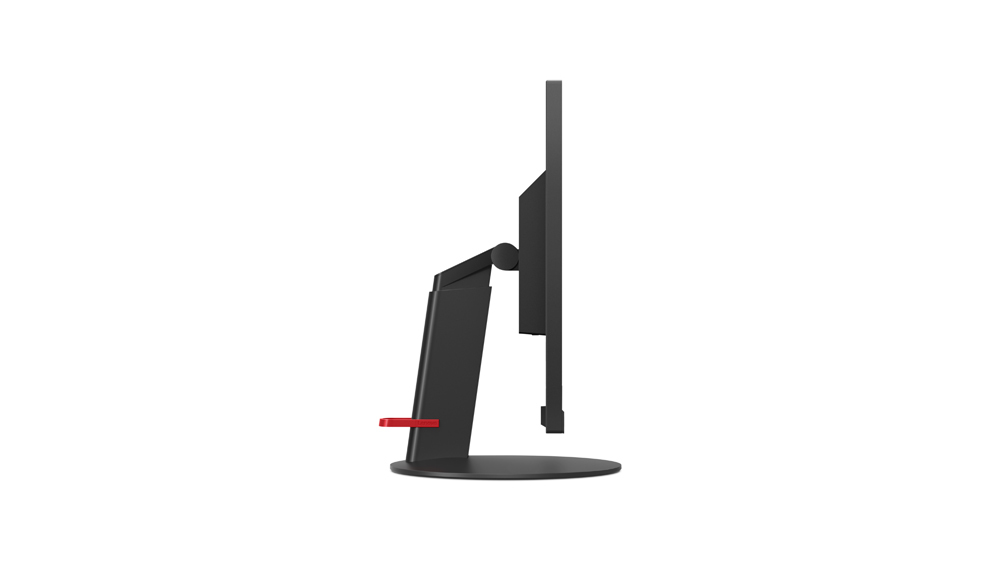

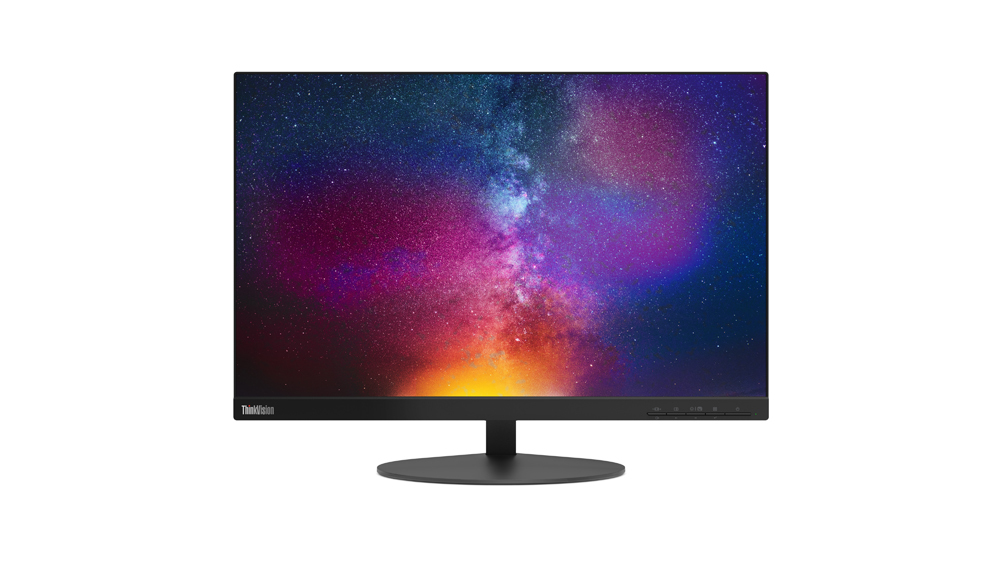

Lenovo ThinkVision T23d computer monitor

ThinkVision T23d computer monitor

57.1 cm (22.5") 1920 x 1200 pixels WUXGA LED Black

Model T23dPart no. 61C3MAR6WLEAN 192330486613

60 specifications Checked today

Display57.1 cm (22.5")
Resolution1920 x 1200 pixels
ColourBlack
Built-in speaker(s)No
VESA mountingYes
Power consumption (typical)15 W

See all specifications

Overview

Display: 57.1 cm (22.5")
Resolution: 1920 x 1200 pixels
Colour: Black
Built-in speaker(s): No
VESA mounting: Yes
Power consumption (typical): 15 W

Brand: Lenovo
Category: Monitor
Model: T23d
Part numbers: 61C3MAR6WL, 61C3MAT6DK, 61C3MAR6TK, 61C3MAR6U1, 61C3MAT6SA, 61C3MAT6TK +10 more
EAN / UPC: 192330486613, 192330486361, 192330486408, 192330486415 +4 more
Also known as: Lenovo ThinkVision T23d computer monitor 57.1 cm (22.5") 1920 x 1200 pixels WUXGA LED Black

Specifications

60 specifications in 11 groups

Display

Specification	Value
Display diagonal	57.1 cm (22.5")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	WUXGA
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	6 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.25 x 0.25 mm
Viewable size, horizontal	49.6 cm
Viewable size, vertical	31.4 cm
Colour gamut	72%

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black
Detachable stand	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
DC-in jack	Yes

Network

Specification	Value
Wi-Fi	No
Bluetooth	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	11 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°

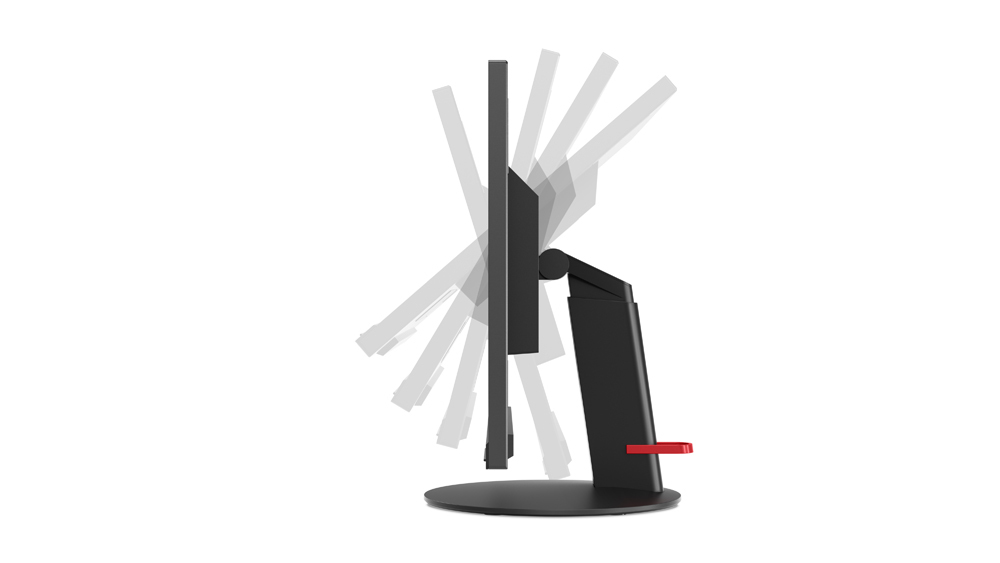

Tilt adjustment	Yes
Tilt angle range	-5 - 30°
On Screen Display (OSD)	Yes
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	15 W
Power consumption (standby)	0.3 W
Power consumption (max)	18 W

Weight & dimensions

Specification	Value
Width (with stand)	501.2 mm
Depth (with stand)	251.9 mm
Height (with stand)	491.9 mm
Weight (with stand)	4.85 kg
Bezel width (side)	2.3 mm

Packaging content

Specification	Value
Stand included	Yes
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
Compliance certificates	RoHS
