Legion R34w-30 computer monitor

86.4 cm (34") 3440 x 1440 pixels Wide Quad HD LCD Black

Model R34w-30Part no. 67C7GACBEUEAN 198154304485

101 specifications Checked today

Display86.4 cm (34")
Resolution3440 x 1440 pixels
Energy classF
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 86.4 cm (34")
Resolution: 3440 x 1440 pixels
Energy class: F
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: Lenovo
Category: Monitor
Model: R34w-30
Part numbers: 67C7GACBEU, 67C7GACBTK
EAN / UPC: 198154304485
Also known as: Lenovo Legion R34w-30 computer monitor 86.4 cm (34") 3440 x 1440 pixels Wide Quad HD LCD Black

Specifications

101 specifications in 12 groups

Display

Specification	Value
Display diagonal	86.4 cm (34")
Display resolution	3440 x 1440 pixels
Native aspect ratio	21:9
Display technology	LCD
Touchscreen	No
HD type	Wide Quad HD
Panel type	VA
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Response time (MPRT)	0.5 ms
Anti-glare screen	Yes
Screen shape	Curved
Screen curvature rating	1500R
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	180 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.2318 x 0.2318 mm
Pixel density	110 ppi
Viewable size, horizontal	80.8 cm
Viewable size, vertical	36.2 cm
Digital horizontal frequency	30 - 267 kHz
Digital vertical frequency	48 - 180 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Colour depth	8 bit
sRGB coverage (typical)	99%
DCI-P3 coverage	90%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium
Low Blue Light technology	Yes
Windows operating systems supported	Windows 10, Windows 11

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Colour name	Raven Black
Front bezel colour	Black

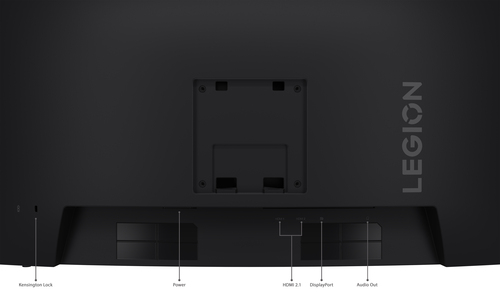

Ports & interfaces

Specification	Value
Built-in USB hub	No
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Audio output	Yes
Headphone out	No
Headphone connectivity	3.5 mm

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13.5 cm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 22°

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	31 kWh
Energy consumption (HDR) per 1000 hours	47 kWh
Power consumption (typical)	43 W
Power consumption (standby)	0.5 W
Power consumption (max)	55 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width (with stand)	807.8 mm
Depth (with stand)	321.6 mm
Height (with stand)	577.7 mm
Weight (with stand)	8.1 kg
Weight (without stand)	5.8 kg
Bezel width (side)	1.9 mm
Bezel width (top)	1.9 mm
Bezel width (bottom)	1.78 cm

Packaging data

Specification	Value
Package width	950 mm
Package depth	287 mm
Package height	496 mm
Warranty card	Yes

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort
Quick start guide	Yes
DisplayPort cable length	1.8 m
Power cable length	1.8 m
Bundled software	Lenovo Artery (Lenovo Accessories and Display Manager)

Other features

Specification	Value
HBR3 support	Yes
Active display area (W x H)	797.2 x 333.7 mm
