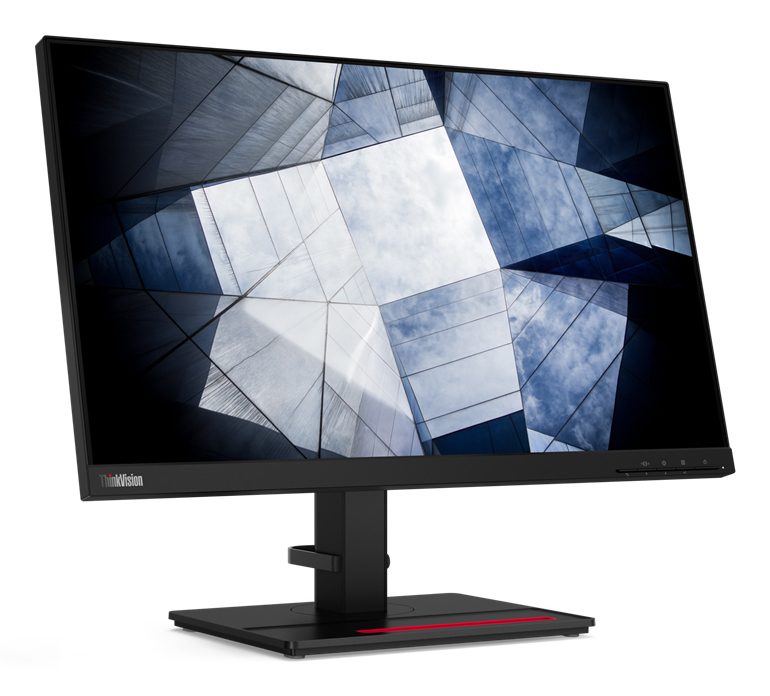

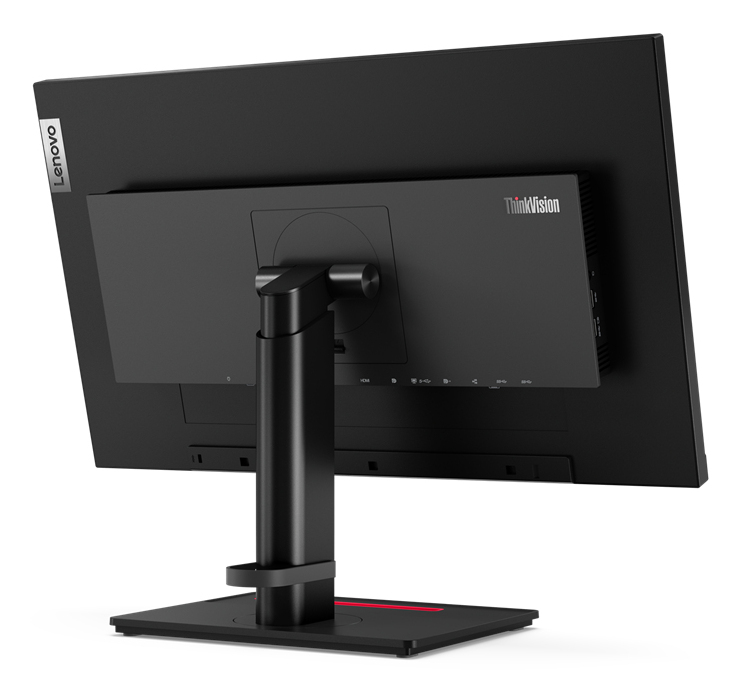

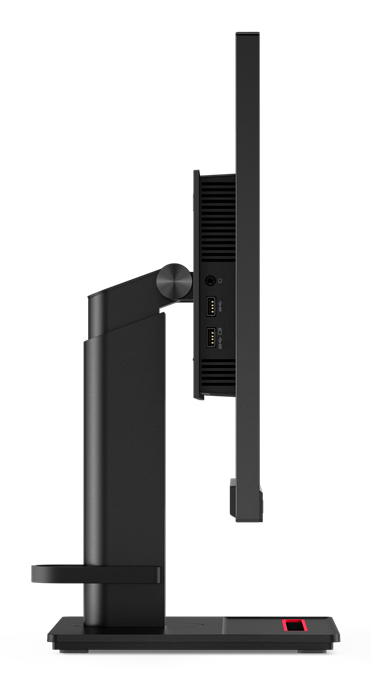

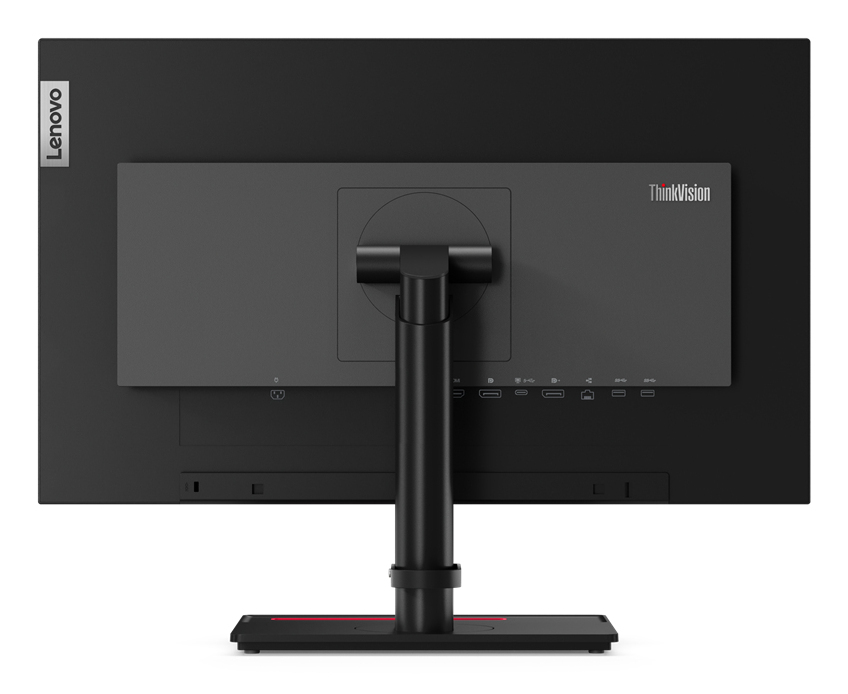

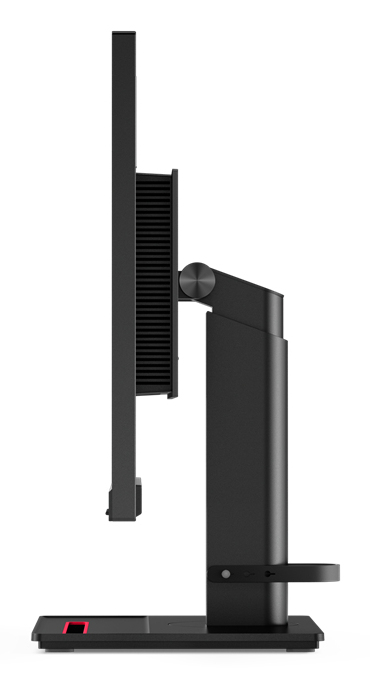

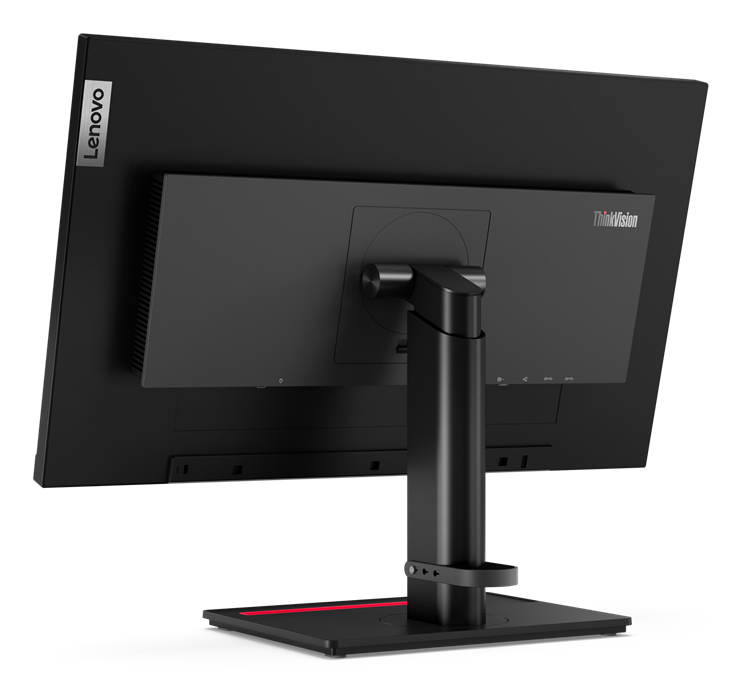

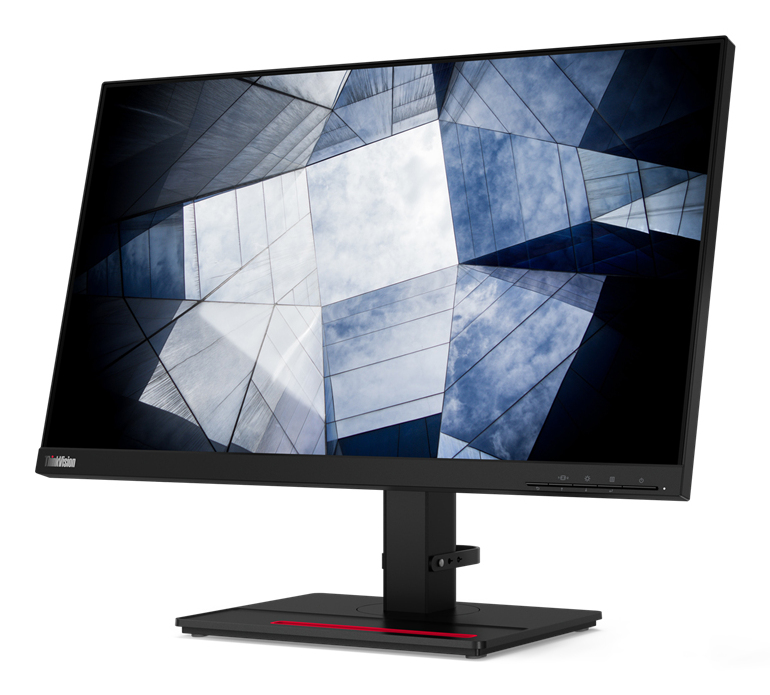

ThinkVision P24h-2L computer monitor

60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Model P24h-2LPart no. 62B2GAT1TKEAN 195348052436

100 specifications Checked today

Display60.5 cm (23.8")
Resolution2560 x 1440 pixels
Energy classF
ColourBlack
Low Blue Light technologyYes
Market positioningBusiness

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 2560 x 1440 pixels
Energy class: F
Colour: Black
Low Blue Light technology: Yes
Market positioning: Business

Brand: Lenovo
Category: Monitor
Model: P24h-2L
Part numbers: 62B2GAT1TK, 62B2GAT1IT, 62B2GAT1EU, 62B2GAT1UK, 62B2GAR1US, 62B2GAR1AU +7 more
EAN / UPC: 195348052436, 195348052382, 195348052351, 195348052580 +10 more
Also known as: Lenovo ThinkVision P24h-2L computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Specifications

100 specifications in 12 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	6 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	2560 x 1440
Supported video modes	1440p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Response time (fast)	4 ms
Pixel pitch	0.2058 x 0.2058 mm
Pixel density	123 ppi
Viewable size, horizontal	53.5 cm
Viewable size, vertical	31.3 cm
Colour gamut standard	sRGB
Colour gamut	99%
sRGB coverage (typical)	99%

Performance

Specification	Value
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	1 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Colour name	Raven Black
Front bezel colour	Black
Feet colour	Black

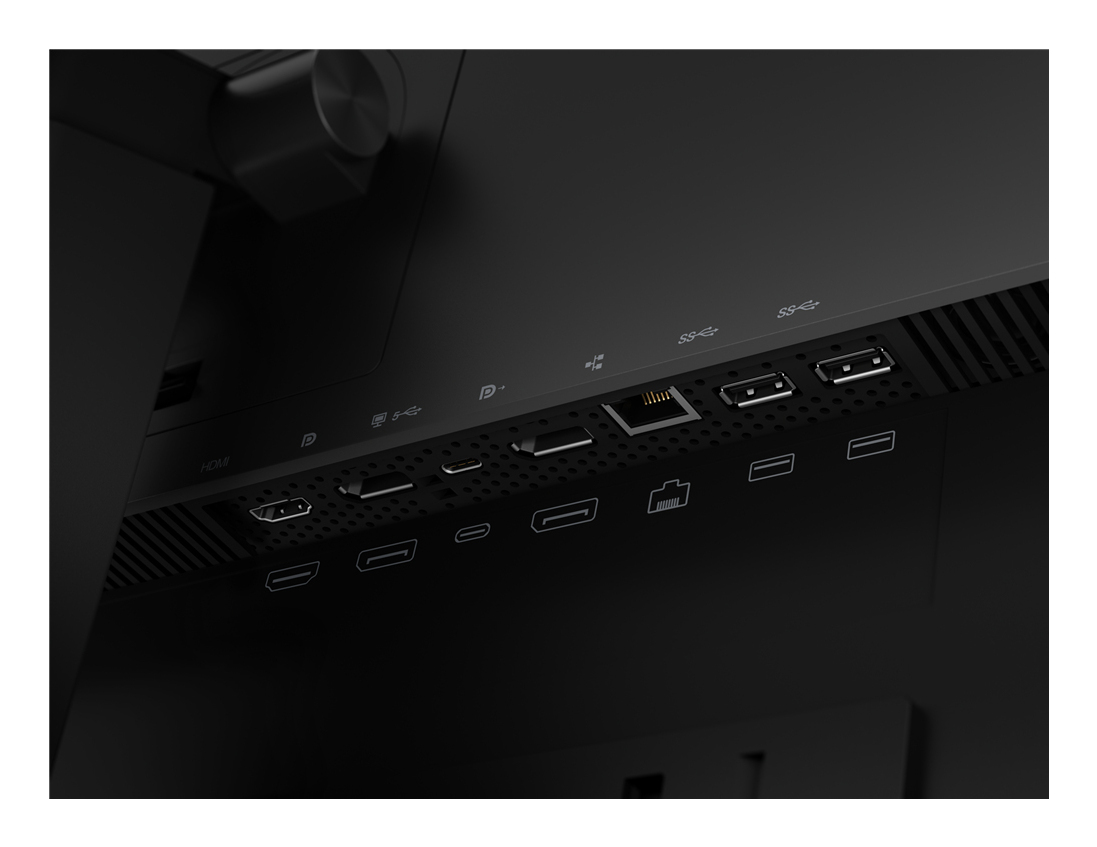

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery up to	75 W
DVI port	No
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	2
DisplayPort version	1.2
Audio input	Yes
Headphone out	No
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	20 kWh
Power consumption (typical)	23 W
Power consumption (max)	132 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Energy efficiency scale	A to G
Annual energy consumption	59.5 kWh

Weight & dimensions

Specification	Value
Width (with stand)	570 mm
Depth (with stand)	205 mm
Height (with stand)	539.8 mm
Weight (with stand)	6.39 kg
Width (without stand)	539.8 mm
Depth (without stand)	44.6 mm
Height (without stand)	325.7 mm
Weight (without stand)	4.1 kg
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	2.14 cm

Packaging data

Specification	Value
Package width	620 mm
Package depth	149 mm
Package height	423 mm
Package weight	8.46 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	DisplayPort, USB Type-C to USB Type-C
Quick start guide	Yes
DisplayPort cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver, TCO
Sustainability compliance	Yes

Other features

Specification	Value
Compatible operating systems	Windows 7, Windows 10
Compliance certificates	RoHS
Certification	TÜV Low Blue Light, TÜV Rheinland Eye Comfort, Eyesafe Display, CCC, TCO Edge 2.0
