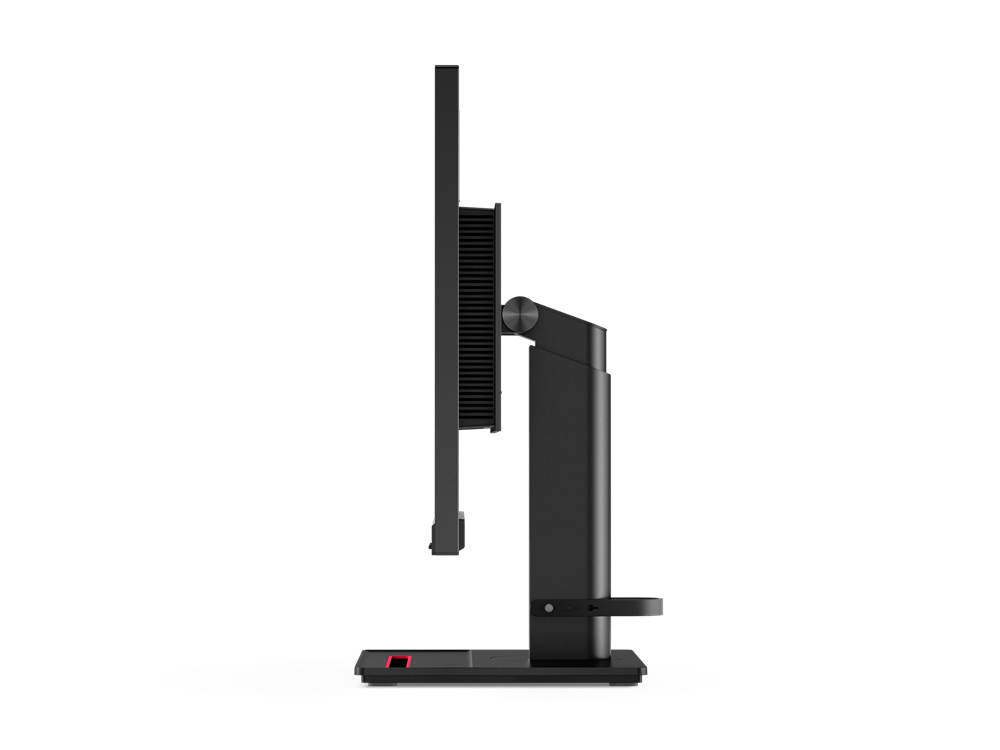

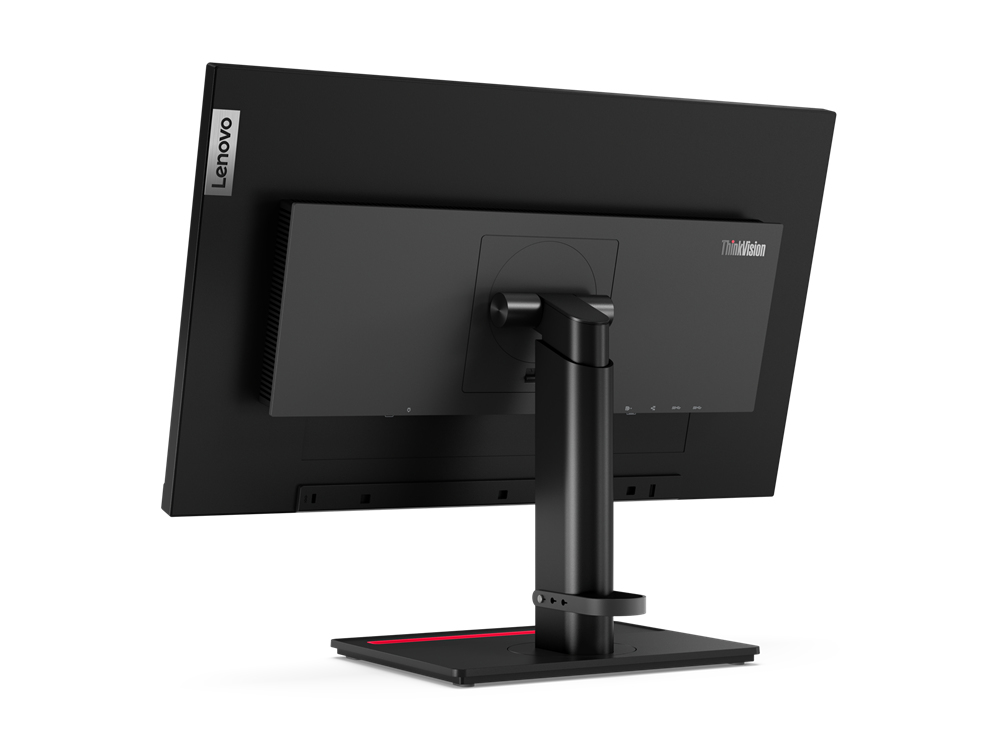

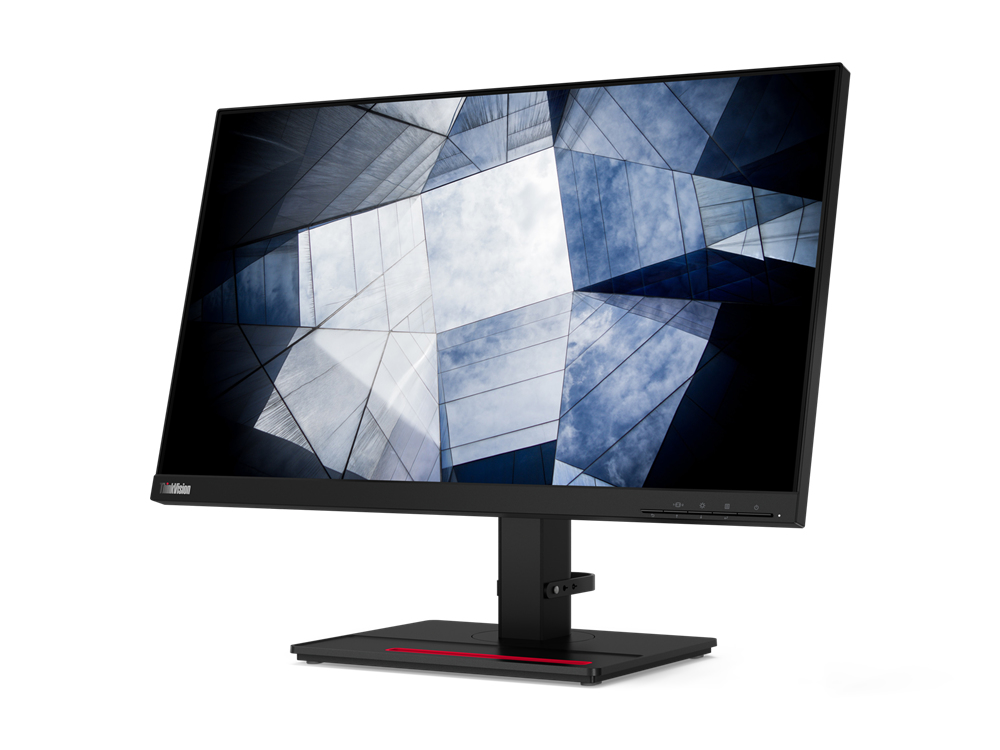

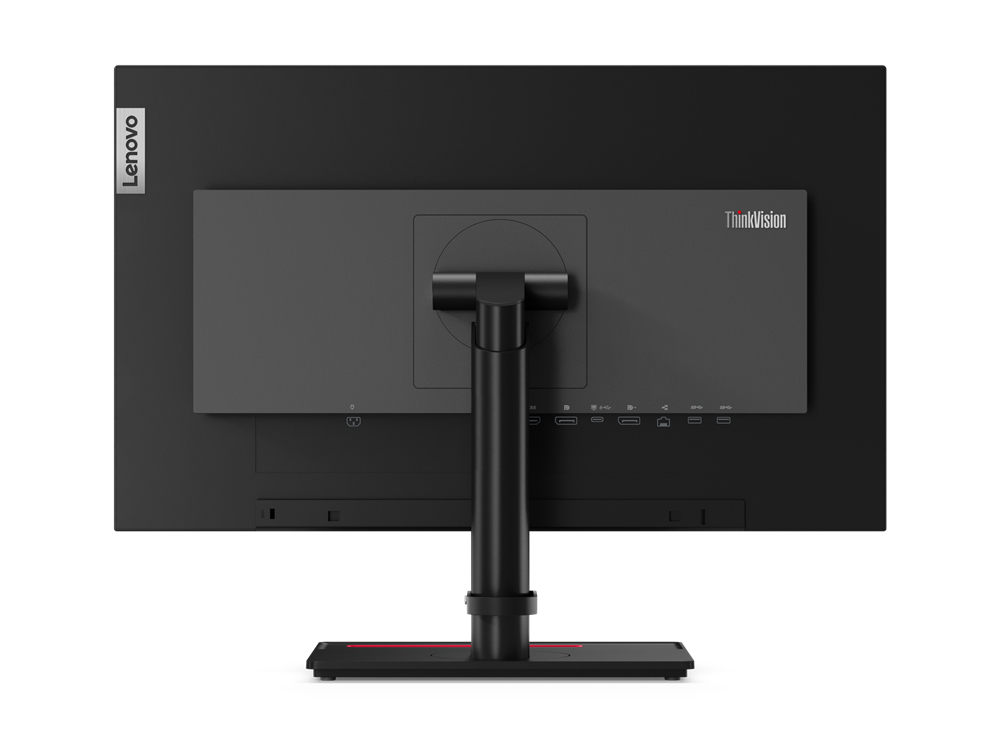

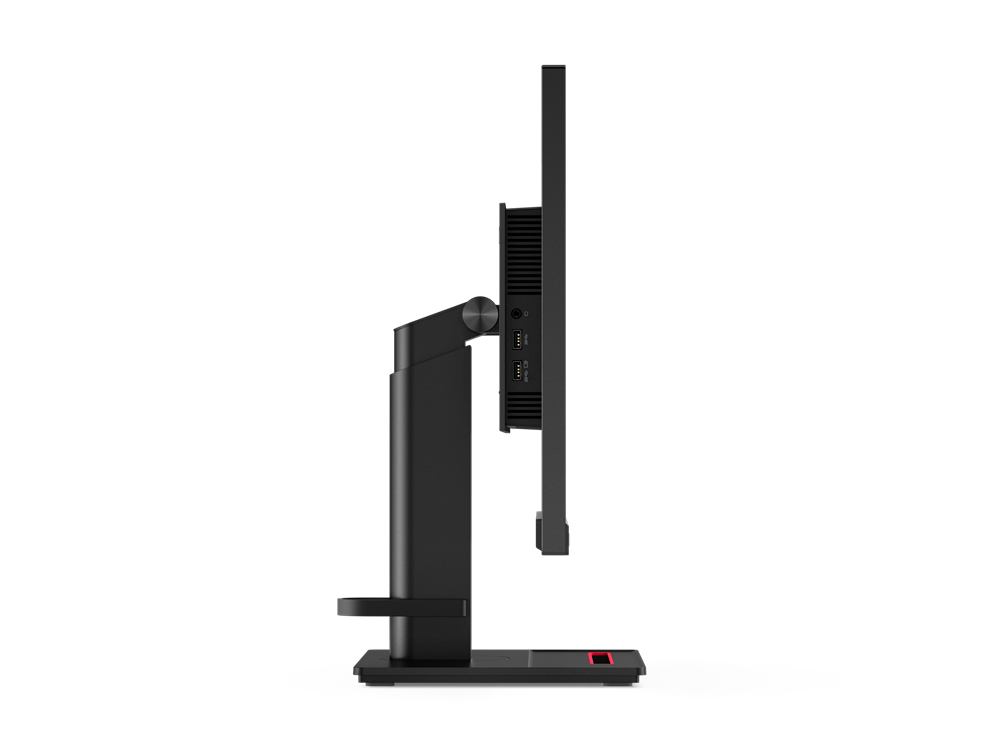

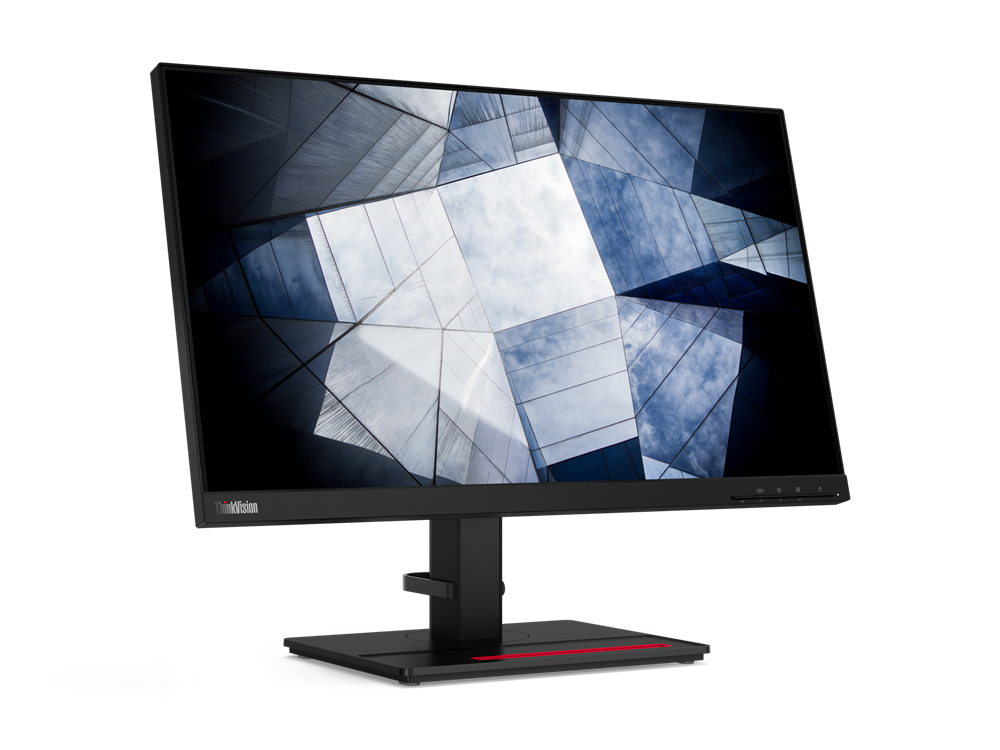

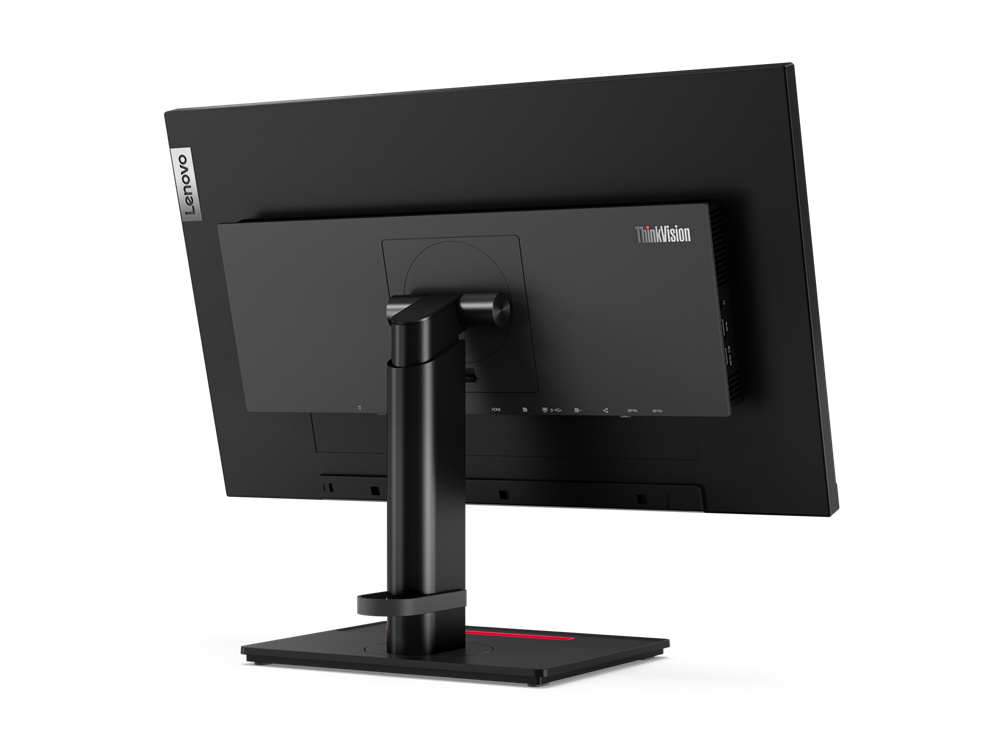

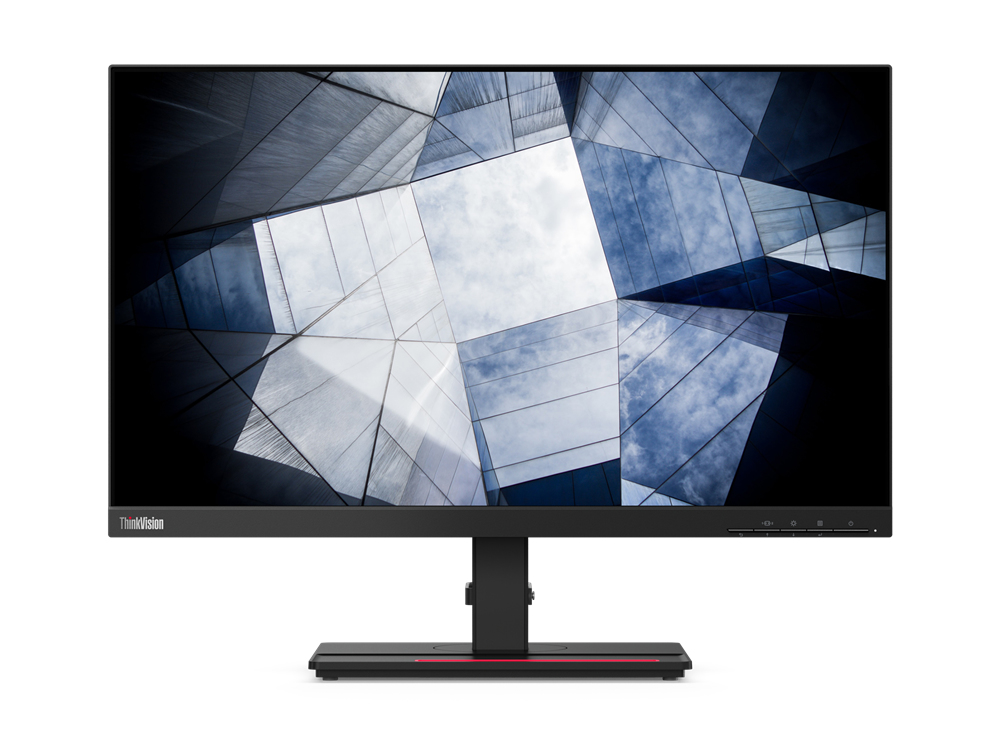

ThinkVision P24h-20 computer monitor

60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Model P24h-20Part no. 61F4GAR1K2EAN 194552418823

96 specifications Checked today

Display60.5 cm (23.8")
Resolution2560 x 1440 pixels
Energy classF
ColourBlack
Low Blue Light technologyYes
Width (with stand)539.8 mm

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 2560 x 1440 pixels
Energy class: F
Colour: Black
Low Blue Light technology: Yes
Width (with stand): 539.8 mm

Brand: Lenovo
Category: Monitor
Model: P24h-20
Part numbers: 61F4GAR1K2, 61F4GAT1TK, 61F4GAR1CH, 61F4GAR1TK, 61F4GAR1WW, 61F4GAT1UA +7 more
EAN / UPC: 194552418823, 194552418601, 194552418878, 194552418816 +4 more
Also known as: Lenovo ThinkVision P24h-20 computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Specifications

96 specifications in 14 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	6 ms
Screen shape	Flat
Supported graphics resolutions	2560 x 1440
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Response time (fast)	4 ms
Pixel pitch	0.2058 x 0.2058 mm
Pixel density	123 ppi
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Colour depth	8 bit
Colour gamut standard	sRGB
sRGB coverage (typical)	99%

Performance

Specification	Value
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Product colour	Black
Colour name	Raven Black
Front bezel colour	Black
Feet colour	Black

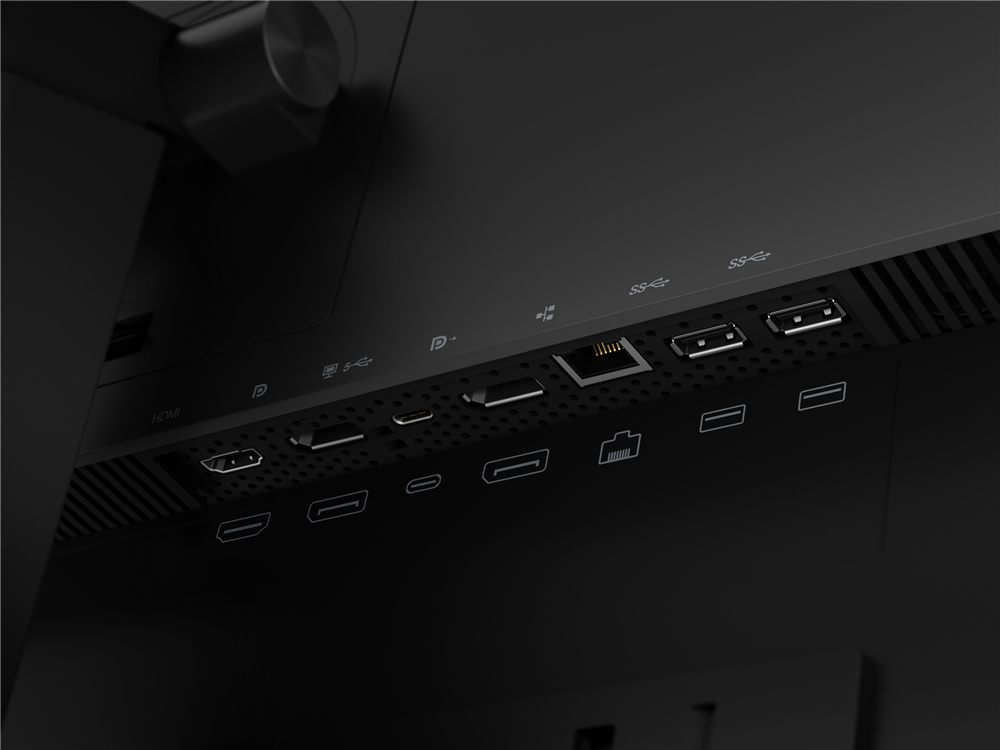

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery up to	75 W
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	2
DisplayPort version	1.2
Audio input	No
Audio output	Yes

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
Number of OSD languages	8

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	20 kWh
Power consumption (typical)	23 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	539.8 mm
Depth (with stand)	205 mm
Height (with stand)	420 mm
Weight (with stand)	6.18 kg
Width (without stand)	539.8 mm
Depth (without stand)	44.6 mm
Height (without stand)	325.7 mm
Weight (without stand)	3.85 kg
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	2.14 cm

Packaging data

Specification	Value
Package width	423 mm
Package depth	620 mm
Package height	149 mm
Package weight	8.1 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, USB Type-C to USB Type-C

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
Compliance certificates	RoHS
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	TÜV, CCC, TCO 8.0, TCO Edge 2.0

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
