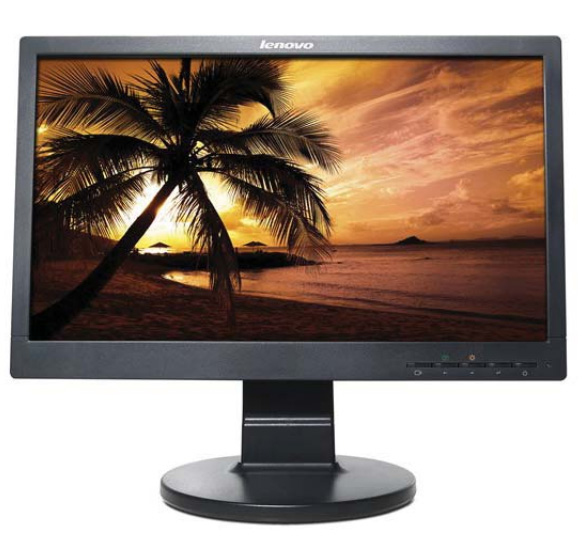

Lenovo LS1922 Wide

LS1922 Wide

Model LS1922 WidePart no. T80AHSP

62 specifications Checked today

Display47 cm (18.5")
Resolution1366 x 768 pixels
ColourBlack
Built-in speaker(s)No
Market positioningBusiness
USB Type-A downstream ports quantity0

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Colour: Black
Built-in speaker(s): No
Market positioning: Business
USB Type-A downstream ports quantity: 0

Brand: Lenovo
Category: Monitor
Model: LS1922 Wide
Part number: T80AHSP
Also known as: Lenovo ThinkVision LS1922 Wide computer monitor 47 cm (18.5") 1366 x 768 pixels HD LED Black

Specifications

62 specifications in 12 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	HD
Panel type	TN+Film
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	640 x 350, 720 x 400, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	720p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.300 x 0.300 mm
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
HDMI ports quantity	0
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
Number of OSD languages	8
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	14 W
Power consumption (standby)	1 W
Power consumption (max)	18 W
Power consumption (off)	0.5 W
AC input voltage	96 - 264 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width (without stand)	442.2 mm
Depth (without stand)	210 mm
Height (without stand)	370.1 mm
Weight (without stand)	2.97 kg

Packaging content

Specification	Value
Cables included	AC, VGA
Quick start guide	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	409.8 x 230.4 mm
Certification	CCC, BSMI, BELLIS, NOM, SASO, CE, IC, INSM, ISC, ISO, AS/NZA, CSC, FCC, GOST, Kuwait, PSB, SONCAP, South Africa, JEIDA, KC, KEBS, KONCAR, STZ, TCO 5.0, TUV, VCCI
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
