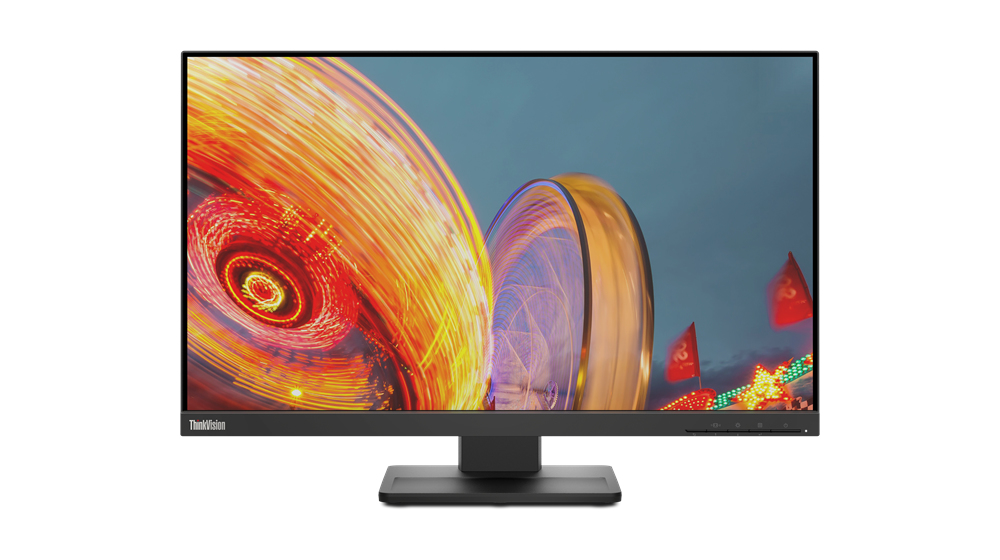

ThinkVision E24q-20 computer monitor

60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Model E24q-20Part no. 62CFGAT1ITEAN 195713813587

70 specifications Checked today

Display60.5 cm (23.8")
Resolution2560 x 1440 pixels
Energy classF
ColourBlack
Built-in speaker(s)Yes
Built-in USB hubNo

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 2560 x 1440 pixels
Energy class: F
Colour: Black
Built-in speaker(s): Yes
Built-in USB hub: No

Brand: Lenovo
Category: Monitor
Model: E24q-20
Part numbers: 62CFGAT1IT, 62CFGAT1TK, 62CFGAT1UA, 62CFGAT1EU, 62CFGAR1AU, 62CFGAT1UK +3 more
EAN / UPC: 195713813587, 195713813631, 195713813549, 195713813655 +3 more
Also known as: Lenovo ThinkVision E24q-20 computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Specifications

70 specifications in 11 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	6 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Response time (fast)	4 ms
Pixel pitch	0.2058 x 0.2058 mm
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Colour depth	8 bit
Colour gamut standard	sRGB
Colour gamut	99%

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Audio output	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	0 - 360°
Tilt adjustment	Yes
Tilt angle range	-5 - 22°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	22 kWh
Power consumption (typical)	22 W
Power consumption (max)	32 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	539.8 mm
Depth (with stand)	180.3 mm
Height (with stand)	475.6 mm
Weight (with stand)	5 kg
Width (without stand)	539.8 mm
Depth (without stand)	44 mm
Height (without stand)	325.7 mm
Weight (without stand)	3.3 kg

Packaging data

Specification	Value
Package width	690 mm
Package depth	159 mm
Package height	421 mm
Package weight	7 kg

Packaging content

Specification	Value
Stand included	Yes

Other features

Specification	Value
Certification	ENERGY STAR CCC TCO 8.0 EPEAT Silver RoHS TÜV

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
