D32u-40 Monitor
Model D32u-40Part no. 66FDGAC2ITEAN 196802121651
110 specifications Checked today
- Display80 cm (31.5")
- Resolution3840 x 2160 pixels
- Energy classG
- ColourBlack
- Flicker-free technologyYes
- Built-in speaker(s)No
Overview
- Display
- 80 cm (31.5")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- Colour
- Black
- Flicker-free technology
- Yes
- Built-in speaker(s)
- No
- Brand
- Lenovo
- Category
- Monitor
- Model
- D32u-40
- Part numbers
- 66FDGAC2IT, 66FDGAC2EU, 66FDGAC2UK
- EAN / UPC
- 196802121651, 196802121682, 196802121644
- Also known as
- Lenovo D32u-40 Monitor
Specifications
110 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | VA |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 8 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 3000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Response time (fast) | 4 ms |
| Pixel pitch | 0.181 x 0.181 mm |
| Pixel density | 139.9 ppi |
| Horizontal scan range | 30 - 160 kHz |
| Vertical scan range | 30 - 75 Hz |
| Viewable size, horizontal | 69.7 cm |
| Viewable size, vertical | 39.2 cm |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Colour gamut | 72% |
| NTSC coverage (typical) | 72% |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Black |
| Colour name | Raven Black |
| Front bezel colour | Black |
| Stand adjustment | Tilt Stand |
| Feet colour | Black |

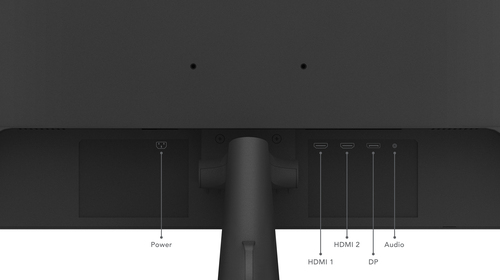

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| Number of USB Type-B upstream ports quantity | 0 |
| USB Type-C DisplayPort Alternate Mode | No |
| USB Power Delivery (USB PD) | No |
| VGA (D-Sub) ports quantity | 0 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort out quantity | 0 |
| DisplayPort version | 1.2 |
| Mini DisplayPorts quantity | 0 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Pivot | No |
| Swivelling | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 22° |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 33 kWh |
| Power consumption (typical) | 34 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 60 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 714.1 mm |
| Depth (with stand) | 225.2 mm |
| Height (with stand) | 502.8 mm |
| Weight (with stand) | 6.3 kg |
| Width (without stand) | 714.1 mm |
| Depth (without stand) | 50.3 mm |
| Height (without stand) | 426.2 mm |
| Weight (without stand) | 5.4 kg |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 2.4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 844 mm |
| Package depth | 151 mm |
| Package height | 512 mm |
| Package weight | 9.9 kg |
| Warranty card | Yes |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI |
| Screws included | Yes |
| Quick start guide | Yes |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Volume control | No |
| Certification | TÜV Rheinland® Flicker Free TÜV Rheinland Eye Comfort Certification |
| Warranty period | 3 year(s) |
