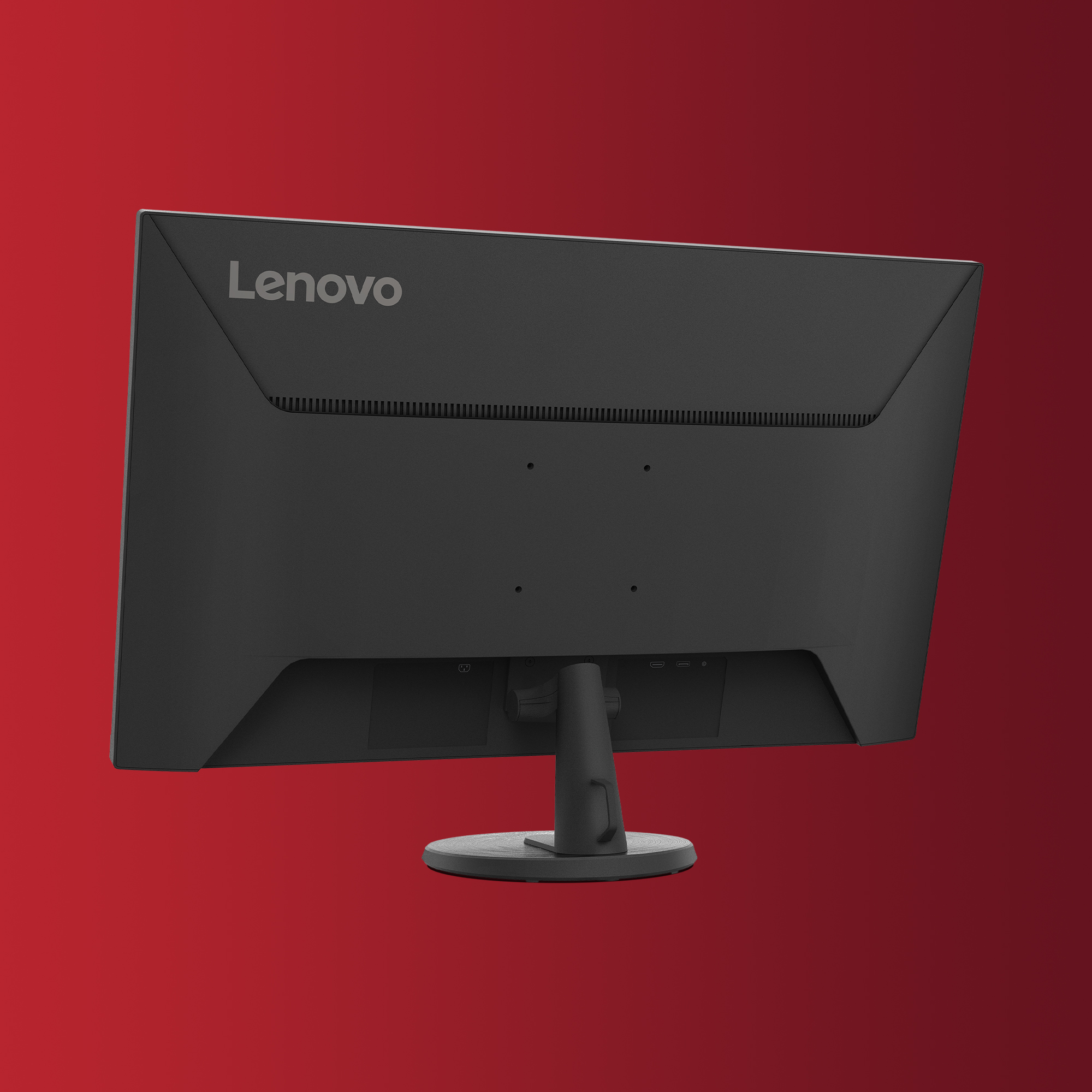

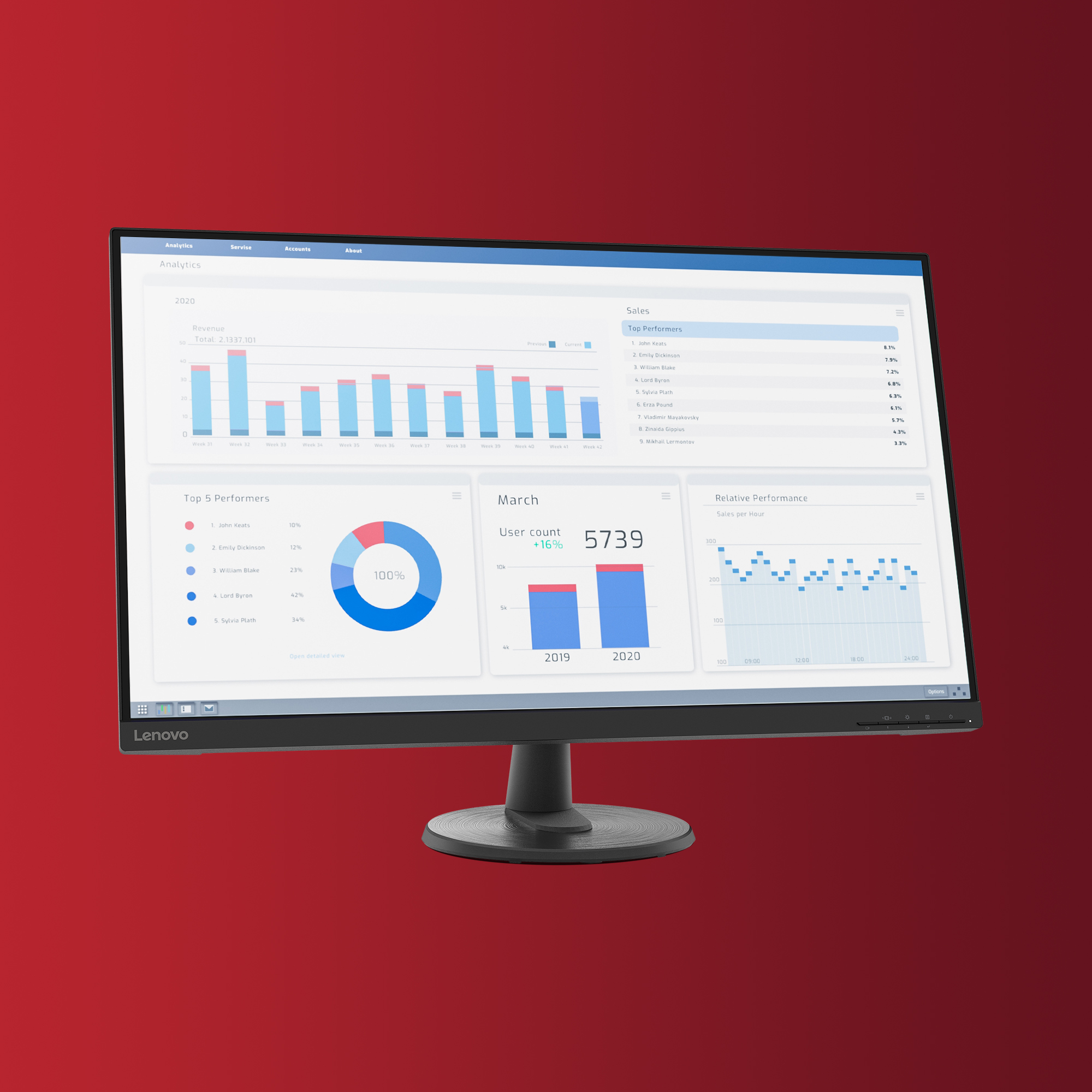

D32-40 Monitor

Model D32-40Part no. 66FCGAC2UKEAN 196802121262

109 specifications Checked today

Display80 cm (31.5")
Resolution1920 x 1080 pixels
Energy classE
ColourBlack
Flicker-free technologyYes
Built-in speaker(s)No

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 1920 x 1080 pixels
Energy class: E
Colour: Black
Flicker-free technology: Yes
Built-in speaker(s): No

Brand: Lenovo
Category: Monitor
Model: D32-40
Part numbers: 66FCGAC2UK, 66FCGAC2IT, 66FCGAC2EU
EAN / UPC: 196802121262, 196802121293, 196802721615, 196802121255
Also known as: Lenovo D32-40 Monitor

Specifications

109 specifications in 13 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	VA
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	4 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Response time (fast)	4 ms
Pixel pitch	0.364 x 0.364 mm
Pixel density	92.5 ppi
Horizontal scan range	30 - 84 kHz
Vertical scan range	48 - 75 Hz
Viewable size, horizontal	71 cm
Viewable size, vertical	41.2 cm
Colour depth	8 bit
Colour gamut	99%
sRGB coverage (typical)	99%

Performance

Specification	Value
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Colour name	Raven black
Front bezel colour	Black
Stand adjustment	Tilt Stand
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
Number of USB Type-B upstream ports quantity	0
USB Type-C DisplayPort Alternate Mode	No
USB Power Delivery (USB PD)	No
VGA (D-Sub) ports quantity	0
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort out quantity	0
DisplayPort version	1.2
Mini DisplayPorts quantity	0
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Swivelling	No
Tilt adjustment	Yes
Tilt angle range	-5 - 22°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	27 kWh
Power consumption (typical)	26.5 W
Power consumption (standby)	0.5 W
Power consumption (max)	46 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width (with stand)	714.1 mm
Depth (with stand)	225.2 mm
Height (with stand)	502.8 mm
Weight (with stand)	6.3 kg
Width (without stand)	714.1 mm
Depth (without stand)	50.3 mm
Height (without stand)	426.2 mm
Weight (without stand)	5.4 kg
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	2.4 cm

Packaging data

Specification	Value
Package width	830 mm
Package depth	151 mm
Package height	528 mm
Package weight	8.9 kg
Warranty card	Yes

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, HDMI
Screws included	Yes
Quick start guide	Yes
HDMI cable length	1.8 m
Power cable length	1.8 m

Other features

Specification	Value
Digital signal format system	Not supported
Compliance certificates	RoHS
Volume control	No
Certification	TÜV Rheinland® Flicker Free TÜV Rheinland Eye Comfort Certification
Warranty period	3 year(s)
