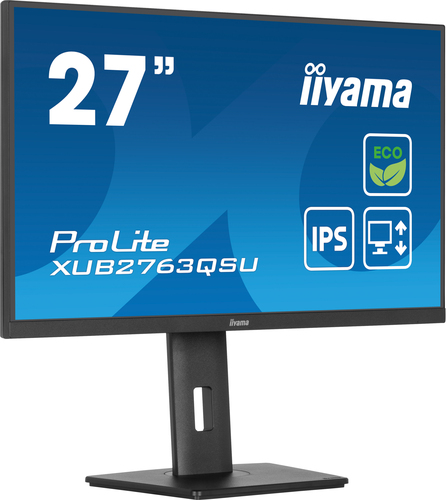

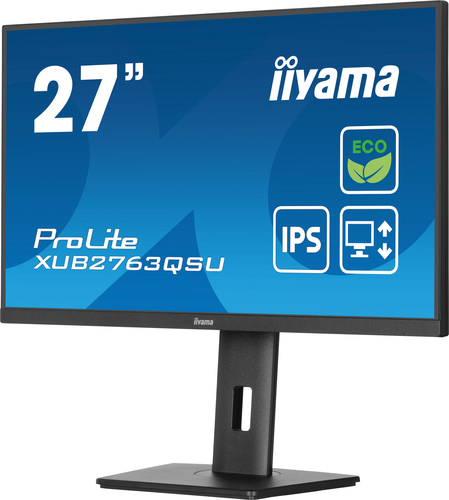

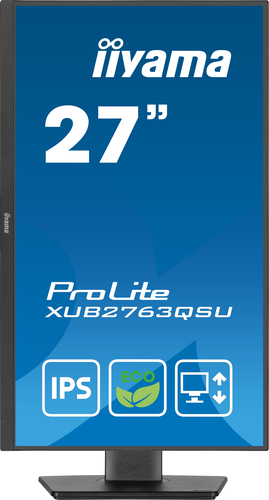

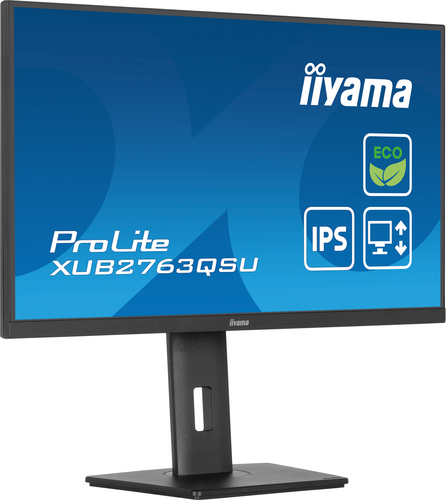

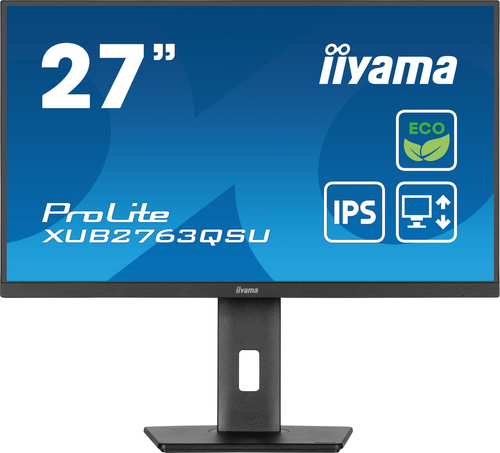

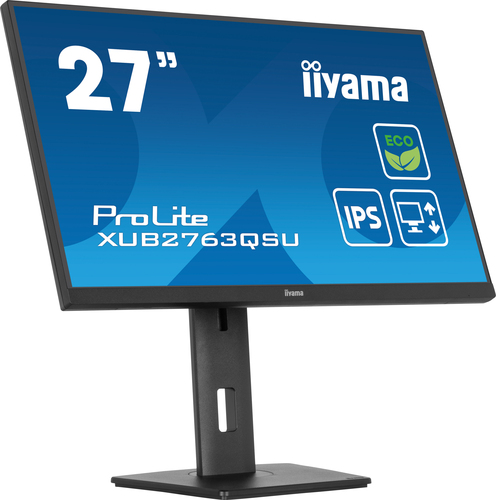

ProLite XUB2763QSU-B1 computer monitor

68.6 cm (27") 2560 x 1440 pixels Quad HD LED Black

Model XUB2763QSU-B1EAN 4948570124282

87 specifications Checked today

Display68.6 cm (27")
Resolution2560 x 1440 pixels
Energy classB
Weight6.3 kg
ColourBlack
AMD FreeSyncYes

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Energy class: B
Weight: 6.3 kg
Colour: Black
AMD FreeSync: Yes

Brand: iiyama
Category: Monitor
Model: XUB2763QSU-B1
Part number: XUB2763QSU-B1
EAN / UPC: 4948570124282
Also known as: iiyama ProLite XUB2763QSU-B1 computer monitor 68.6 cm (27") 2560 x 1440 pixels Quad HD LED Black

Specifications

87 specifications in 12 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Display brightness (typical)	350 cd/m²
Response time	2 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Contrast ratio (typical)	1500:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	100 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.233 x 0.233 mm
Horizontal scan range	30 - 151 kHz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.6 cm
DDC/CI	Yes
sRGB coverage (typical)	96%
NTSC coverage (typical)	72%

Performance

Specification	Value
AMD FreeSync	Yes
AMD FreeSync type	FreeSync
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports	2
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	23 - 5°
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian

Power

Specification	Value
Energy efficiency class (SDR)	B
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	10.7 kWh
Power consumption (typical)	11 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	613 mm
Depth (with stand)	209.5 mm
Height (with stand)	547 mm
Weight (with stand)	6.3 kg
Width (without stand)	612 mm
Depth (without stand)	209.5 mm
Height (without stand)	397.5 mm

Packaging content

Specification	Value
Cables included	AC, USB, HDMI, DisplayPort
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ErP, TCO

Other features

Specification	Value
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Depth	209.5 mm
Packaging content	quick start guide, safety guide
Weight	6.3 kg
Width	613 mm
Control panel	Joystick/Power: Center: Power/Menu, Up/Input Select, Down, Right/Volume/Mute Audio, Left/Submenu
User controls	picture adjust (brightness, contrast, i-Style colour, ACR, ECO, OD, X-Res Technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD settings (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, langu

Technical details

Specification	Value
Native refresh rate	60 Hz
