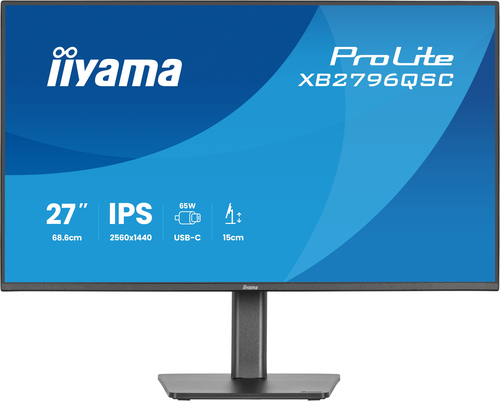

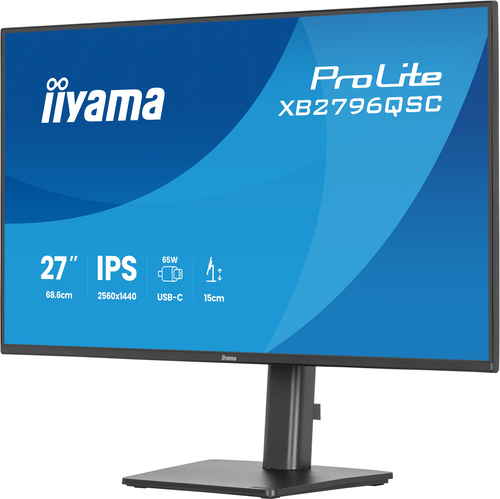

ProLite XB2796QSC-B1 computer monitor

68.6 cm (27") 2560 x 1440 pixels Quad HD LED Black

Model XB2796QSC-B1EAN 4948570127023

107 specifications Checked today

Display68.6 cm (27")
Resolution2560 x 1440 pixels
Energy classE
Weight6 kg
ColourBlack
Flicker-free technologyYes

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Energy class: E
Weight: 6 kg
Colour: Black
Flicker-free technology: Yes

Brand: iiyama
Category: Monitor
Model: XB2796QSC-B1
Part number: XB2796QSC-B1
EAN / UPC: 4948570127023
Also known as: iiyama ProLite XB2796QSC-B1 computer monitor 68.6 cm (27") 2560 x 1440 pixels Quad HD LED Black

Specifications

107 specifications in 14 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Display brightness (typical)	350 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.233 x 0.233 mm
Horizontal scan range	30 - 120 kHz
Vertical scan range	48 - 75 Hz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.5 cm
DDC/CI	Yes
Colour gamut standard	NTSC, sRGB
sRGB coverage (typical)	96%
NTSC coverage (typical)	72%

Performance

Specification	Value
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Design

Specification	Value
Market positioning	Business
Product colour	Black
Frameless design	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
Number of downstream ports	2
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	1
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm

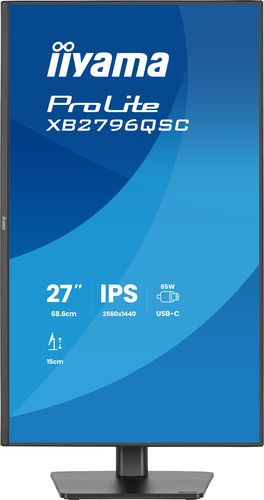

Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 23°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Number of OSD languages	11

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	20.1 kWh
Power consumption (typical)	20 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	613.5 mm
Depth (with stand)	224.5 mm
Height (with stand)	550.5 mm
Weight (with stand)	6 kg
Height (without stand)	404.5 mm

Packaging data

Specification	Value
Package width	690 mm
Package depth	140 mm
Package height	465 mm
Package weight	7.6 kg
Package type	Box
USB cable length	1 m

Packaging content

Specification	Value
Cables included	AC, USB Type-C
Quick start guide	Yes
Power cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	ErP

Other features

Specification	Value
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Depth	224.5 mm
Packaging content	quick start guide, safety guide
Weight	6 kg
Width	613.5 mm
Control panel	Joystick: Menu (Centre), Up/ Signal Select, Down/ Brightness/ OD/ Eco/ i-Style Colour, Left/ Volume Down, Right/ Volume Up, Power
User controls	picture adjust (brightness, contrast, Eco, ACR, OD, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, display information), language, miscell

Technical details

Specification	Value
Native refresh rate	60 Hz
