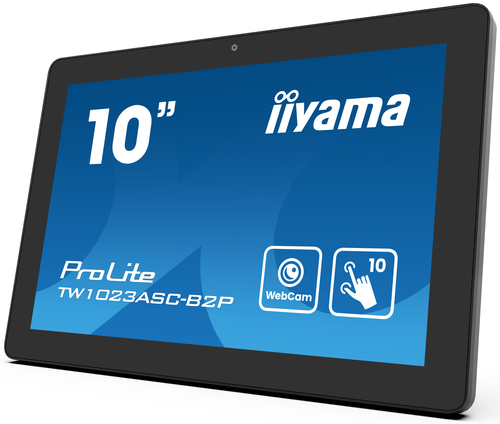

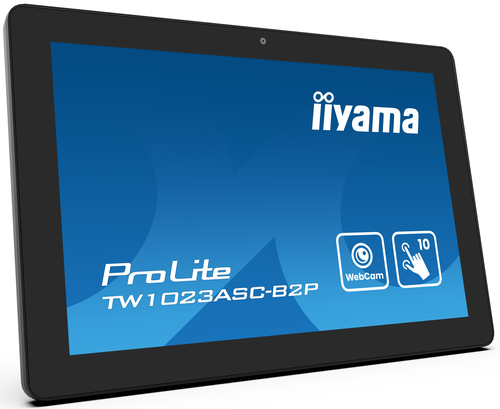

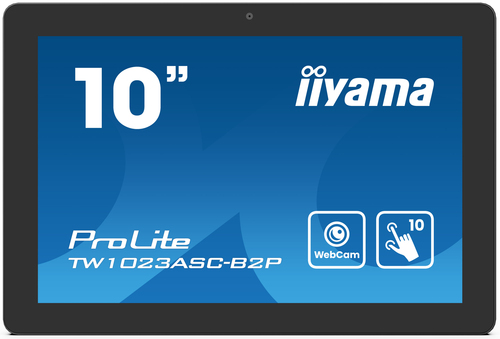

TW1023ASC-B2P computer monitor
25.6 cm (10.1") 1280 x 800 pixels Touchscreen Black
Model TW1023ASC-B2PEAN 4948570124541
87 specifications Checked today
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- Memory4000 MB
- OSAndroid
- Weight800 g
- ColourBlack
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Memory
- 4000 MB
- OS
- Android
- Weight
- 800 g
- Colour
- Black
- Brand
- iiyama
- Category
- Monitor
- Model
- TW1023ASC-B2P
- Part number
- TW1023ASC-B2P
- EAN / UPC
- 4948570124541
- Also known as
- iiyama TW1023ASC-B2P computer monitor 25.6 cm (10.1") 1280 x 800 pixels Touchscreen Black
Specifications
87 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | Yes |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 385 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Viewable size, horizontal | 21.7 cm |
| Viewable size, vertical | 13.5 cm |
| Display diagonal (metric) | 25.5 cm |
| Surface hardness | 6H |
| Colour depth | 8 bit |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Android |
| Operating system version | 13 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
| Built-in camera | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.25 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-A ports quantity | 2 |
| USB Touch port | Yes |
| HDMI ports quantity | 1 |
| Audio input | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 255 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 172 mm |
| Weight (with stand) | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 398 mm |
| Package depth | 68 mm |
| Package height | 223 mm |
| Package weight | 1.36 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Active display area (W x H) | 216.6 x 135.4 mm |
| Brightness | 385 cd/m² |
| Built-in processor | Yes |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Depth | 30.5 mm |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Height | 172 mm |
| Packaging content | AC adapter, interchangeable plugs (EU/UK) |
| RJ-45 ports quantity | 1 |
| USB ports quantity | 4 |
| Weight | 800 g |
| Width | 255 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Control panel | Power, home, brightness +, brightness -, volume +, volume - |
| Touch method | finger, glove (latex), capacitive stylus |
| User controls | Power, home, brightness +, brightness -, volume +, volume - |
Thin Client
| Specification | Value |
|---|---|
| Internal memory | 4000 MB |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 256 pc(s) |
| Pallet net width | 100 cm |
| Pallet net length | 2.15 m |
| Pallet net height | 120 cm |
