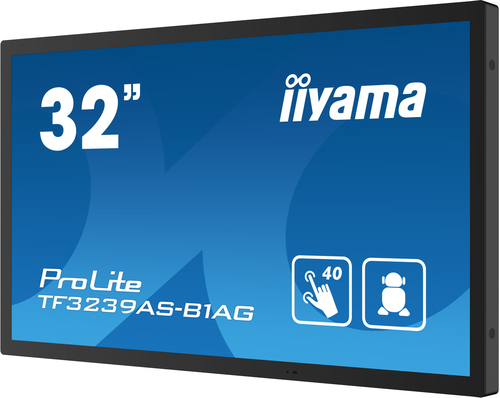

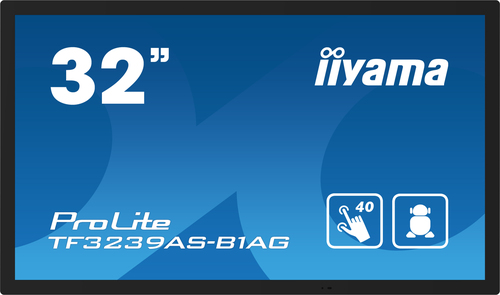

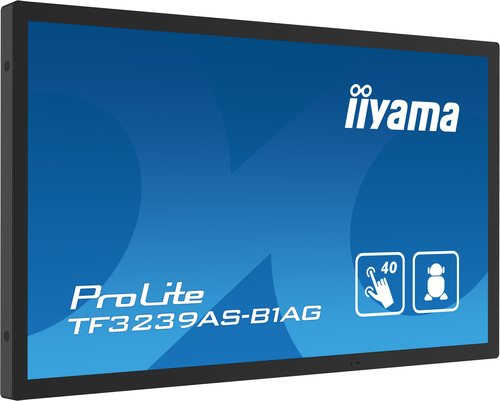

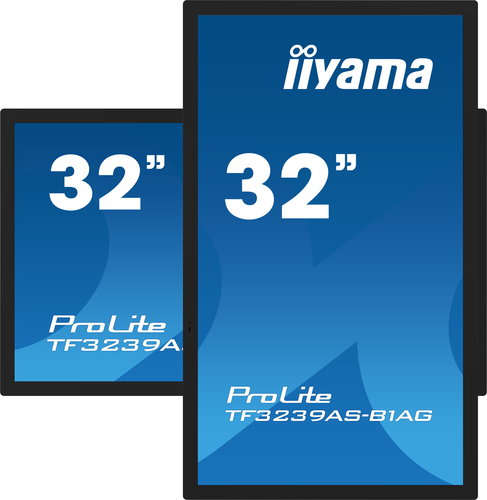

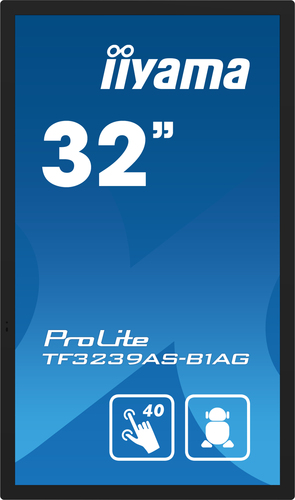

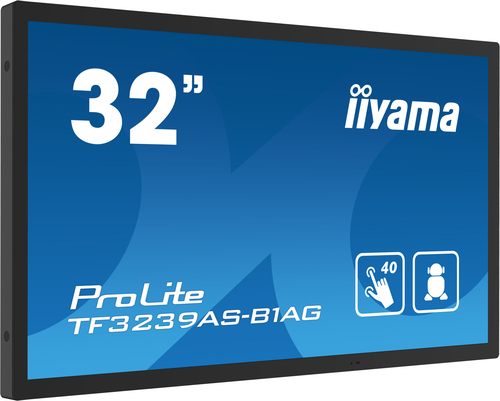

TF3239AS-B1AG computer monitor

80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Black

Model TF3239AS-B1AGEAN 4948570123865

111 specifications Checked today

Display80 cm (31.5")
Resolution1920 x 1080 pixels
Energy classF
OSAndroid 11
Weight13.2 kg
ColourBlack

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 1920 x 1080 pixels
Energy class: F
OS: Android 11
Weight: 13.2 kg
Colour: Black

Brand: iiyama
Category: Monitor
Model: TF3239AS-B1AG
Part number: TF3239AS-B1AG
EAN / UPC: 4948570123865
Also known as: iiyama TF3239AS-B1AG computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Black

Specifications

111 specifications in 16 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	40
Display brightness (typical)	500 cd/m²
Display brightness	435 cd/m²
Response time	8 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	1200:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.363 x 0.363 mm
Horizontal scan range	28 - 160 kHz
Viewable size, horizontal	69.8 cm
Viewable size, vertical	39.3 cm
Display diagonal (metric)	80 cm
Haze rate	25%
Surface hardness	7H
Colour depth	8 bit

Performance

Specification	Value
Operating hours (hours/days)	24/7
Operating system installed	Android 11
Operating system version	11
Palm rejection	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	20 W

Design

Specification	Value
Product colour	Black
Front bezel colour	Black
Glass thickness	3 mm

Ports & interfaces

Specification	Value
USB 2.0 Type-A ports quantity	2
USB Touch port	Yes
DVI port	No
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.2
HDCP	Yes
HDCP version	2.2
RS-232C	Yes

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages	13

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	31.3 kWh
Power consumption (typical)	50 W
Power consumption (standby)	0.4 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width (with stand)	746.2 mm
Depth (with stand)	62.4 mm
Height (with stand)	440.7 mm
Weight (with stand)	13.2 kg
Bezel width (side)	2.2 cm
Bezel width (top)	2.2 cm
Bezel width (bottom)	2.2 cm

Packaging data

Specification	Value
Package width	840 mm
Package depth	149 mm
Package height	560 mm
Package weight	16.6 kg
USB cable length	1.8 m

Packaging content

Specification	Value
Cables included	AC, USB, HDMI
Remote control included	Yes
Quick start guide	Yes
HDMI cable length	1.8 m
Power cable length	1.8 m
Batteries included	Yes
Remote control batteries included	Yes

Sustainability

Specification	Value
Sustainability certificates	ErP

Other features

Specification	Value
International Protection (IP) code	IP65
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Positional accuracy	2.5 mm
Active display area (W x H)	698.4 x 392.8 mm
Brightness	435 cd/m²
Built-in processor	Yes
Compliance certificates	CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Depth	62.4 mm
Height	440.7 mm
Placement supported	Indoor
USB ports quantity	2
Weight	13.2 kg
Width	746.2 mm
Mean time between failures (MTBF)	50000 h
Ethernet LAN (RJ-45) ports	1
Package volume	16600 cm³
Certification	TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Control panel	Power
Touch method	stylus, finger, glove (latex)
User controls	picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. v

Thin Client

Specification	Value
Processor architecture	ARM Cortex-A73

Technical details

Specification	Value
Native refresh rate	60 Hz
