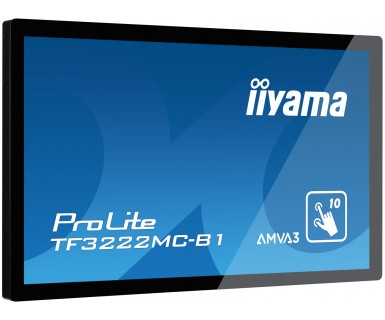

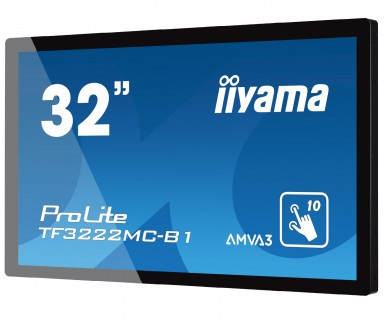

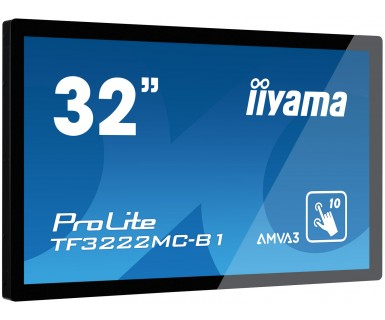

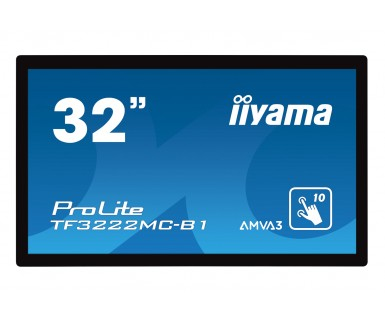

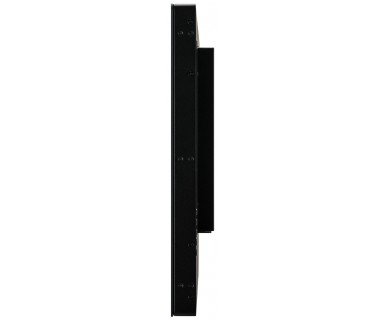

ProLite TF3222MC-B1 computer monitor
80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Capacitive Black
Model TF3222MC-B1EAN 4948570114825
69 specifications Checked today
- Display80 cm (31.5")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- VGA (D-Sub) ports quantity1
- VESA mountingYes
Overview
- Display
- 80 cm (31.5")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- VGA (D-Sub) ports quantity
- 1
- VESA mounting
- Yes
- Brand
- iiyama
- Category
- Monitor
- Model
- TF3222MC-B1
- Part number
- TF3222MC-B1
- EAN / UPC
- 4948570114825
- Also known as
- iiyama ProLite TF3222MC-B1 computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Capacitive Black
Specifications
69 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen type | Capacitive |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 425 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.364 x 0.364 mm |
| Digital horizontal frequency | 31.47 - 67.5 kHz |
| Digital vertical frequency | 47 - 63 Hz |
| Display diagonal (metric) | 80 cm |
| Colour gamut | 85% |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 20/7 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Linux operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

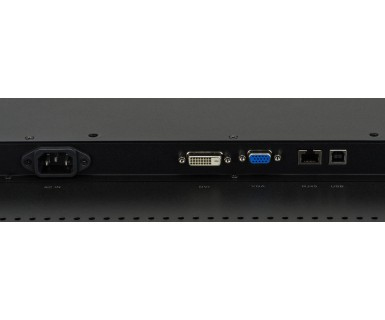

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|

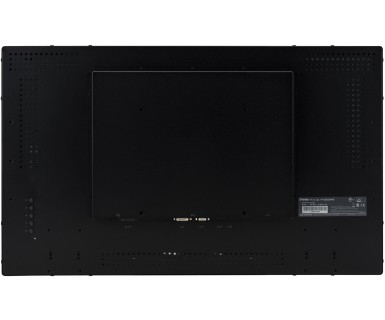

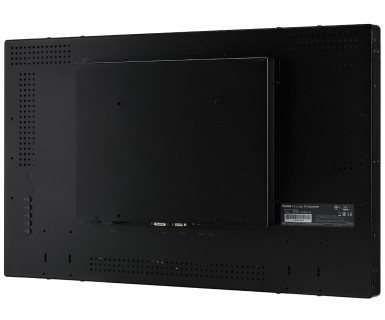

| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Polish, Russian |
| Number of OSD languages | 8 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 48 W |
| Power consumption (standby) | 1.5 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 748.5 mm |
| Depth (without stand) | 62 mm |
| Height (without stand) | 450 mm |
| Weight (without stand) | 12.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, VGA |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP54 |
| Display viewable area (HxV) | 698.4 x 392.8 mm |
| Placement supported | Horizontal/Vertical |
| Ethernet LAN (RJ-45) ports | 0 |
| Power management | Yes |
| Certification | CE, TÜV-Bauart, CU, cULus |
| Supplied AC adapter type | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
