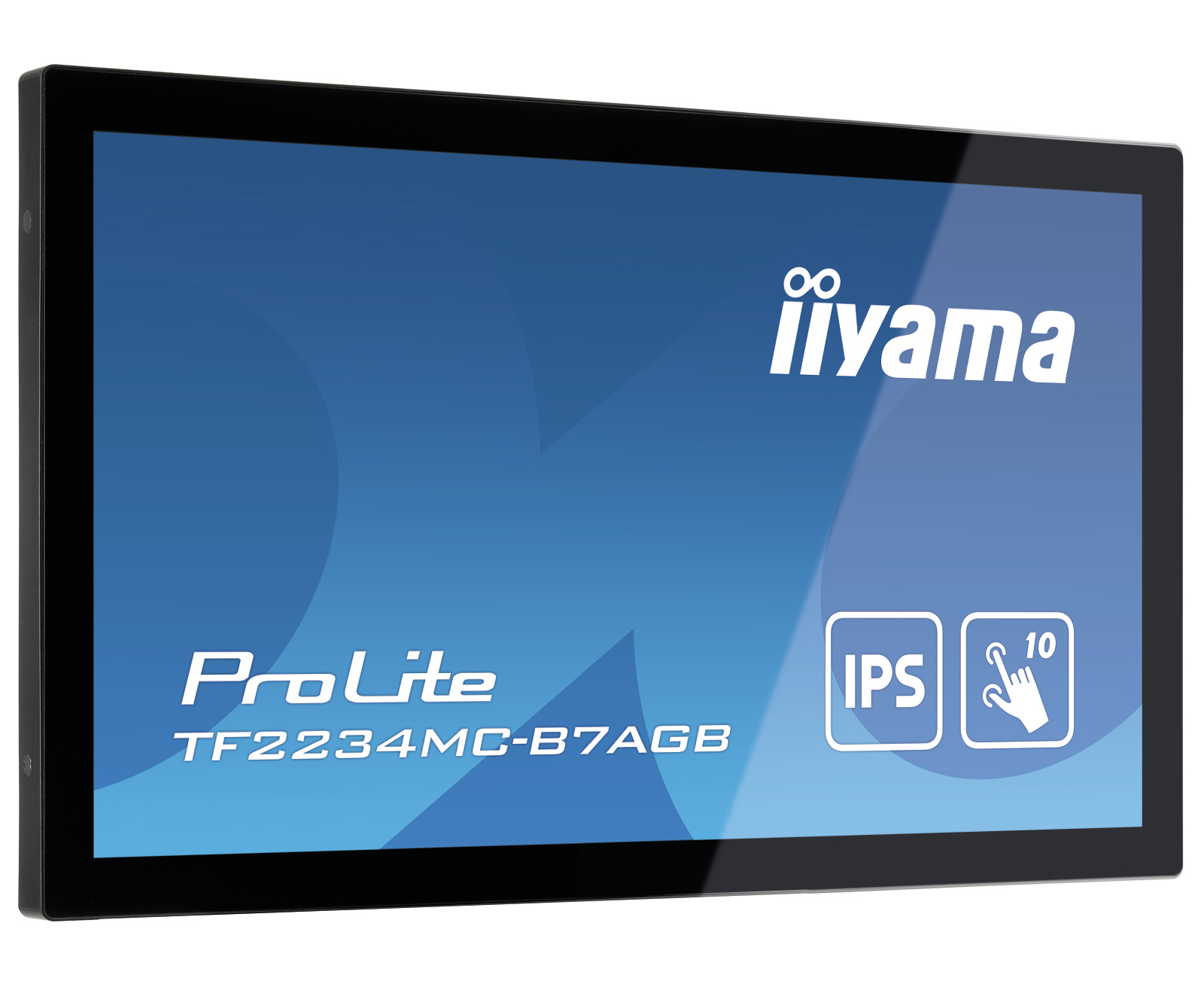

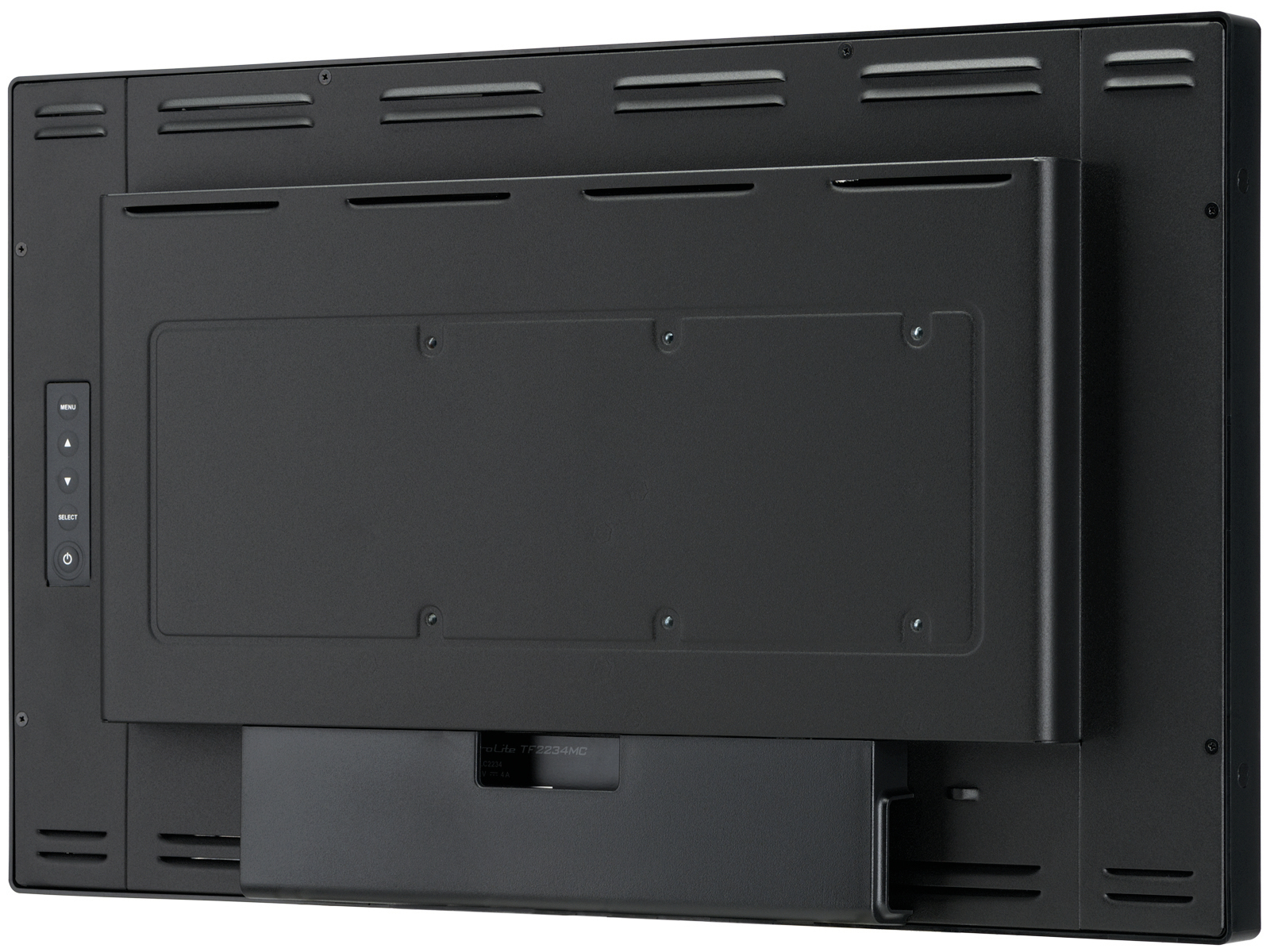

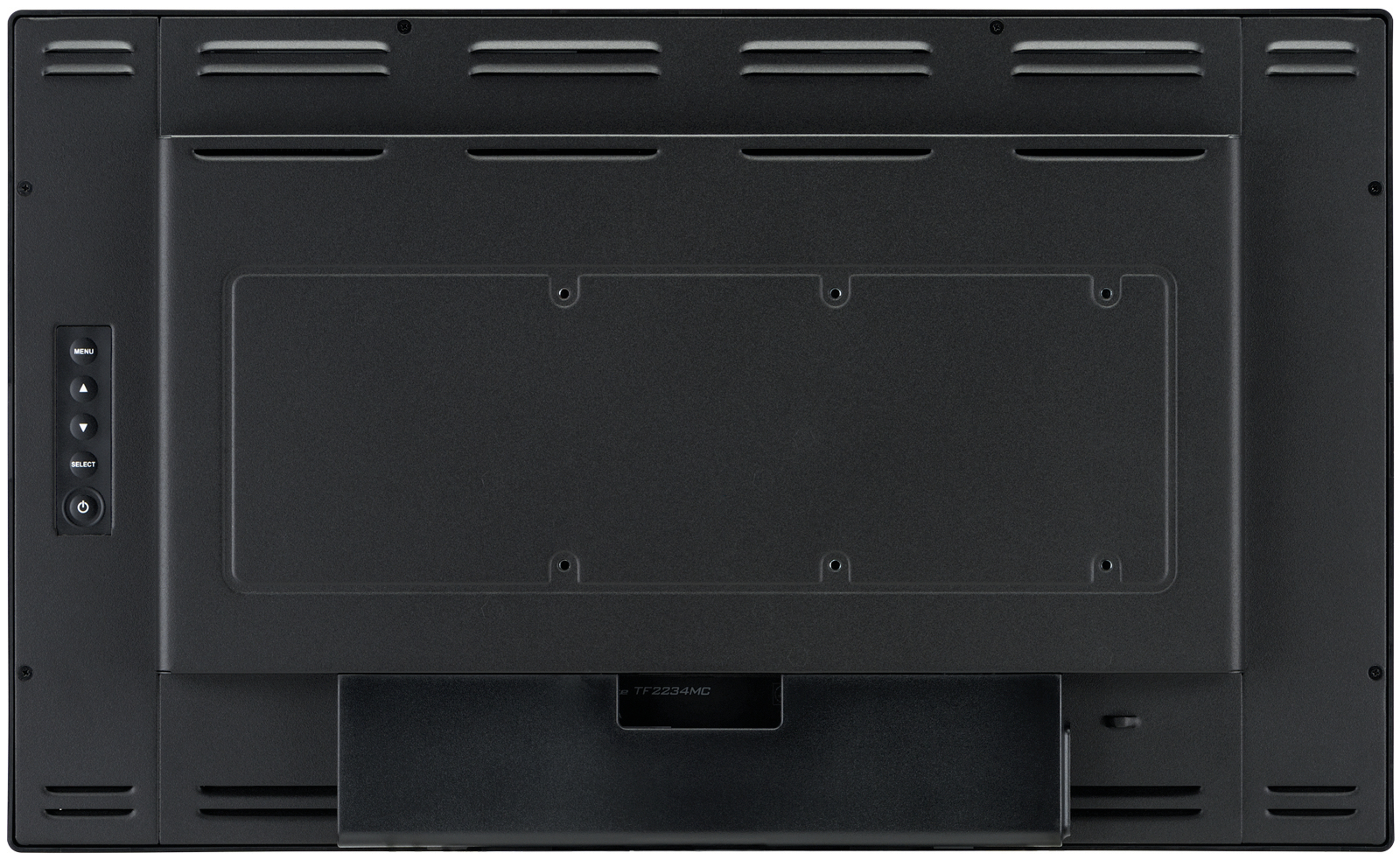

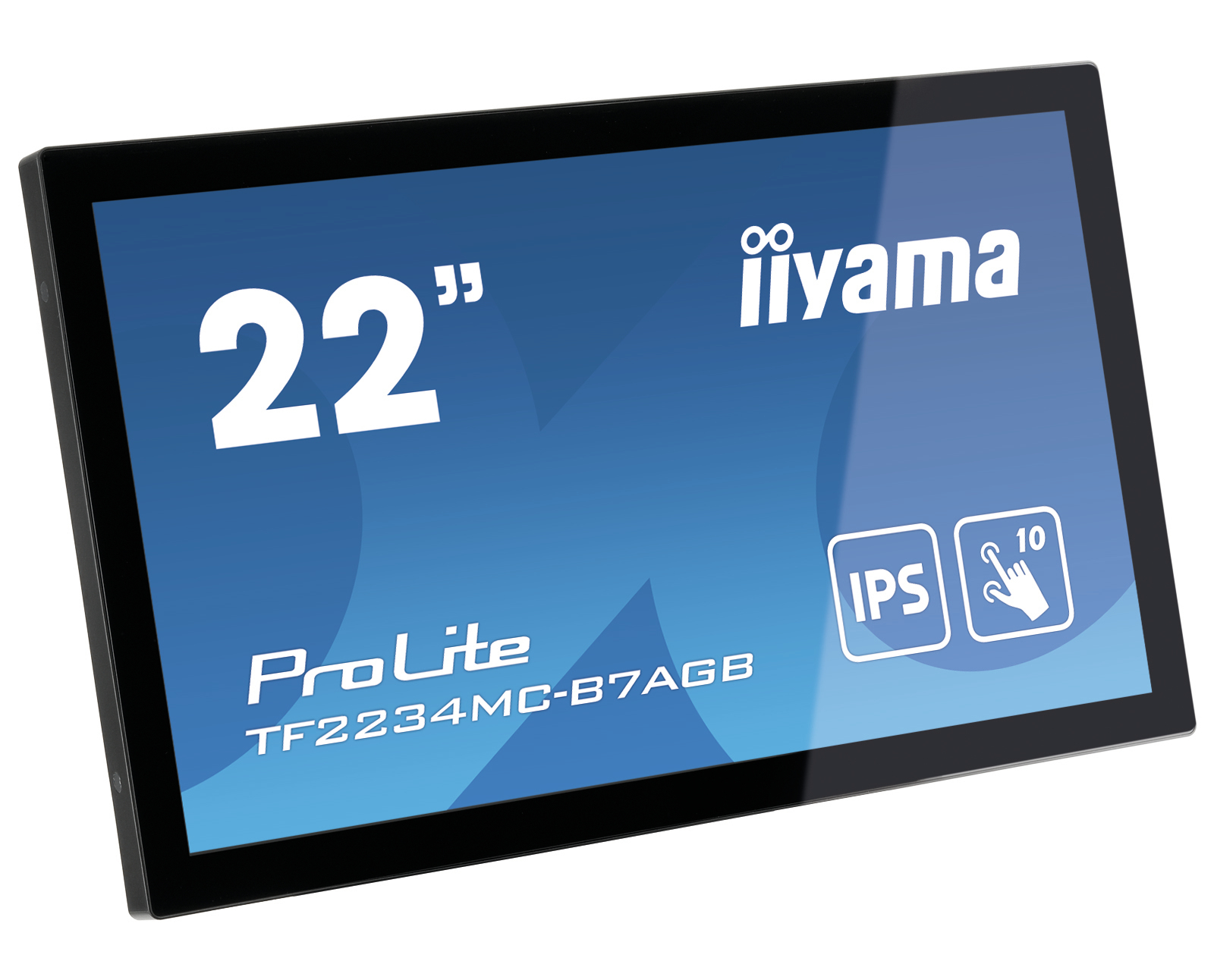

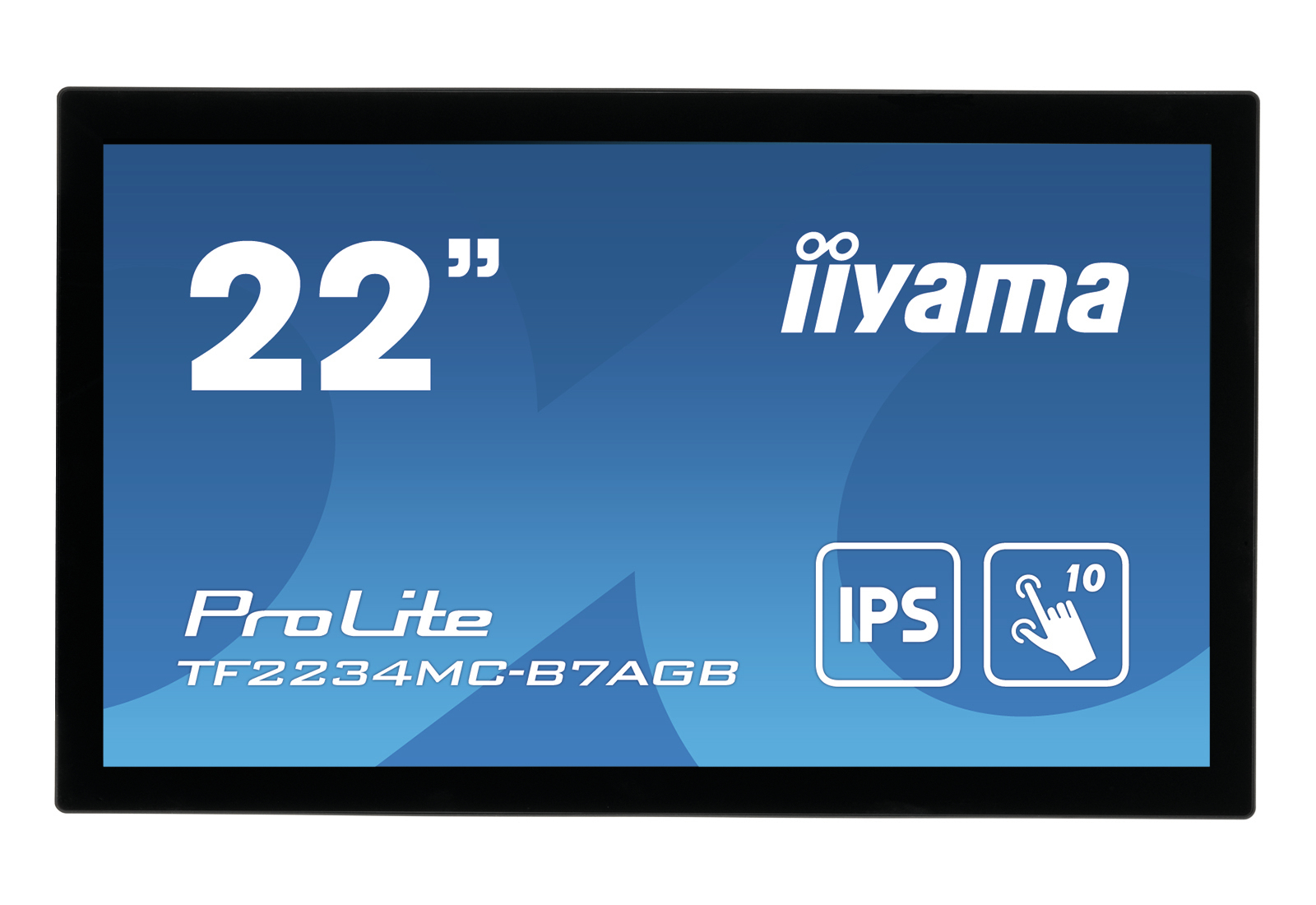

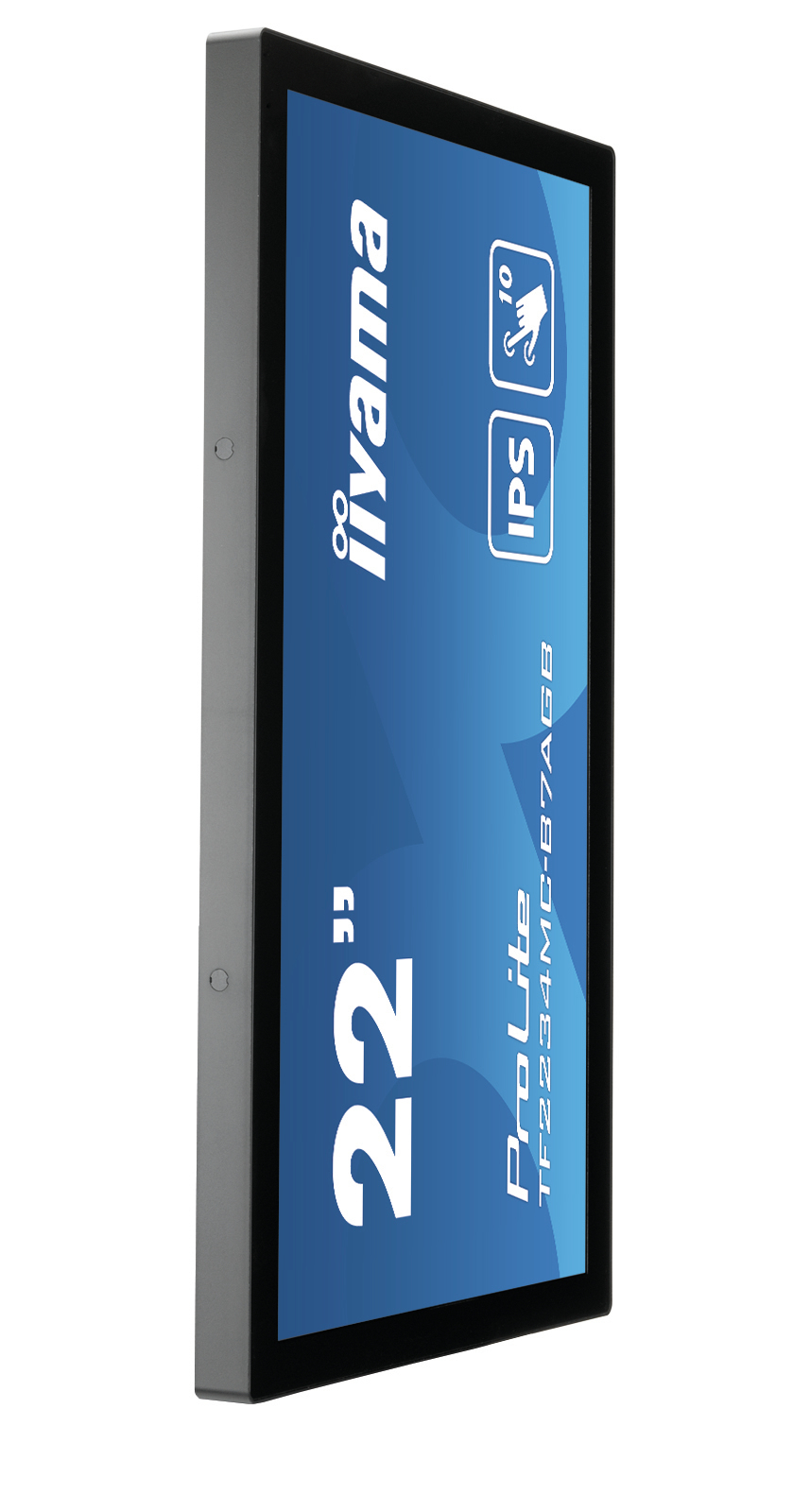

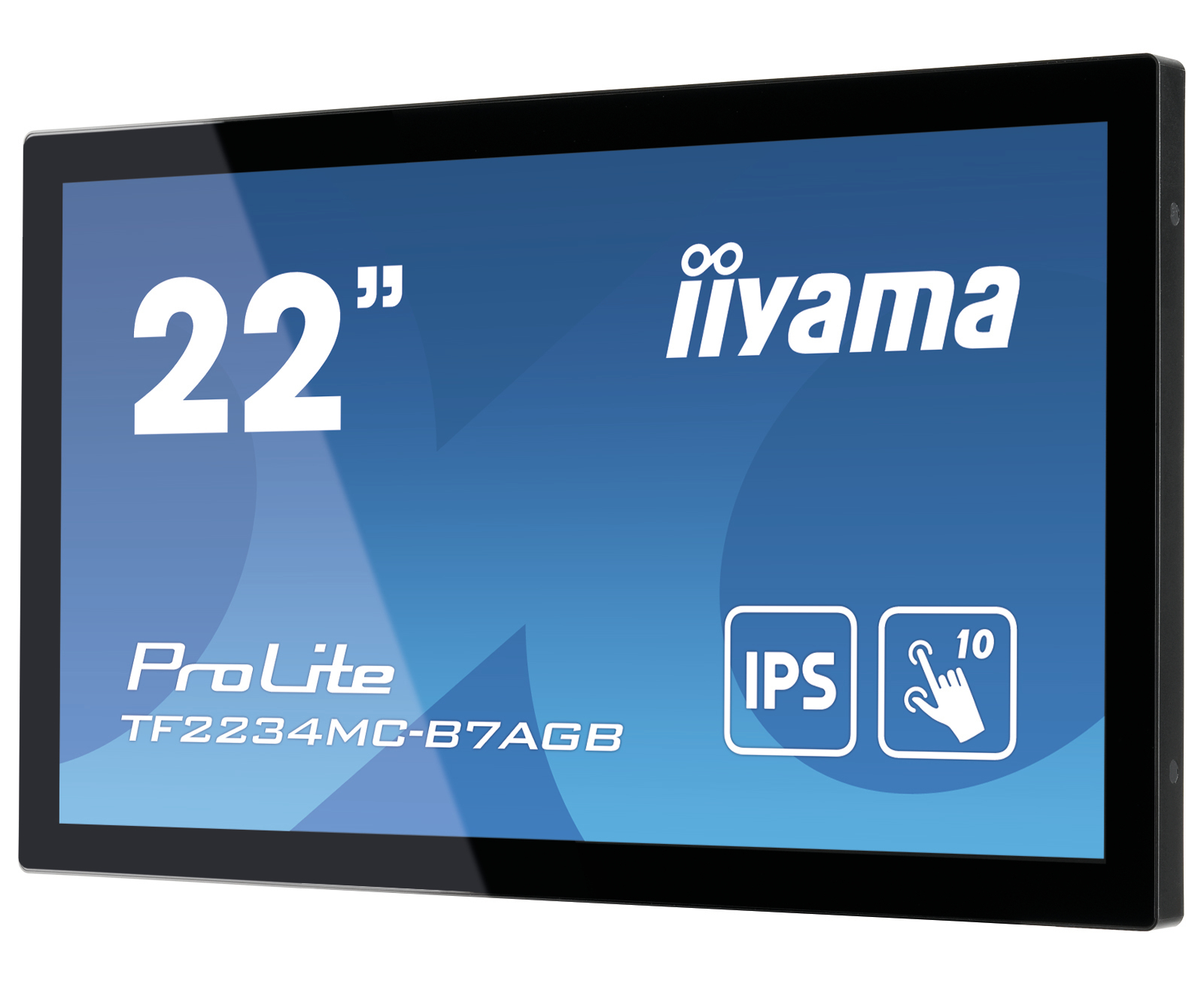

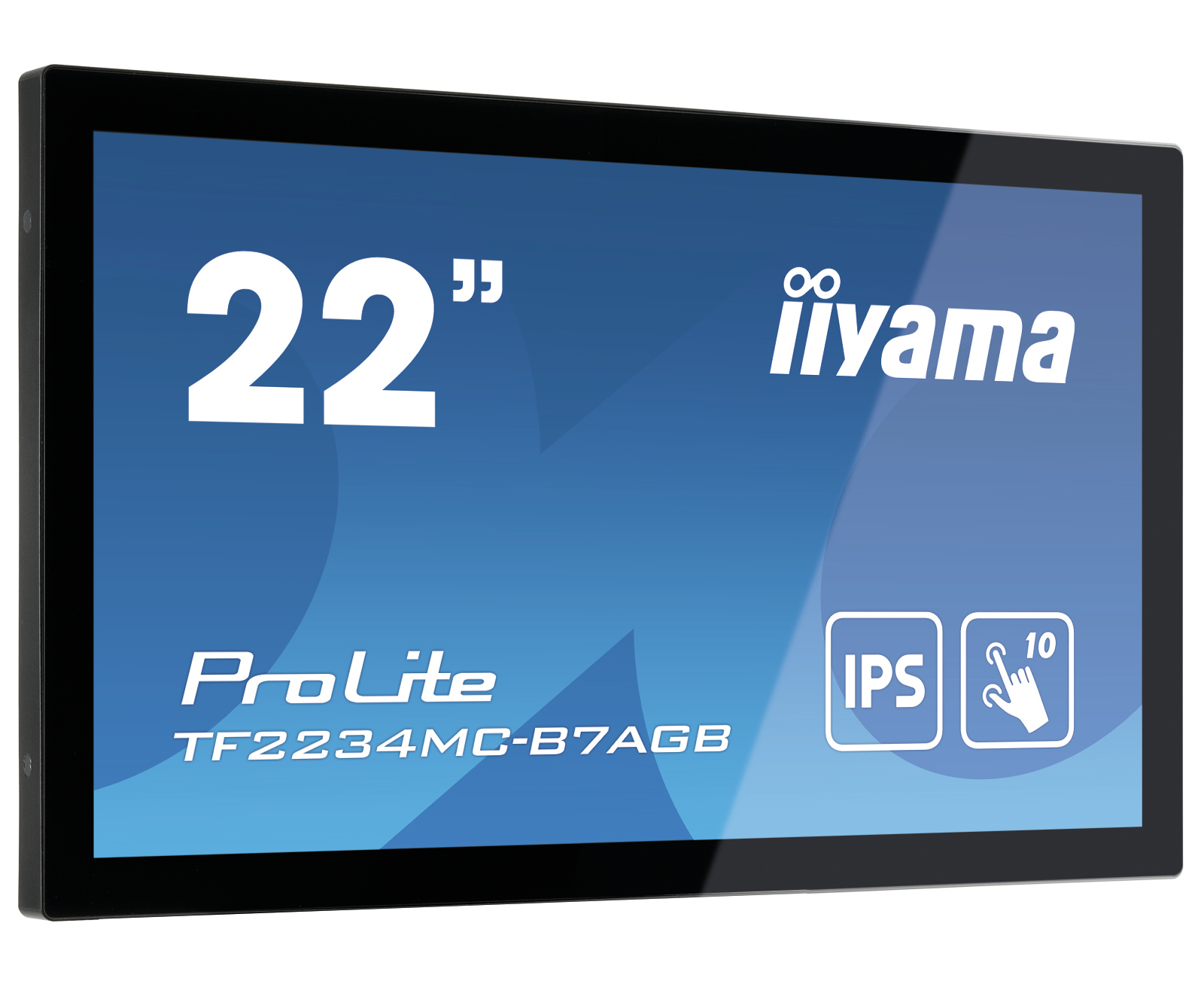

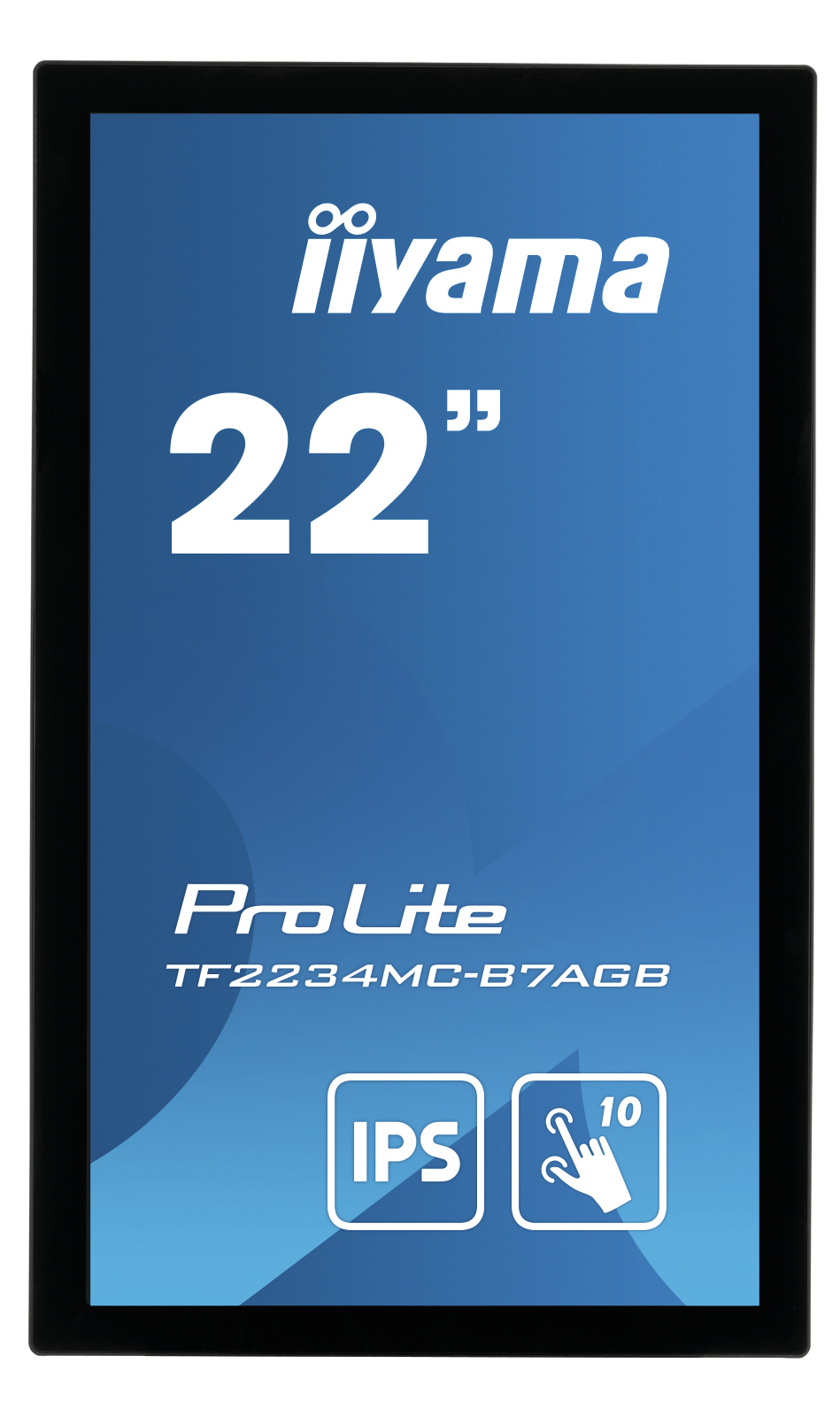

ProLite TF2234MC-B7AGB-STD computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Model TF2234MC-B7AGB-STD
66 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classF
- ColourBlack
- NVIDIA G-SYNCNo
- VESA mountingYes
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- F
- Colour
- Black
- NVIDIA G-SYNC
- No
- VESA mounting
- Yes
- Brand
- iiyama
- Category
- Monitor
- Model
- TF2234MC-B7AGB-STD
- Part number
- TF2234MC-B7AGB-STD
- Also known as
- iiyama ProLite TF2234MC-B7AGB-STD computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Specifications
66 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Digital horizontal frequency | 30 - 84 kHz |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 6H |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Glass thickness | 1.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone out | No |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Height adjustment | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages | 9 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI, USB |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Placement supported | Horizontal/Vertical |
