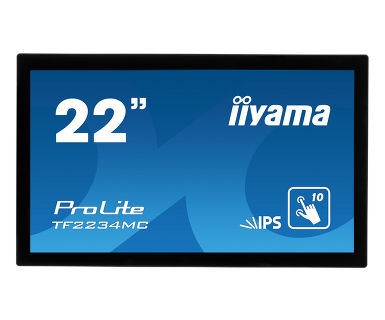

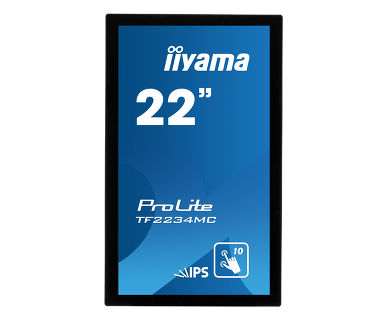

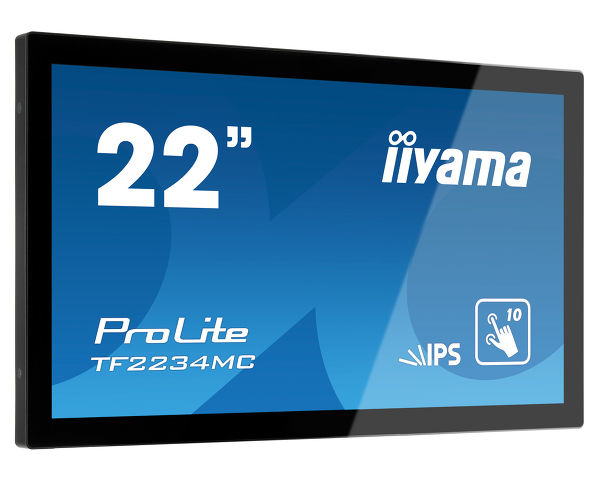

ProLite TF2234MC-B6X computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Model TF2234MC-B6X
63 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classF
- ColourBlack
- NVIDIA G-SYNCNo
- VGA (D-Sub) ports quantity1
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- F
- Colour
- Black
- NVIDIA G-SYNC
- No
- VGA (D-Sub) ports quantity
- 1
- Brand
- iiyama
- Category
- Monitor
- Model
- TF2234MC-B6X
- Part number
- TF2234MC-B6X
- Also known as
- iiyama ProLite TF2234MC-B6X computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Specifications
63 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Capacitive |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 305 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Vertical scan range | 56 - 76 Hz |
| Display diagonal (metric) | 55 cm |
| Surface hardness | 7H |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Glass thickness | 1.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Russian |
| Number of OSD languages | 8 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
| AC adapter output voltage | 12 V |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| AC adapter included | Yes |
| Display viewable area (HxV) | 476.6 x 268.1 mm |
| Power management | Yes |
| Certification | CE, TÜV-Bauart, CU, cULus, VCCI REACH |
| Supplied AC adapter type | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
