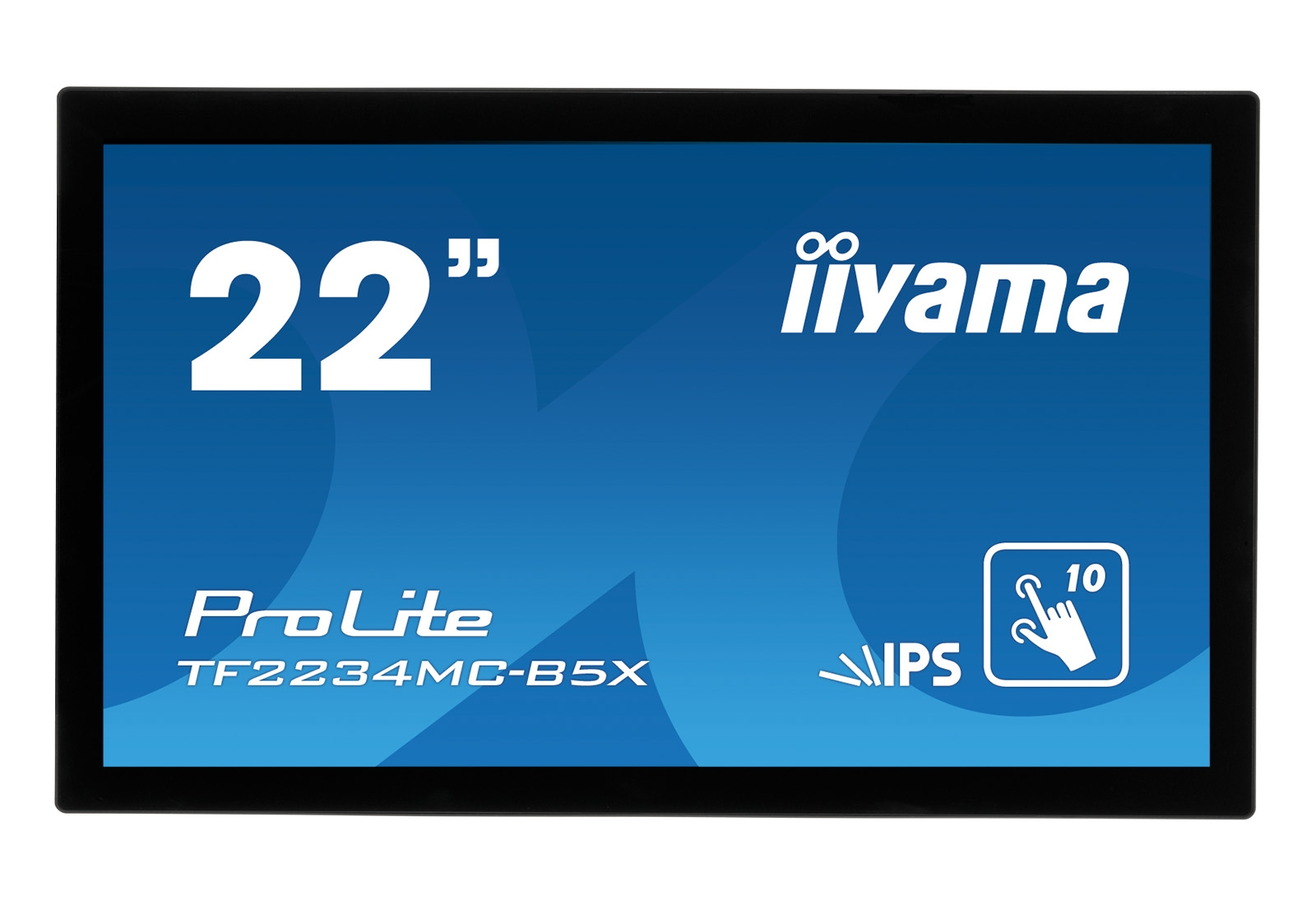

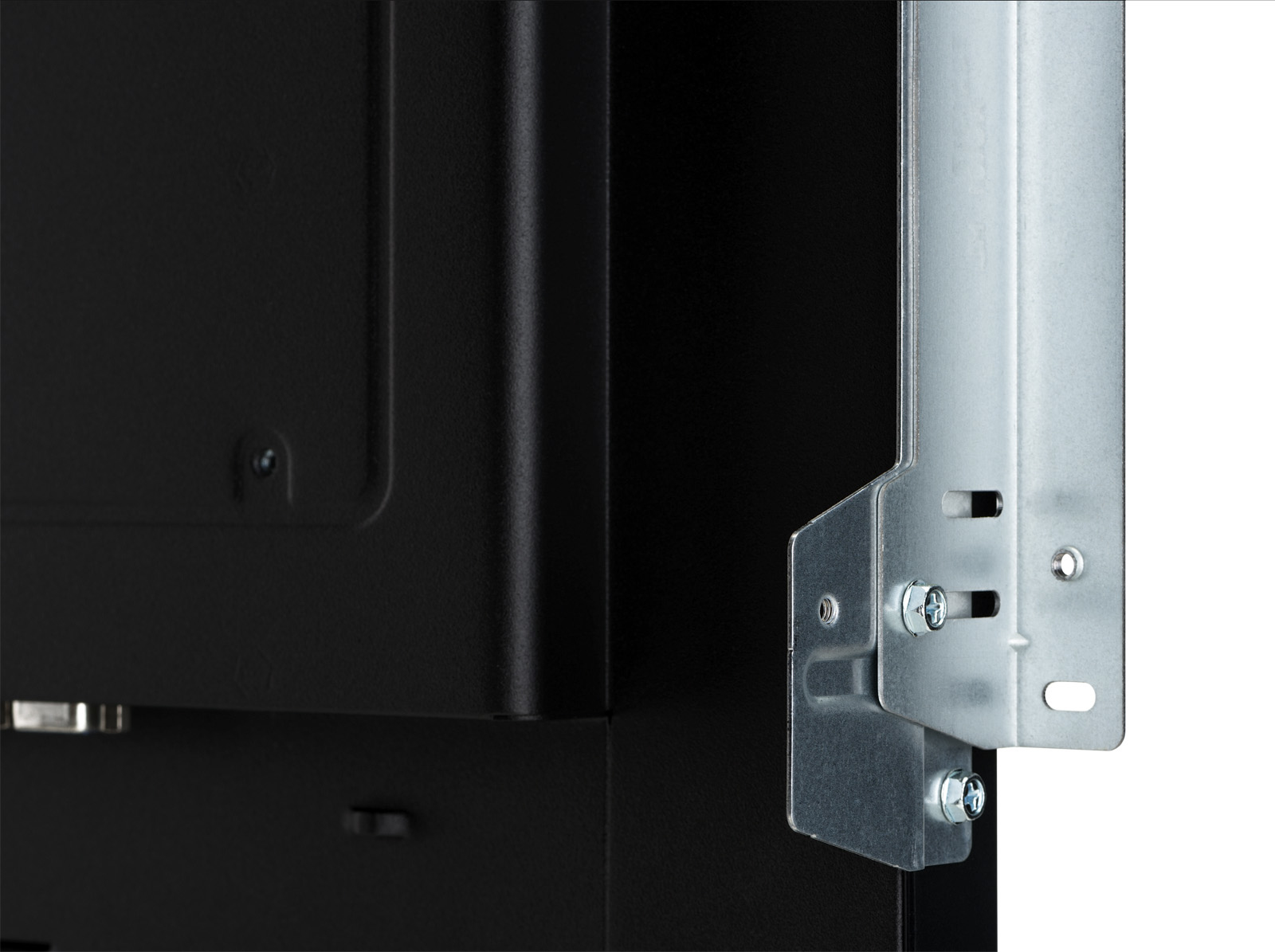

ProLite TF2234MC-B5X computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Model TF2234MC-B5XEAN 4948570116188

66 specifications Checked today

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ColourBlack
NVIDIA G-SYNCNo
USB Touch portYes
Power consumption (typical)18 W

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Colour: Black
NVIDIA G-SYNC: No
USB Touch port: Yes
Power consumption (typical): 18 W

Brand: iiyama
Category: Monitor
Model: TF2234MC-B5X
Part number: TF2234MC-B5X
EAN / UPC: 4948570116188
Also known as: iiyama ProLite TF2234MC-B5X computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Specifications

66 specifications in 12 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	225 cd/m²
Response time	8 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.247 x 0.247 mm
Digital horizontal frequency	30 - 84 kHz
Digital vertical frequency	56 - 76 Hz
Display diagonal (metric)	55 cm
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
OmniTapps Multitouch compatibility	No

Multimedia

Specification	Value
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Product colour	Black
Glass thickness	1.5 mm

Ports & interfaces

Specification	Value
USB Touch port	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese
Number of OSD languages	7
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	18 W
Power consumption (standby)	1 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	DC

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (without stand)	517.5 mm
Depth (without stand)	46 mm
Height (without stand)	313.5 mm
Weight (without stand)	4.4 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, HDMI, USB
Quick start guide	Yes

Other features

Specification	Value
International Protection (IP) code	IP65
Display viewable area (HxV)	476.6 x 268.1 mm
Placement supported	Horizontal/Vertical
Certification	CE, TÜV-Bauart, CU, cULus, VCCI
Supplied AC adapter type	AC

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
