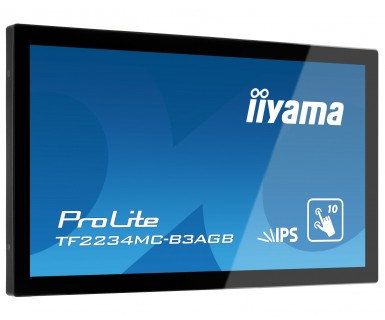

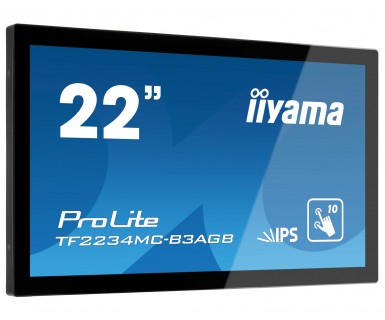

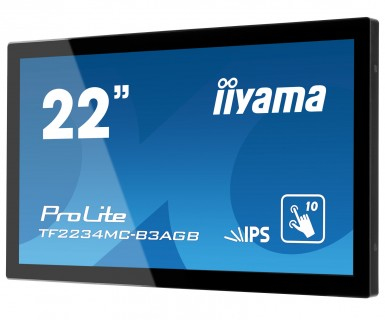

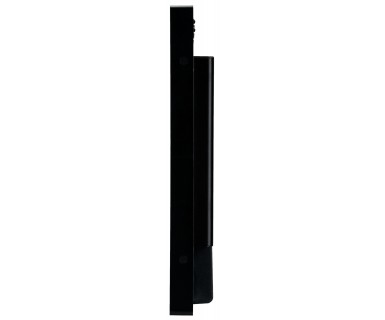

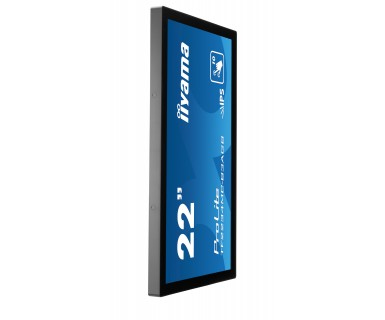

iiyama ProLite TF2234MC-B3AGB computer monitor

iiyama ProLite TF2234MC-B3AGB computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Model TF2234MC-B3AGBEAN 4948570114245

64 specifications Checked 3 days ago

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ColourBlack
NVIDIA G-SYNCNo
Number of upstream ports1
VESA mountingYes

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Colour: Black
NVIDIA G-SYNC: No
Number of upstream ports: 1
VESA mounting: Yes

Brand: iiyama
Category: Monitor
Model: TF2234MC-B3AGB
Part number: TF2234MC-B3AGB
EAN / UPC: 4948570114245, 5057454777601
Also known as: iiyama ProLite TF2234MC-B3AGB computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Specifications

64 specifications in 12 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Display brightness	300 cd/m²
Response time	8 ms
Screen shape	Flat
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.247 x 0.247 mm
Horizontal scan range	31.5 - 82.3 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
Display diagonal (metric)	55 cm
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Number of simultaneous touchpoints (Windows 7)	10

Multimedia

Specification	Value
Built-in camera	No

Design

Specification	Value
Product colour	Black
Glass thickness	1.5 mm

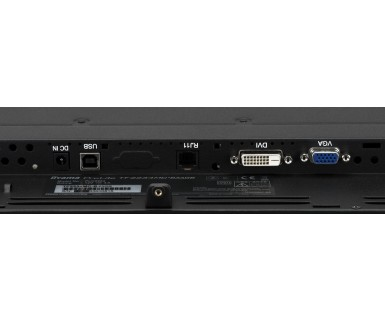

Ports & interfaces

Specification	Value
Number of upstream ports	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	0

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	7
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	27 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC/DC

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%

Weight & dimensions

Specification	Value
Width (without stand)	517.5 mm
Depth (without stand)	46 mm
Height (without stand)	313.5 mm
Weight (without stand)	4.4 kg

Packaging content

Specification	Value
Cables included	DVI, USB, VGA
Quick start guide	Yes

Other features

Specification	Value
International Protection (IP) code	IP65
Placement supported	Horizontal/Vertical
Certification	CE, TÜV-Bauart, cULus, CU, VCCI
Supplied AC adapter type	AC

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
