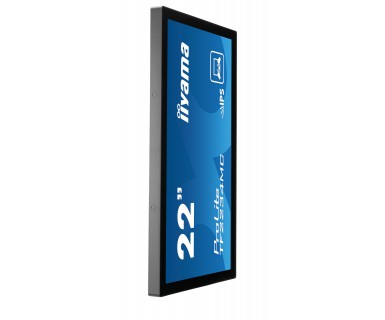

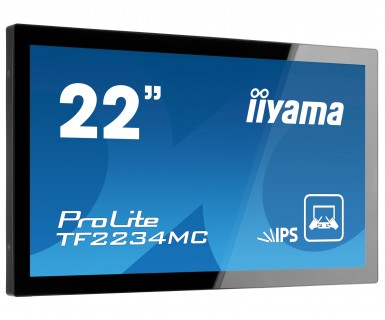

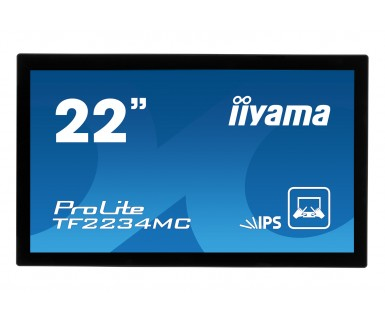

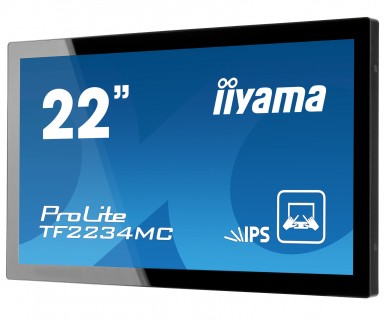

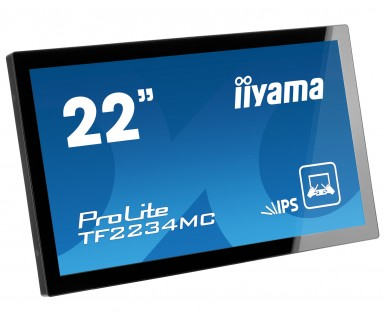

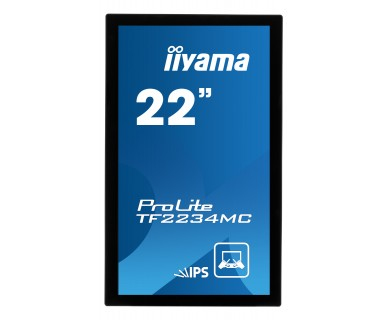

TF2234MC computer monitor
54.6 cm (21.5") 1920 x 1080 pixels LCD Touchscreen Black
Model TF2234MCPart no. TF2234MC-B1EAN 4948570116867
43 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Number of upstream ports1
- Panel mounting interface100 x 100 mm
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Number of upstream ports
- 1
- Panel mounting interface
- 100 x 100 mm
- Brand
- iiyama
- Category
- Monitor
- Model
- TF2234MC
- Part numbers
- TF2234MC-B1, TF2234MC-B3X, TF2234MC-B6AGB
- EAN / UPC
- 4948570116867, 4948570114238, 5057454547716
- Also known as
- iiyama TF2234MC computer monitor 54.6 cm (21.5") 1920 x 1080 pixels LCD Touchscreen Black
Specifications
43 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD |
| Touchscreen | Yes |
| Backlight type | LED |
| Touchscreen technology | Capacitive |
| Display brightness | 225 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Digital horizontal frequency | 31.5 - 82.3 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
| OmniTapps Multitouch compatibility | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 5.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DVI, USB, VGA |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 268.1 x 476.6 mm |
| Certification | CE, TÜV-Bauart, VCCI, IP54 |
| Supplied AC adapter type | AC |
