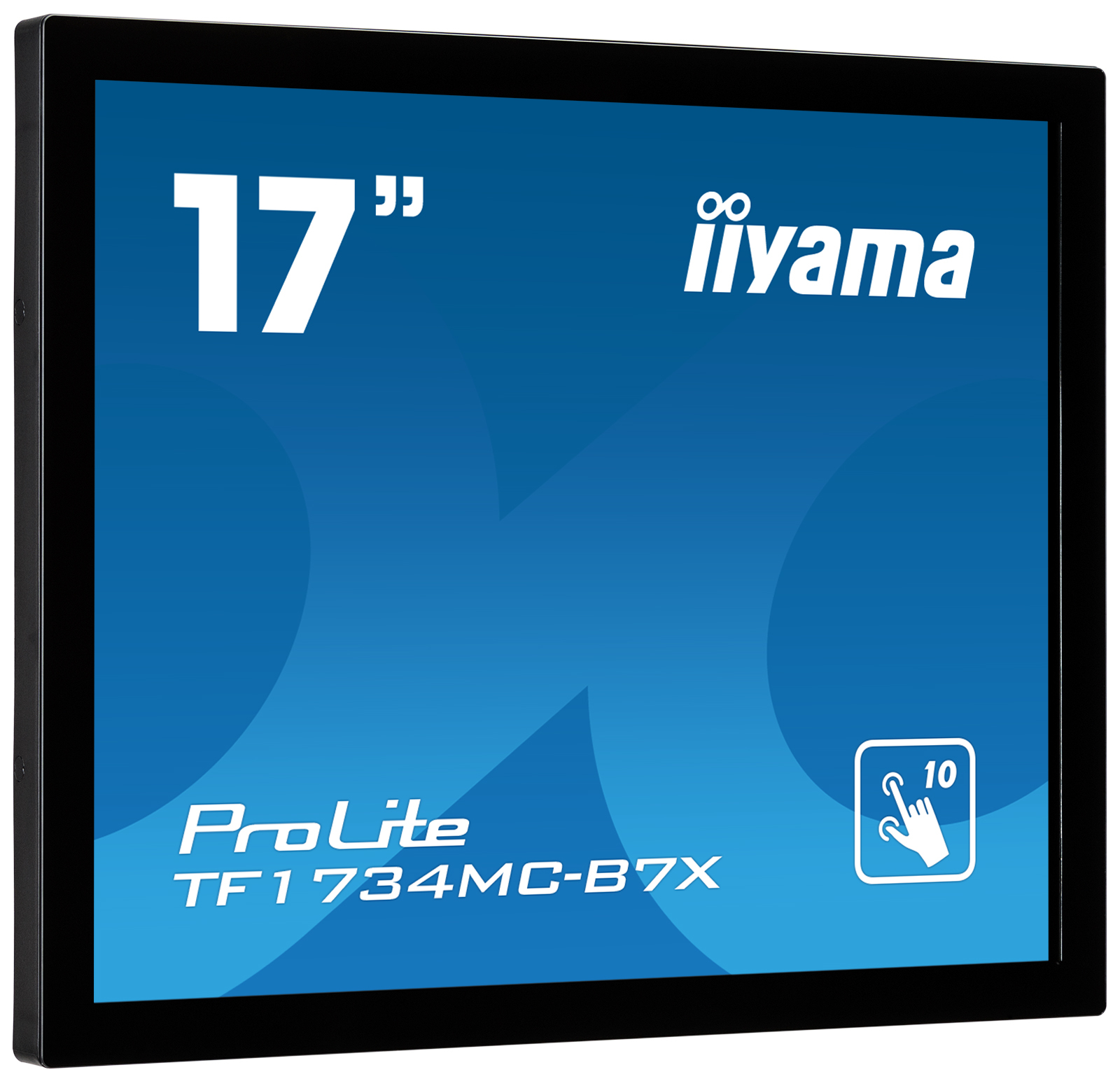

TF1734MC-B7X computer monitor
43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black
Model TF1734MC-B7XEAN 4948570118397
95 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Energy classE
- Weight3.6 kg
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Energy class
- E
- Weight
- 3.6 kg
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- iiyama
- Category
- Monitor
- Model
- TF1734MC-B7X
- Part number
- TF1734MC-B7X
- EAN / UPC
- 4948570118397
- Also known as
- iiyama TF1734MC-B7X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black
Specifications
95 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Supported video modes | 1024p |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Viewable size diagonal | 43 cm |
| Display diagonal (metric) | 43 cm |
| Colour depth | 8 bit |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Palm rejection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3 mm |

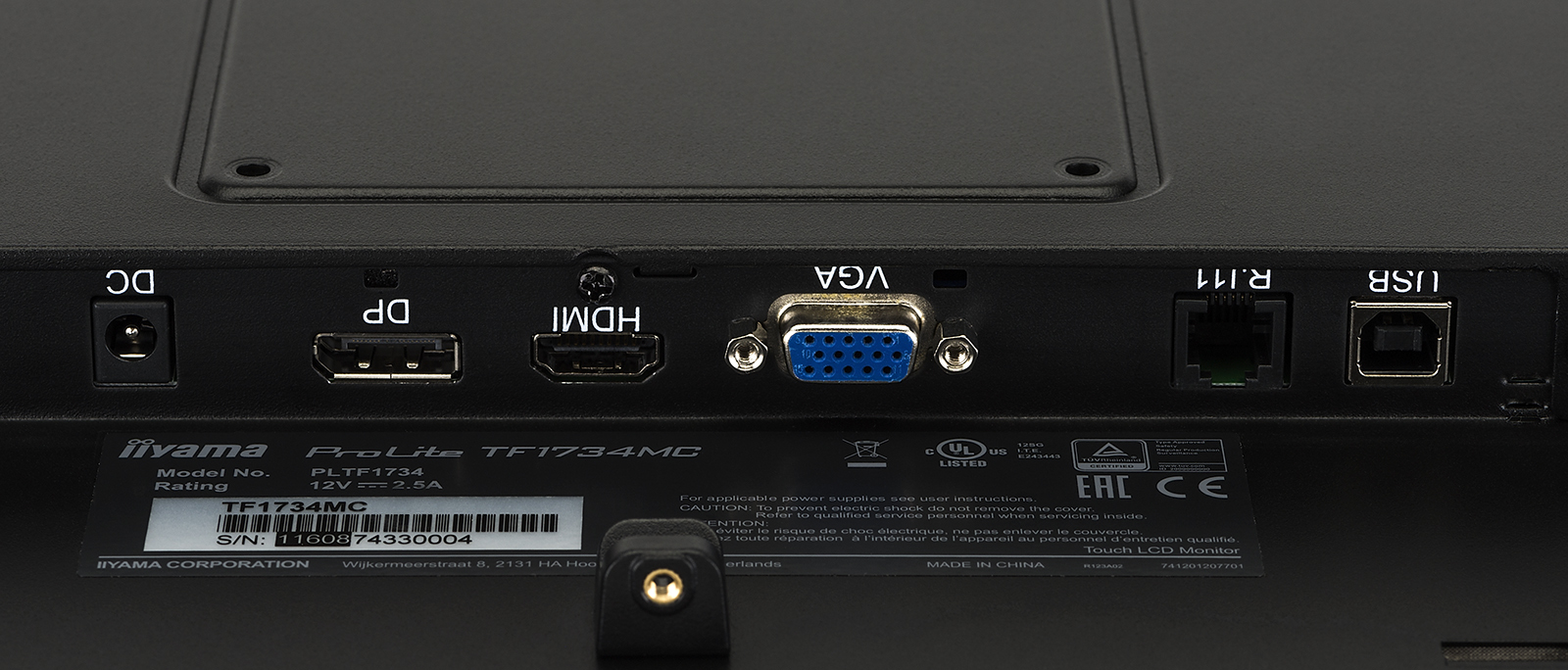

Ports & interfaces
| Specification | Value |
|---|---|
| USB required | Yes |
| USB Touch port | Yes |
| USB Touch ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|

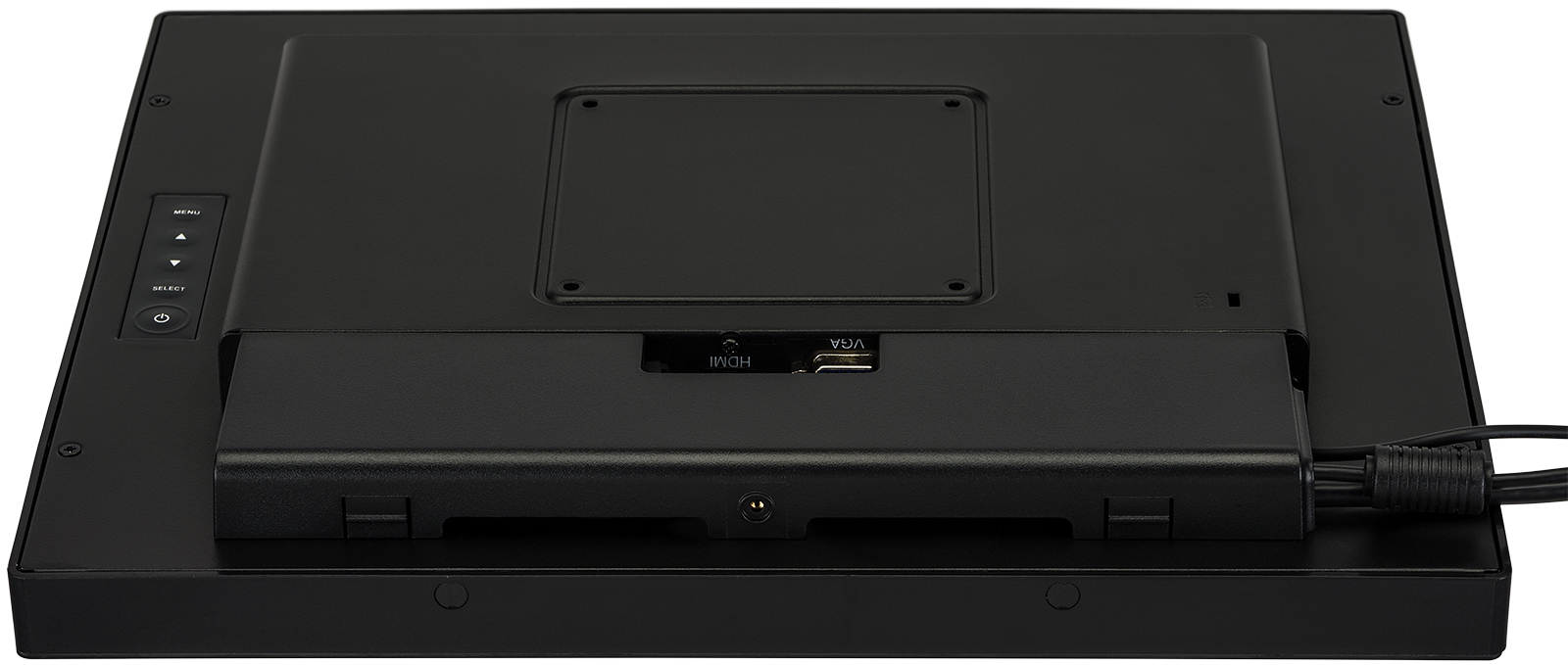

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11.4 kWh |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.6 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 369 mm |
| Depth (with stand) | 47.5 mm |
| Height (with stand) | 307 mm |
| Weight (with stand) | 3.6 kg |
| Width (without stand) | 369 mm |
| Depth (without stand) | 47.5 mm |
| Height (without stand) | 307 mm |
| Weight (without stand) | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 455 mm |
| Package depth | 145 mm |
| Package height | 387 mm |
| Package weight | 4.9 kg |
Packaging content
| Specification | Value |
|---|---|

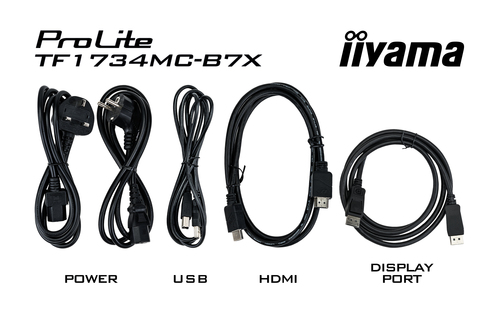

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| AC adapter included | Yes |
| Active display area (W x H) | 338 x 270.5 mm |
| Brightness | 315 cd/m² |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Depth | 47.5 mm |
| Display viewable area (HxV) | 338 x 270 mm |
| Height | 307 mm |
| Packaging content | AC adapter |
| Placement supported | Horizontal/Vertical |
| Weight | 3.6 kg |
| Width | 369 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |

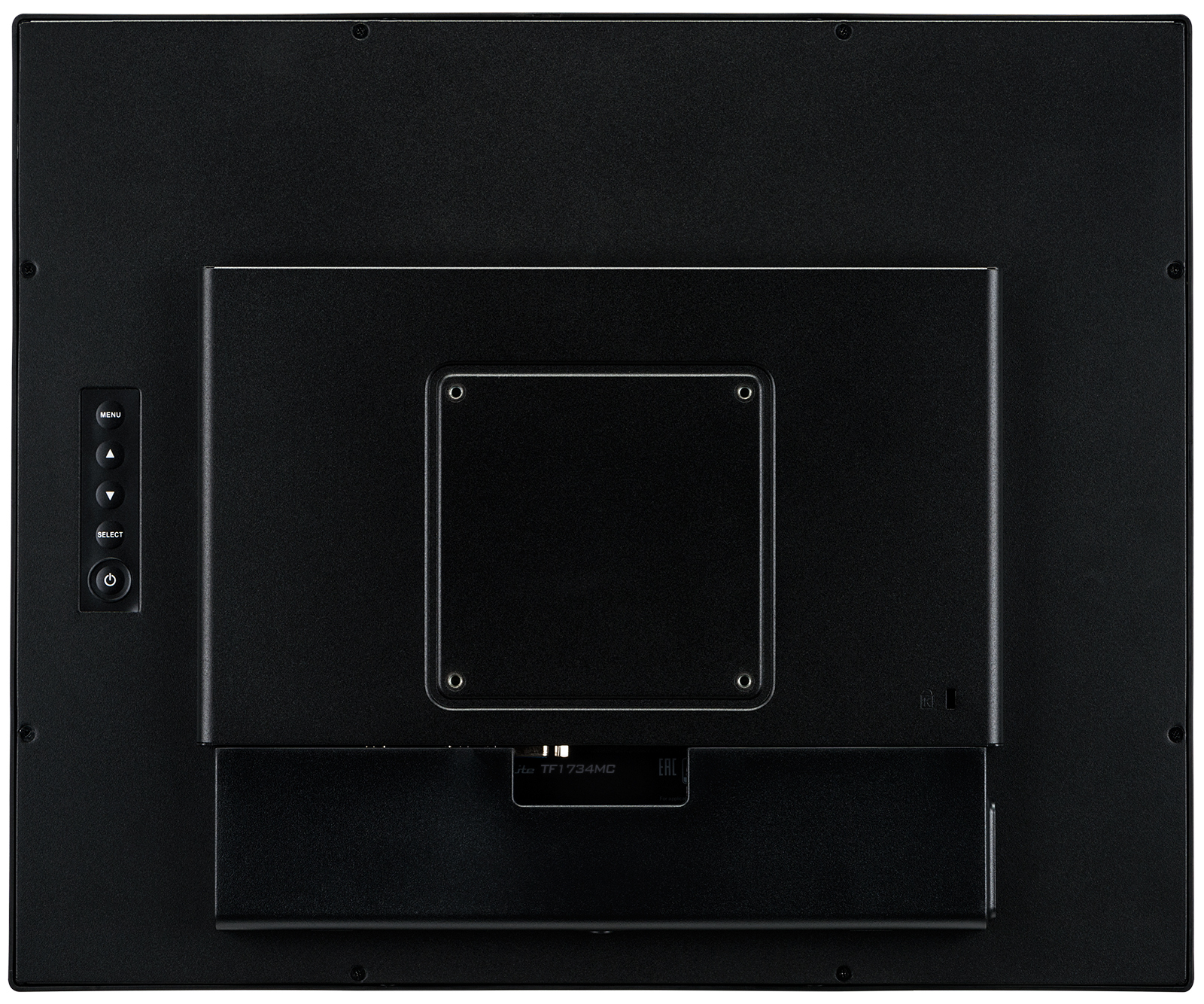

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Touch method | stylus, finger, glove |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Supplied AC adapter type | AC |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
