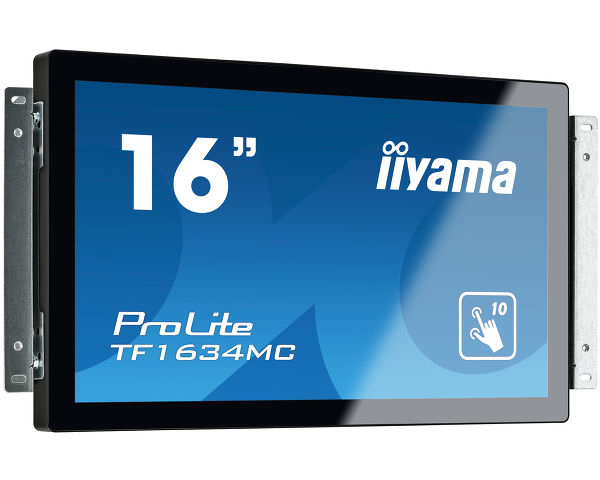

ProLite TF1634MC-B6X computer monitor
39.6 cm (15.6") 1366 x 768 pixels LED Touchscreen Black
Model TF1634MC-B6XEAN 4948570116829
61 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- USB Touch portYes
- Power consumption (typical)16 W
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- USB Touch port
- Yes
- Power consumption (typical)
- 16 W
- Brand
- iiyama
- Category
- Monitor
- Model
- TF1634MC-B6X
- Part number
- TF1634MC-B6X
- EAN / UPC
- 4948570116829
- Also known as
- iiyama ProLite TF1634MC-B6X computer monitor 39.6 cm (15.6") 1366 x 768 pixels LED Touchscreen Black
Specifications
61 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 400 cd/m² |
| Response time | 8 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.252 x 0.252 mm |
| Horizontal scan range | 31.4 - 60.3 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display diagonal (metric) | 39.5 cm |
| DDC/CI | Yes |
| Surface hardness | 7H |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Glass thickness | 2.4 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | German, English, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 2 W |
| Power consumption (off) | 2 W |
| AC adapter output voltage | 12 V |
| Power supply type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 381 mm |
| Depth (without stand) | 230.5 mm |
| Height (without stand) | 46 mm |
| Weight (without stand) | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| AC adapter included | Yes |
| Certification | CE, TÜV, CU, cULus, VCCI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
