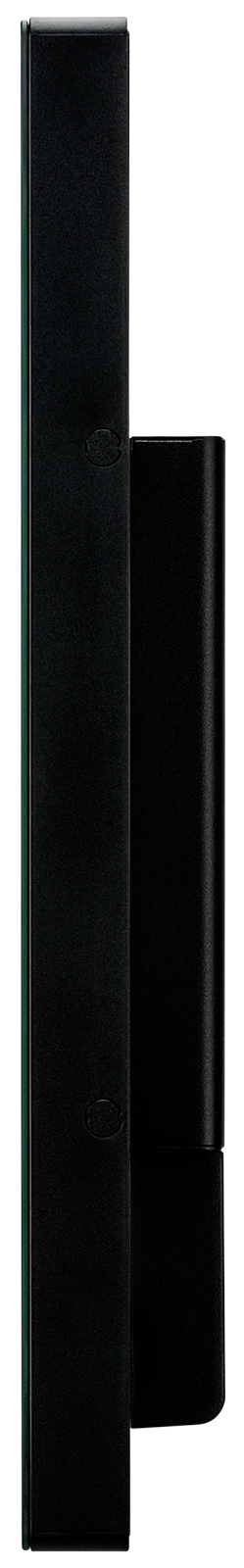

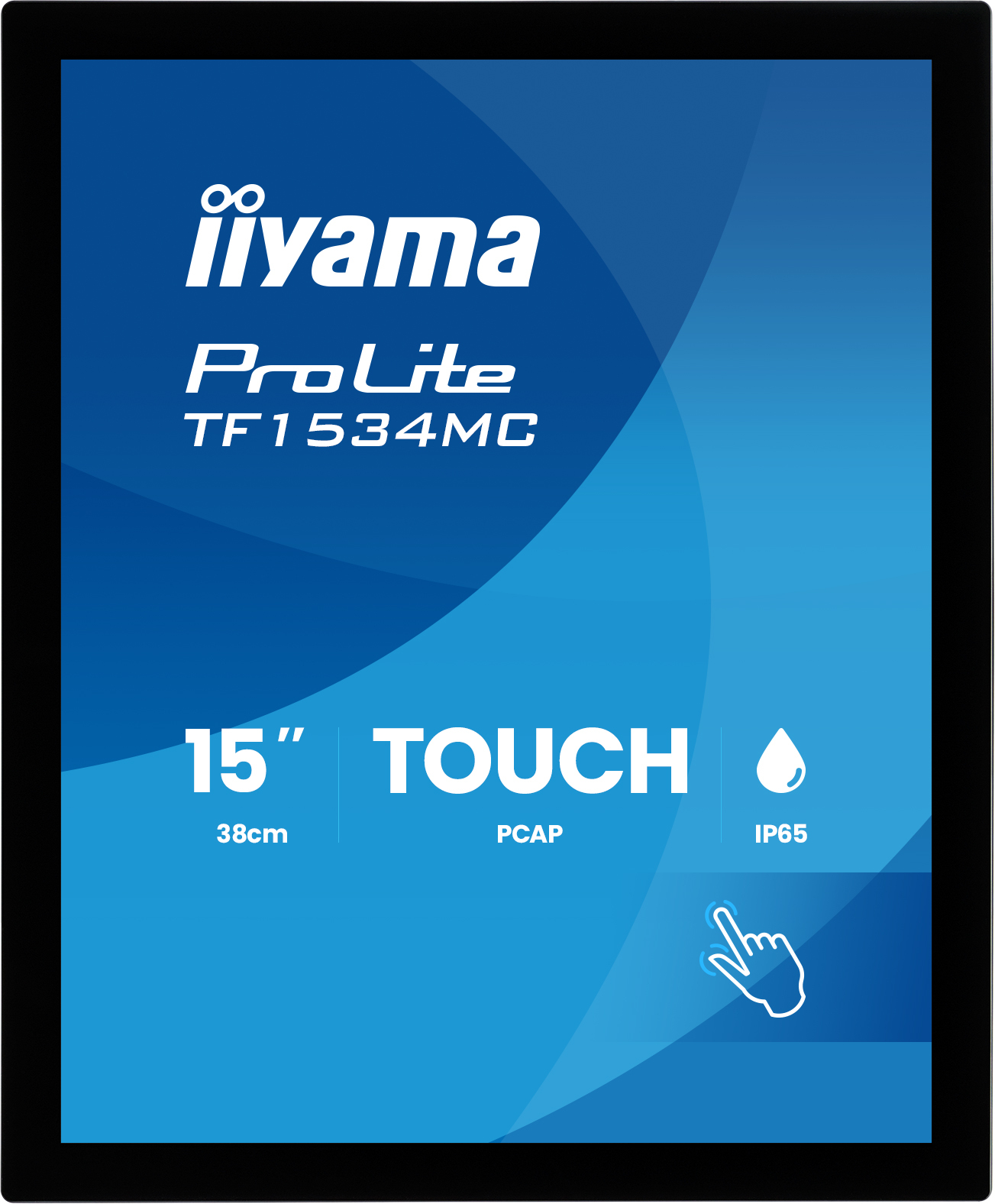

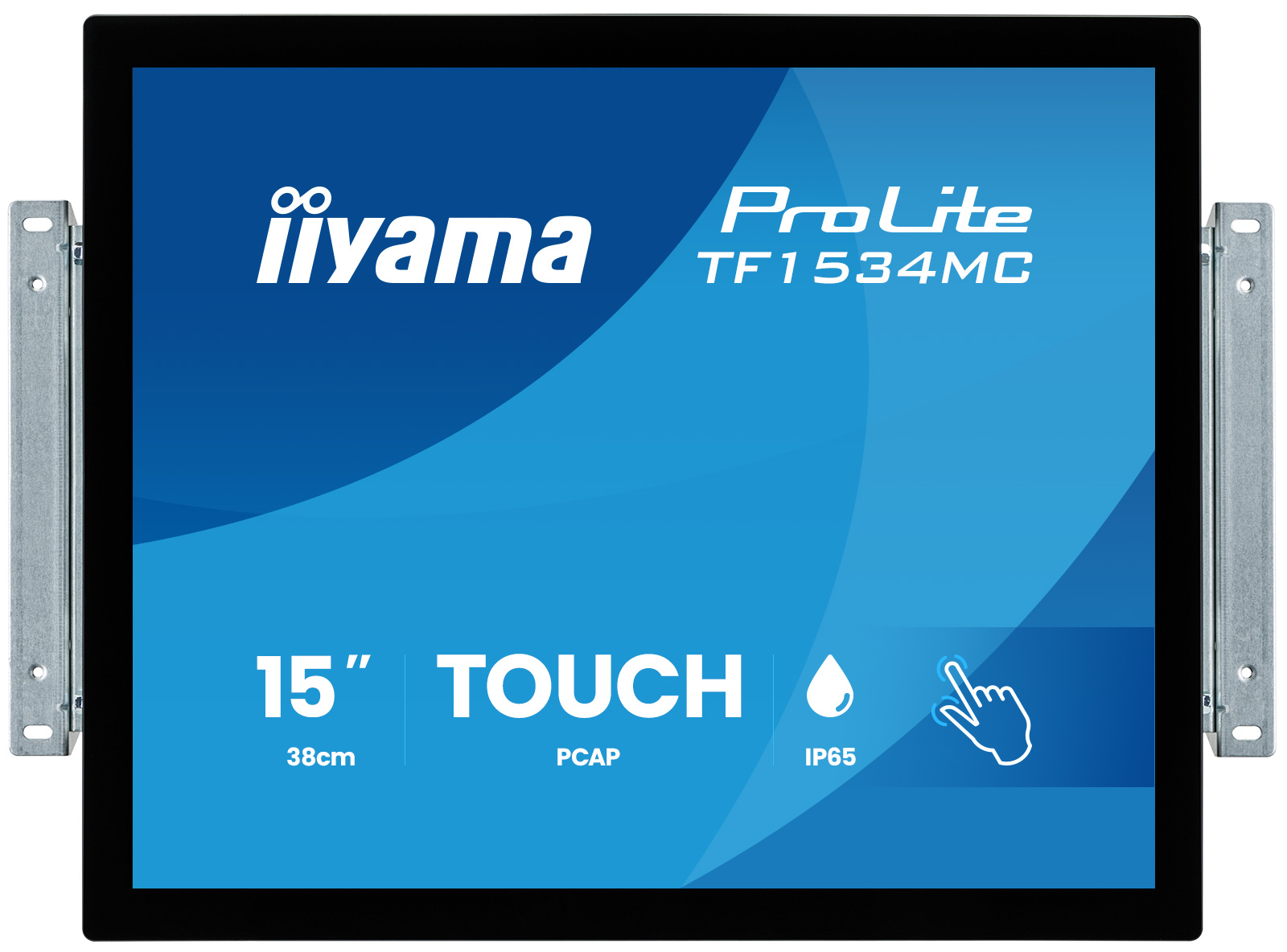

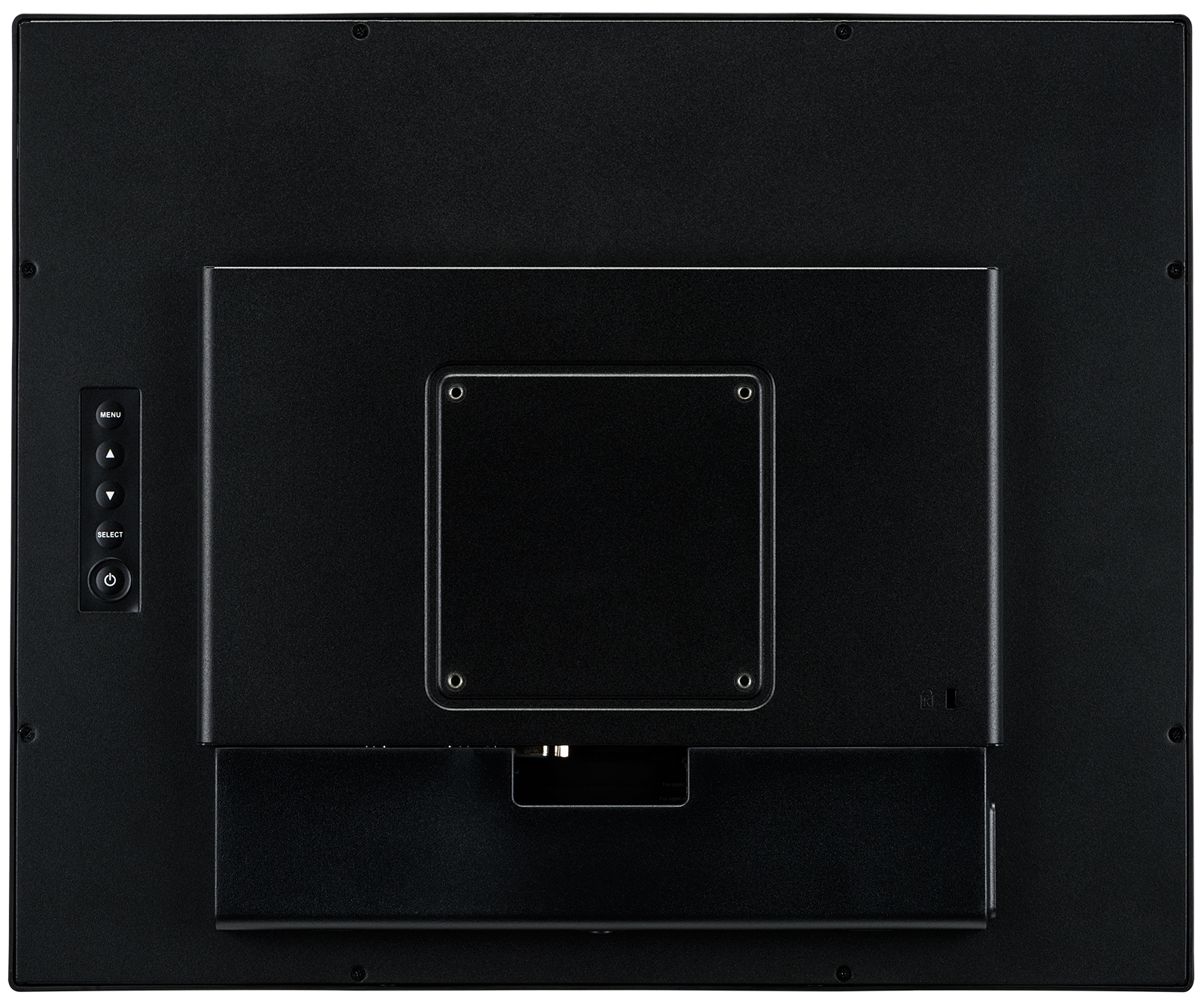

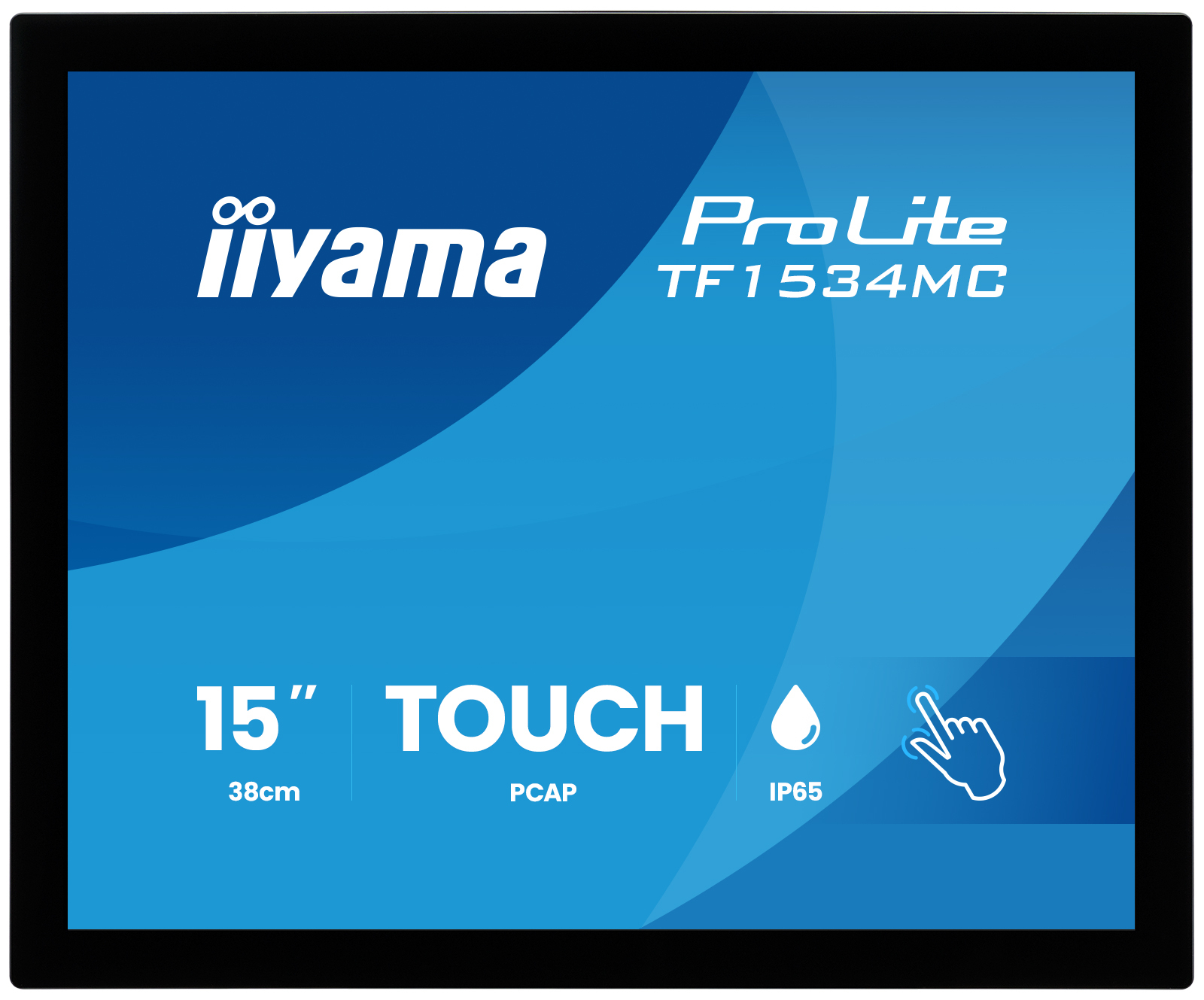

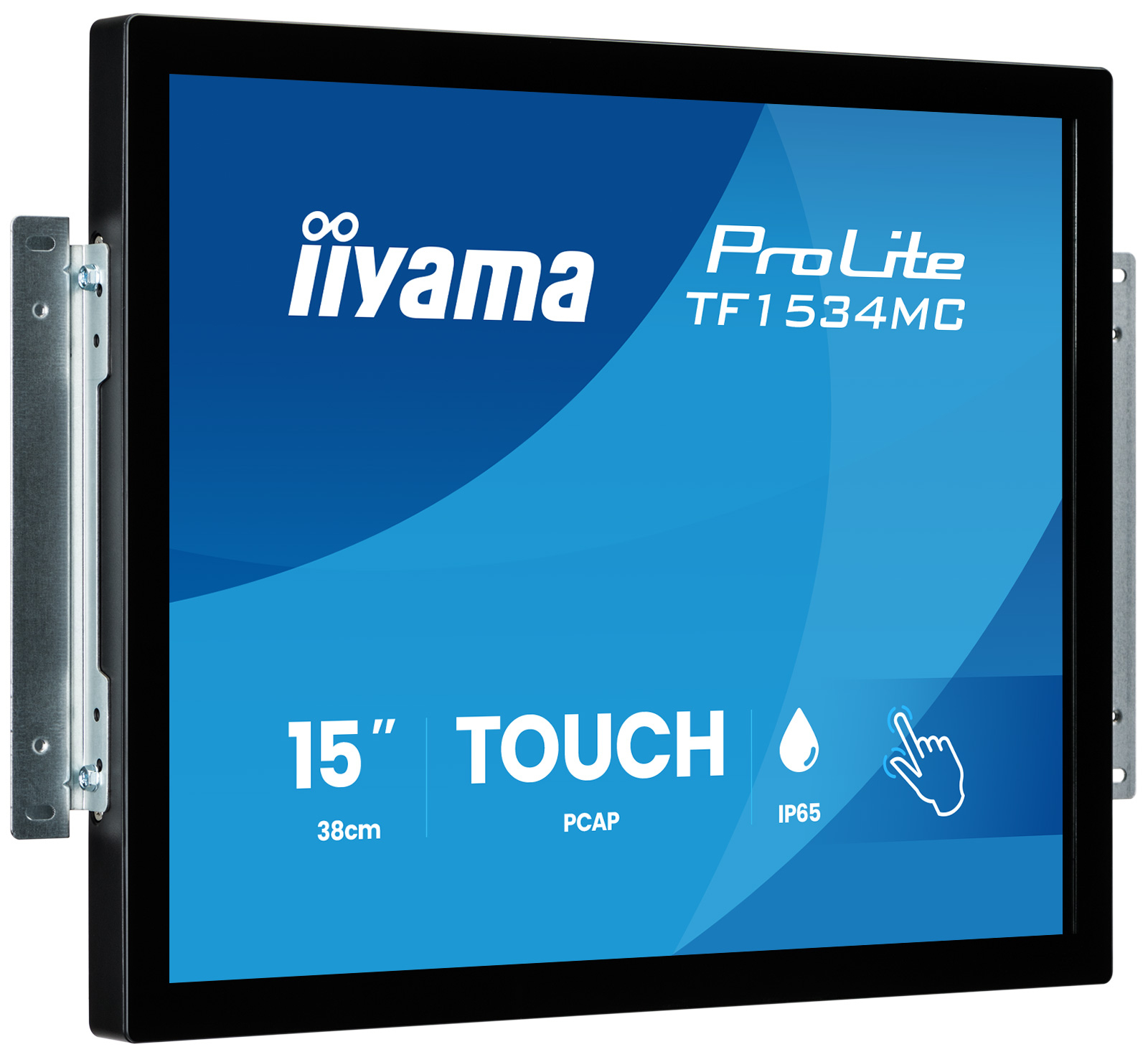

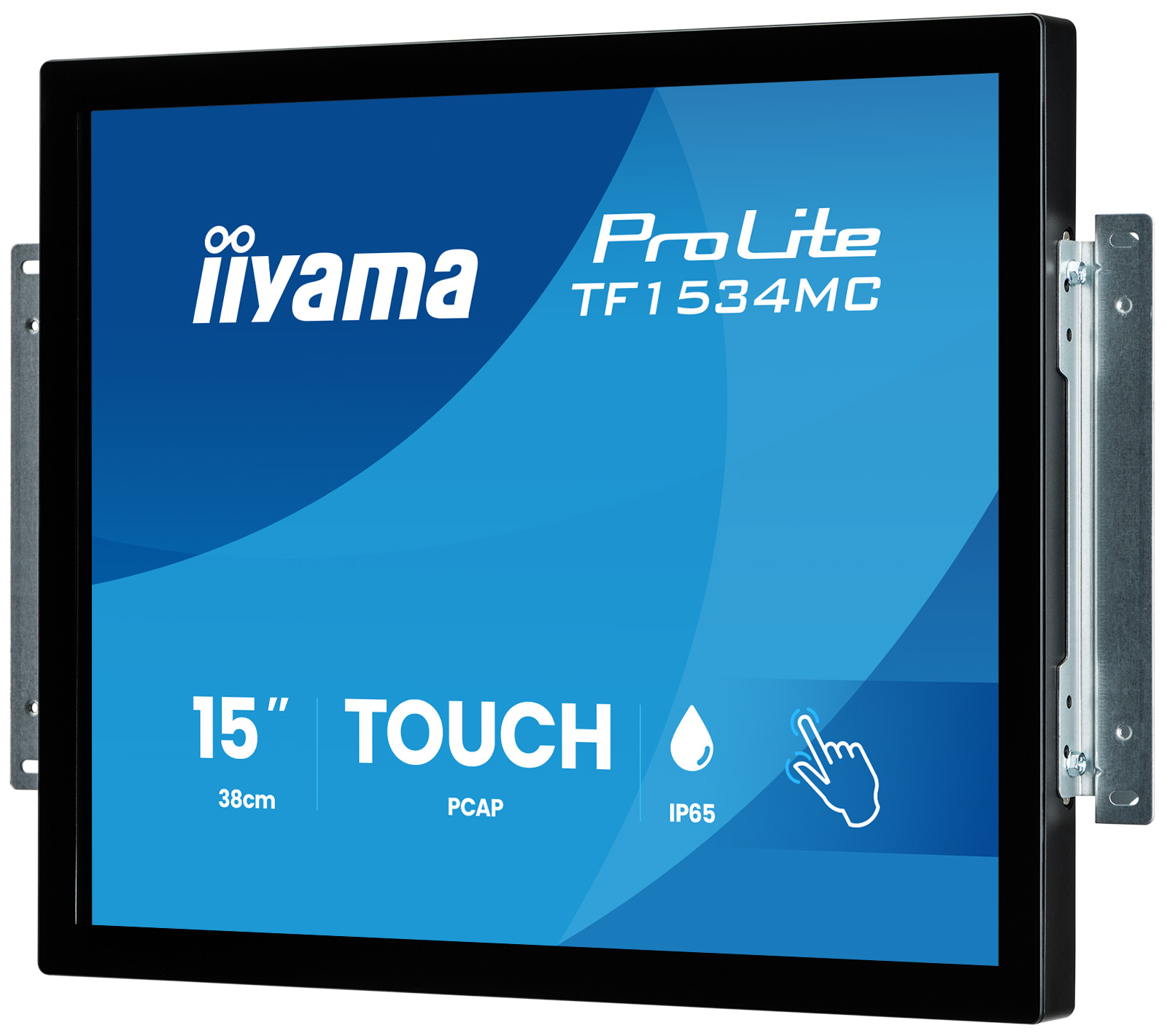

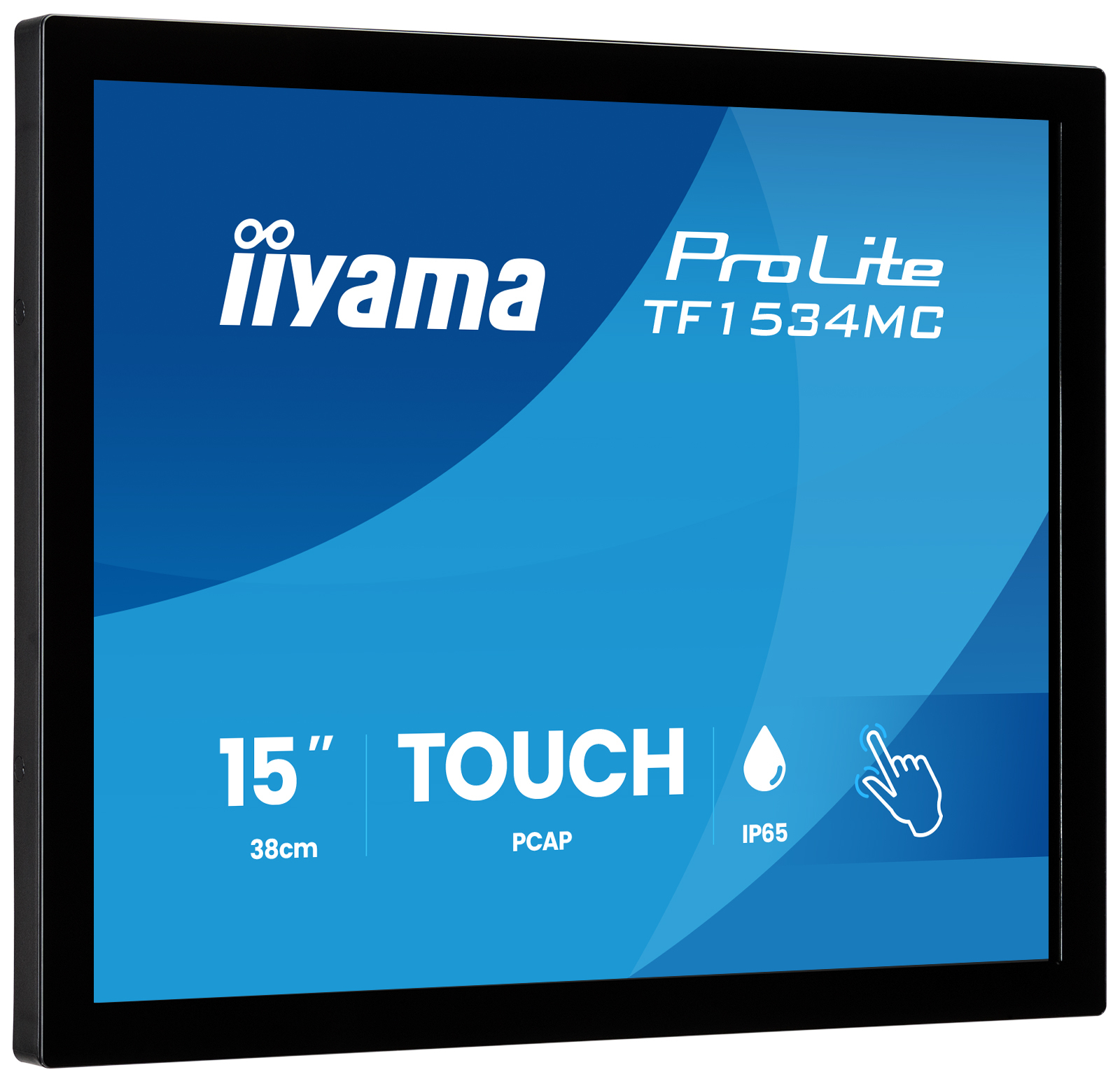

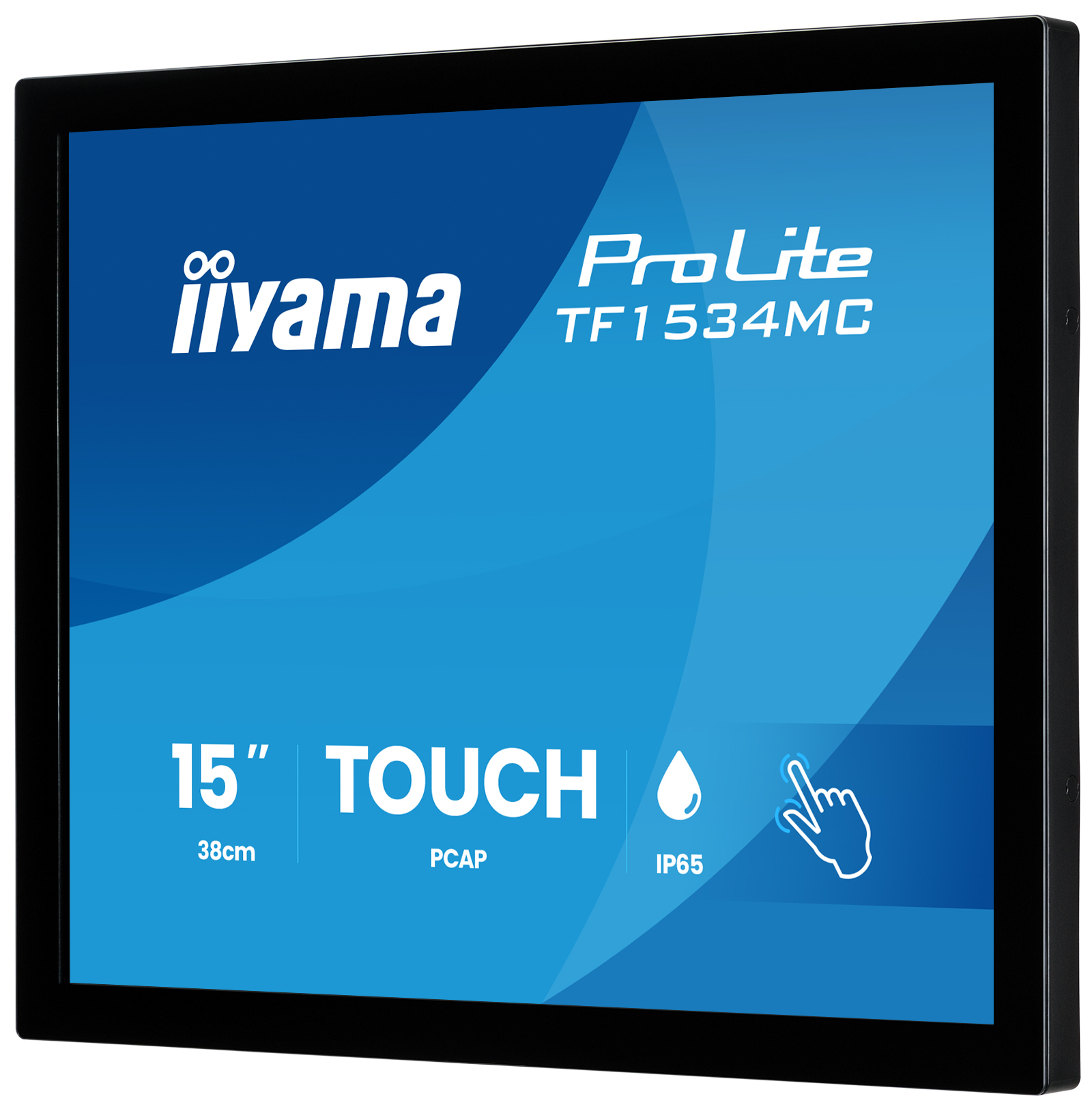

ProLite TF1534MC-B8X computer monitor
38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black
Model TF1534MC-B8XEAN 4948570127801
93 specifications Checked today
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- Energy classD
- Weight2.7 kg
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Energy class
- D
- Weight
- 2.7 kg
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- iiyama
- Category
- Monitor
- Model
- TF1534MC-B8X
- Part number
- TF1534MC-B8X
- EAN / UPC
- 4948570127801
- Also known as
- iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black
Specifications
93 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | XGA |
| Panel type | TN |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 350 cd/m² |
| Display brightness (typical) | 300 cd/m² |
| Display brightness | 300 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Palm rejection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone out | No |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 9 kWh |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 338 mm |
| Depth (with stand) | 45 mm |
| Height (with stand) | 267 mm |
| Weight (with stand) | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 355 mm |
| Package depth | 435 mm |
| Package height | 165 mm |
| Package weight | 4 kg |
| USB cable length | 1.8 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| AC adapter included | Yes |
| Active display area (W x H) | 304 x 228 mm |
| Brightness | 300 cd/m² |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Depth | 45 mm |
| Height | 267 mm |
| Packaging content | AC adapter |
| Weight | 2.7 kg |
| Width | 338 mm |
| Mean time between failures (MTBF) | 50000 h |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Touch method | stylus, finger, glove (latex) |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 75 Hz |
Logistics data
| Specification | Value |
|---|---|
| Pallet net width | 91 cm |
| Pallet net length | 114 cm |
| Pallet net height | 2.43 m |
