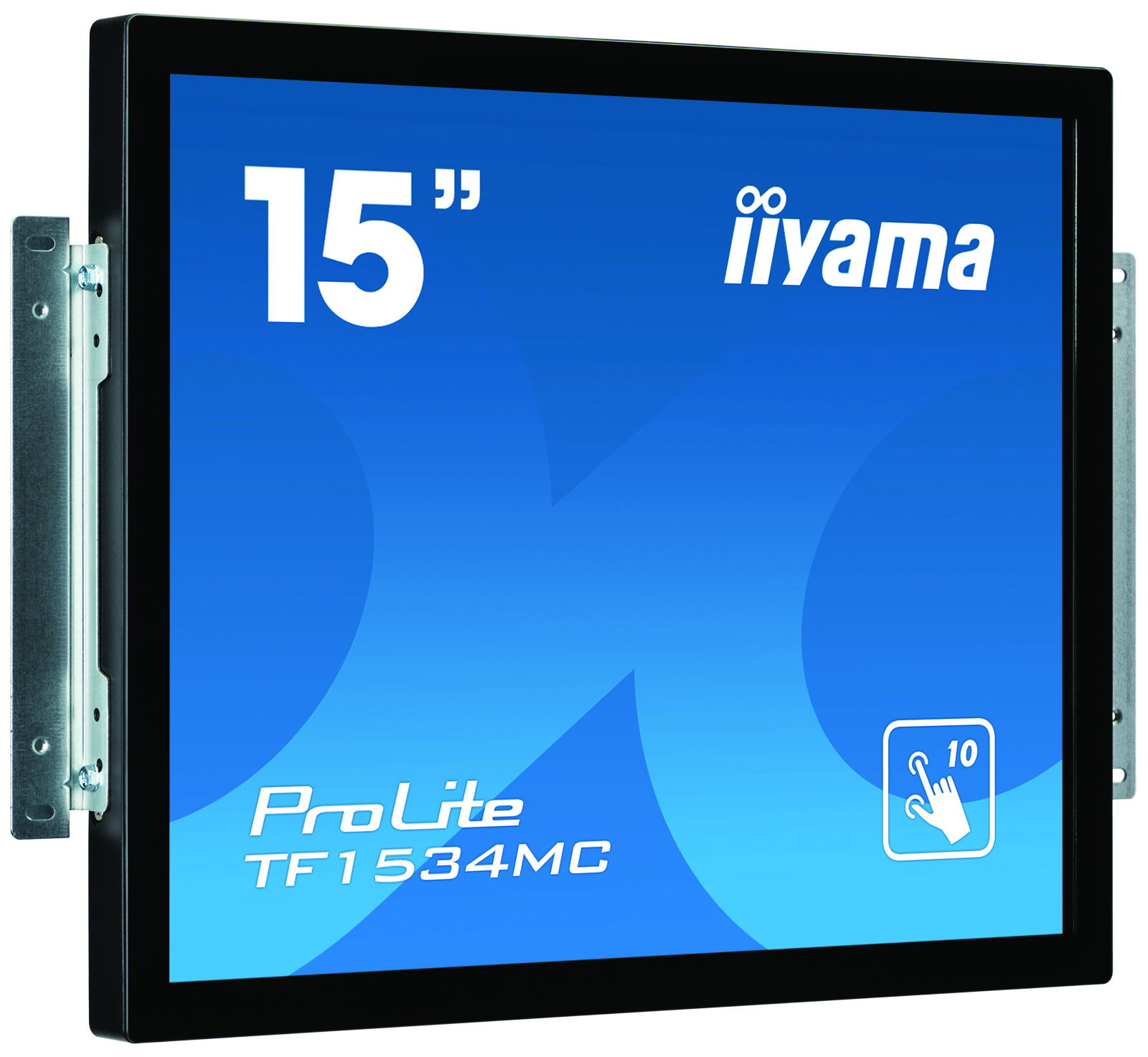

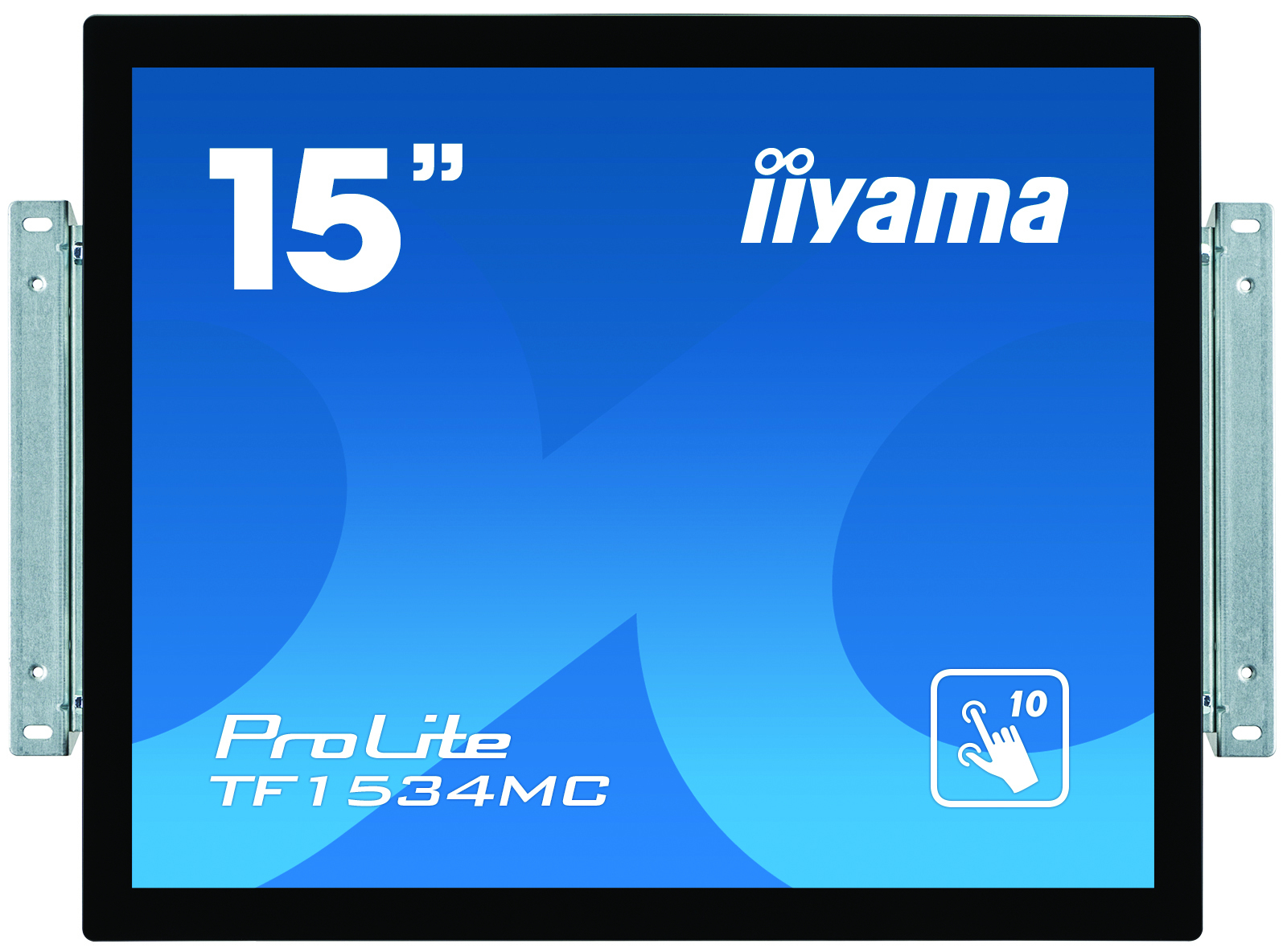

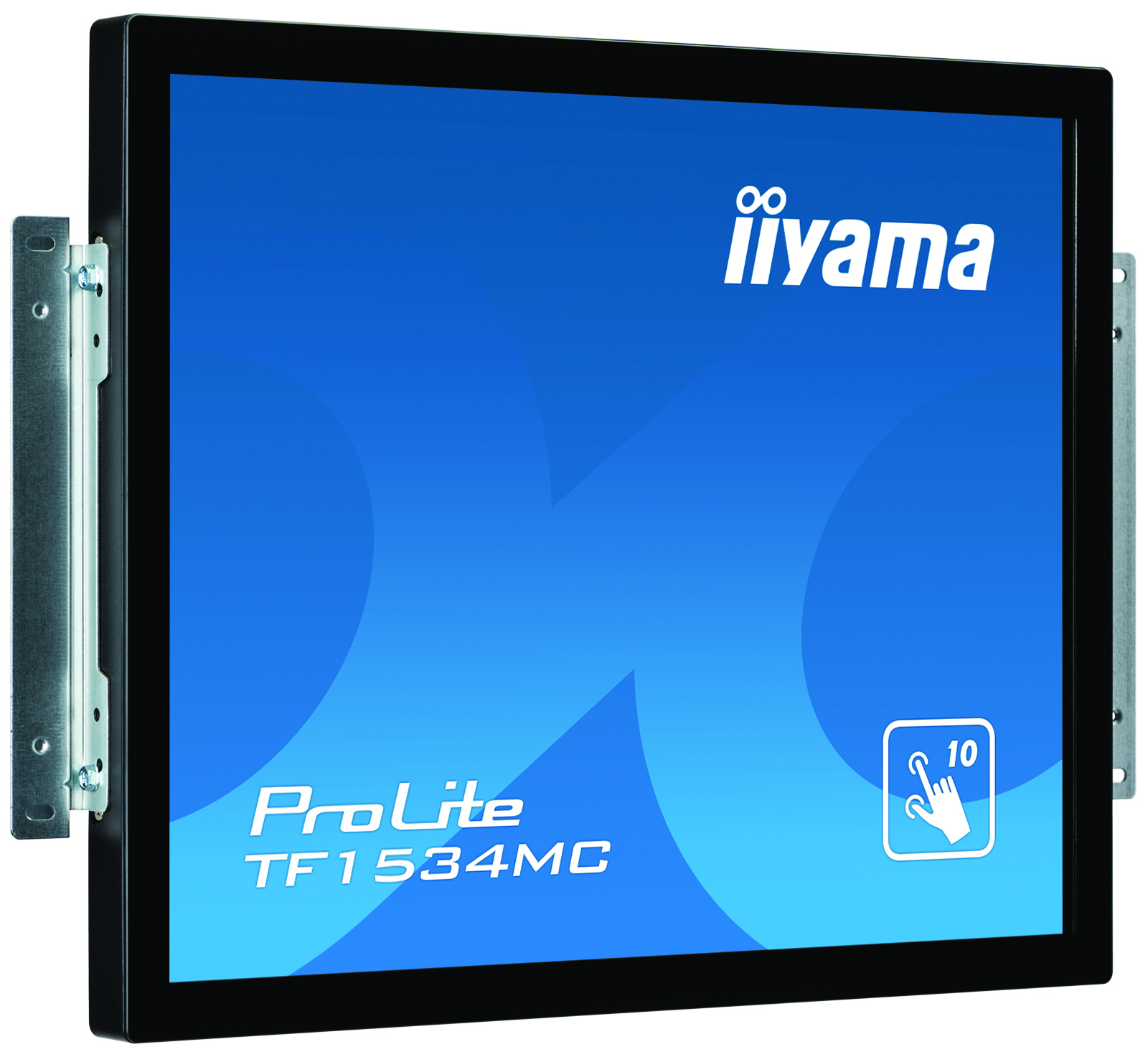

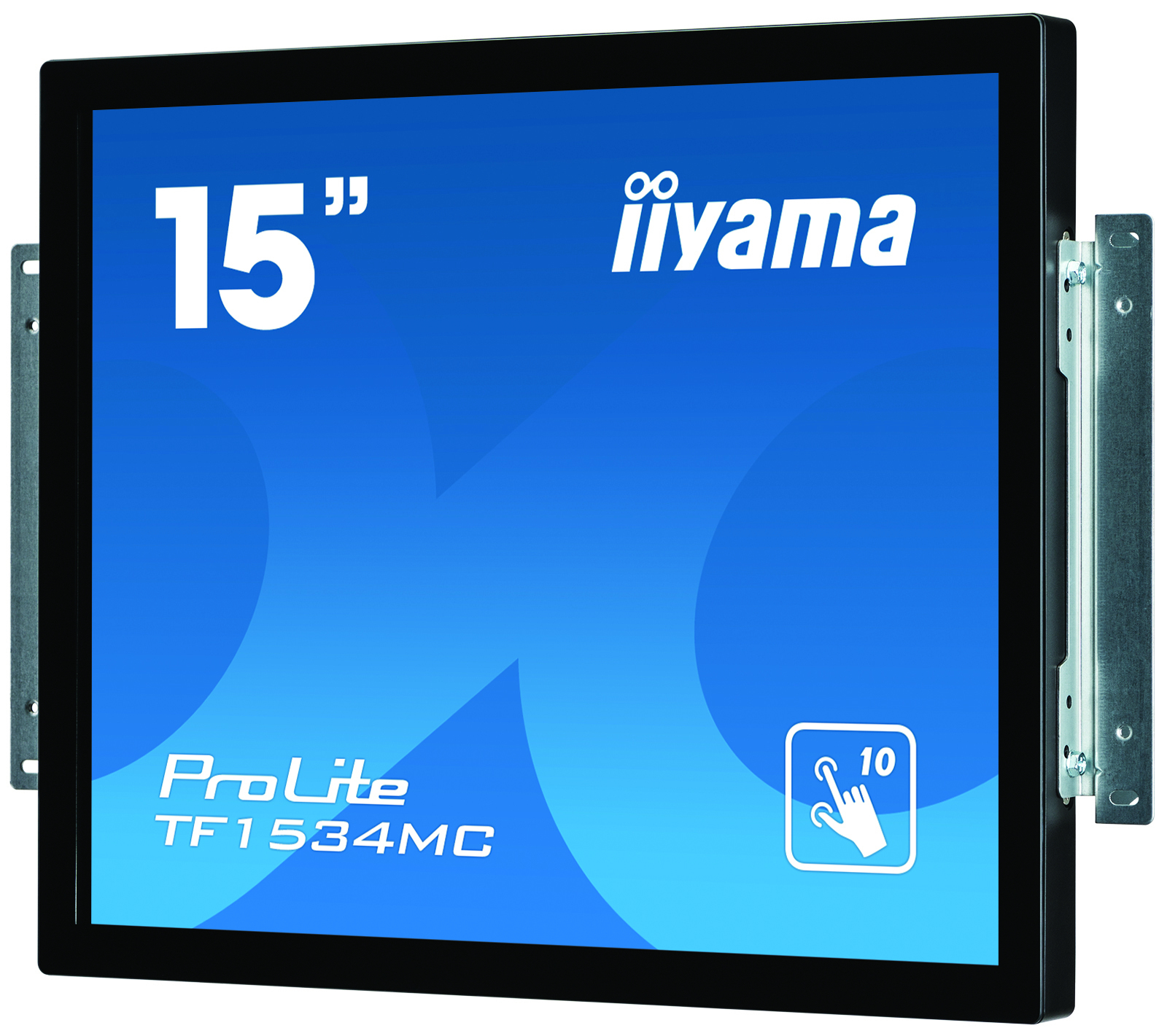

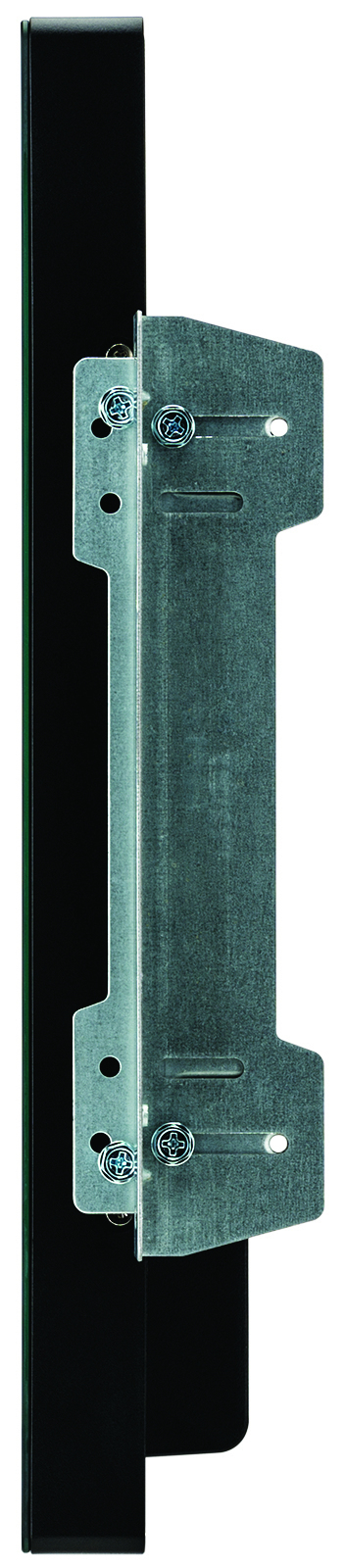

ProLite TF1534MC-B6X computer monitor

38.1 cm (15") 1024 x 768 pixels LCD Touchscreen Multi-user Black

Model TF1534MC-B6XEAN 4948570116812

59 specifications Checked today

Display38.1 cm (15")
Resolution1024 x 768 pixels
ColourBlack
NVIDIA G-SYNCNo
USB Touch portYes
Power consumption (typical)9 W

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1024 x 768 pixels
Colour: Black
NVIDIA G-SYNC: No
USB Touch port: Yes
Power consumption (typical): 9 W

Brand: iiyama
Category: Monitor
Model: TF1534MC-B6X
Part number: TF1534MC-B6X
EAN / UPC: 4948570116812
Also known as: iiyama ProLite TF1534MC-B6X computer monitor 38.1 cm (15") 1024 x 768 pixels LCD Touchscreen Multi-user Black

Specifications

59 specifications in 12 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3
Display technology	LCD
Touchscreen	Yes
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	330 cd/m²
Response time	8 ms
Screen shape	Flat
Aspect ratio	4:3
Contrast ratio (typical)	700:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31.4 - 60 kHz
Vertical scan range	50 - 75 Hz
Display diagonal (metric)	38 cm
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
OmniTapps Multitouch compatibility	No

Multimedia

Specification	Value
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB Touch port	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes

Ergonomics

Specification	Value

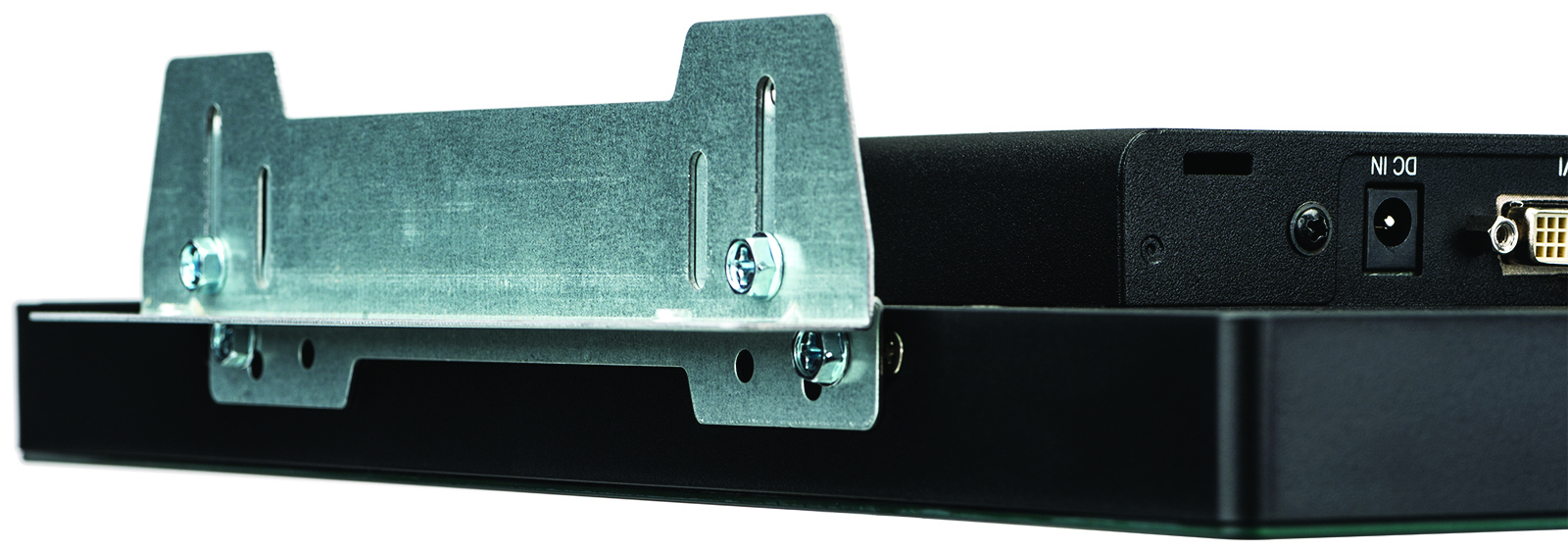

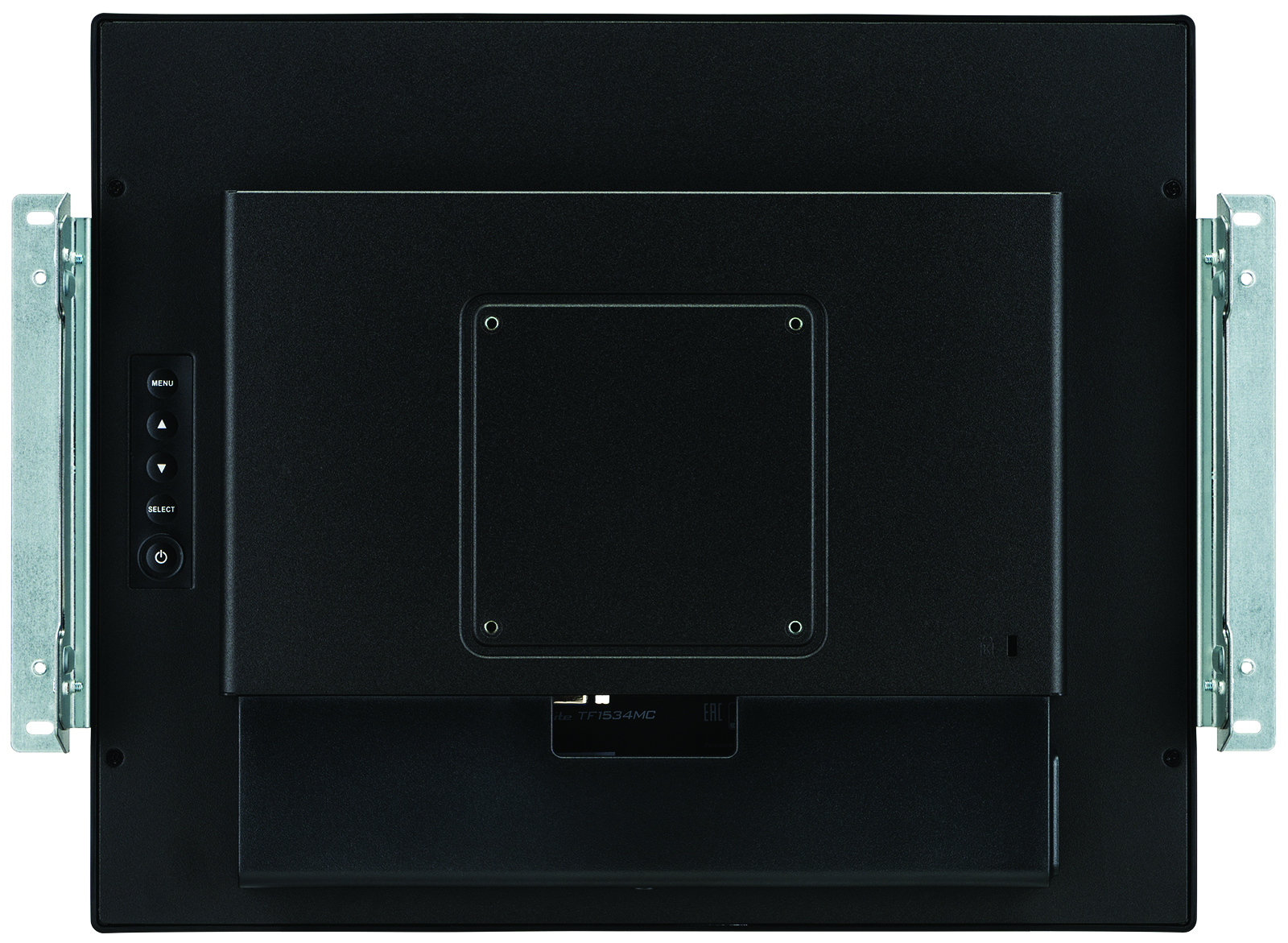

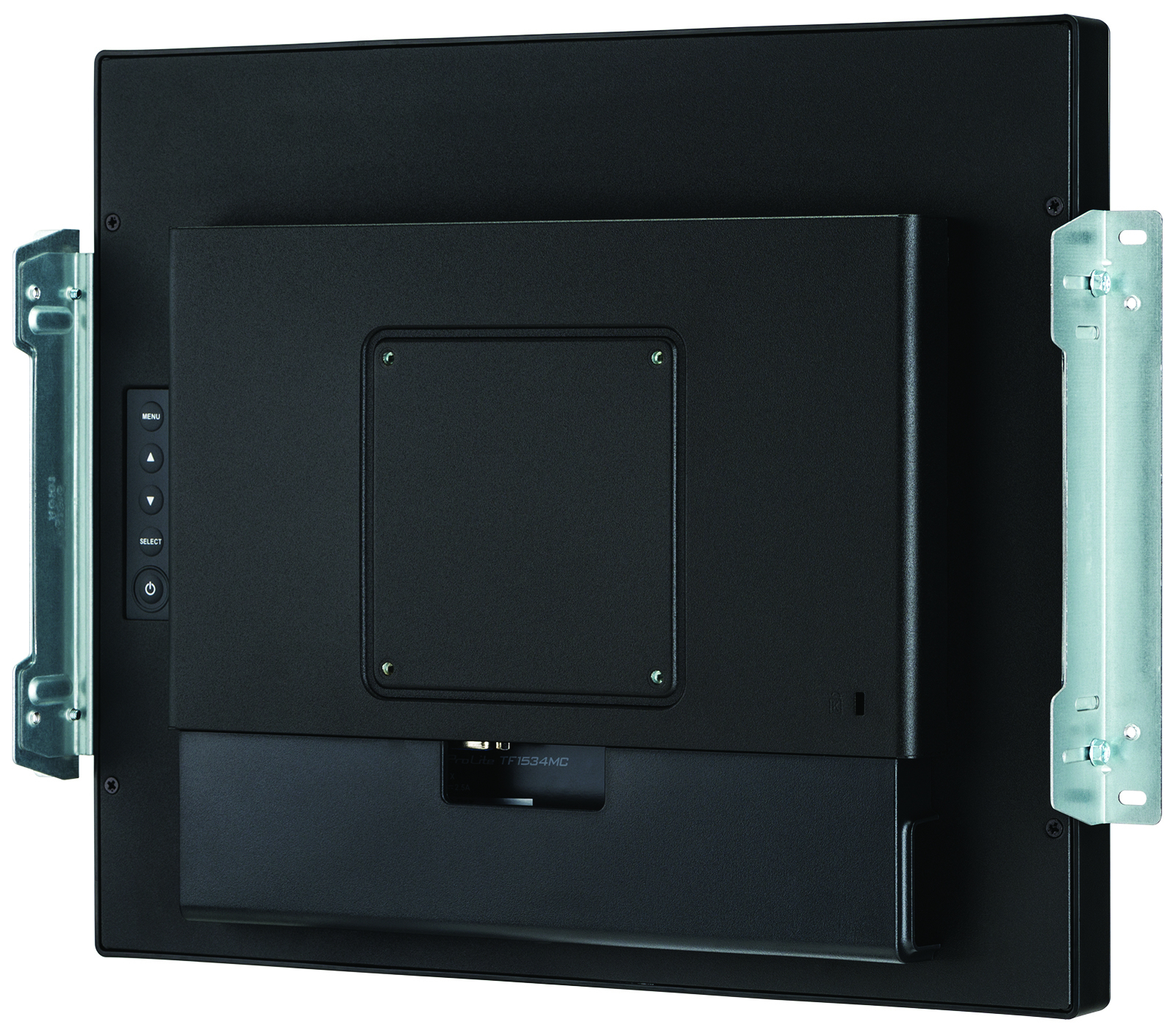

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese
Number of OSD languages	7
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	9 W
Power consumption (standby)	2 W
Power consumption (off)	2 W
Power supply type	DC

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (without stand)	337.5 mm
Depth (without stand)	44.5 mm
Height (without stand)	265.5 mm
Weight (without stand)	2.7 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, HDMI, USB
Quick start guide	Yes

Other features

Specification	Value
International Protection (IP) code	IP65
AC adapter included	Yes
Display viewable area (HxV)	304 x 228 mm
Certification	CB, CE, TÜV-Bauart, EAC, cULus

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
