ProLite T2454MSC-B1AG computer monitor

60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Model T2454MSC-B1AGEAN 4948570116416

91 specifications Checked yesterday

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
Energy classF
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Energy class: F
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: iiyama
Category: Monitor
Model: T2454MSC-B1AG
Part number: T2454MSC-B1AG
EAN / UPC: 4948570116416
Also known as: iiyama ProLite T2454MSC-B1AG computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Specifications

91 specifications in 13 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	250 cd/m²
Response time	4 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.274 x 0.274 mm
Horizontal scan range	30 - 80 kHz
Vertical scan range	56 - 75 Hz
Display diagonal (metric)	60.5 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Yes
Linux operating systems supported	Yes
OmniTapps Multitouch compatibility	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in camera	No
Megapixel (approx.)	2.1 MP
Built-in microphone	No

Design

Specification	Value
Product colour	Black

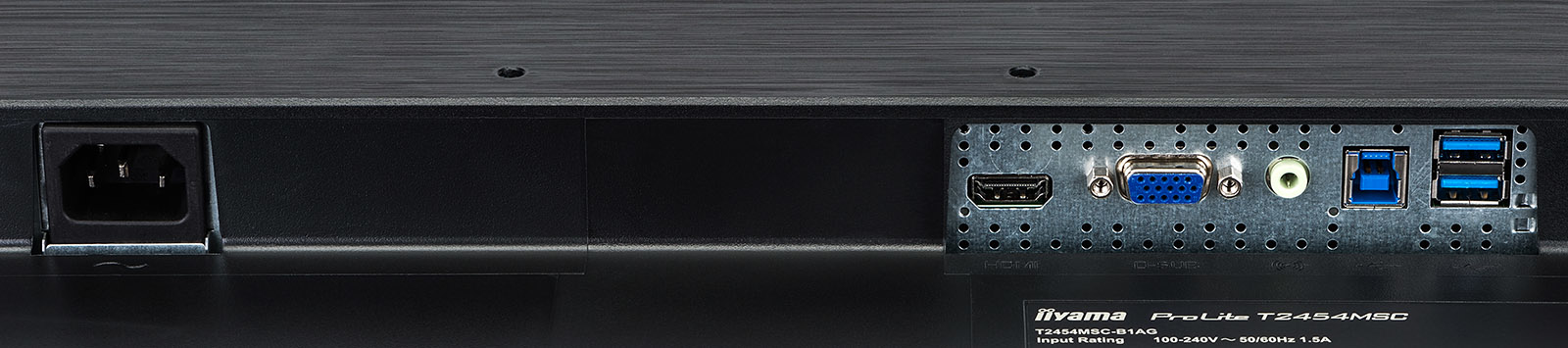

Ports & interfaces

Specification	Value
Number of upstream ports	1
USB Type-A downstream ports quantity	1
USB Touch port	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	0
Audio input	3.5mm
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

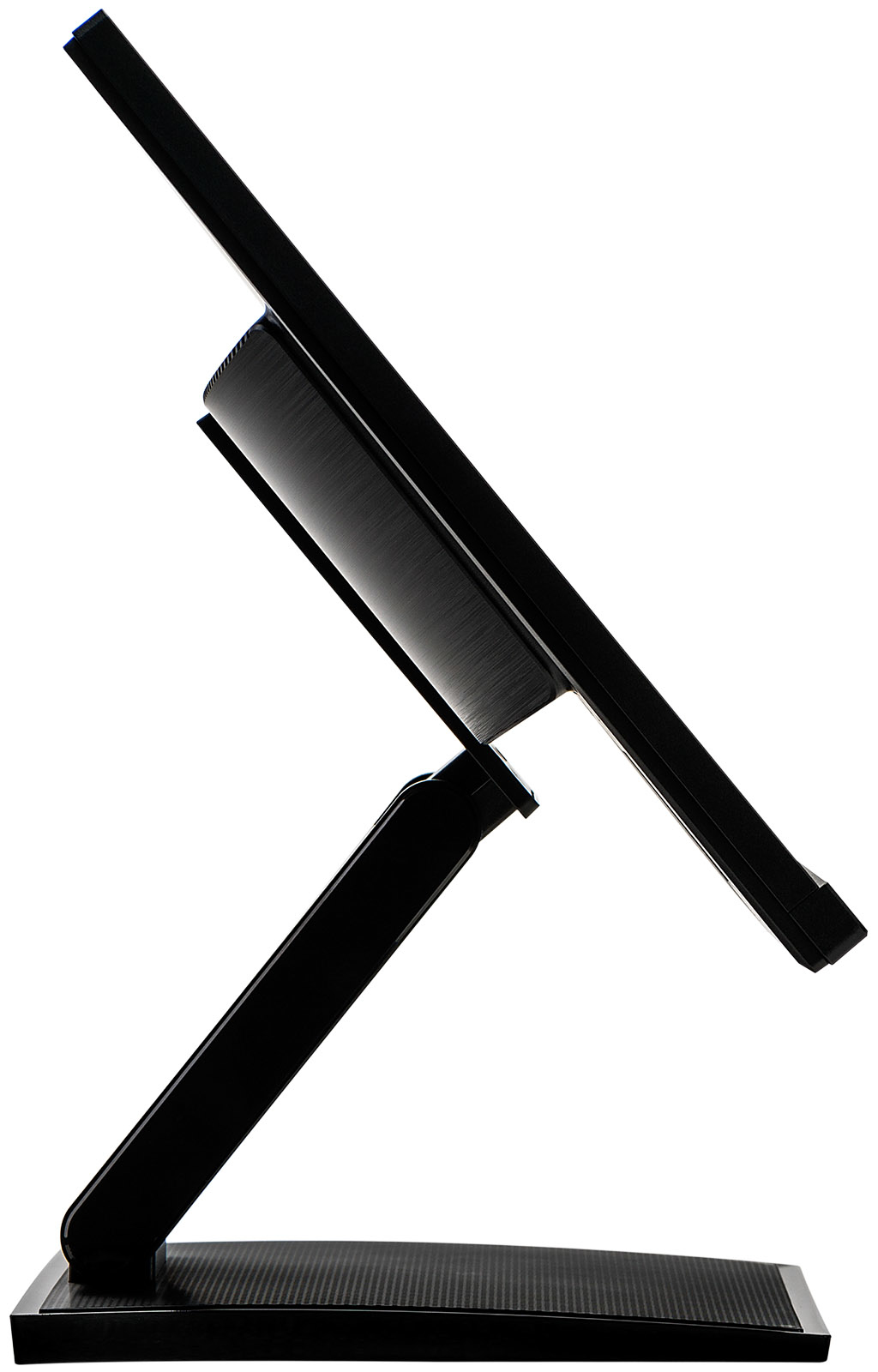

Height adjustment	Yes
Adjustable height (max)	7 cm

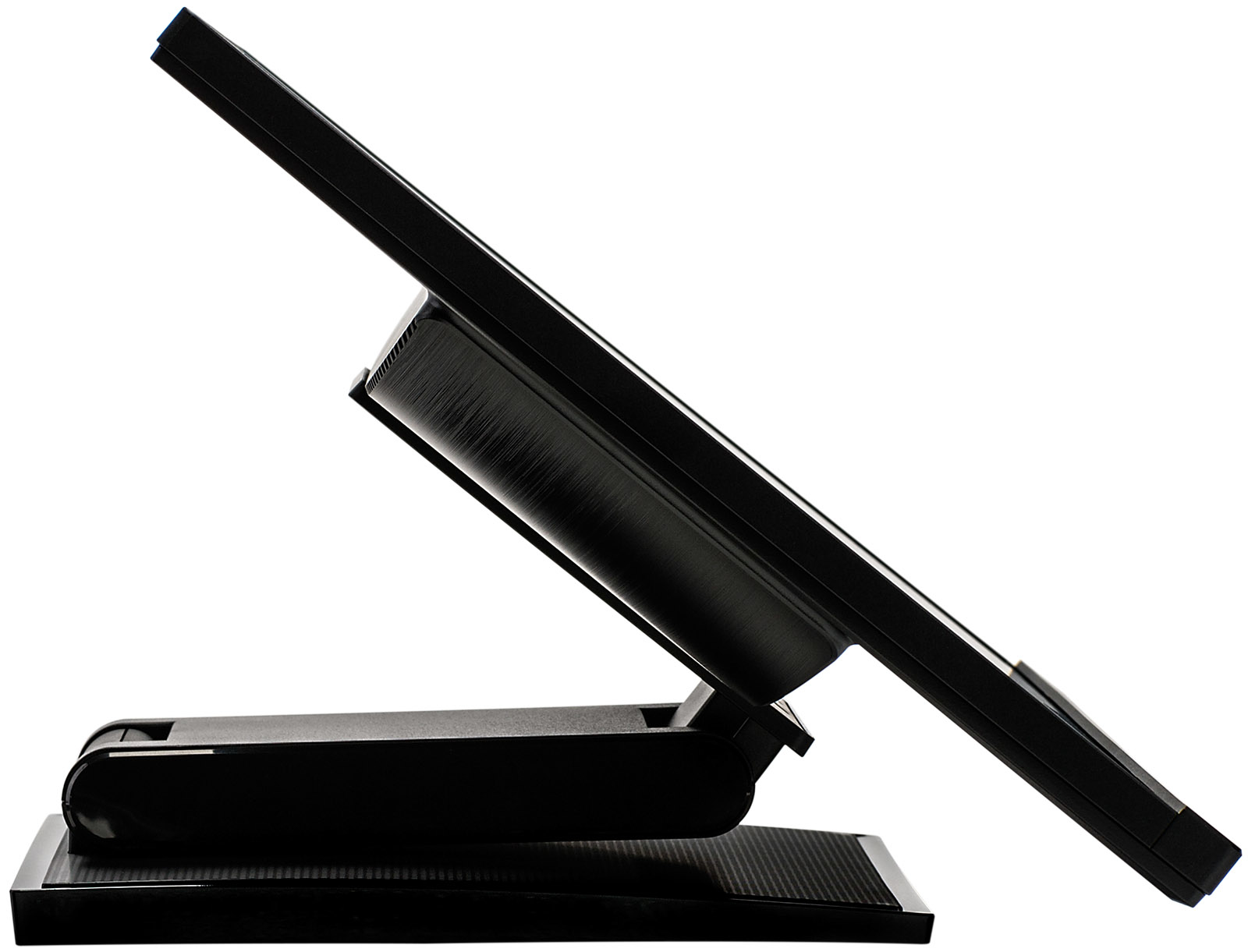

Tilt adjustment	Yes
Tilt angle range	-5 - 90°
On Screen Display (OSD) languages	German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Number of OSD languages	10
Plug and Play	Yes

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	20 kWh
Power consumption (typical)	24 W
Power consumption (standby)	0.4 W
Power consumption (off)	0.3 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	540.5 x 128 x 388 mm
Width (with stand)	540.5 mm
Depth (with stand)	128 mm
Height (with stand)	388 mm
Weight (with stand)	5.5 kg
Width (without stand)	540.5 mm
Depth (without stand)	46.5 mm
Height (without stand)	322.5 mm

Packaging content

Specification	Value

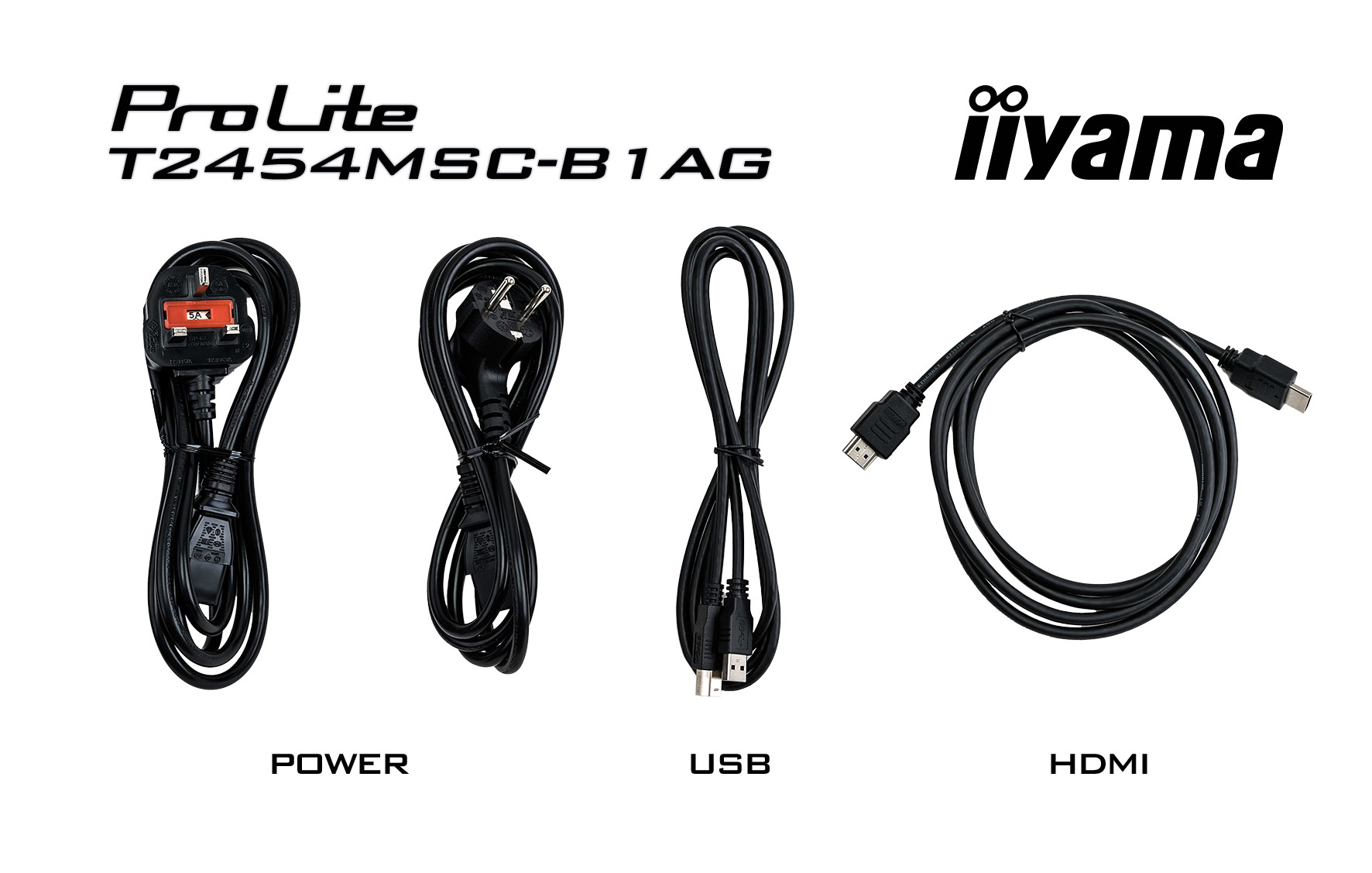

Cables included	AC, HDMI, USB, VGA
Quick start guide	Yes

Other features

Specification	Value
International Protection (IP) code	IPX1
Compliance certificates	RoHS
Display viewable area (HxV)	527.04 x 296.46 mm
Placement supported	Horizontal/Vertical
Mean time between failures (MTBF)	30000 h
Certification	CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Supplied AC adapter type	AC

Technical details

Specification	Value
Native refresh rate	60 Hz

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
