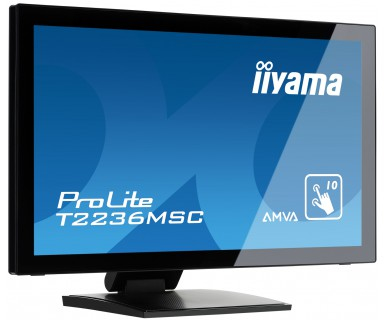

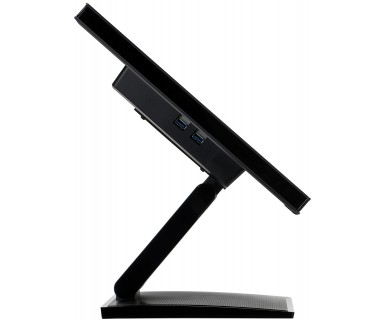

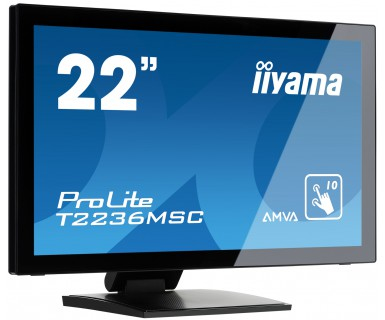

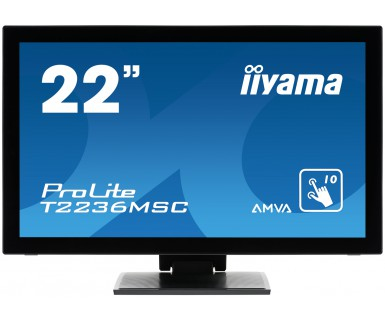

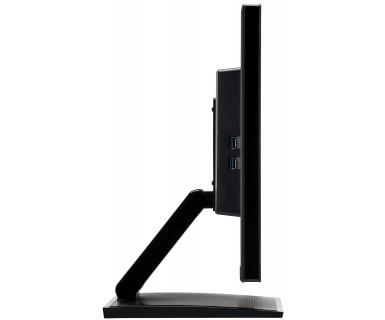

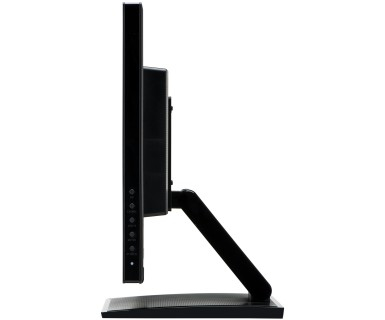

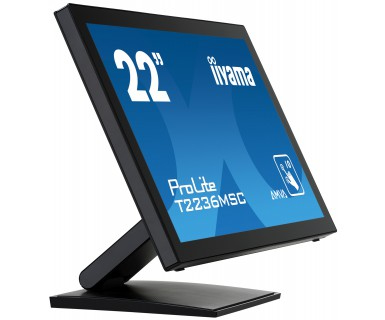

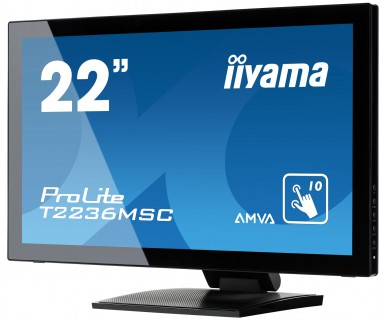

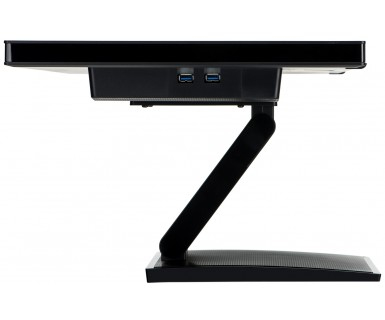

iiyama T2236MSC-1 computer monitor

T2236MSC-1 computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Black

Model T2236MSC-1Part no. T2236MSC-B1EAN 4948570112364

55 specifications Checked today

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Panel mounting interface100 x 100 mm

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Panel mounting interface: 100 x 100 mm

Brand: iiyama
Category: Monitor
Model: T2236MSC-1
Part number: T2236MSC-B1
EAN / UPC: 4948570112364, 5054484565420, 5712505078365
Also known as: iiyama T2236MSC-1 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Black

Specifications

55 specifications in 10 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Touchscreen technology	Capacitive
Display brightness	225 cd/m²
Response time	12 ms
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.248 x 0.248 mm
Horizontal scan range	30 - 80 kHz
Vertical scan range	55 - 75 Hz
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 8

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
Headphone outputs	1

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Height adjustment	275 mm
On Screen Display (OSD)	Yes
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	23 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	522.5 x 238.5 x 385 mm
Width (with stand)	522.5 mm
Depth (with stand)	238.5 mm
Height (with stand)	385 mm
Weight (with stand)	6.6 kg

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, USB, VGA

Other features

Specification	Value
Display viewable area (HxV)	476.6 x 268.1 mm
Certification	CE, TÜV-Bauart, CU
Supplied AC adapter type	AC
