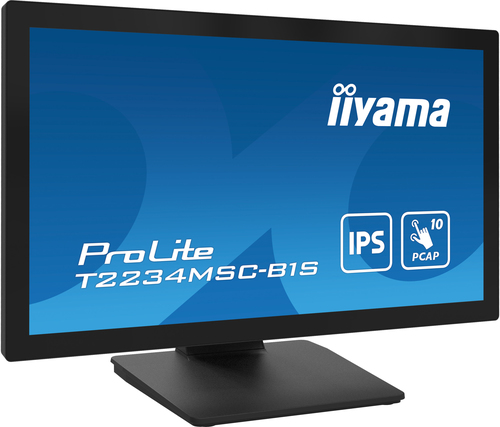

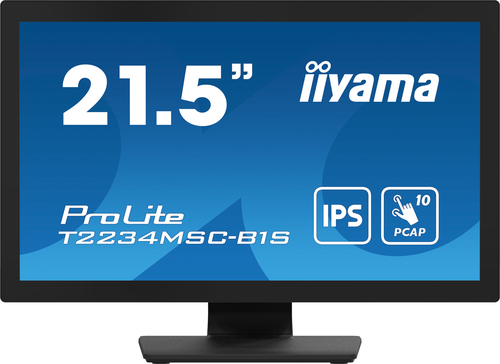

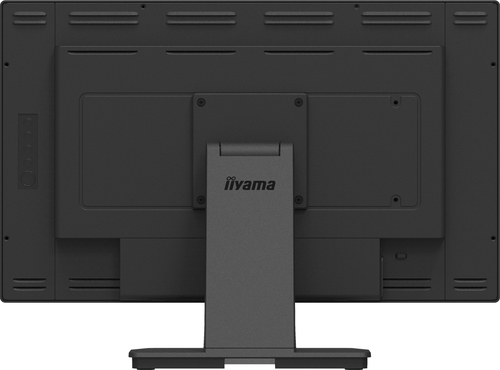

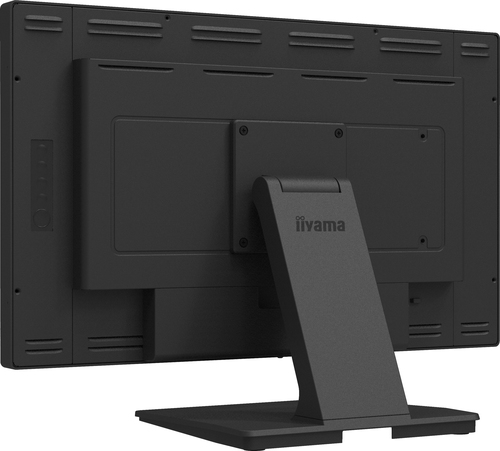

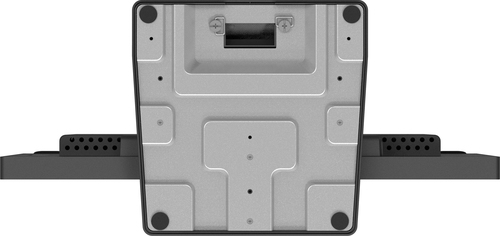

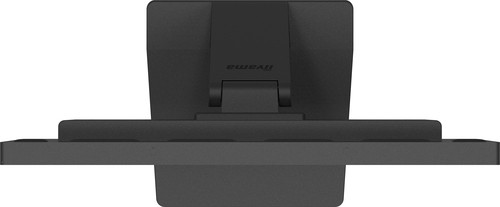

iiyama ProLite T2234MSC-B1S computer monitor
iiyama

ProLite T2234MSC-B1S computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD Touchscreen Black

Model T2234MSC-B1SEAN 4948570122226

77 specifications Checked today
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • Energy classE
  • Weight5.9 kg
  • ColourBlack
  • NVIDIA G-SYNCNo
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Energy class
E
Weight
5.9 kg
Colour
Black
NVIDIA G-SYNC
No
Brand
iiyama
Category
Monitor
Model
T2234MSC-B1S
Part number
T2234MSC-B1S
EAN / UPC
4948570122226
Also known as
iiyama ProLite T2234MSC-B1S computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD Touchscreen Black

Specifications

77 specifications in 11 groups

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
Native aspect ratio16:9
TouchscreenYes
HD typeFull HD
Panel typeIPS
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (peak)350 cd/m²
Display brightness (typical)350 cd/m²
Display brightness305 cd/m²
Response time8 ms
Response time measurement typeGTG (Gray to Gray)
Screen shapeFlat
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.7 million colours
Pixel pitch0.247 x 0.247 mm
Horizontal scan range30 - 84 kHz
Viewable size, horizontal47.6 cm
Viewable size, vertical26.8 cm
Display diagonal (metric)54.6 cm
Surface hardness7H

Performance

NVIDIA G-SYNCNo
AMD FreeSyncNo
Palm rejectionYes

Multimedia

Built-in speaker(s)Yes
Number of speakers2
RMS rated power6 W
Built-in cameraNo

Design

Product colourBlack
Front bezel colourBlack
Glass thickness2.5 mm

Ports & interfaces

USB Touch portYes
VGA (D-Sub) ports quantity1
HDMIYes
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes

Ergonomics

VESA mountingYes
Panel mounting interface100 x 100 mm
Cable managementYes
Height adjustmentNo
Tilt adjustmentYes
Tilt angle range-5 - 90°
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesTraditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours15.5 kWh
Power consumption (typical)21 W
Power consumption (standby)1.5 W
Power consumption (off)0.3 W
AC adapter output voltage12 V
Power supply typeExternal

Weight & dimensions

Width (with stand)517.5 mm
Depth (with stand)239.5 mm
Height (with stand)374 mm
Weight (with stand)5.9 kg

Packaging content

Cables includedAC, USB, HDMI, DisplayPort, Audio
Quick start guideYes

Sustainability

Sustainability certificatesErP

Other features

International Protection (IP) codeIP65
Compatible operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter includedYes
Brightness305 cd/m²
Compliance certificatesCE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Depth239.5 mm
Height374 mm
Packaging contentAC adapter
Weight5.9 kg
Width517.5 mm
Control panelMenu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch methodstylus, finger, glove (latex)
User controlspicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position,Touch switch), option (reset, language, source select, display mode, volume, mute, factory)
