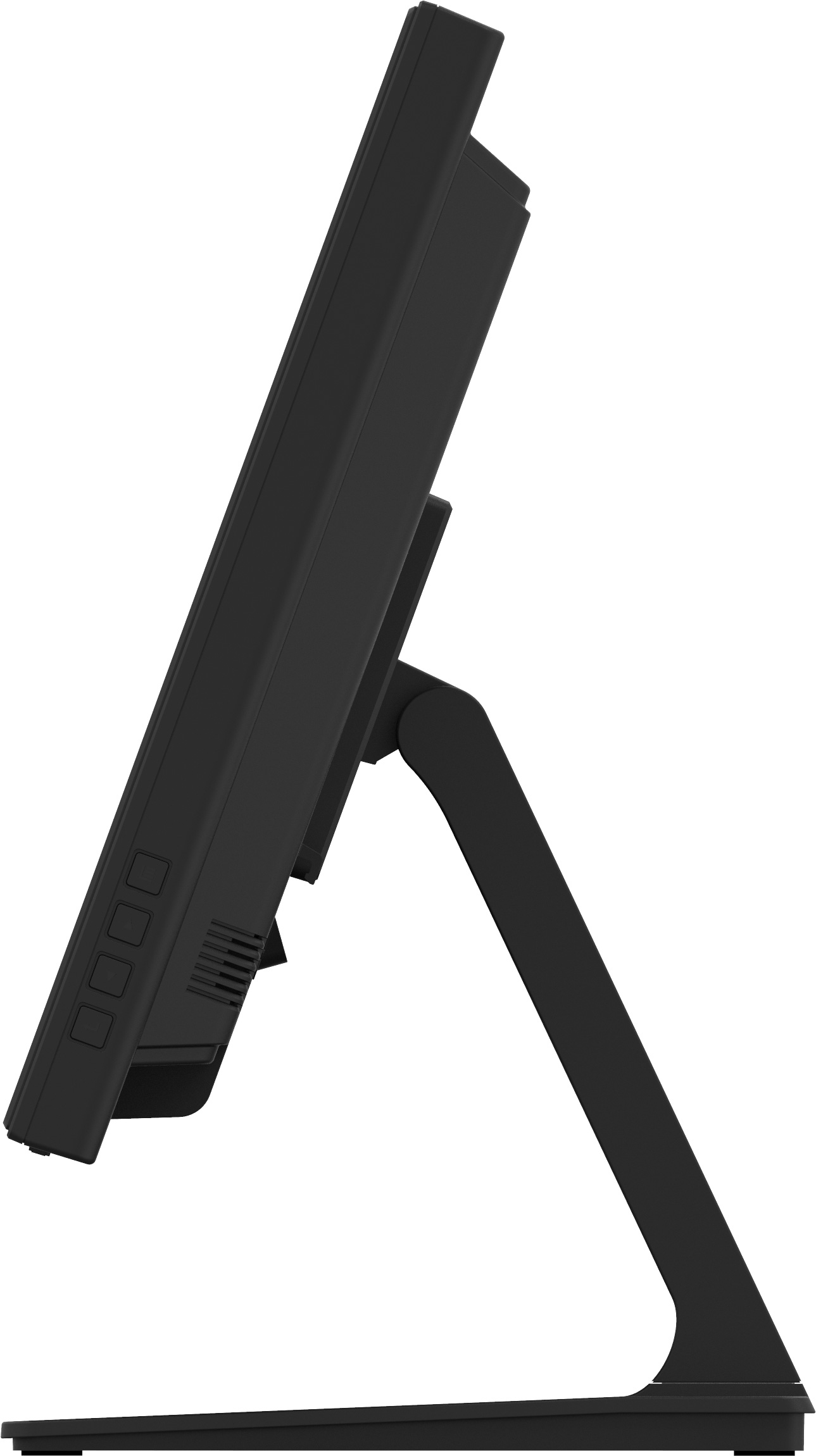

iiyama ProLite T1932MSC-B2S computer monitor
iiyama

ProLite T1932MSC-B2S computer monitor

48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black

Model T1932MSC-B2SEAN 4948570127771

98 specifications Checked today
  • Display48.3 cm (19")
  • Resolution1280 x 1024 pixels
  • Energy classE
  • Weight5.4 kg
  • ColourBlack
  • Component video syncSeparate Sync
See all specifications

Overview

Display
48.3 cm (19")
Resolution
1280 x 1024 pixels
Energy class
E
Weight
5.4 kg
Colour
Black
Component video sync
Separate Sync
Brand
iiyama
Category
Monitor
Model
T1932MSC-B2S
Part number
T1932MSC-B2S
EAN / UPC
4948570127771
Also known as
iiyama ProLite T1932MSC-B2S computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black

Specifications

98 specifications in 14 groups

Display

Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
Native aspect ratio5:4
Display technologyLED
TouchscreenYes
HD typeSXGA
Panel typeIPS
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (typical)250 cd/m²
Display brightness225 cd/m²
Response time14 ms
Response time measurement typeGTG (Gray to Gray)
Screen shapeFlat
Contrast ratio (typical)1000:1
Maximum refresh rate75 Hz
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.7 million colours
Pixel pitch0.293 x 0.293 mm
Horizontal scan range31 - 80 kHz
Vertical scan range50 - 75 Hz
Viewable size, horizontal37.5 cm
Viewable size, vertical30 cm
Display diagonal (metric)48 cm
DDC/CIYes

Performance

Component video syncSeparate Sync

Multimedia

Built-in speaker(s)Yes
Number of speakers2
RMS rated power2 W

Design

Market positioningBusiness
Product colourBlack
Front bezel colourBlack

Ports & interfaces

USB Touch portYes
VGA (D-Sub) ports quantity1
HDMIYes
HDMI ports quantity1
DisplayPorts quantity1
Audio inputYes
HDCPYes

Ergonomics

VESA mountingYes
Panel mounting interface100 x 100 mm
Cable managementYes
Cable lock slotYes
Cable lock slot typeKensington
Tilt adjustmentYes
Tilt angle range-5 - 90°
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesTraditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes

Power

Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours13 kWh
Power consumption (typical)20 W
Power consumption (standby)0.9 W
Power consumption (off)0.3 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current1 A
Power supply typeInternal
Energy efficiency scaleA to G

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width (with stand)432 mm
Depth (with stand)239.5 mm
Height (with stand)413.5 mm
Weight (with stand)5.4 kg

Packaging data

Package width530 mm
Package depth190 mm
Package height495 mm
Package weight7.4 kg
Package typeBox
USB cable length1.8 m

Packaging content

Cables includedAC, USB, HDMI, DisplayPort, Audio
Quick start guideYes
Audio cable length1.8 m
DisplayPort cable length1.8 m
HDMI cable length1.8 m
Power cable length1.8 m

Sustainability

Sustainability certificatesErP

Other features

International Protection (IP) codeIP54
Compatible operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Active display area (W x H)375 x 300 mm
Brightness225 cd/m²
Compliance certificatesCE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Depth239.5 mm
Height413.5 mm
Packaging contentScrewdriver
Weight5.4 kg
Width432 mm
Mean time between failures (MTBF)50000 h
Control panelMenu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch methodstylus, finger, glove
User controlsPicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, factory)

Technical details

Native refresh rate60 Hz
