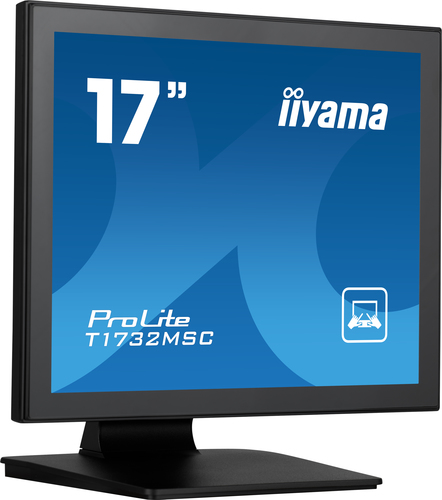

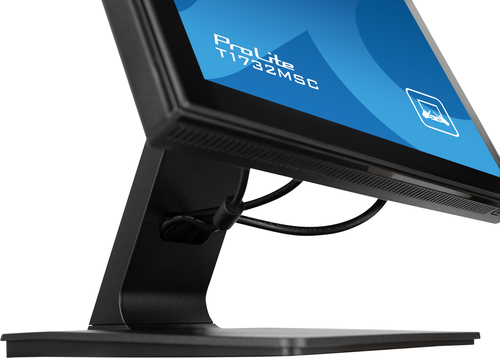

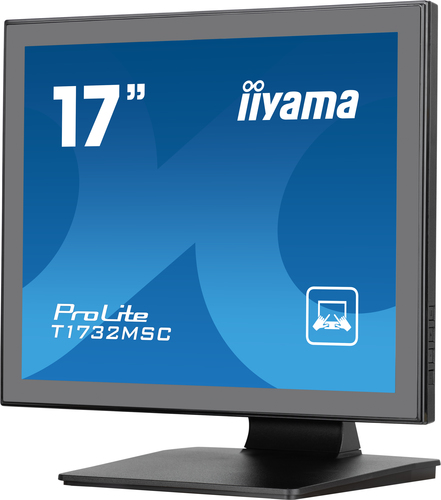

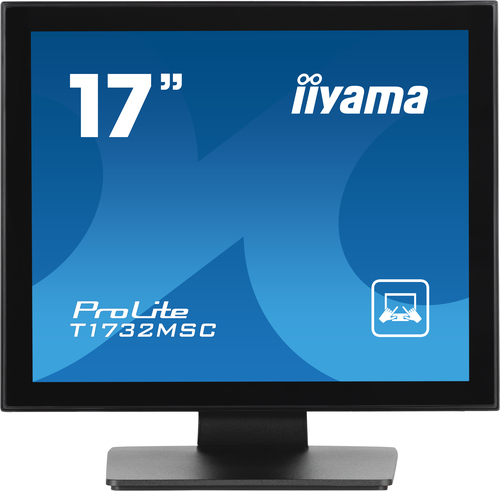

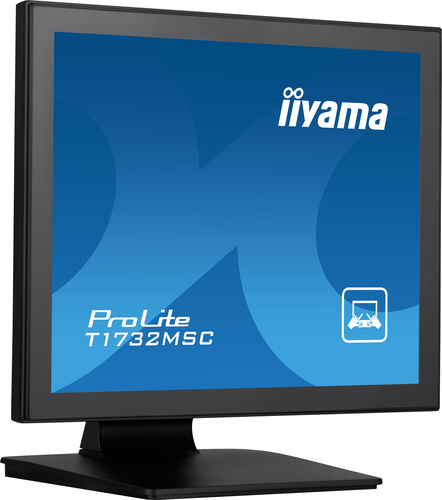

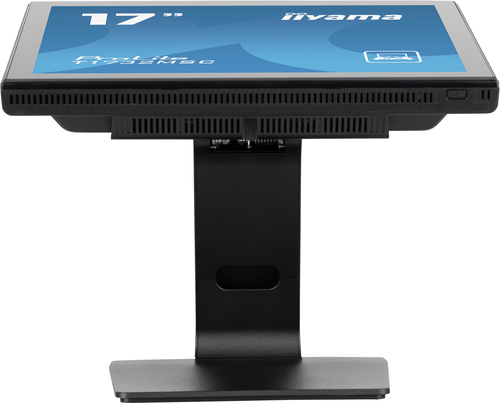

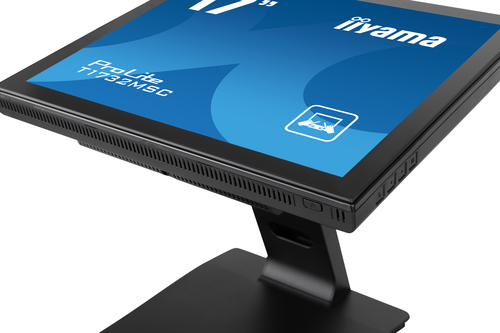

ProLite T1732MSC-B1SAG computer monitor
43.2 cm (17") 1280 x 1024 pixels Full HD LED Touchscreen Tabletop Black
Model T1732MSC-B1SAGEAN 4948570122158
93 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Energy classE
- Weight4.9 kg
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Energy class
- E
- Weight
- 4.9 kg
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- iiyama
- Category
- Monitor
- Model
- T1732MSC-B1SAG
- Part number
- T1732MSC-B1SAG
- EAN / UPC
- 4948570122158
- Also known as
- iiyama ProLite T1732MSC-B1SAG computer monitor 43.2 cm (17") 1280 x 1024 pixels Full HD LED Touchscreen Tabletop Black
Specifications
93 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 215 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 215 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal (metric) | 43 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Glass thickness | 1.2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| HDCP | Yes |
| DC-in jack | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11.9 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 387 mm |
| Depth (with stand) | 240 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 4.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Active display area (W x H) | 338 x 270.5 mm |
| Brightness | 215 cd/m² |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Depth | 240 mm |
| Height | 378 mm |
| Weight | 4.9 kg |
| Width | 387 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Touch method | stylus, finger, glove (latex) |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
