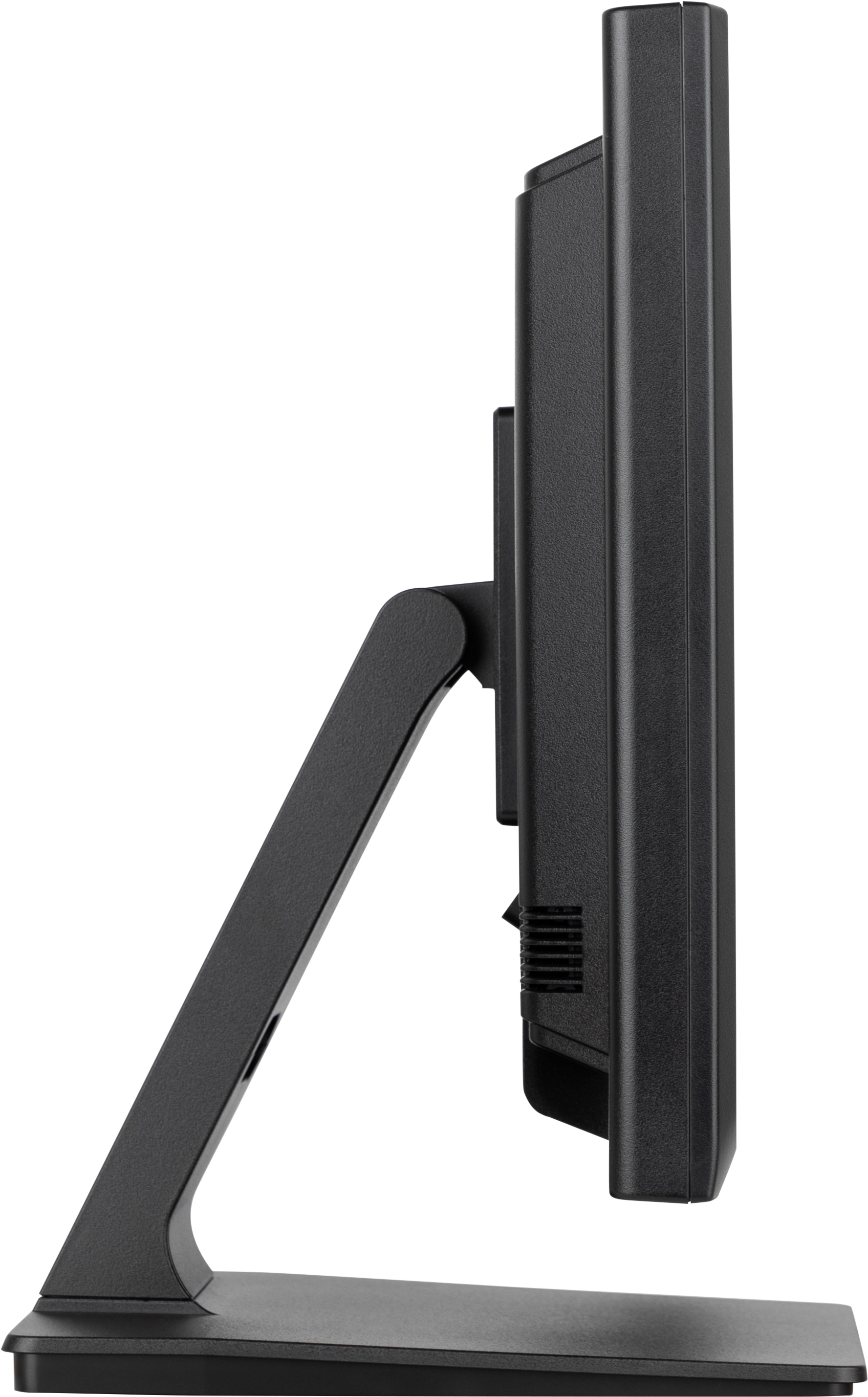

ProLite T1731SR-B2S computer monitor
43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Table Black
Model T1731SR-B2SEAN 4948570127702
95 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Energy classE
- Weight5.4 kg
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Energy class
- E
- Weight
- 5.4 kg
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- iiyama
- Category
- Monitor
- Model
- T1731SR-B2S
- Part number
- T1731SR-B2S
- EAN / UPC
- 4948570127702
- Also known as
- iiyama ProLite T1731SR-B2S computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Table Black
Specifications
95 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Touchscreen type | Table |
| Touchscreen technology | Resistive |
| Touch technology | Single-touch |
| Number of simultaneous touchpoints | 1 |
| Display brightness (peak) | 250 cd/m² |
| Display brightness (typical) | 195 cd/m² |
| Display brightness | 195 cd/m² |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display diagonal (metric) | 43 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone out | No |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 387 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 5.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 470 mm |
| Package depth | 180 mm |
| Package height | 445 mm |
| Package weight | 7.3 kg |
| USB cable length | 1.8 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Quick start guide | Yes |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Active display area (W x H) | 338 x 270 mm |
| Brightness | 195 cd/m² |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Depth | 239.5 mm |
| Height | 378 mm |
| Packaging content | Screwdriver |
| Weight | 5.4 kg |
| Width | 387 mm |
| Mean time between failures (MTBF) | 50000 h |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Touch method | stylus, finger, glove, glove (latex) |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
