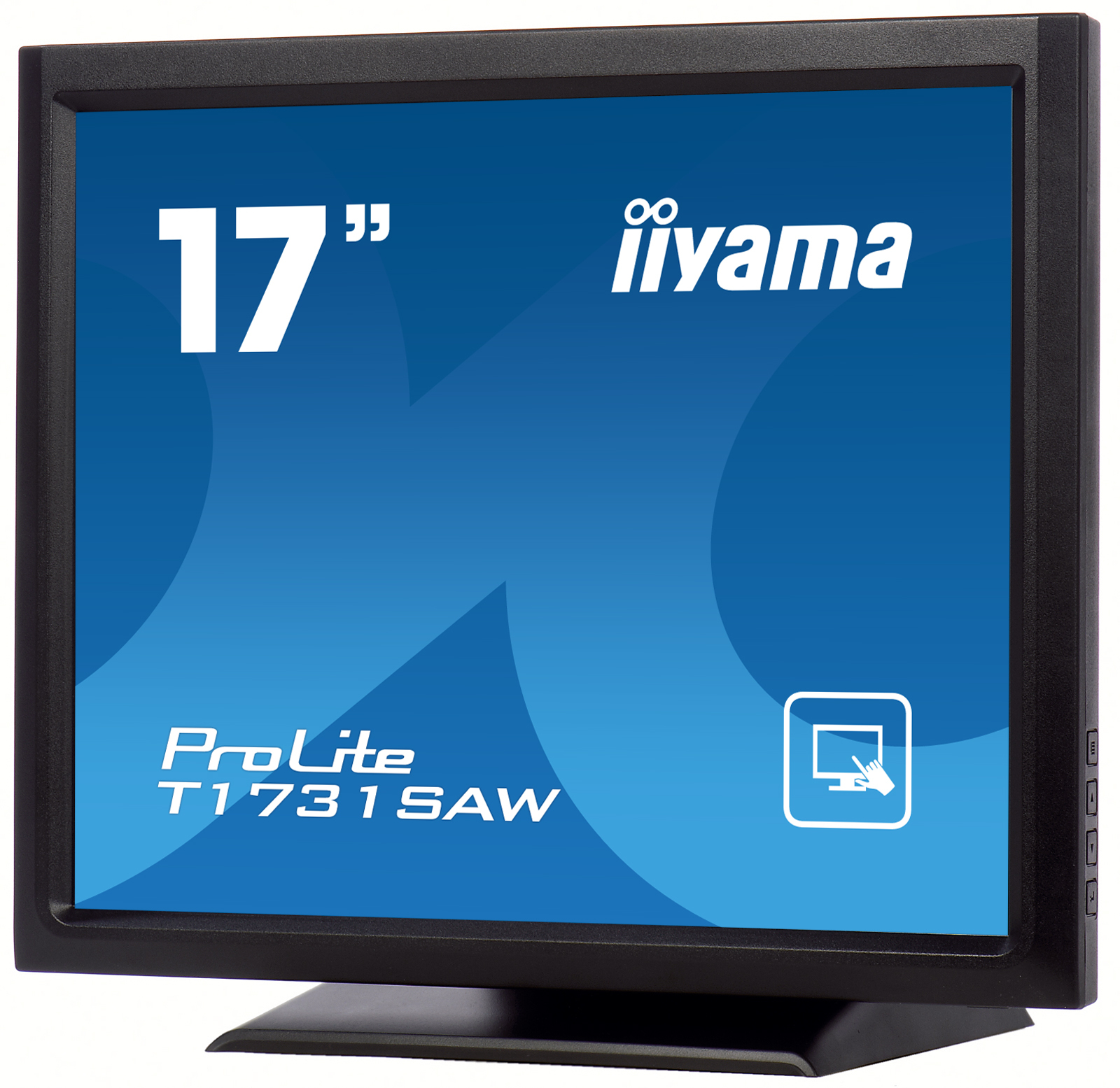

T1731SAW-1 computer monitor
43.2 cm (17") 1280 x 1024 pixels HD Touchscreen Black
Model T1731SAW-1
61 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight5.8 kg
- ColourBlack
- Mac operating systems supportedYes
- Number of downstream ports0
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 5.8 kg
- Colour
- Black
- Mac operating systems supported
- Yes
- Number of downstream ports
- 0
- Brand
- iiyama
- Category
- Monitor
- Model
- T1731SAW-1
- Part number
- T1731SAW-1
- Also known as
- iiyama T1731SAW-1 computer monitor 43.2 cm (17") 1280 x 1024 pixels HD Touchscreen Black
Specifications
61 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Touchscreen | Yes |
| HD type | HD |
| Panel type | TN |
| Touchscreen technology | Surface acoustic wave |
| Display brightness | 230 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.5 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display diagonal (metric) | 43 cm |
Performance
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Front bezel colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of downstream ports | 0 |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 3 W |
| Power consumption (off) | 3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 387 mm |
| Depth (with stand) | 201 mm |
| Height (with stand) | 342 mm |
| Weight (with stand) | 5.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Active display area (W x H) | 338 x 270 mm |
| Brightness | 230 cd/m² |
| Compliance certificates | CE, REACH, RoHS, TÜV mark, VCCI, WEEE |
| Depth | 201 mm |
| Height | 342 mm |
| USB ports quantity | 0 |
| Weight | 5.8 kg |
| Width | 387 mm |
| Certification | CE, TÜV-Bauart, RoHS, ErP, WEEE, VCCI, REAC |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select/ Auto, Power |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
