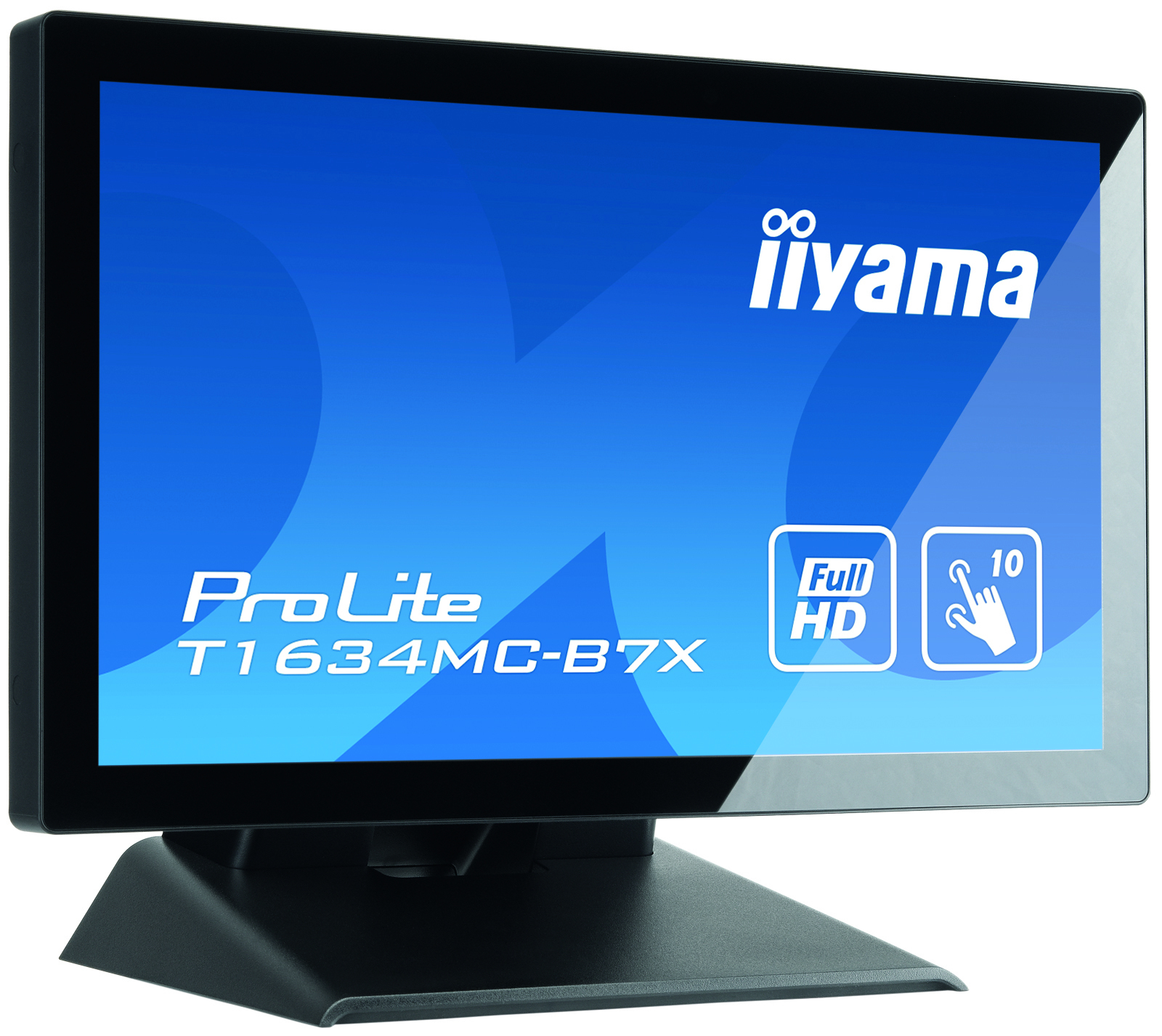

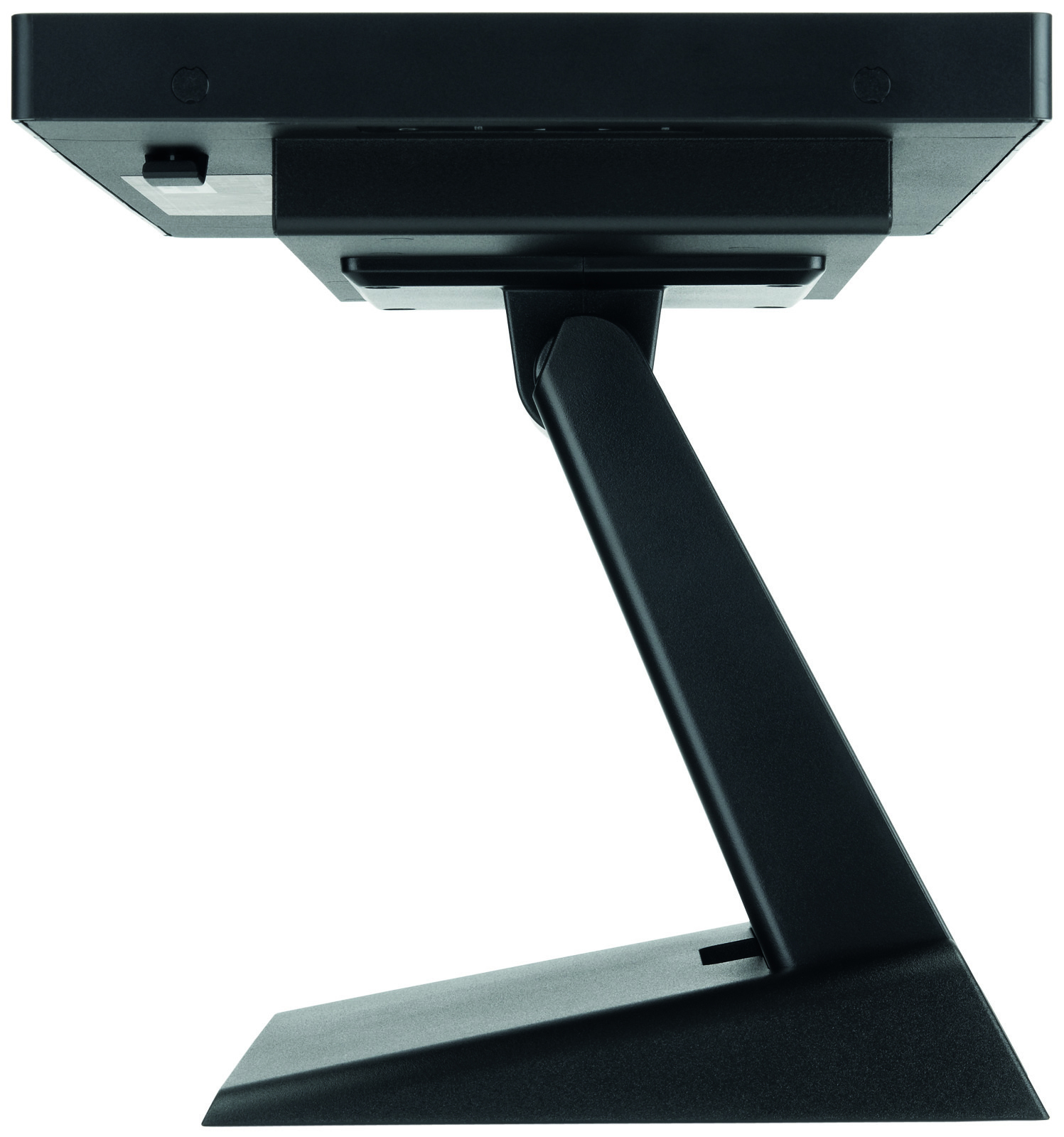

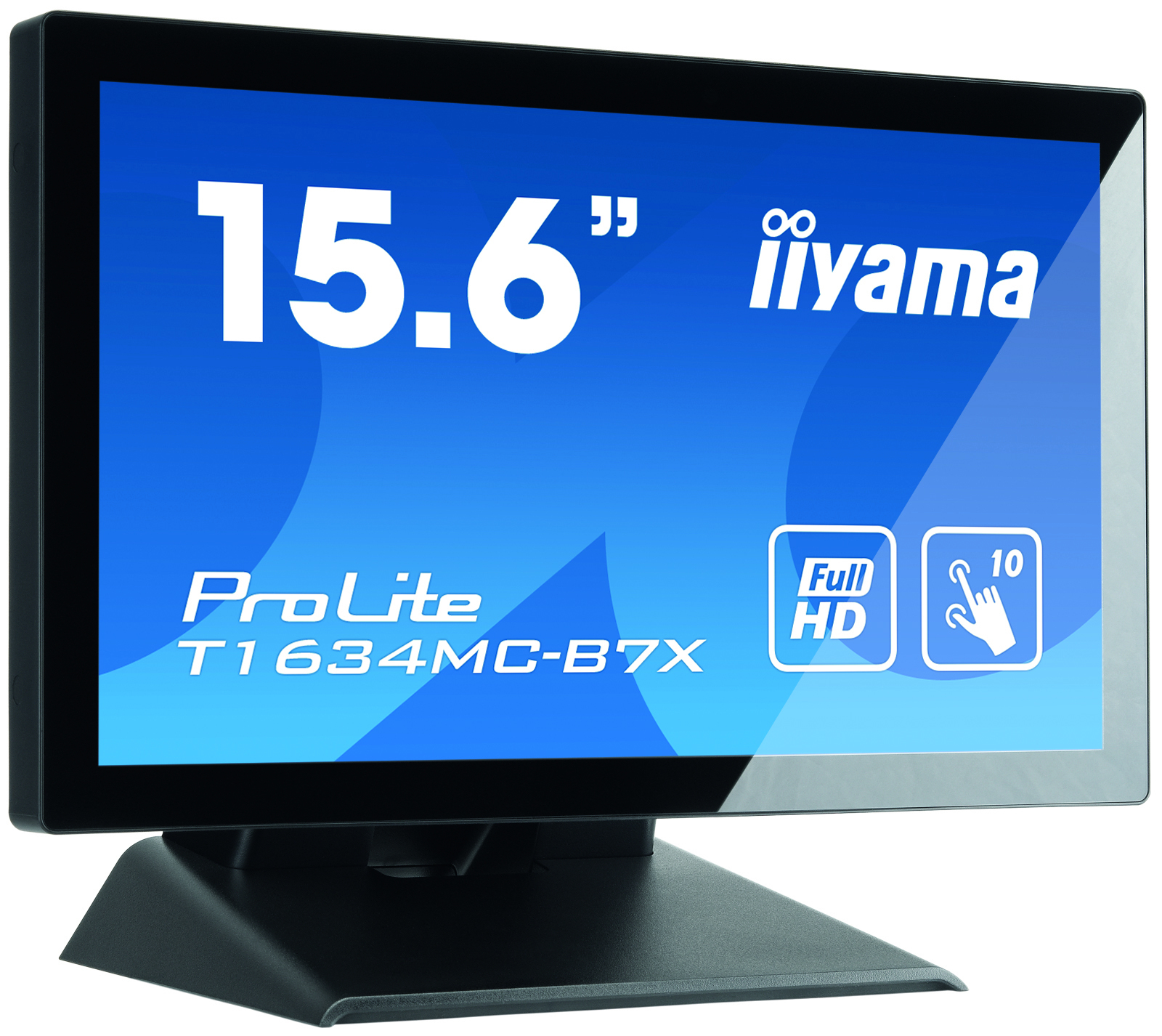

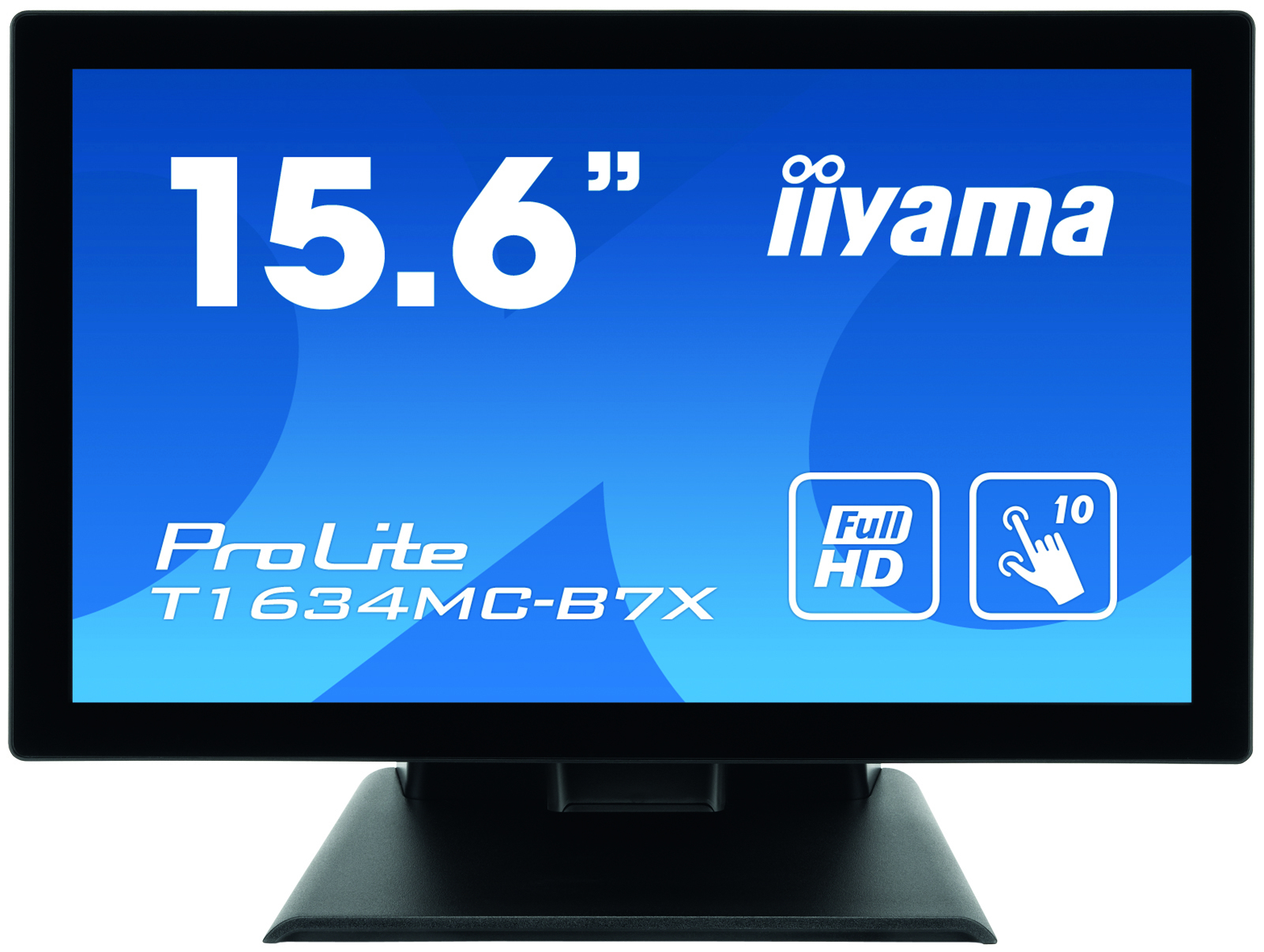

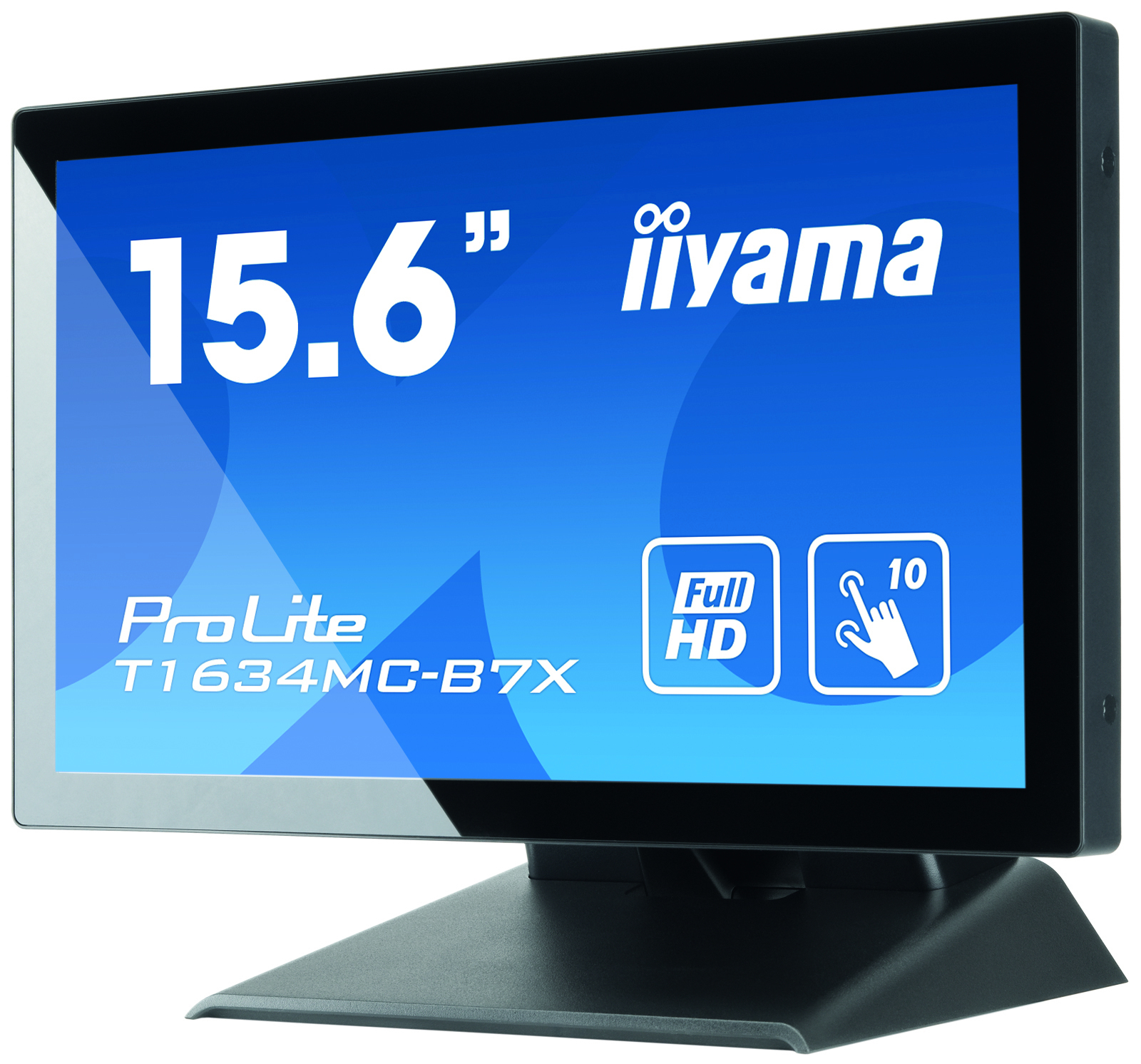

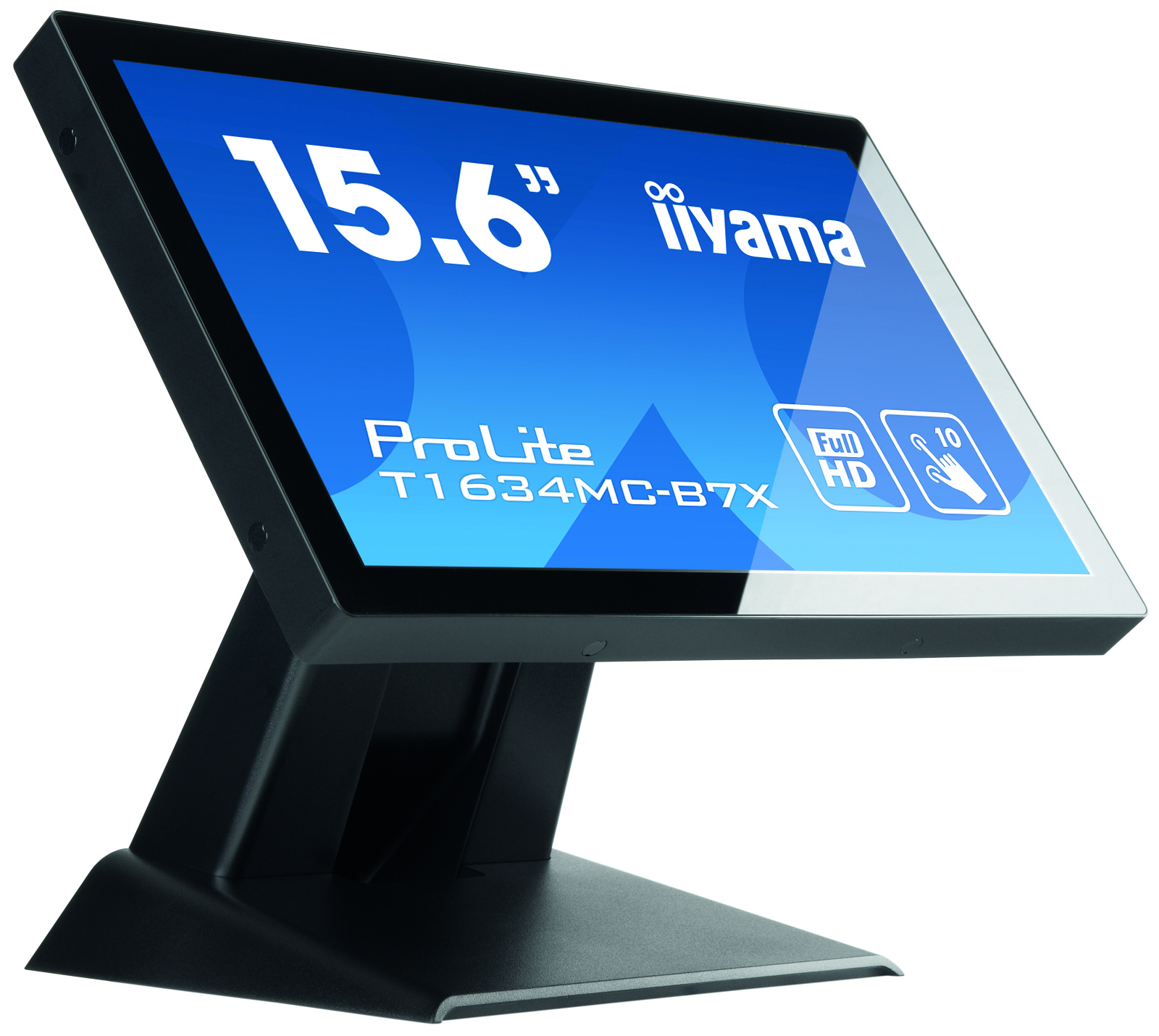

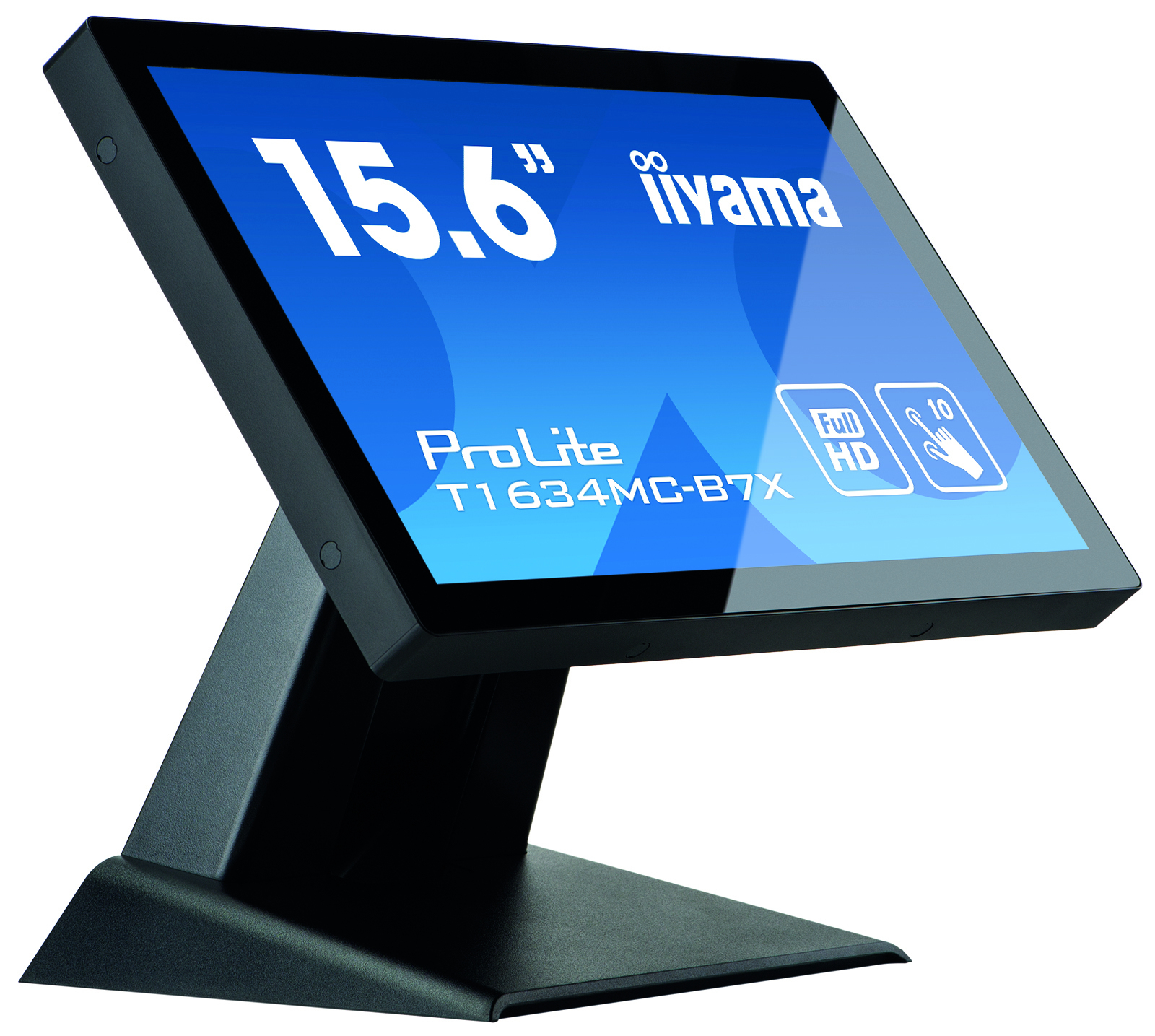

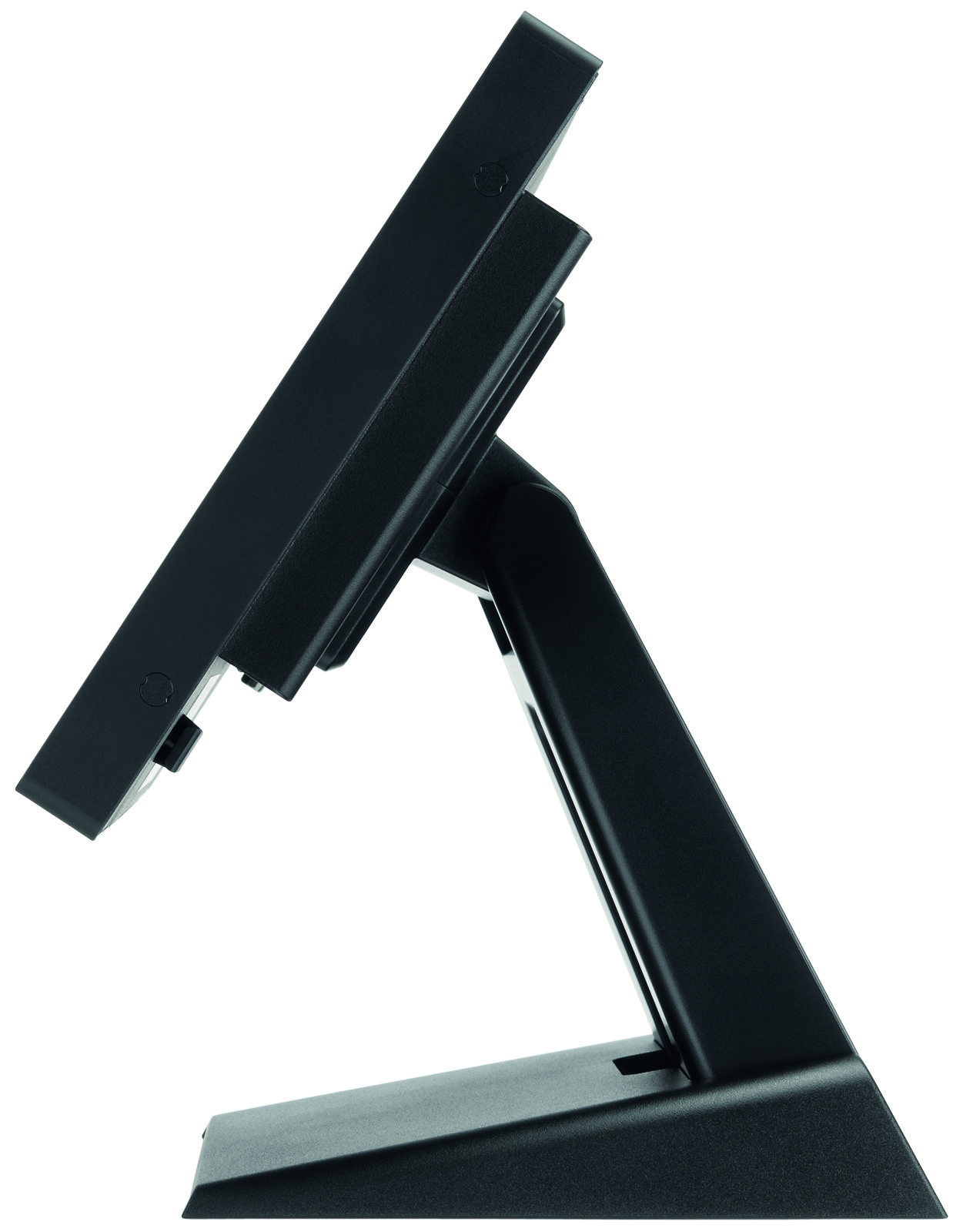

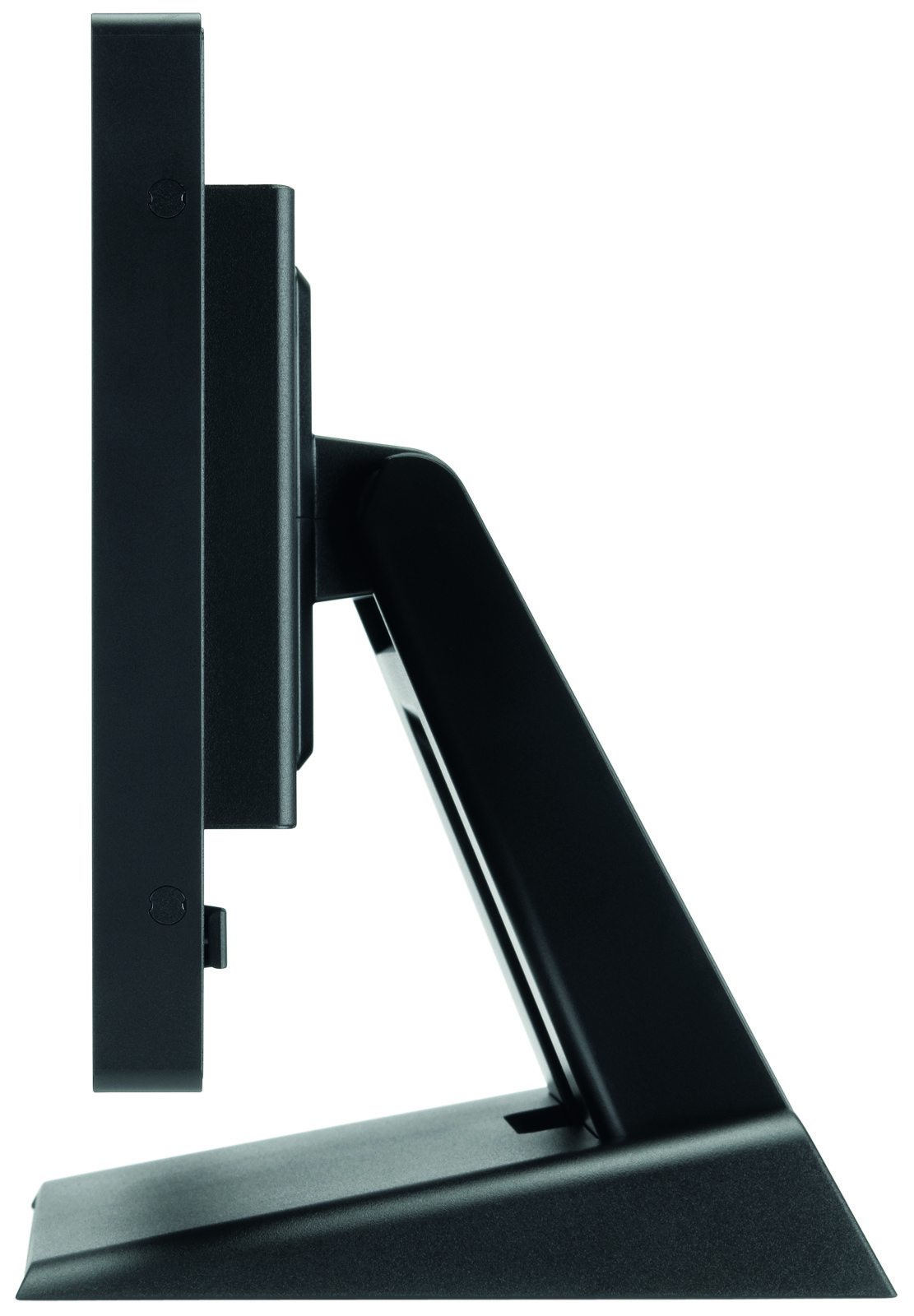

ProLite T1634MC-B7X computer monitor
39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Model T1634MC-B7XEAN 4948570117611
68 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- USB Touch portYes
- Power consumption (typical)18 W
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- USB Touch port
- Yes
- Power consumption (typical)
- 18 W
- Brand
- iiyama
- Category
- Monitor
- Model
- T1634MC-B7X
- Part number
- T1634MC-B7X
- EAN / UPC
- 4948570117611
- Also known as
- iiyama ProLite T1634MC-B7X computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Specifications
68 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 450 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Horizontal scan range | 30 - 84 kHz |
| Vertical scan range | 56 - 76 Hz |
| Display diagonal (metric) | 39.5 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Glass thickness | 2.4 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power supply type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 381 mm |
| Depth (with stand) | 202 mm |
| Height (with stand) | 285.5 mm |
| Weight (with stand) | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 455 mm |
| Package depth | 290 mm |
| Package height | 365 mm |
| Package weight | 6.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Compliance certificates | RoHS |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Certification | CE, EAC, ErP, WEEE, cULus, REACH |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
