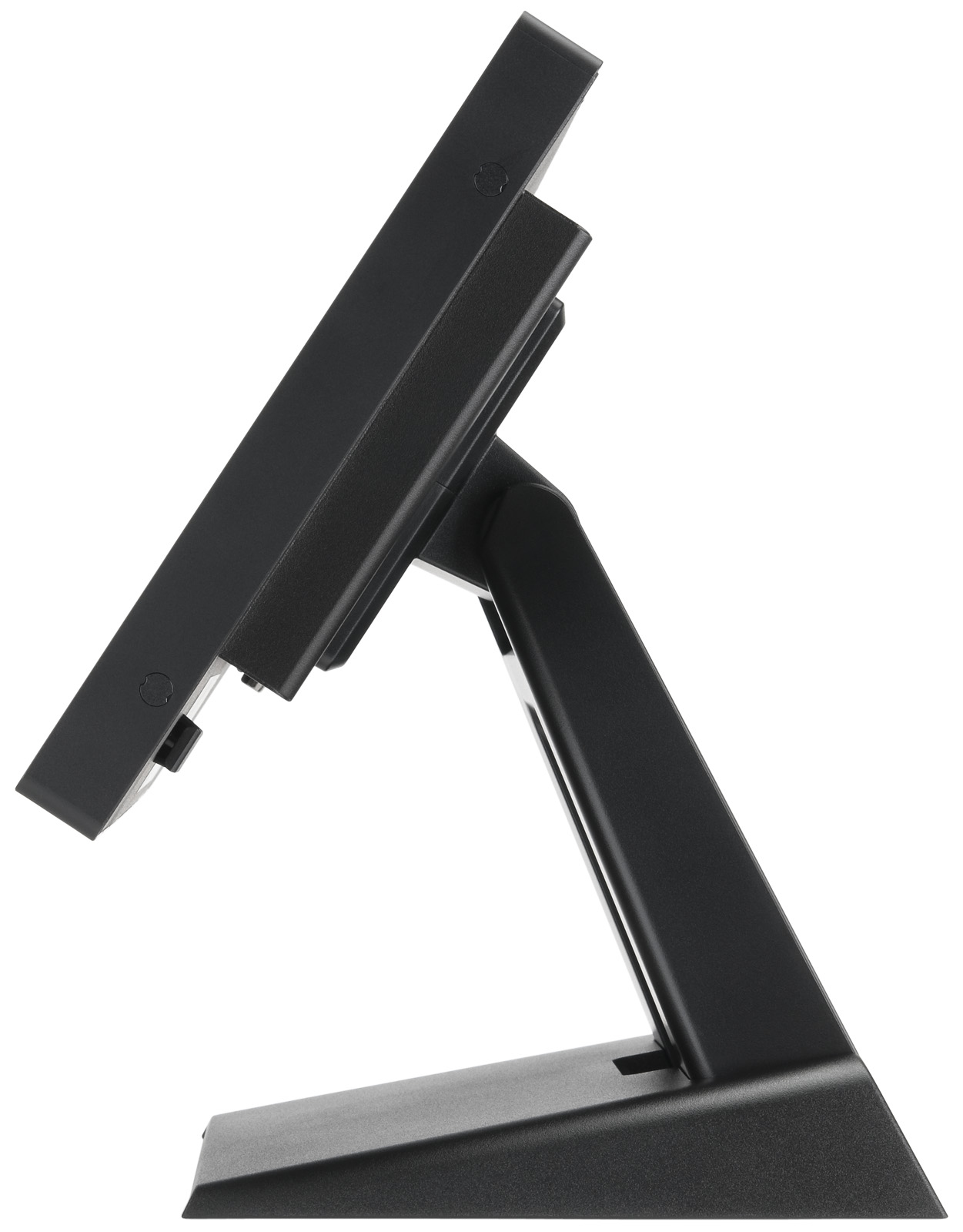

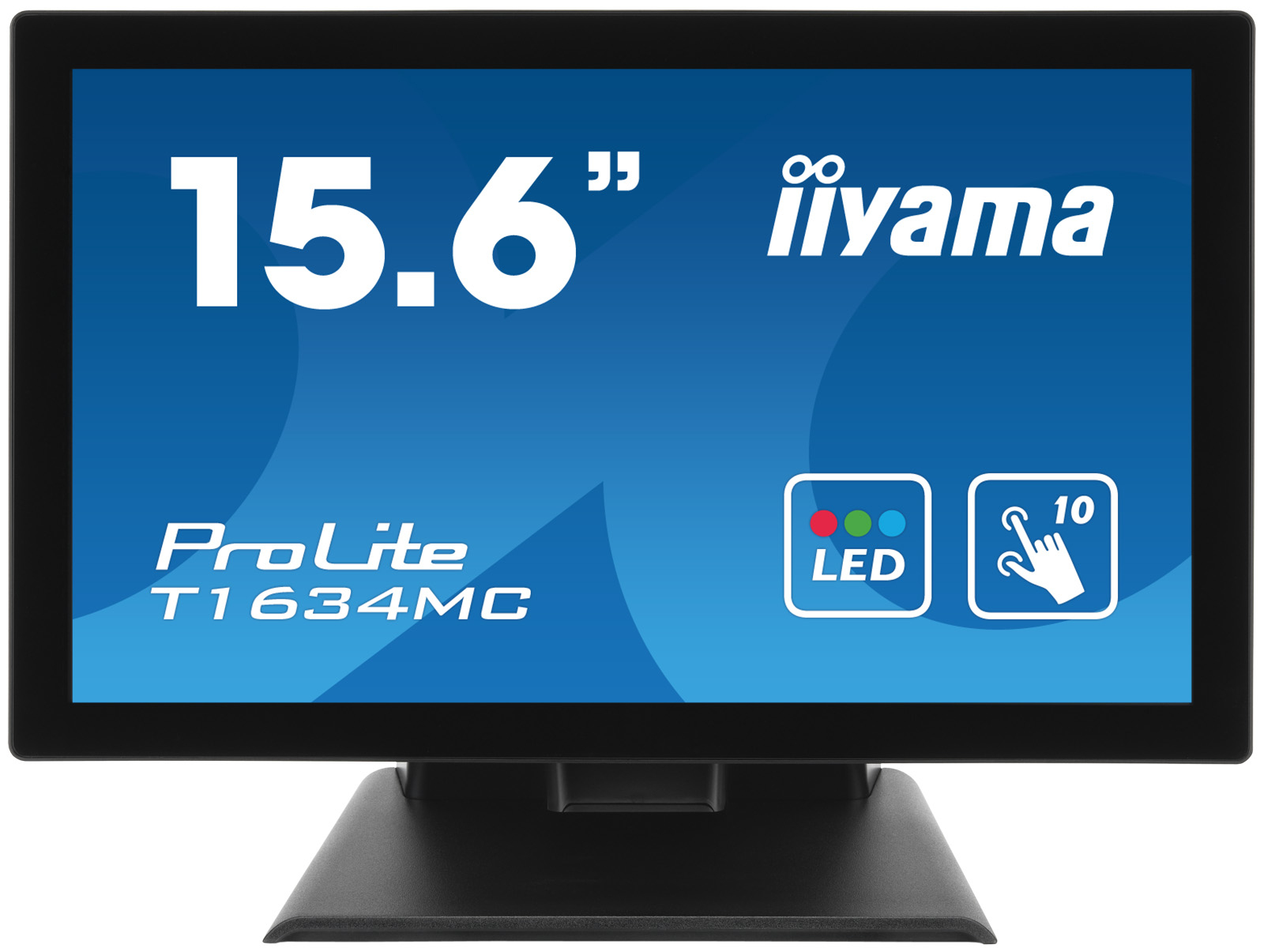

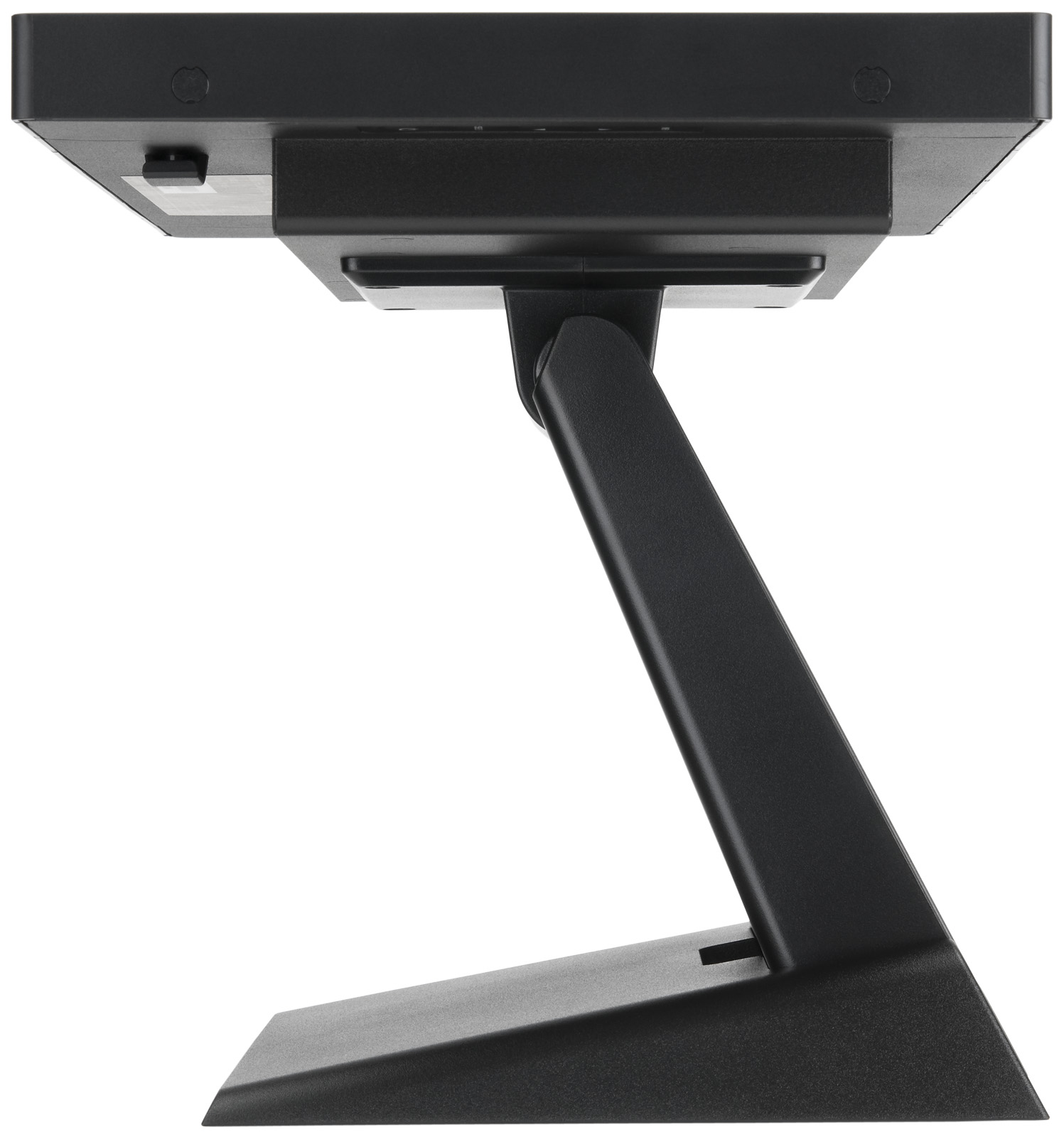

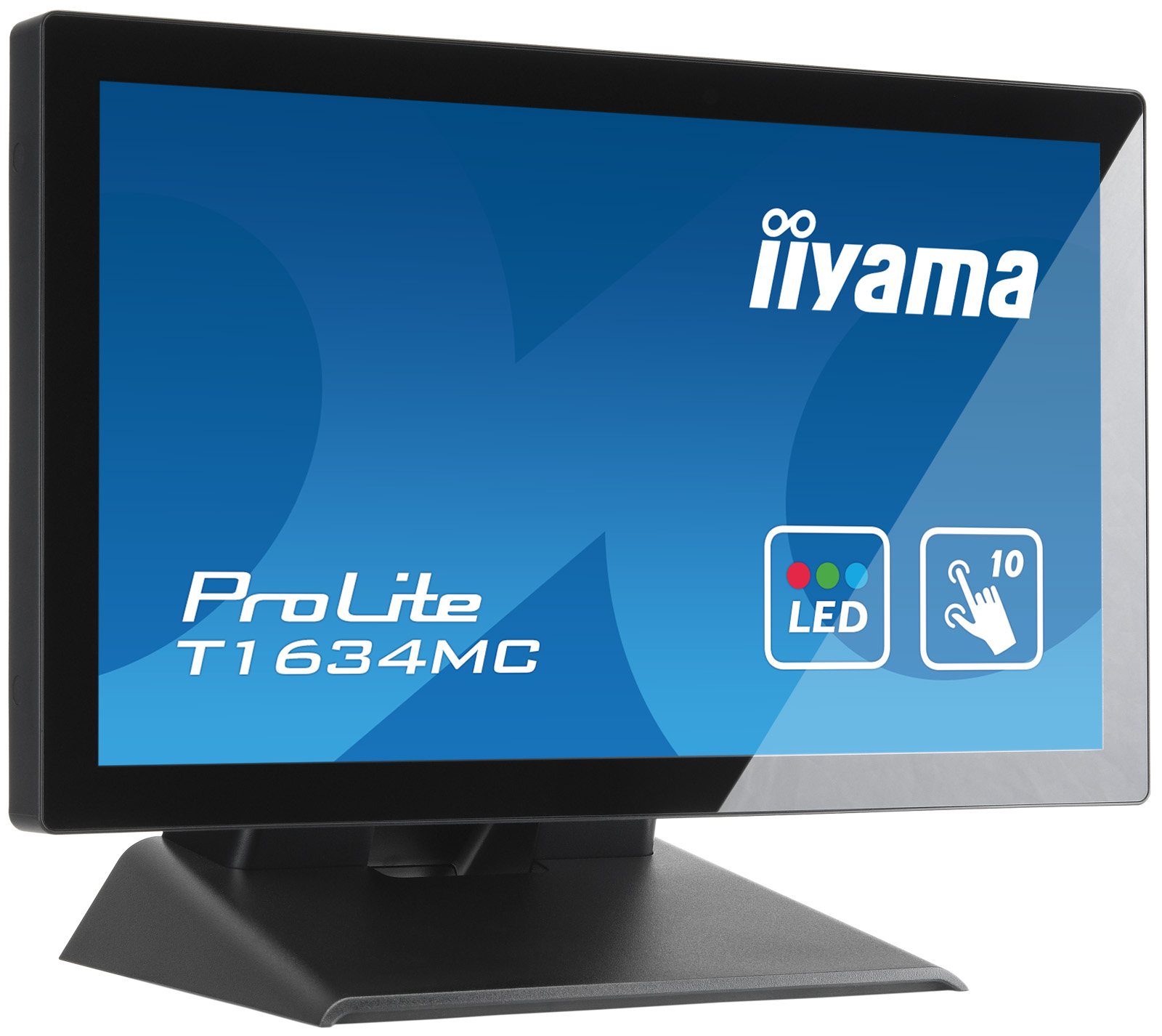

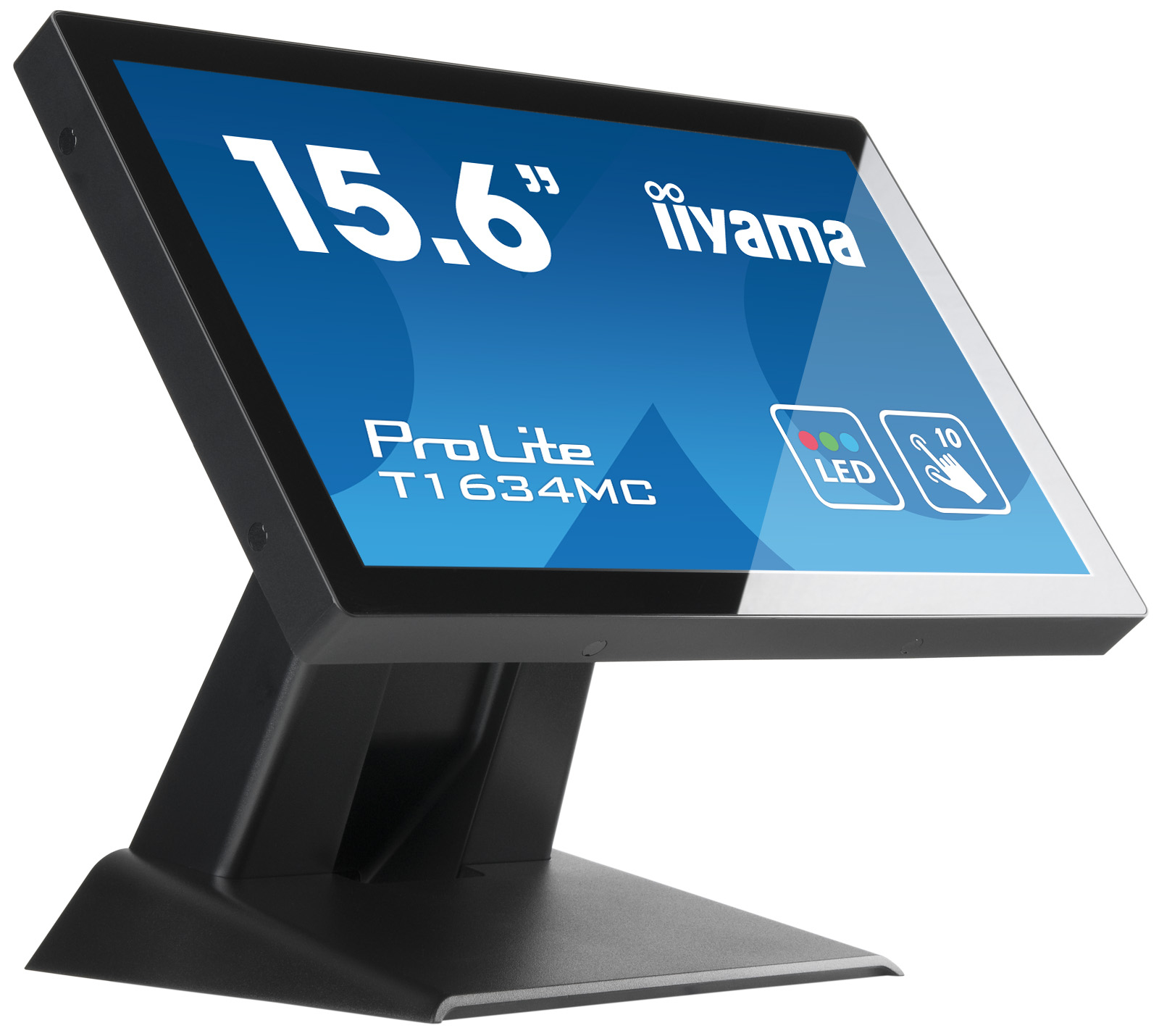

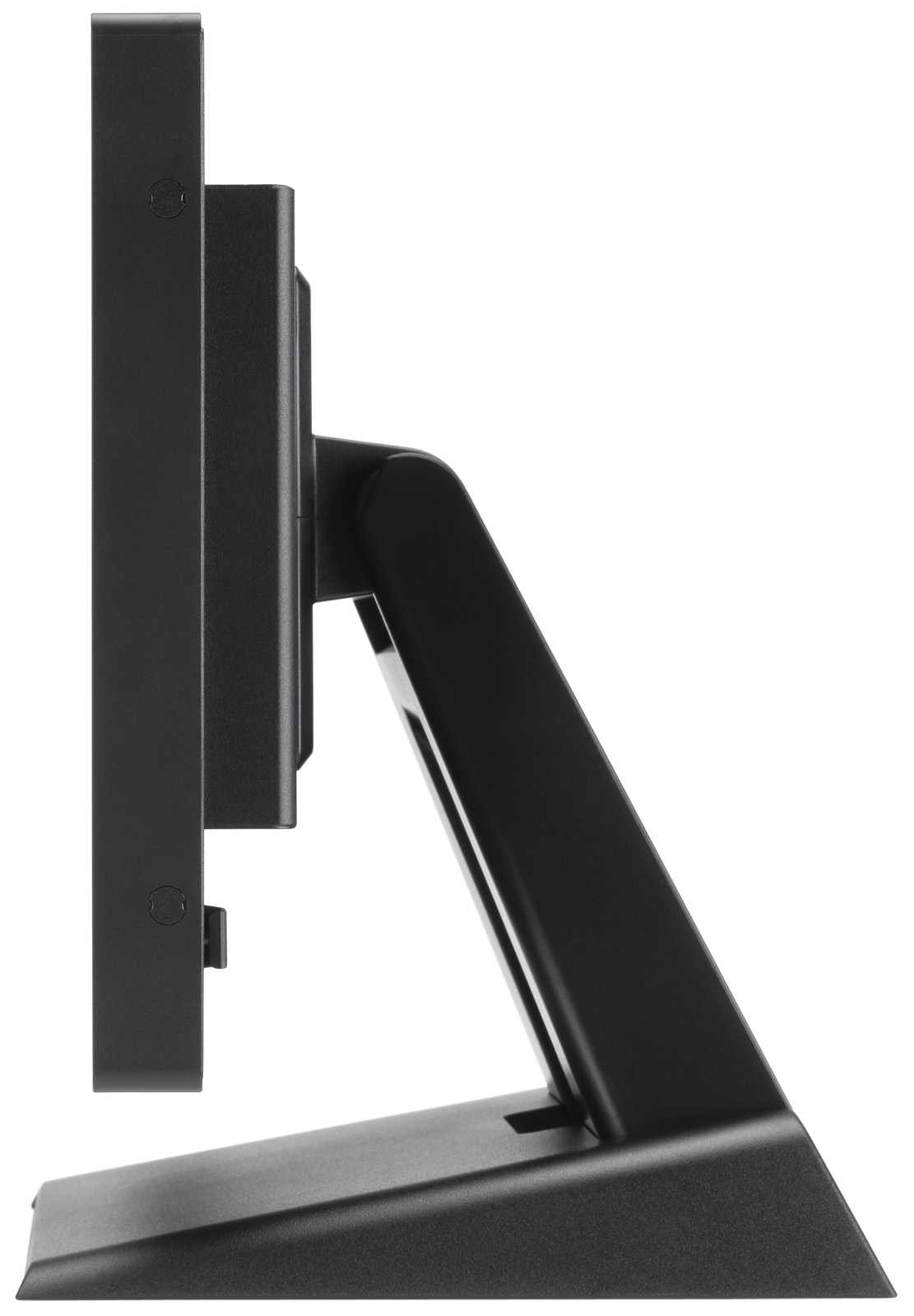

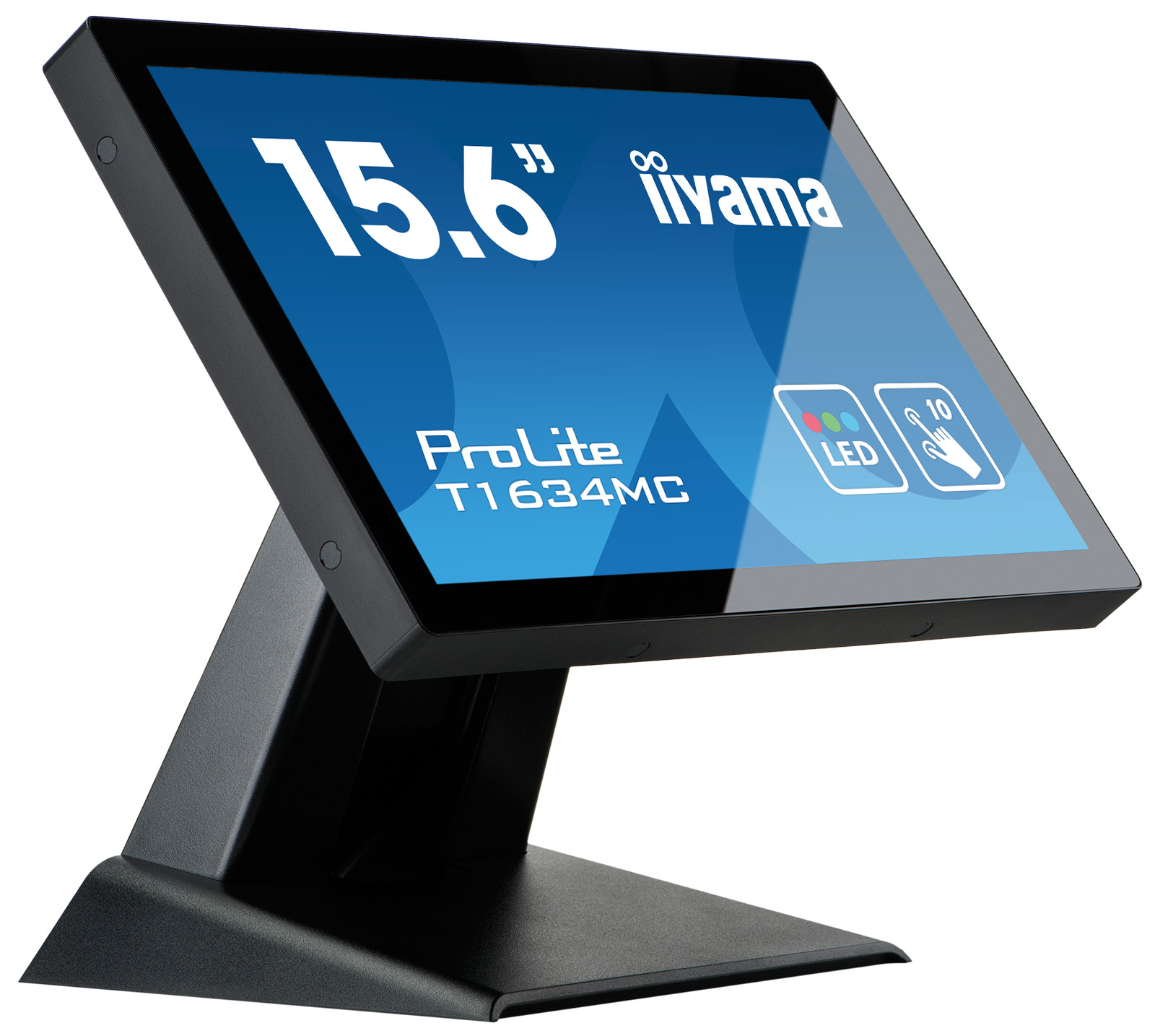

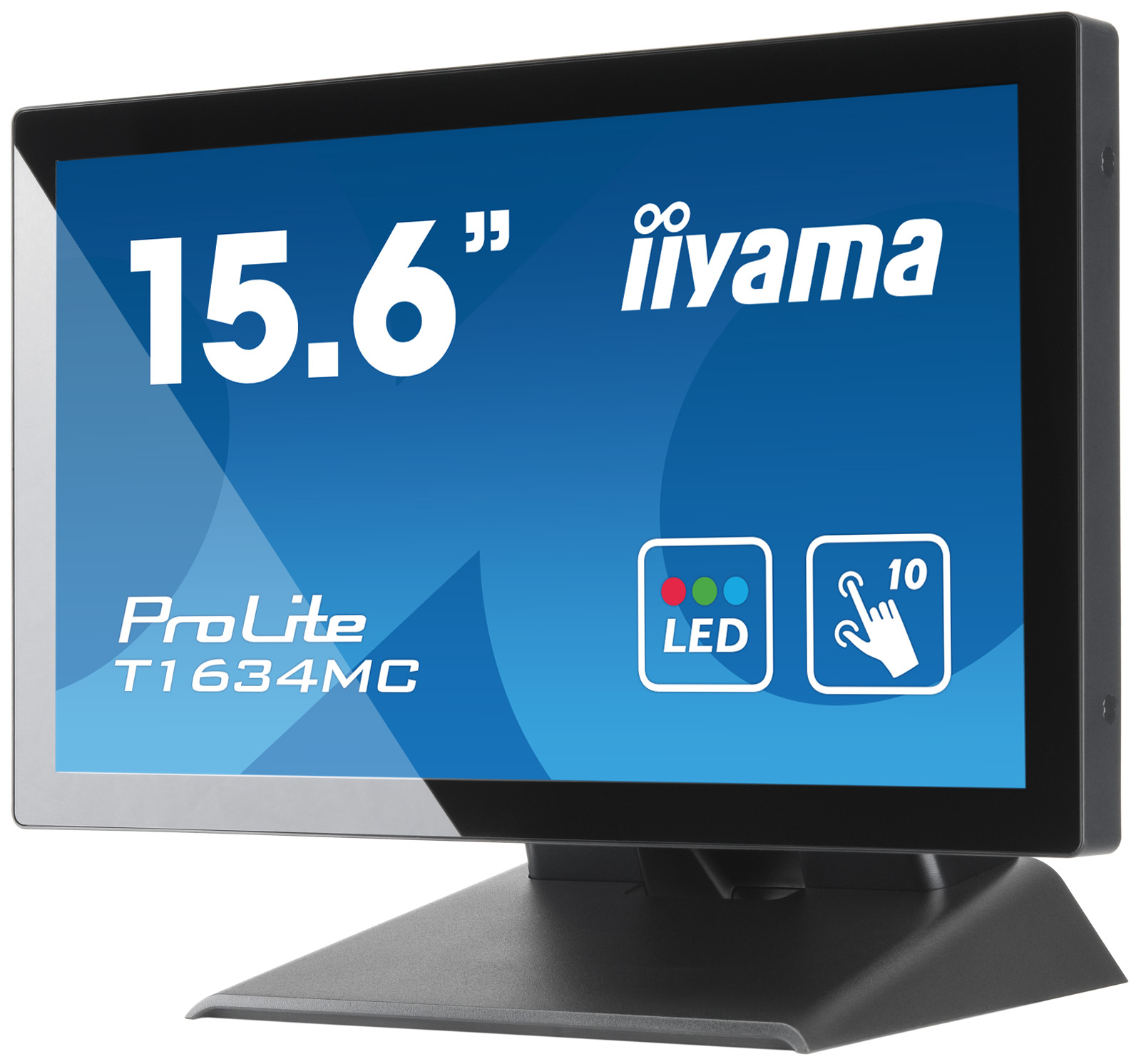

iiyama T1634MC-B5X computer monitor

39.6 cm (15.6") 1366 x 768 pixels LED Touchscreen Multi-user Black

Model T1634MC-B5XEAN 4948570116164

91 specifications Checked 2 days ago

Overview

Brand: iiyama
Category: Monitor
Model: T1634MC-B5X
Part number: T1634MC-B5X
EAN / UPC: 4948570116164
Also known as: iiyama T1634MC-B5X computer monitor 39.6 cm (15.6") 1366 x 768 pixels LED Touchscreen Multi-user Black

91 specifications in 13 groups

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
Panel type	TN
LED backlight	Yes
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness (typical)	400 cd/m²
Display brightness	360 cd/m²
Response time	8 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Aspect ratio	16:9
Contrast ratio (typical)	500:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.7 million colours
Pixel pitch	0.252 x 0.252 mm
Horizontal scan range	31.4 - 60.3 kHz
Viewable size, horizontal	34.4 cm
Viewable size, vertical	19.4 cm
Digital horizontal frequency	31.4 - 60.3 kHz
Digital vertical frequency	56 - 75 Hz
Display diagonal (metric)	39.5 cm
Separate H/V sync	Yes

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
OmniTapps Multitouch compatibility	No

Specification	Value
Product colour	Black
Front bezel colour	Black

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Cable management	Yes
Tilt adjustment	Yes
Tilt angle range	-5 - 90°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	7
Plug and Play	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Specification	Value
Cables included	AC, USB, HDMI, DisplayPort
Quick start guide	Yes

Specification	Value
Sustainability certificates	ErP

Specification	Value
International Protection (IP) code	IP54
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included	Yes
Active display area (W x H)	344.2 x 193.5 mm
Brightness	360 cd/m²
Compliance certificates	CE, cULus, REACH, RoHS, TÜV mark, VCCI, WEEE
Depth	202 mm
Display viewable area (HxV)	344.2 x 193.5 mm
HD-Ready	Yes
Height	285.5 mm
Packaging content	AC adapter, Touch Panel Driver Disk (CD-ROM)
Weight	4.4 kg
Width	381 mm
Certification	CE, TÜV-Bauart, CU, cULus, VCCI
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method	stylus, finger, glove (latex)
User controls	contrast, brightness, power, OSD, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature

Specification	Value
Harmonized System (HS) code	85285210
