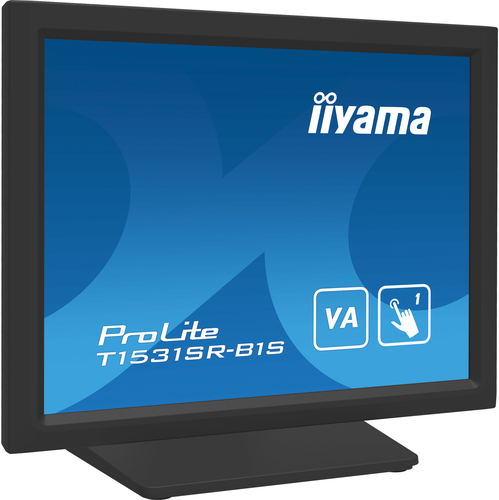

T1531SR-B1S computer monitor

38.1 cm (15") 1024 x 768 pixels XGA LCD Touchscreen Black

Model T1531SR-B1SEAN 4948570122073

92 specifications Checked today

Display38.1 cm (15")
Resolution1024 x 768 pixels
Energy classE
Weight4.1 kg
ColourBlack
NVIDIA G-SYNCNo

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1024 x 768 pixels
Energy class: E
Weight: 4.1 kg
Colour: Black
NVIDIA G-SYNC: No

Brand: iiyama
Category: Monitor
Model: T1531SR-B1S
Part number: T1531SR-B1S
EAN / UPC: 4948570122073
Also known as: iiyama T1531SR-B1S computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LCD Touchscreen Black

Specifications

92 specifications in 13 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3
Display technology	LCD
Touchscreen	Yes
HD type	XGA
Panel type	VA
Touchscreen technology	Resistive
Touch technology	Single-touch
Number of simultaneous touchpoints	1
Display brightness (peak)	350 cd/m²
Display brightness (typical)	350 cd/m²
Display brightness	270 cd/m²
Response time	18 ms
Screen shape	Flat
Contrast ratio (typical)	2500:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Display number of colours	16.2 million colours
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31.5 - 60 kHz
Viewable size, horizontal	30.4 cm
Viewable size, vertical	22.8 cm
Display diagonal (metric)	38 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Product colour	Black
Front bezel colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
USB Touch port	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Audio input	Yes
HDCP	Yes

Ergonomics

Specification	Value

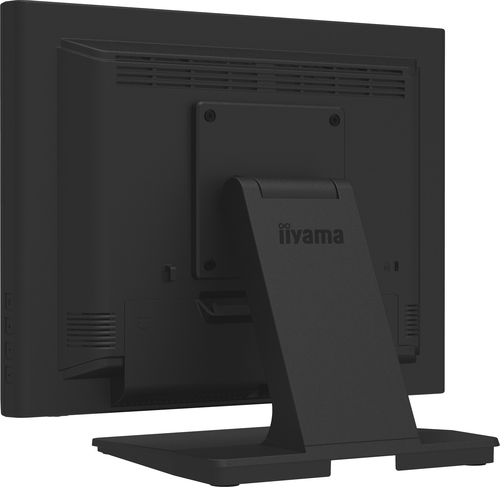

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 90°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	11 kWh
Power consumption (typical)	16 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	351 mm
Depth (with stand)	200 mm
Height (with stand)	306.5 mm
Weight (with stand)	4.1 kg

Packaging data

Specification	Value
Package width	425 mm
Package depth	160 mm
Package height	410 mm
Package weight	5.9 kg
USB cable length	1.8 m

Packaging content

Specification	Value
Cables included	AC, USB, HDMI, DisplayPort, Audio
Quick start guide	Yes
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Power cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	ErP

Other features

Specification	Value
International Protection (IP) code	IP54
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Active display area (W x H)	304 x 228 mm
Brightness	270 cd/m²
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Depth	200 mm
Height	306.5 mm
Packaging content	Screwdriver
Weight	4.1 kg
Width	351 mm
Mean time between failures (MTBF)	50000 h
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch method	stylus, finger, glove, glove (latex)
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, mute, factory)

Technical details

Specification	Value
Native refresh rate	60 Hz
