RED EAGLE CURVED

Model RED EAGLE CURVEDPart no. GCB4580DQSN-B1EAN 4948570122264

118 specifications Checked today

Display113 cm (44.5")
Resolution5120 x 1440 pixels
Energy classF
Weight11.2 kg
ColourBlack
AMD FreeSyncYes

See all specifications

Overview

Display: 113 cm (44.5")
Resolution: 5120 x 1440 pixels
Energy class: F
Weight: 11.2 kg
Colour: Black
AMD FreeSync: Yes

Brand: iiyama
Category: Monitor
Model: RED EAGLE CURVED
Part number: GCB4580DQSN-B1
EAN / UPC: 4948570122264
Also known as: iiyama G-MASTER RED EAGLE CURVED computer monitor 113 cm (44.5") 5120 x 1440 pixels Dual QHD LED Black

Specifications

118 specifications in 15 groups

Display

Specification	Value
Display diagonal	113 cm (44.5")
Display resolution	5120 x 1440 pixels
Native aspect ratio	32:9
Display technology	LED
Touchscreen	No
HD type	Dual QHD
Panel type	VA
Backlight type	LED
Display brightness (typical)	450 cd/m²
Response time	0.8 ms
Response time (MPRT)	0.8 ms
Display surface	Matt
Screen shape	Curved
Screen curvature rating	1500R
Aspect ratio	32:9
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	165 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.212 x 0.212 mm
Horizontal scan range	30 - 260 kHz
Viewable size, horizontal	108.8 cm
Viewable size, vertical	30.6 cm
Digital horizontal frequency	30 - 260 kHz
Display diagonal (metric)	113 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 400
DDC/CI	Yes
Colour depth	8 bit
sRGB coverage (typical)	100%
NTSC coverage (typical)	80%

Performance

Specification	Value
AMD FreeSync	Yes
ConnectShare (USB)	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Detachable stand	Yes
Feet colour	Black

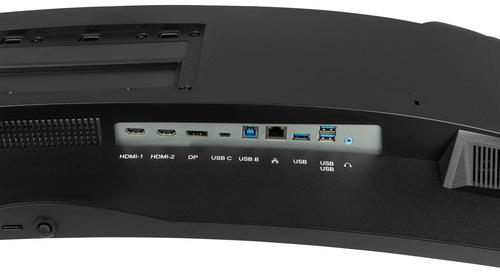

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of downstream ports	3
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
HDMI	Yes
HDMI ports quantity	2
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Yes
Headphone outputs	1
Built-in KVM switch	Yes
HDCP	Yes

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 100 mm
Wall mountable	No
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm
Tilt adjustment	Yes
Tilt angle range	3 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, German, English, French, Italian, Japanese, Dutch, Polish, Russian
Number of OSD languages	9

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	37 kWh
Energy consumption (HDR) per 1000 hours	67 kWh
Power consumption (typical)	37 W
Power consumption (standby)	37 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Weight & dimensions

Specification	Value
Width (with stand)	1090 mm
Depth (with stand)	275 mm
Height (with stand)	539 mm
Weight (with stand)	11.2 kg
Height (without stand)	409 mm
Weight (without stand)	8.9 kg

Packaging data

Specification	Value
Package width	1260 mm
Package depth	315 mm
Package height	470 mm
Package weight	16.4 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, USB, HDMI, DisplayPort
Power adapter included	Yes
Quick start guide	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ErP
Sustainability compliance	Yes

Other features

Specification	Value
Brand specific technologies	Black Equalizer, Eye Saver
Compliance certificates	CE, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Depth	275 mm
Height	409 mm
Packaging content	quick start guide, safety guide
Volume control	Buttons
Weight	11.2 kg
Width	1090 mm
Ethernet LAN (RJ-45) ports	1
Control panel	navigation button: Menu/Execution, Down (i-Style Colour), Up (Input Select), Right (Volume), Left (Night Mode), Power
User controls	picture (brightness, contrast, Black Tuner, Sharpness, OD, Adv. Contrast, Night Mode, X-Res Technology), colour (warm, normal, cool, user colour, blue light reducer, gamma), input select, PBP (PBP mode, sub win input, PBP Swap, audio input), audio (volume, mute), i-Style Mode, language, OSD settings
Supplied AC adapter type	AC

Technical details

Specification	Value
Native refresh rate	60 Hz
