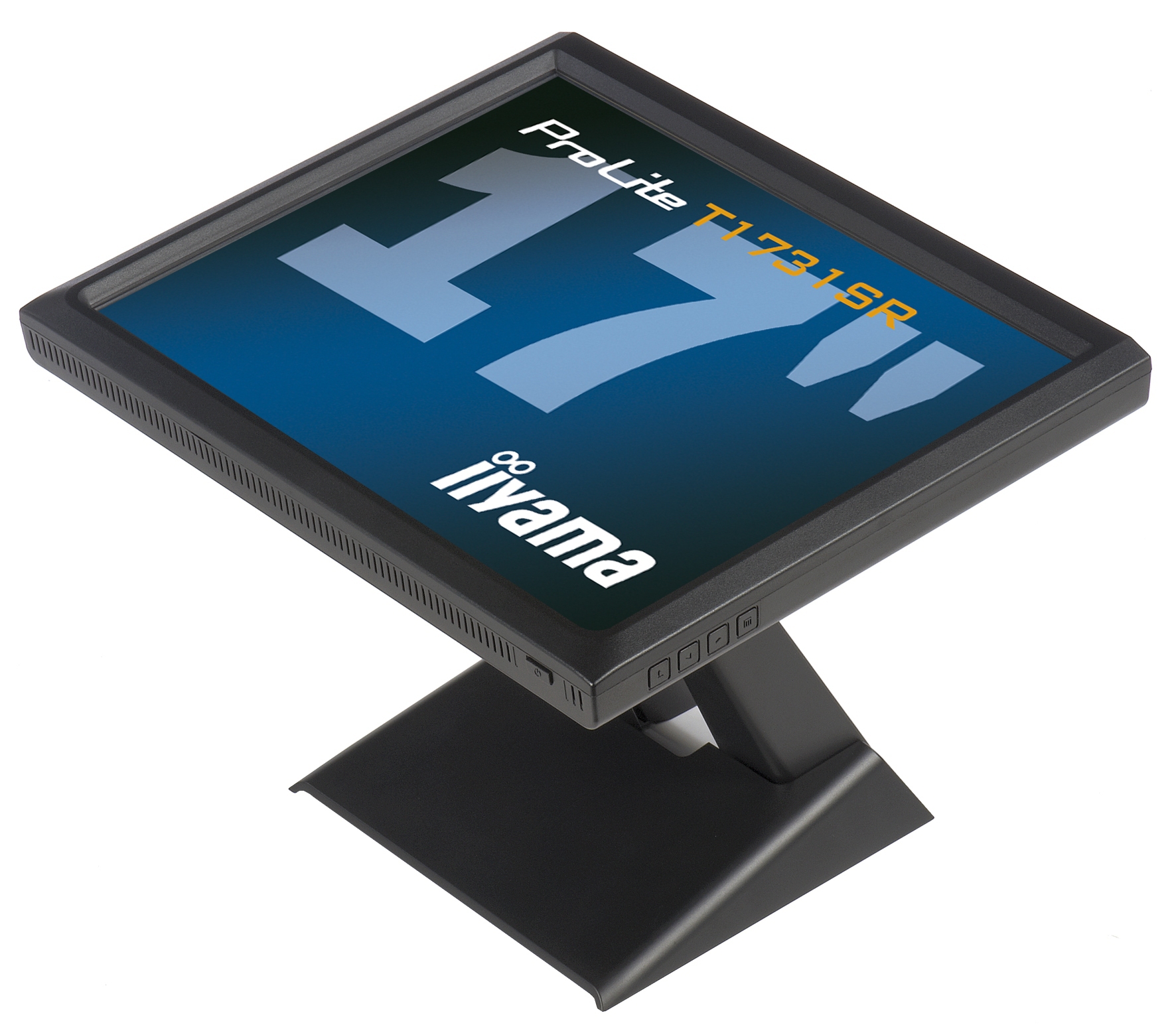

iiyama ProLite T1731SR-1

ProLite T1731SR-1

Model ProLite T1731SR-1Part no. T1731SR-W1EAN 4948570110728

86 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Number of upstream ports1

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Number of upstream ports: 1

Brand: iiyama
Category: Monitor
Model: ProLite T1731SR-1
Part numbers: T1731SR-W1, T1731SR-B1
EAN / UPC: 4948570110728, 4948570110735, 5054629210130, 5054629507728
Also known as: iiyama ProLite T1731SR-1 computer monitor 43.2 cm (17") 1280 x 1024 pixels LED Touchscreen Tabletop Black

Specifications

86 specifications in 12 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	Yes
Touchscreen type	Tabletop
Touchscreen technology	Resistive
Display brightness	200 cd/m²
Response time	5 ms
Screen shape	Flat
Aspect ratio	5:4
Contrast ratio (typical)	900:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	31.5 - 80 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Viewable size diagonal	43 cm
Display diagonal (metric)	43 cm
3D	No
Separate H/V sync	Yes
Composite sync	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supported	Mac OS 9.0, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
OmniTapps Multitouch compatibility	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Product colour	Black

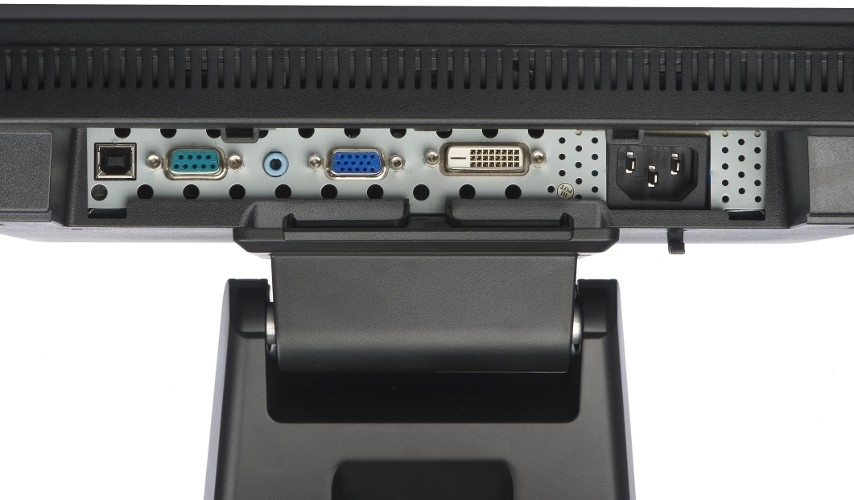

Ports & interfaces

Specification	Value
Number of upstream ports	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	0
Audio input	1
RS-232C	Yes
S-Video inputs quantity	0

Ergonomics

Specification	Value

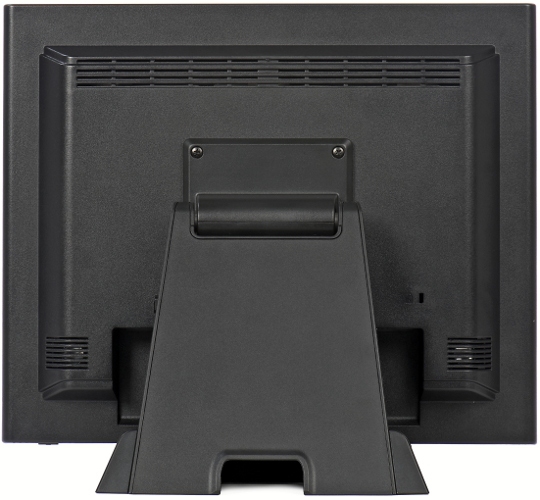

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes

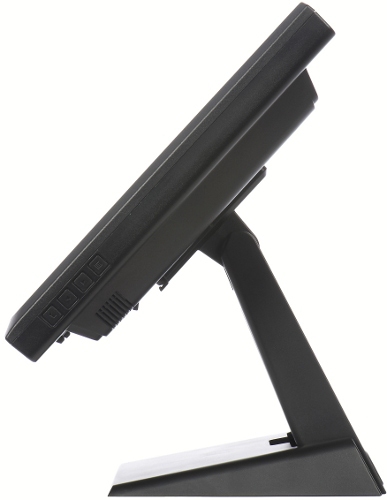

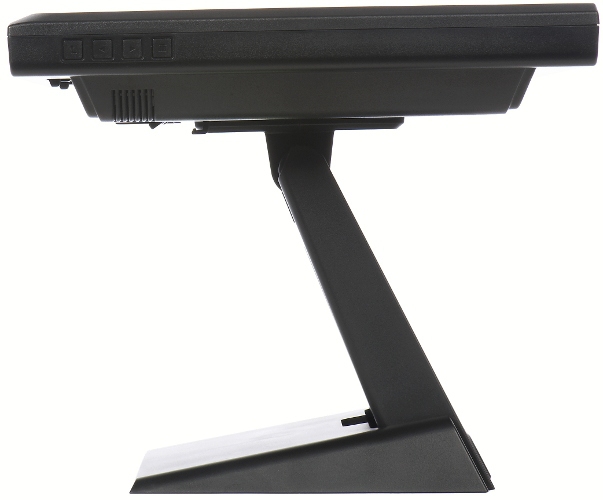

Tilt adjustment	Yes
Tilt angle range	-5 - 90°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	20 W
Power consumption (PowerSave)	2 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	AC

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	387 x 201 x 342 mm
Width (with stand)	387 mm
Depth (with stand)	201 mm
Height (with stand)	342 mm
Weight (with stand)	5.8 kg
Width (without stand)	387 mm
Depth (without stand)	59 mm
Height (without stand)	320 mm

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, RS-232, USB, VGA
Remote control included	No
Quick start guide	Yes
Camera included	No

Other features

Specification	Value
International Protection (IP) code	IP54
Dimensions (WxDxH)	387 x 202 x 342 mm
TV tuner integrated	No
Display viewable area (HxV)	270 x 338 mm
Power requirements	AC 100-240V@50/60 Hz
Power management	Yes
Certification	CE, TÜV-Bauart, Gost-R, VCCI
Supplied AC adapter type	AC

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
