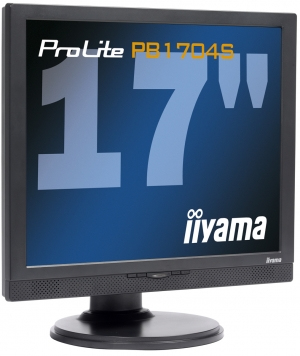

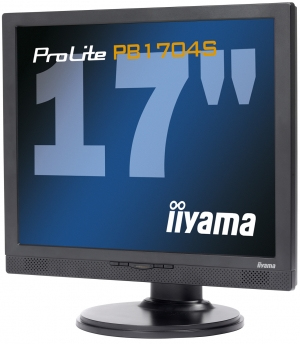

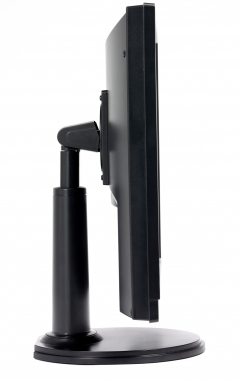

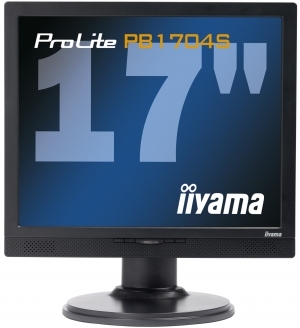

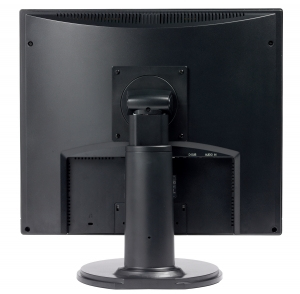

ProLite PB1704S-B2
Model ProLite PB1704S-B2Part no. PB1704S-B2EAN 4948570059829
32 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Market positioningBusiness
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Market positioning
- Business
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Brand
- iiyama
- Category
- Monitor
- Model
- ProLite PB1704S-B2
- Part number
- PB1704S-B2
- EAN / UPC
- 4948570059829
- Also known as
- iiyama ProLite PB1704S-B2 computer monitor 43.2 cm (17") 1280 x 1024 pixels Black
Specifications
32 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 27 cm |
| Viewable size, vertical | 33.8 cm |
| Separate H/V sync | Yes |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 11 cm |
| Tilt angle range | -5 - 20° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 28 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 380 mm |
| Depth (with stand) | 220 mm |
| Height (with stand) | 490 mm |
| Weight (without stand) | 5.6 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 VAC, 50 - 60 Hz |
| Certification | TCO '03, TÜV-ERGO, CE, CB, TÜV-GS |
